HDH-06020GID(40) Overview

coupler I type 6.0ghz 20db

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

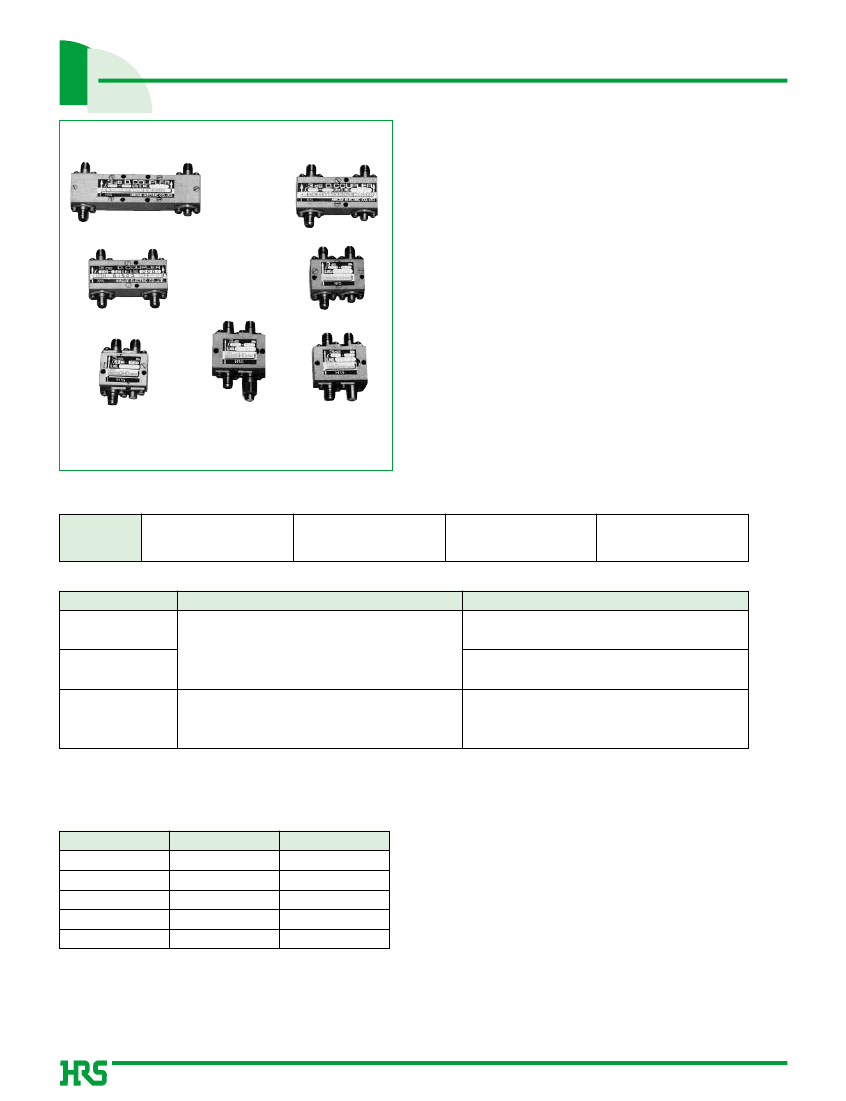

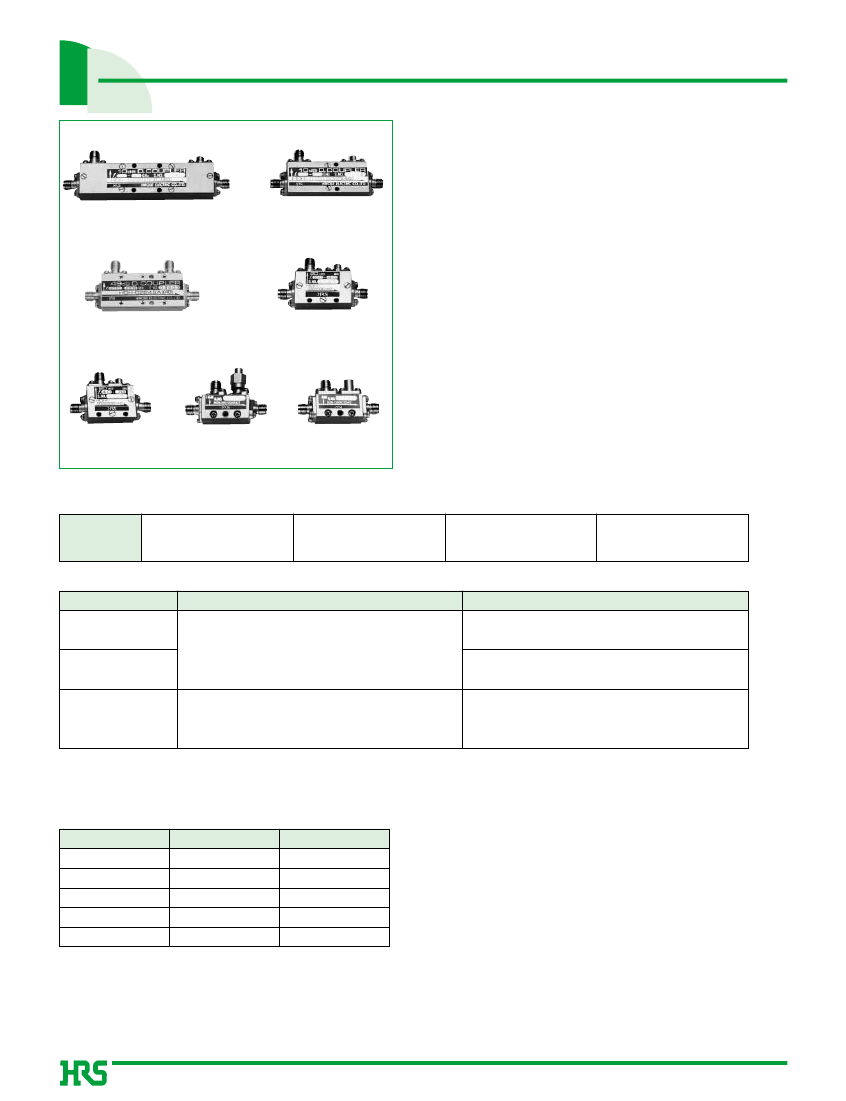

Couplers with Connectors (H Type)
HDH Series
s
Features

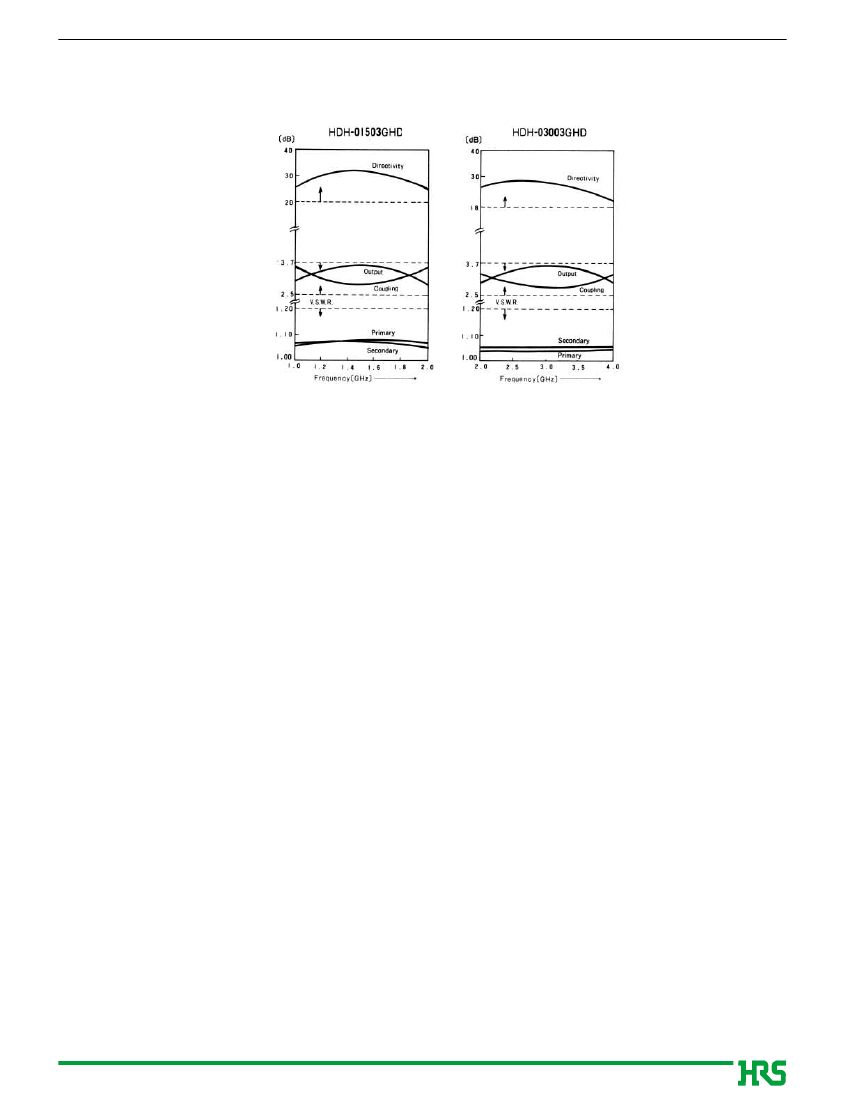

1.High Performance
The high frequency characteristics feature
extremely low loss, a high degree of matching, and
high isolation.

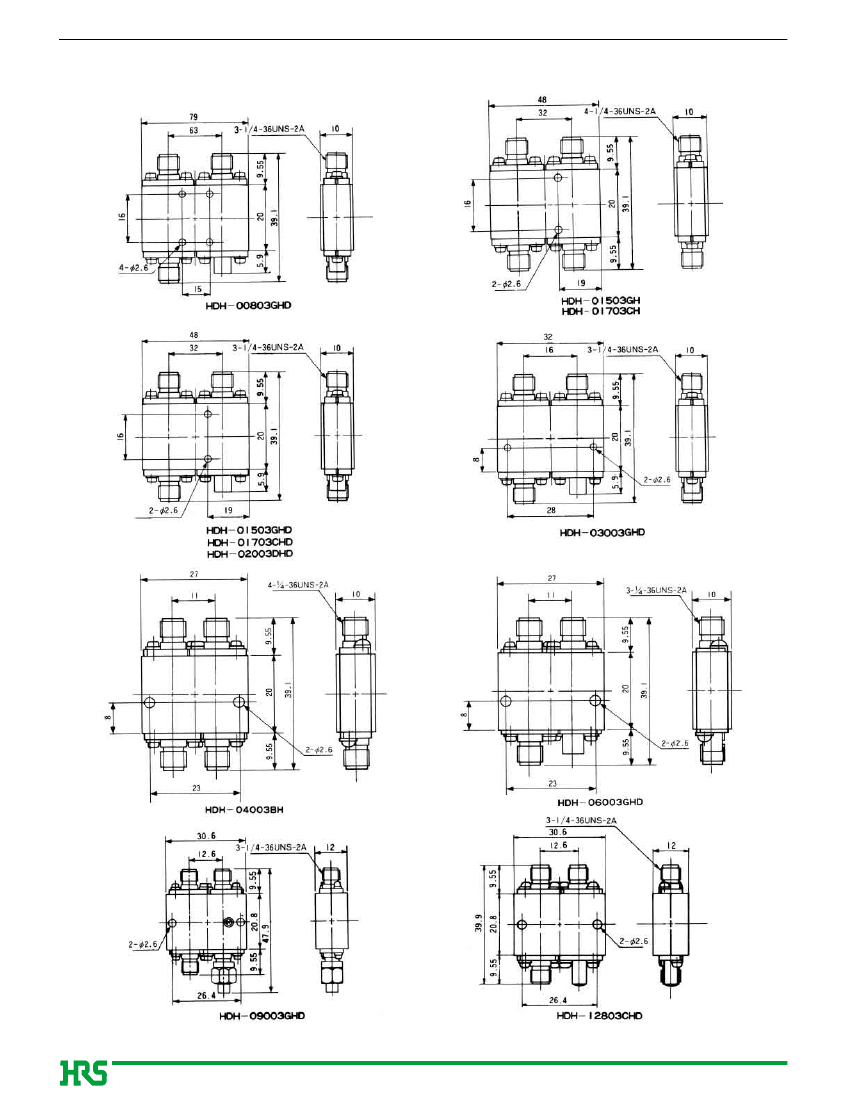

HDH-00803GHD(40)
HDH-01503GHD(40)
2.Power Uniform Distribution and
90˚Phase Difference Type
This is a one input, two output (or two input, one
output) power uniform distribution type having a
90
˚
phase difference between the two outputs (or
two inputs).
HDH-01503GH(40)
HDH-03003GHD(40)
3.Miniature and Lightweight
Corrosion-resistant aluminum is used for the case
and the Hirose Electric original pattern design,
which uses a stripline triplate method, enables the
couplers to be miniature and lightweight.
HDH-06003GHD(40)
HDH-09003GHD(40)
HDH-12803CHD(40)
4.Couplers with SMA Connectors
Use of SMA connectors (Hirose Electric HRM
Series) which feature stainless steel for the exterior
cladding make these couplers durable.
s
Product Specifications
Ratings
Frequency range (Note)
Characteristic impedance
Maximum Input Power (Note)
0.5 to 14.5 GHz
50
ohm
2 to 50 W
Operating temperature range
Operating relative humidity
-10ç to +65ç
95% Max.
Note: The frequency range and the maximum input power will differ depending on the products.
Item
1.Vibration
2.Shock
Standard
No electrical discontinuity of 1
µs or more
No damage, cracks, or parts dislocation
Conditions
Frequency of 10 to 2000 Hz, overall amplitude of 1.52 mm,
acceleration of 98 m/s
2
for 2 hours in each of 3 directions
Acceleration of 490 m/s
2
, sine half-wave waveform,
3 cycles in each of the 3 axis
Temperature :
_55ç
¡
+15ç
to
+35ç
¡
+85ç
¡
+15ç
to
+35ç
Time : 30
¡
15 max.
¡
30
¡
15 max. (Minutes)
5 cycles
3.Temperature cycle No damage, cracks, or parts dislocation
q
The test method conforms to MIL-STD-202.
s
Materials
Part
Connector Body
Material
Stainless steel
Beryllium copper
PTFE
Aluminum
Dielectric
Finish
Passivated
Gold plating
---------
Coating
Connector female contacts
Connector Insulator
Case
Board
Gold plating
14
04/2009
