IP6136: DescriptionCovers, boxes and shell products7.08 x 10.20 x 2.56 instrument case; CategoryTopical application Mechanical and electrical/engineering/automation; File Size111KB，1 Pages; ManufacturerBud Industries

Download Datasheet Compare View All

IP6136 Overview

Covers, boxes and shell products7.08 x 10.20 x 2.56 instrument case

Preview

Download Datasheet

View All

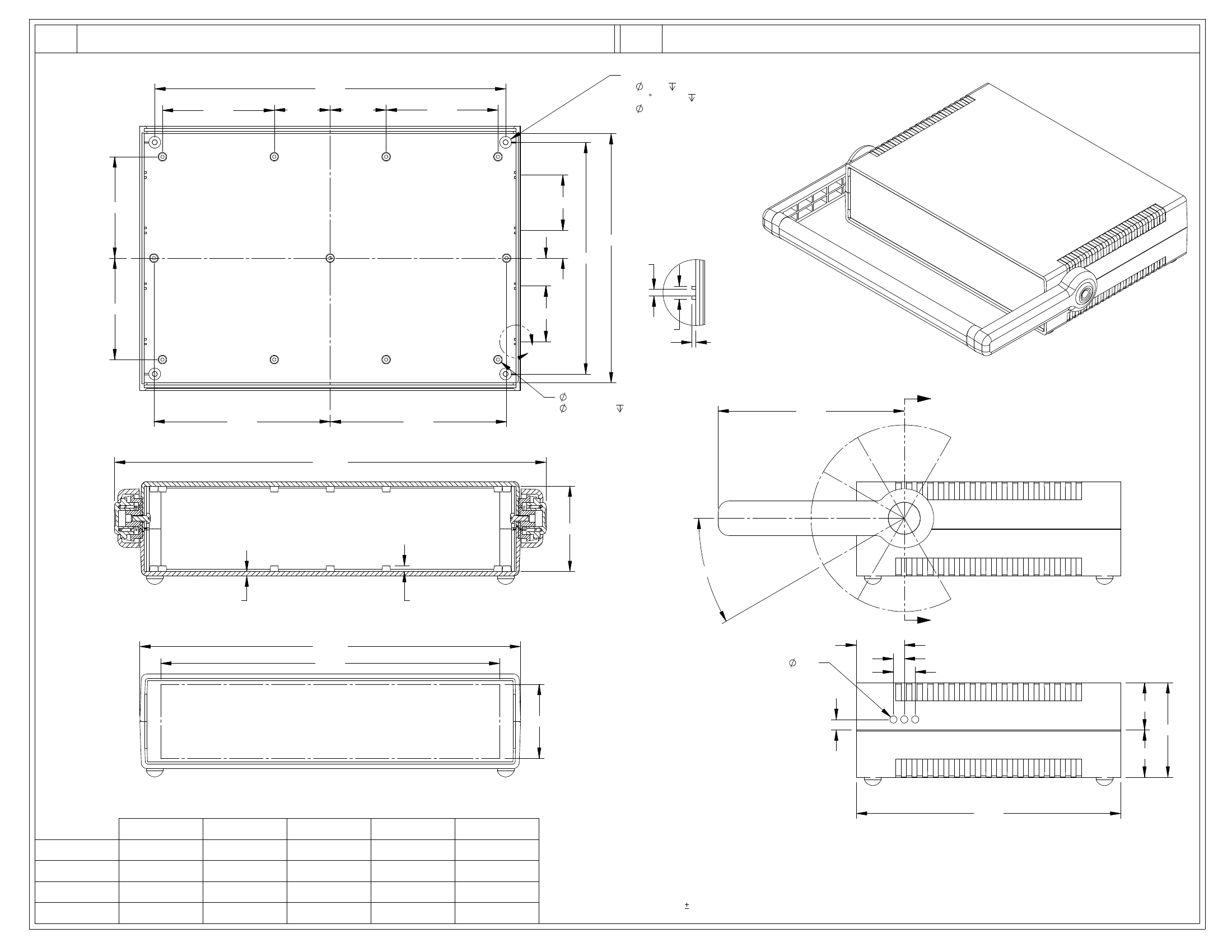

PART

NAME

PLASTIC INSTRUMENT CASE

PART

No.

BOTTOM COVER:

.248 .050

92 C-SINK .665 (FROM INNER BOSS SURFACE)

.132 THRU

(FAR SIDE 4 PLCS.)

TOP COVER:

M3 BRASS INSERT (4 PLCS.)

IP-6136

IP-6137

IP-6138

9.400

2.996

1.498

2.996

2.716

1.488

.744

6.205

.744

6.680

.088

2.716

1.488

.174

.055

DETAIL B

4.724

.218 BOSS

.090 HOLE .218

(11) PLCS. BOTH COVERS

BOSSES USE EITHER M2.5 METRIC

OR #4 STD. SHEET METAL SCREWS

(NOT SUPPLIED)

4.988

11.560

30° TYP.

.120

SECTION A-A

10.200

9.085

.193

BOTH SIDES

1.282

.290

.583

.280

HANDLE NOT SHOWN

NOTES:

MATERIALS & FINISHES:

COVERS - ABS (LIGHT GREY)

UL94-HB FLAMMABILITY RATING

PANELS - ABS (BLACK)

UL94-HB FLAMMABILITY RATING

HANDLE SUPPORTS - ABS (GREY)

UL94-HB FLAMMABILITY RATING

HANDLE - ALUMINUM EXTRUSION (CLEAR ANODIZE)

HARDWARE INCLUDED:

HANDLE KIT AND (2) M4 x 10mm PAN HEAD MOUNTING SCREWS INCLUDED

(4) M3 x 25mm FLAT HEAD SCREWS

(4) RUBBER FEET

ALL DIMENSIONS HAVE .015 TOLERANCE UNLESS OTHERWISE SPECIFIED

REV: 07/06/04

.156

TOTAL HEIGHT

PART No.

IP-6136

IP-6137

IP-6138

2.530

3.320

4.110

COVER HEIGHT

1.265

2.055

BASE HEIGHT

1.265

2.055

USEABLE

PANEL SPACE

1.978

2.768

3.558

INTERNAL

CLEARANCE

2.290

3.080

3.870

7.085
