87782-2004 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87782-2004

87782-2004: Descriptionddr3/ddr2/ddr connector 0.60mm minidimm assy assy .76aulf 244ckt; CategoryThe connector The connector; File Size32KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87782-2004 Overview

ddr3/ddr2/ddr connector 0.60mm minidimm assy assy .76aulf 244ckt

87782-2004 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Other features	2.5 VOLTAGE KEY & ROHS COMPL.
Board mount options	PEG
body width	0.311 inch
subject depth	0.646 inch
body length	3.78 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact material	COPPER ALLOY
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	87782
Plug contact pitch	0.024 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.108 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	0.6096 mm
Termination type	SURFACE MOUNT
Total number of contacts	244

Preview

Download Datasheet

View All

This document was generated on 11/18/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

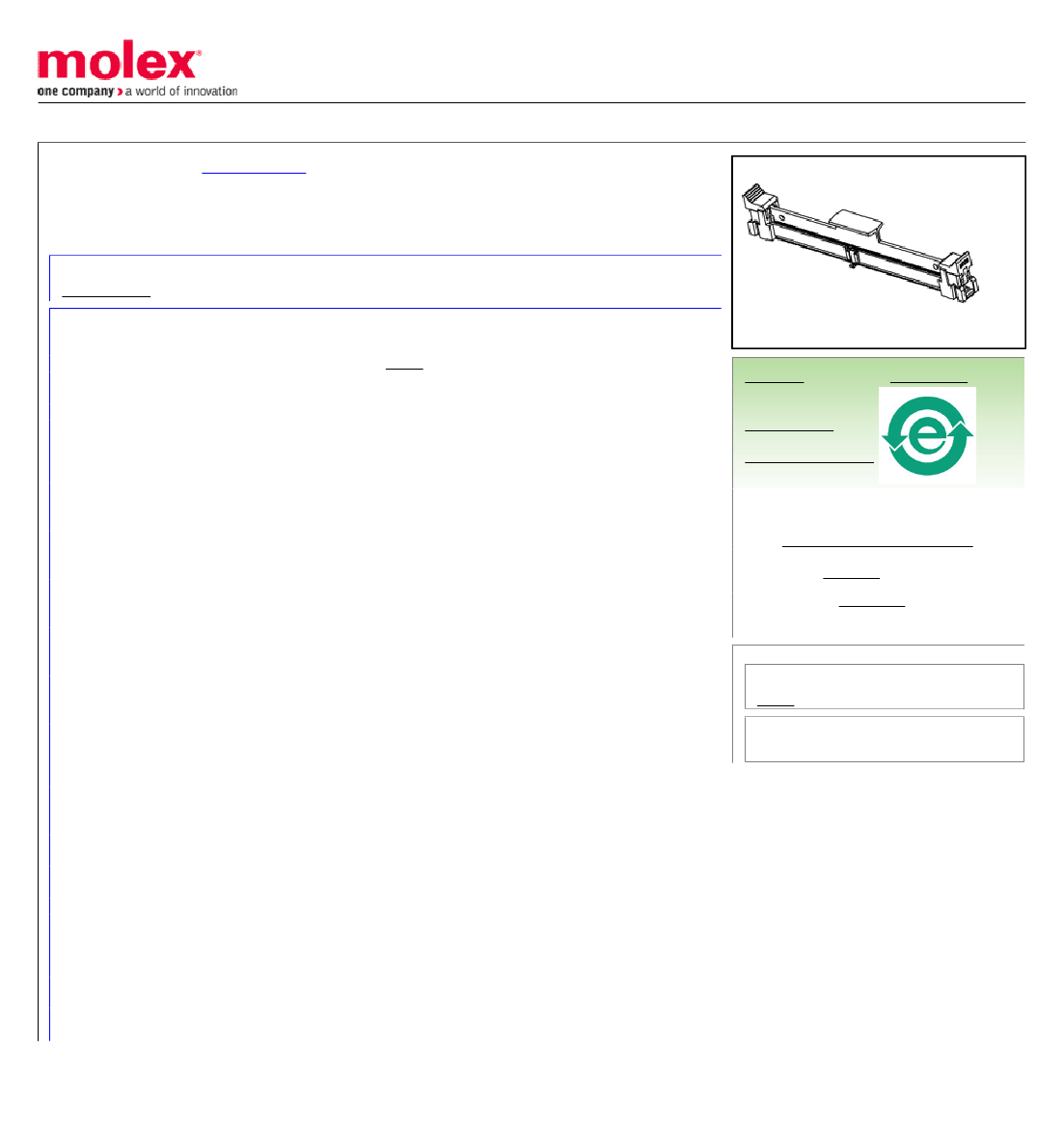

Part Number:

Status:

Description:

0877822004

Obsolete

0.60mm (.024") Pitch miniDIMM Socket, Surface Mount, Vertical, 2.5V Voltage Key,

244 Circuits, 0.76µm (30µ") Gold (Au) Plating, Off-White Latches, with Pick-and-Place

Cap, Lead-free

Documents:

Drawing (PDF)

General

Product Family

Series

Comments

Component Type

JEDEC Outline

Product Name

Memory Module Sockets

87782

<LI>Latches in Off-White Color|<LI>With Cap

Socket

MO-244

MiniDIMM

Series

image - Reference only

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Low-Halogen Status

Not Reviewed

China RoHS

Physical

Circuits (Loaded)

Color - Resin

Durability (mating cycles max)

Entry Angle

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Temperature Range - Operating

Termination Interface: Style

244

Black

Vertical (Top Entry)

Yes

Copper Alloy

Gold

Tin

High Temperature Thermoplastic

Yes

Tray

0.60mm (.024")

0.762µm (30µ")

2.540µm (100µ")

-55°C to +85°C

Surface Mount

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

87782Series

Mates With

JEDEC MO-244 Modules

Electrical

Current - Maximum per Contact

Voltage - Maximum

Voltage Key

30V (RMS)

2.5V

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-free Process Capability

Max. Cycles at Max. Process Temperature

Process Temperature max. C

SMC & Wave Capable (TH only)

260

Material Info

Country of Origin

Reference - Drawing Numbers

Application Specification
