FEATURES AND SPECIFICATIONS

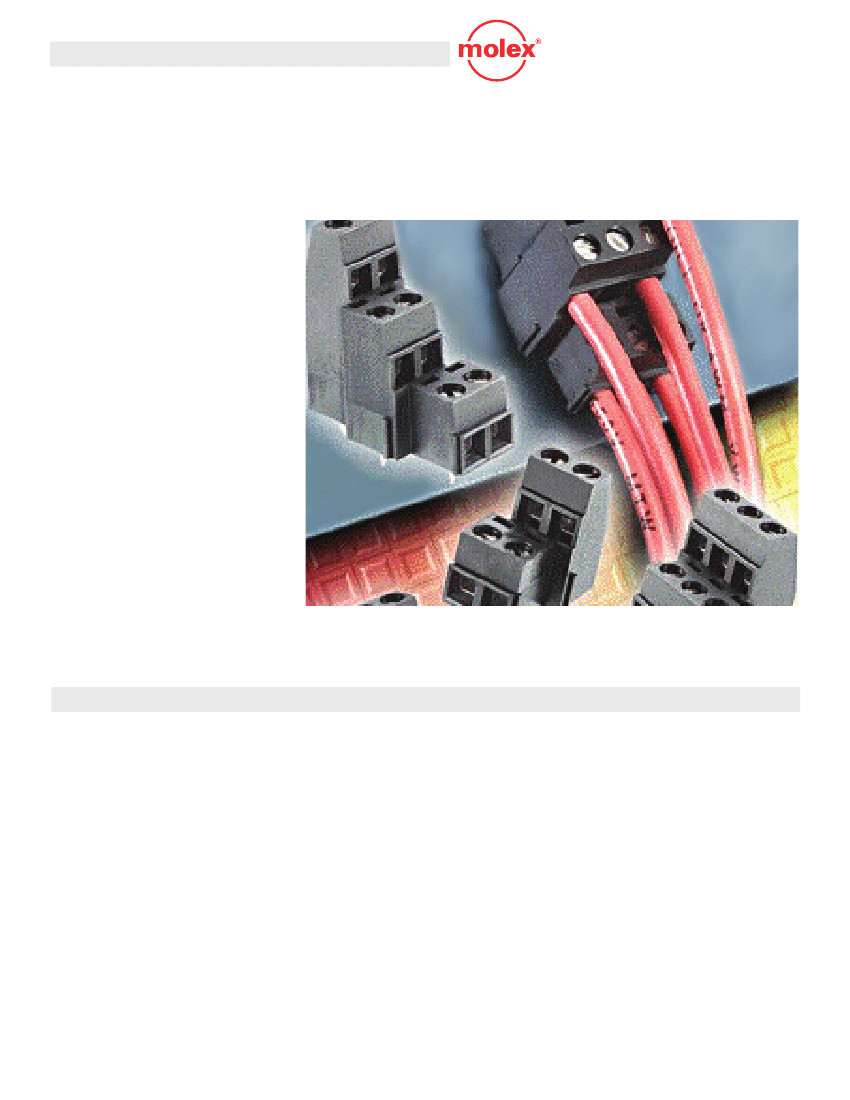

Beau Eurostyle multi-level terminal blocks offer more selections
These Eurostyle terminal blocks are
available in 5.08mm (88 Series) and
5.00mm (89 Series) terminal pitch. Series
88 is offered in low, medium and high
profiles, while Series 89 is offered in low
and medium profiles. Both series are
available in dual- and tri-levels, and since
these products are modular with a dovetail
feature, they can be locked together to
form larger assemblies. Dual-levels are
available from 4 to 48 circuits. Tri-levels
are available from 6 to 72 circuits.
Features and Benefits
I
Integral dovetail feature allows for easy
assembly of larger circuits
I
Rising cage clamp system holds wire for
secure, reliable contact
I
Offered in various heights for better space
utilization
I
Footprint is interchangeable with all
industry standard parts
SPECIFICATIONS
Reference Information
Packaging: Box
UL File No.: E48521
Guide No.: XCRF2
UL for Canada File No.: E48521
Guide No.: XCRF8 (Pending)
Electrical
Voltage: 300V
Current:
Low Profile – 17.5A
Medium Profile – 24.0A
High Profile – 32.0A
Contact Resistance: 15 milliohms max.
Insulation Resistance: 5000 Megohms min.
Mechanical
Rec. Tightening Torque: 0.60 Nm
(5.31 in. lbs)
Operating Temperature: +105°C
5.00 and 5.08mm
(.197 and .200”) Pitch
Beau
®
Eurostyle
®
Multi-Level,
Fixed Terminal Blocks
39880, 39890
I
Offset wire entry allows easier access to all
wiring points
Physical
Housing: Polyamide 6.6 UL 94 V-0, Black
Contact: Brass
Screws: Brass
Pressure Clamp: Brass
Wire Range:
Low Profile – 16 to 30 AWG
(1.31 to 0.05mm
2
)
Medium Profile – 12 to 30 AWG
(3.31 to 0.05mm
2
)
High Profile – 12 to 30 AWG
(3.31 to 0.05mm
2
)

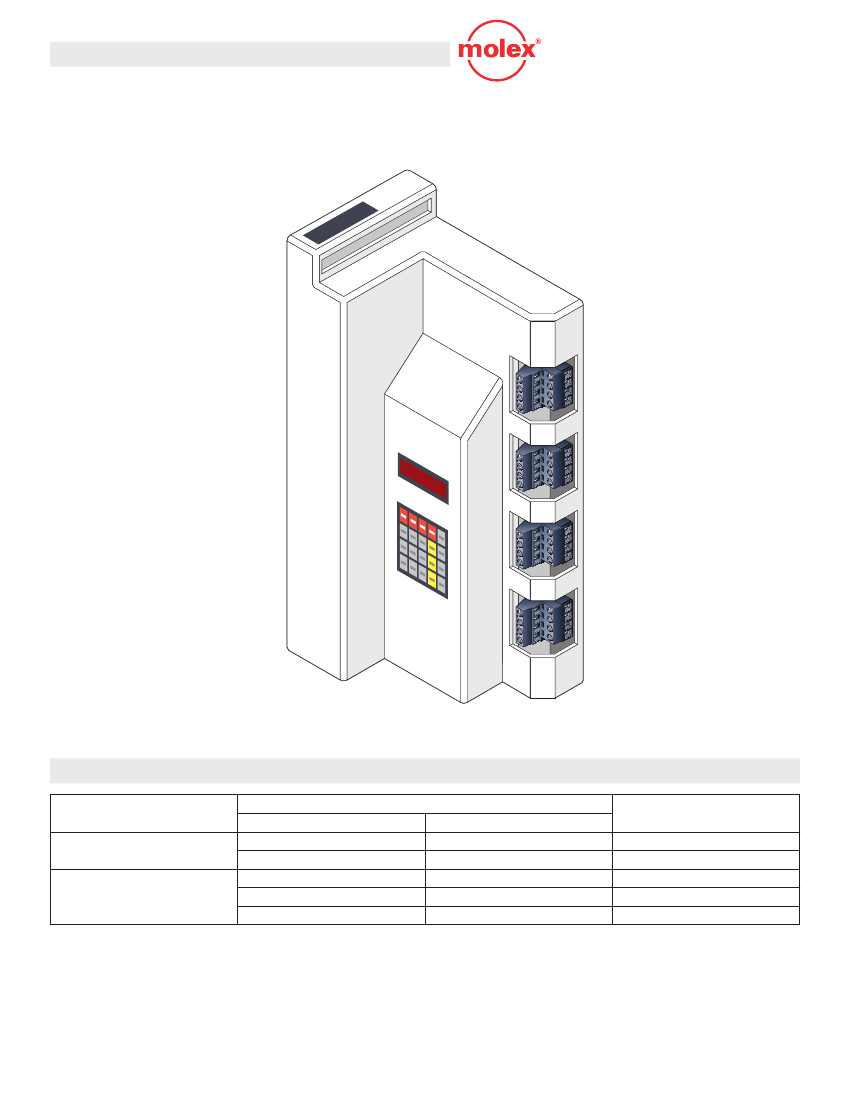

APPLICATIONS
I
Process controls
I
Data acquisition
I
Spa controls
I
Factory automation
I
Power supplies
I
HVAC
I
Transmitters/sensors
I
Scales and weighing equipment
5.00 and 5.08mm
(.197 and .200”) Pitch
Beau
®
Eurostyle
®
Multi-Level,
Fixed Terminal Blocks
39880, 39890
ORDERING INFORMATION
Pitch
5.00 (.197)
Order No.
2-Level
39890-05XX
39890-06XX
39880-05XX
39880-06XX
39880-07XX
3-Level
39890-08XX
39890-09XX
39880-08XX
39880-09XX
39880-10XX
Profile
Low
Medium
Low
Medium
High
5.08 (.200)
For 2-level parts, replace XX with no. of circuits, 04 to 48.
For 3-level parts, replace XX with no. of circuits, 06 to 72.
Americas Headquarters
Lisle, Illinois 60532 U.S.A.
1-800-78MOLEX
amerinfo@molex.com
Far East North Headquarters
Yamato, Kanagawa, Japan
81-462-65-2324
feninfo@molex.com
Far East South Headquarters
Jurong, Singapore
65-6-268-6868
fesinfo@molex.com
European Headquarters
Munich, Germany
49-89-413092-0
eurinfo@molex.com
Corporate Headquarters
2222 Wellington Ct.
Lisle, IL 60532 U.S.A.
630-969-4550
Fax:630-969-1352
Visit our Web site at http://www.molex.com/products/tblocks.html
Order No. USA-263
Printed in USA/5K/JI/JI/2004.09
©2004, Molex
