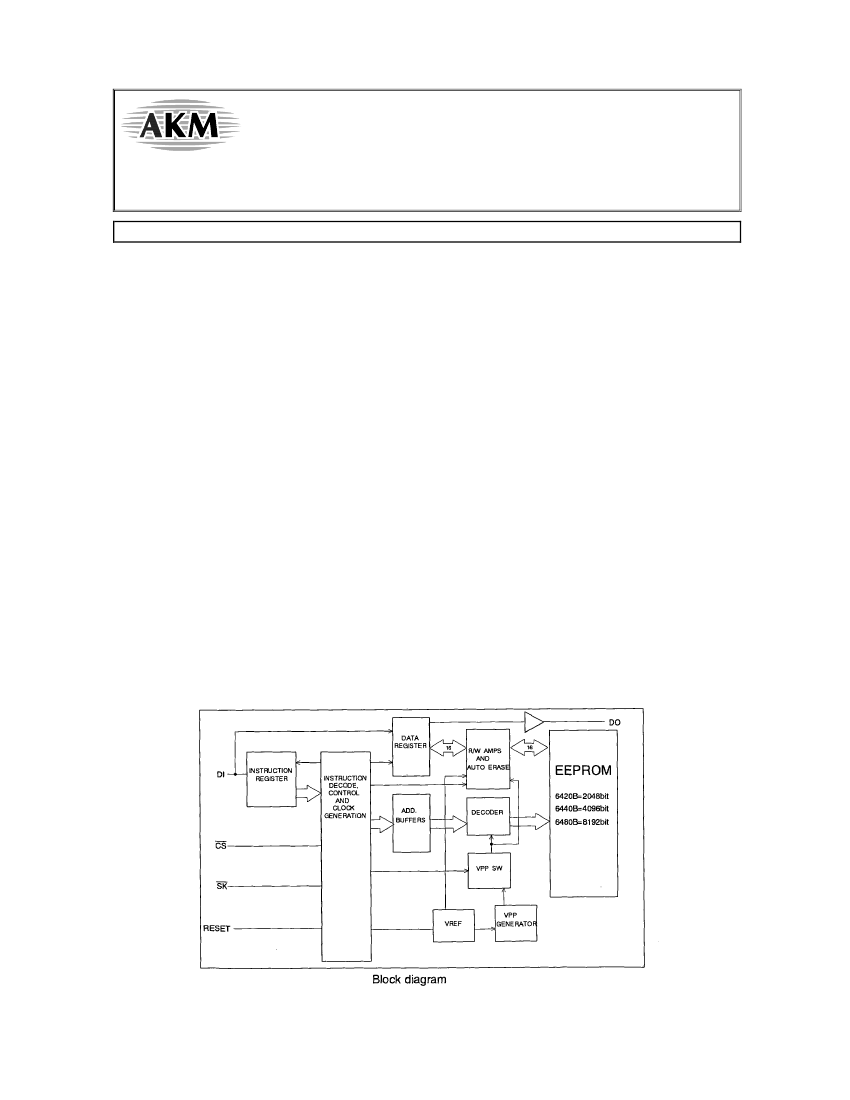

ASAHI KASEI
[AK6420B/40B/80B]
AK6420B / 40B / 80B
2K / 4K / 8Kbit Serial CMOS EEPROM
Features
ADVANCED CMOS EEPROM TECHNOLOGY
Wide Vcc (1.8V
∼
5.5V) operation
AK6420B
• •
2048 bits: 128
Õ
16 organization
AK6440B
• •
4096 bits: 256
Õ
16 organization
AK6480B
• •
8192 bits: 512
Õ
16 organization
ONE CHIP MICROCOMPUTER INTERFACE
- Interface with one chip microcomputer's serial communication port directly
LOW POWER CONSUMPTION
- 0.8
µ
A Max (Standby mode)
HIGH RELIABILITY
-Endurance
-Data Retention
: 100K cycles
: 10 years
SPECIAL FEATURES
- High speed operation ( f
MAX
=1MHz: Vcc=2.5V )
- Automatic write cycle time-out with auto-ERASE
- Automatic address increment (READ)
- Software and Hardware controlled write protection
IDEAL FOR LOW DENSITY DATA STORAGE
- Low cost, space saving, 8-pin package (MSOP)
DAS03E-00
-1-
1999/05
ASAHI KASEI
[AK6420B/40B/80B]
General Description
The AK6420B/40B/80B is a 2048/4096/8192bit, serial, read/write, non-volatile memory device fabricated using
an advanced CMOS E2PROM technology. The AK6420B has 2048bits of memory organized into 128
registers of 16 bits each. The AK6440B has 4096bits of memory organized into 256 registers of 16 bits each.
The AK6480B has 8192bits of memory organized into 512 registers of 16 bits each. The AK6420B/40B/80B
can operate full function under wide operating voltage range from 1.8V to 5.5V. The charge up circuit is
integrated for high voltage generation that is used for write operation.
The AK6420B/40B/80B can connect to the serial communication port of popular one chip microcomputer
directly (3 line negative clock synchronous interface). At write operation, AK6420B/40B/80B takes in the write
data from data input pin (DI) to a register synchronously with rising edge of input pulse of serial clock pin
(SK). And at read operation, AK6420B/40B/80B takes out the read data from a register to data output pin
(DO) synchronously with falling edge of SK.
The AK6420B/40B/80B has 4 instructions such as READ, WRITE, WREN (write enable) and WRDS (write
disable). Each instruction is organized by op-code block (8bits), address block (8bits) and data (8bits
Õ
2).
When input level of SK pin is high level and input level of chip select (CS) pin is changed from high level to low
level, AK6420B/40B/80B can receive the instructions.
Special features of the AK6420B/40B/80B include : automatic write time-out with auto-ERASE, Ready/Busy
status signal output and ultra-low standby power mode when deselected (CS=high).
•
Software and Hardware controlled write protection
The AK6420B/40B/80B has 2 (hardware and software) write protection functions.
After power on or after execution of WRDS (write disable) instruction, execution of WRITE instruction will be
disabled. This write protection condition continues until WREN instruction is executed or Vcc is removed from
the part.
Execution of READ instruction is independent of both WREN and WRDS instructions.
Reset pin should be low level when WRITE instruction is executed. When the Reset pin is high level, the
WRITE instruction is not executed.
•
Ready/Busy status signal
The DO pin indicates the Busy status. When input level of SK pin is low level and input level of CS pin is
changed from high level to low level, the AK6420B/40B/80B is in the status output mode and the DO pin
indicates the Ready/Busy status. The Ready/ Busy status outputs on DO pin until CS pin is changed from low
level to high level, or first bit ("1") of op-code of next instruction is given to the part. Except when the device is
in the status output mode or outputs data, the DO pin is in the high impedance state.
Type of Products
Model
AK6420BH
AK6440BH
AK6480BH
Memory size
2Kbits
4Kbits
8Kbits
Temp.Range
-40°C∼85°C
-40°C∼85°C
-40°C∼85°C
Vcc
1.8V∼5.5V
1.8V∼5.5V
1.8V∼5.5V
Package
8pin Plastic MSOP
8pin Plastic MSOP
8pin Plastic MSOP
DAS03E-00
-2-
1999/05
ASAHI KASEI
[AK6420B/40B/80B]
Pin arrangement
Pin Name
CS
SK
DI
DO
RESET
Vcc
GND
NC
Function
Chip Select
Serial Data Clock
Serial Data Input
Serial Data Output
RESET Input
Power Supply
Ground
Not Connected
DAS03E-00
-3-
1999/05
ASAHI KASEI
Pin Description
[AK6420B/40B/80B]
CS
(Chip Select)
When SK is high level and CS is changed from high level to low level, AK6420B/40B/80B can receive the
instructions. CS should be kept low level while receiving op-code, address and data and while outputting data.
If CS is changed to high level during the above period, AK6420B/40B/80B stops the instruction execution.
When SK is low and CS is changed from high level to low level, AK6420B/40B/80B will be in status output
mode. The CS need not be low level during the automatic write time-out period (BUSY status).
SK
(Serial Clock)
The SK clock pin is the synchronous clock input for input/output data. At write operation, AK6420B/40B/80B
takes in the write data from data input pin (DI) synchronously with rising edge of input pulse of serial clock pin
(SK). And at read operation, AK6420B/40B/80B takes out the read data to data output pin (DO)
synchronously with falling edge of SK. The SK clock is not needed during the automatic write time-out period
(BUSY status), the status output period and when the device isn't selected (CS = high level).
DI
(Data Input)
The op-code, address and write data is input to the DI pin.
DO
(Data Output)
The DO pin outputs the read data and status signal and will be high impedance except for this timing.
RESET
(Reset)
The AK6420B/40B/80B stops executing the write instruction when the RESET pin is high level. The RESET
pin should be low level while the write instruction input period and the automatic write time-out period. If the
RESET pin is high level while the automatic write time-out period, the AK6420B/40B/80B stops execution of
internal programming and the device returns to ready status. In this case the word data of the specified
address will be incomplete. When inputting the new instruction after RESET, the CS pin should be set to high
level. The read, write enable and write disable instructions are not affected by RESET pin status.
Vcc
(Power Supply)
GND
(Ground)
DAS03E-00
-4-
1999/05
ASAHI KASEI
[AK6420B/40B/80B]
Functional Description
The AK6420B/40B/80B has 4 instructions such as READ, WRITE, WREN (write enable) and WRDS (write
disable). Each instruction is organized by op-code block (8bits), address block (8bits) and data (8bitsÕ2).
When input level of SK pin is high level and input level of chip select (CS) pin is changed from high level to low
level, AK6420B/40B/80B can receive the instructions.
When the instructions are executed consecutively, the CS pin should be brought to high level for a minimum of
250ns(Tcs) between consecutive instruction cycle.
Instruction Set For 6420B
Instruction
READ
WRITE
WREN
WRDS
( WRAL )
Instruction Set For 6440B
Op-Code
10101000
10100100
10100011
10100000
10101111
Address
A6 A5 A4 A3 A2 A1 A0 0
A6 A5 A4 A3 A2 A1 A0 0
Õ ½ ½ Õ½ ½ Õ½ ½ Õ½ ½ Õ½ ½ Õ½ ½ Õ½ ½ Õ
Õ ½ ½ Õ½ ½ Õ½ ½ Õ½ ½ Õ½ ½ Õ½ ½ Õ½ ½ Õ
Õ ½ ½ Õ½ ½ Õ½ ½ Õ½ ½ Õ½ ½ Õ½ ½ Õ½ ½ Õ
Data
D15 -D0
D15 -D0
D15 -D0
Instruction
READ
WRITE
WREN
WRDS
( WRAL )
Instruction Set For 6480B
Op-Code
10101000
10100100
10100011
10100000
10101111
Address
A7 A6 A5 A4 A3 A2 A1 A0
A7 A6 A5 A4 A3 A2 A1 A0
Õ½½Õ½½Õ½½Õ½½Õ½½Õ½½Õ½½Õ
Õ½½Õ½½Õ½½Õ½½Õ½½Õ½½Õ½½Õ
Õ½½Õ½½Õ½½Õ½½Õ½½Õ½½Õ½½Õ
Data
D15 -D0
D15 -D0
D15 -D0
Instruction
READ
WRITE
WREN
WRDS
( WRAL )
Op-Code
1 0 1 0 1 0 0 A8
1 0 1 0 0 1 0 A8
10100011
10100000
10101111
Address
A7 A6 A5 A4 A3 A2 A1 A0
A7 A6 A5 A4 A3 A2 A1 A0
Õ½½Õ½½Õ½½Õ½½Õ½½Õ½½Õ½½Õ
Õ½½Õ½½Õ½½Õ½½Õ½½Õ½½Õ½½Õ
Õ½½Õ½½Õ½½Õ½½Õ½½Õ½½Õ½½Õ
Data
D15 -D0
D15 -D0
D15 -D0
Õ:don't
care
(Note) The WRAL instruction is used for factory function test only. User can't use this instruction .
DAS03E-00
-5-
1999/05
