8305: DescriptionRJ-45 connector modules with intergrated lan magnetics; File Size175KB，1 Pages; ManufacturerFiltran Ltd; Websitehttp://www.filtran.com/

Download Datasheet Compare View All

8305 Overview

RJ-45 connector modules with intergrated lan magnetics

Preview

Download Datasheet

View All

RJ-45

Connector Modules

with Intergrated LAN Magnetics

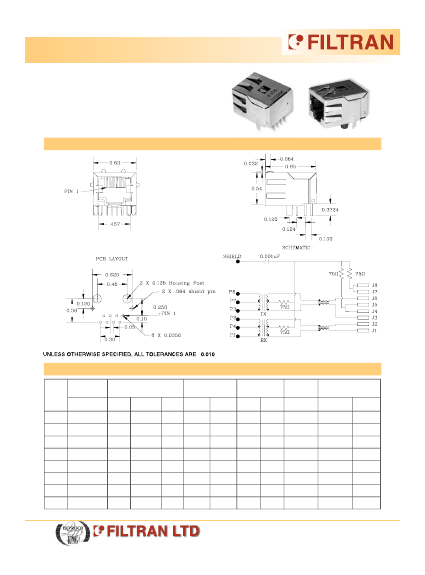

8305-8312

• Unique layout conserves precious circuit board space

• Designed for HUB applications

• IEEE 802.3u

• Compliant with a wide assortment of ICs

• Primary center taps available for additional EMI reduction

MECHANICAL AND SCHEMATIC

(All dimensions in inches)

ELECTRICAL SPECIFICATION @ 25˚C

8305-8312

Part

Number

Inductance

µH

min

8mADC 0 - 70˚C

(J1-J2) & (J3-J6)

1 - 30

MHz

Return Loss

dB min

30 - 60

MHz

16 - 20 log

(f/30 MHz)

16 - 20 log

(f/30 MHz)

16 - 20 log

(f/30 MHz)

16 - 20 log

(f/30 MHz)

16 - 20 log

(f/30 MHz)

16 - 20 log

(f/30 MHz)

16 - 20 log

(f/30 MHz)

16 - 20 log

(f/30 MHz)

60 - 80

MHz

1 - 60

MHz

CMRR

(TX/RX)

60 - 100

MHz

40 / 35

Crosstalk

dB min

1 - 60

MHz

60 - 100

MHz

Voltage

Isolation

10 mA, 1 min.

(Vrms)

1500

Turns Ratio

1CT:1CT

8305

8306

04/12/02

350

45 / 40

1CT:1CT

1.414CT:1CT

2CT:1CT

1.25CT:1CT

1CT:1.414CT

1CT:1.25CT

1CT:2CT

1CT:2.5CT

8307

8308

8309

8310

8311

8312

ISSUE: E

229 Colonnade Road, Ottawa, Ontario, Canada K2E 7K3

Tel: (613) 226-1626 Fax: (613) 226-7124

www.filtran.com

An ISO 9001 Registered Company
