LTI202TN: Description200 V - 1,000 V negative center tap 20.0 A - 25.0 A forward current 70 ns - 3000 ns recovery time; CategoryDiscrete semiconductor diode; File Size119KB，2 Pages; ManufacturerVOLTAGE MULTIPLIERS INC.; Websitehttp://www.voltagemultipliers.com/

Download Datasheet Parametric View All

LTI202TN Overview

200 V - 1,000 V negative center tap 20.0 A - 25.0 A forward current 70 ns - 3000 ns recovery time

LTI202TN Parametric

Parameter Name	Attribute value
Maker	VOLTAGE MULTIPLIERS INC.
package instruction	R-XUFM-X3
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-XUFM-X3
Maximum non-repetitive peak forward current	80 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Maximum output current	25 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	3 µs
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER

Preview

Download Datasheet

View All

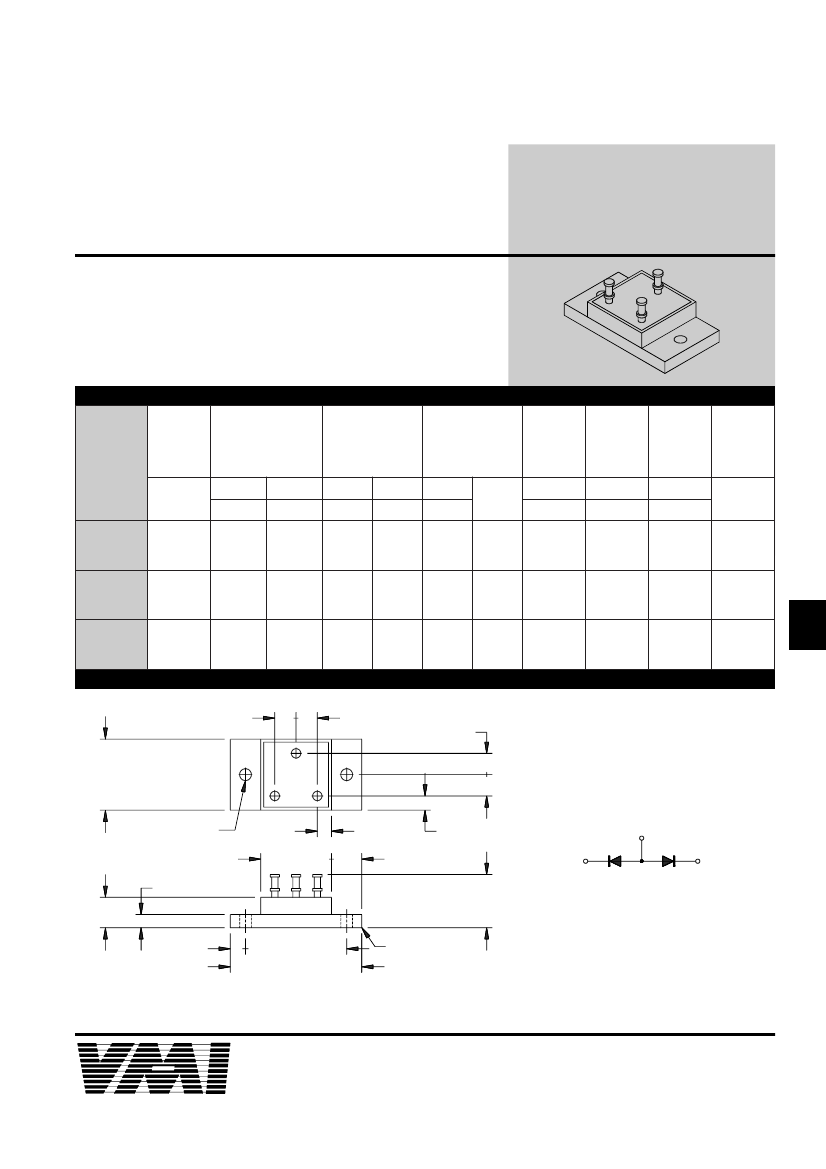

200 V - 1,000 V Negative Center Tap

20.0 A - 25.0 A Forward Current

70 ns - 3000 ns Recovery Time

LTI202TN - LTI210TN

LTI202FTN - LTI210FTN

LTI202UFTN-LTI210UFTN

ELECTRICAL CHARACTERISTICS AND MAXIMUM RATINGS

Part Number

Working

Reverse

Voltage

(Vrwm)

Average

Rectified

Current

@TC

(Io)

55°C

Volts

LTI202TN

LTI206TN

LTI210TN

LTI202FTN

LTI206FTN

LTI210FTN

LTI202UFTN

LTI206UFTN

LTI210UFTN

Amps

100°C

Amps

Reverse

Current

@ Vrwm

(Ir)

25°C

µA

100°C

µA

25°C

Volts

Amps

Forward

Voltage

1 Cycle

Surge

Current

tp=8.3ms

(Ifsm)

25°C

Amps

Repetitive

Surge

Current

(Ifrm)

25°C

Amps

Reverse

Recovery

Time

(1)

(Trr)

25°C

ns

°C / W

Thermal

Impd.

(Vf)

u

J-C

200

600

1000

200

600

1000

200

600

1000

25.0

20.0

18.0

15.0

2.0

50

1.3

1.7

6.0

80

20

3000

150

70

1.5

9

(1)Trr Testing: If=0.5A, Ir=1.0A, Irr=0.25A *Op. Temp. & Stg. Temp. = -55°C to +150°C Isolation Voltage: 2000V

.210(5.33) (2 PL)

.210(5.33)

(2 PL)

.700

(17.78)

.116 DIA.

THRU (2 PL)

.700(17.78)

.130(3.30)

AC

.140

(3.56)

.300(7.62)

_

AC

_

AC

.300(7.62)

1.50

(3.81)

1.00(25.4)

1.30(33.02)

.520(13.21)

MAX.

Nickel Pltd.

Copper Base

Plate

Dimensions: In. (mm) • All temperatures are ambient unless otherwise noted. • Data subject to change without notice.

VOLTAGE MULTIPLIERS INC.

8711 W. Roosevelt Ave.

Visalia, CA 93291

TEL

559-651-1402

FAX

559-651-0740

www.voltagemultipliers.com
