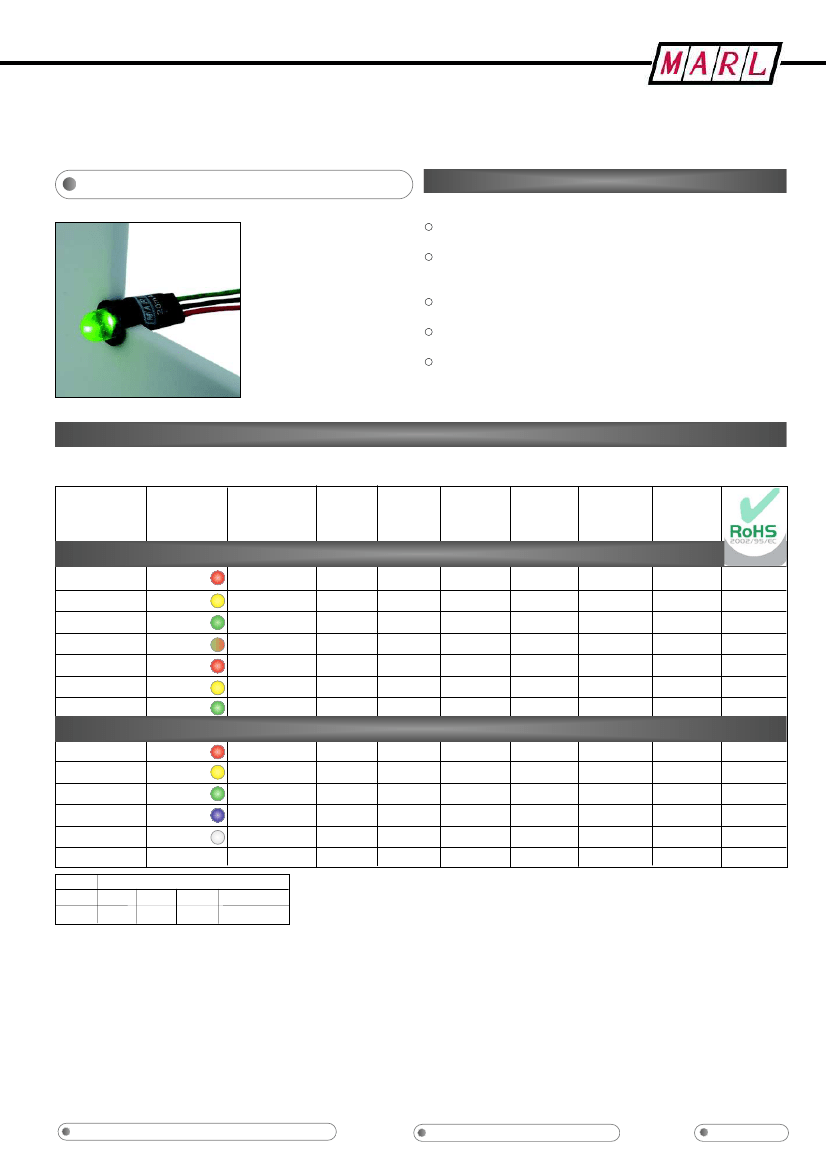

PANEL INDICATOR LEDs - Ø6.35mm Mounting
FEATURES
352
SERIES
Snap-In
Supplied with 150mm flying lead terminations as
standard
PACK QUANTITY = 20 PIECES
Sealed to IP40
352-535-04 can be used as a tri colour device
Product illustrated 352-535-04
SPECIFICATIONS
Ordering Information & Typical T
echnical Characteristics (T
a = 25°C)
Mean Time Between Failure Typically = 100,000 Hours.
PART NUMBER
COLOUR
LENS
Luminous intensity figures refer to the unmodified discrete LED.
VOLTAGE
Vopr
CURRENT
lopr
LUMINOUS
lv@20mA
WAVE
λp
OPERATING
T
opr
STORAGE
T
stg
DC
DC
INTENSITY
LENGTH
TEMP
TEMP
STANDARD INTENSITY
352-505-04
352-511-04
352-514-04
352-535-04
352-581-20
352-582-20
352-583-20
Red
Yellow
Green
Red/Green
Red
Yellow
Green
Colour Diffused
Colour Diffused
Colour Diffused
Colour Diffused
Colour Diffused
Colour Diffused
Colour Diffused
2.0*
2.1*
2.2*
2.0/2.2*
5
5
5
20
20
20
20
13
13
11.5
60
40
40
60/50
50@13mA
20@13mA
20@11.5mA
627
590
565
627/565
627
590
565
-40 ~ +85^
-40 ~ +85^
-40 ~ +85^
-40 ~ +85^
-40 ~ +70^
-40 ~ +70^
-40 ~ +70^
-40 ~ +85
-40 ~ +85
-40 ~ +85
-40 ~ +85
-40 ~ +85
-40 ~ +85
-40 ~ +85
Yes
Yes
Yes
Yes
Yes
Yes
Yes
STANDARD INTENSITY
352-501-04
352-521-04
352-532-04
352-930-04
352-997-04
UNITS
997
*Typical
emission colour cold white
0.283
0.330
0.330
Red
Yellow
Green
Blue
Cold White
Water Clear
Water Clear
Water Clear
Water Clear
Water Clear
1.85*
2.2*
3.5*
3.6*
3.6*
Vdc
20
20
20
20
20
mA
2700
6100
11600
3460
7800
mcd
660
595
525
470
*see below
nm
-40 ~ +85^
-40 ~ +85^
-30 ~ +85^
-30 ~ +85^
-30 ~ +85^
0
-40 ~ +85
-40 ~ +100
-40 ~ +100
-40 ~ +100
-40 ~ +100
0
Yes
Yes
Yes
Yes
Yes
C
C
Intensities (lv) and colour shades of white (x,y co-ordinates) may vary between LEDs within
a batch.
x
y
0.296
0.276
0.305
0.360
0.318
^ = Products must be derated according to the derating information. Each derating graph refers to specific LEDs.
shown. Refer to page 3.
Appropriate LED numbers
How to Order:
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
•
Fax: +44 (0)1229 585155
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
© MARL INTERNATIONAL LTD 2007 : DS076/07
Issue 1
SAMPLES AVAILABLE
Page 1 of
3
352 Series

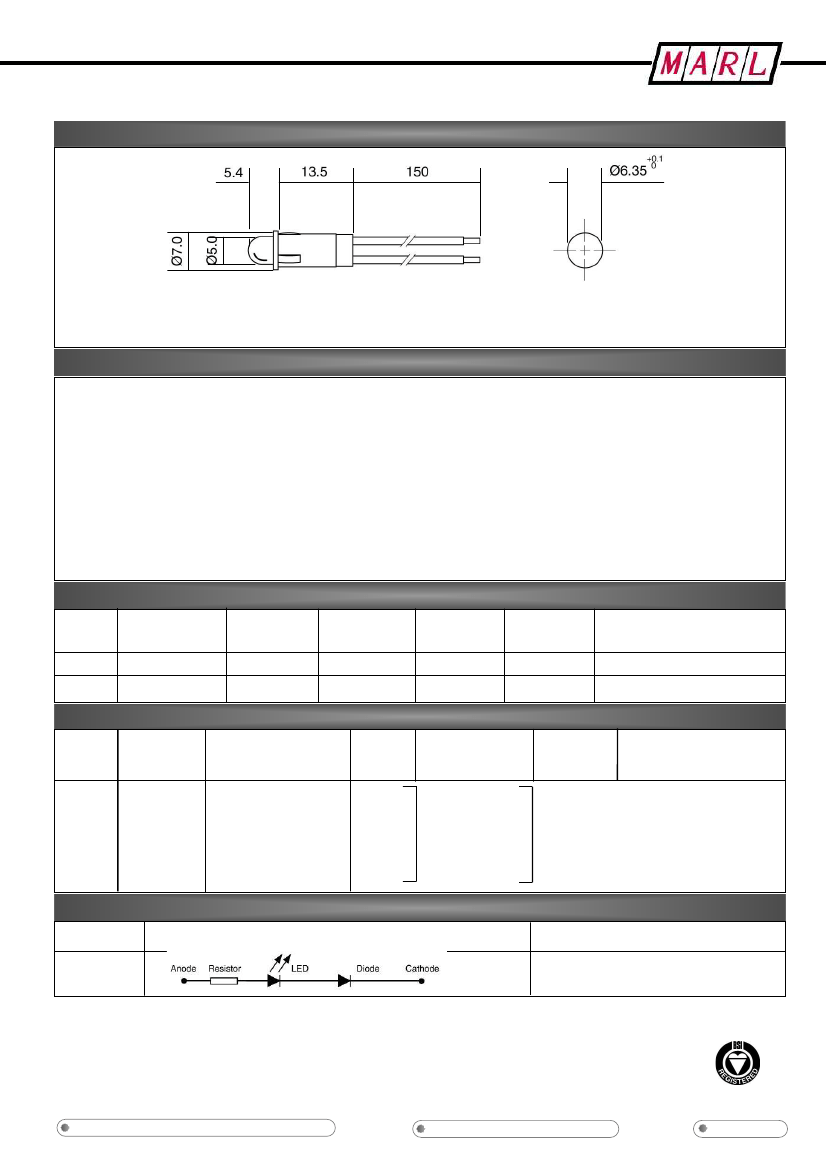

MOUNTING HOLE
Dimensions in mm (Typical)
Not to scale
Anode termination indicated by long tag.
Mounting hole to be clean an burr free
MATERIALS
Body
Panel Washer
T
ermination Pins
Retaining Clip
Lens
Header
Nylon 6
N/A
Tin on Nickel Plated Phosphor Bronze
N/A
Epoxy
PTFE
TECHNICAL CHARACTERISTICS
SERIES
POWER
MAXIMUM
REVERSE
MAXIMUM
CUTOUT
PANEL
MOUNTING
MINIMUM
PANEL
MIN/MAX.
DISSIPATION
352
UNITS
500
mW
VOLTAGE
3
Vdc
CENTRES
9.0
mm
THICKNESS
3.0
mm
6.35
mm
OPTIONAL FLYING LEAD TERMINATIONS
ORDER
SUFFIX
13
13
17
17
CODE
SUPPLY
VOLTAGE
WIRE
COLOUR
WIRE
LENGTH
NO/DIAMETER
CONDUCTORS
OF
DIAMETER
INSULATION
OVER
COMMENTS
DC Products
AC Products
DC Products
AC Products
Red-anode / Black-cathode
Brown-live / Blue-neutral
Red-anode / Black-cathode
Brown-live / Blue-neutral
150mm
150mm
1000mm
1000mm
Customised
available
7/0.2mm
1.2mm
lengths
PROTECTION DIODE
SUFFIX
01
ORDER CODE
CIRCUIT
COMMENTS
Available on all indicators except Bi-Colour
devices and when diode test is specified.
How to Order:
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
•
Fax: +44 (0)1229 585155
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
Approved Manufacturer
BS EN ISO 9001:2000
© MARL INTERNATIONAL LTD 2007 : DS 076/07
Issue 1
SAMPLES AVAILABLE
Page 2 of 3

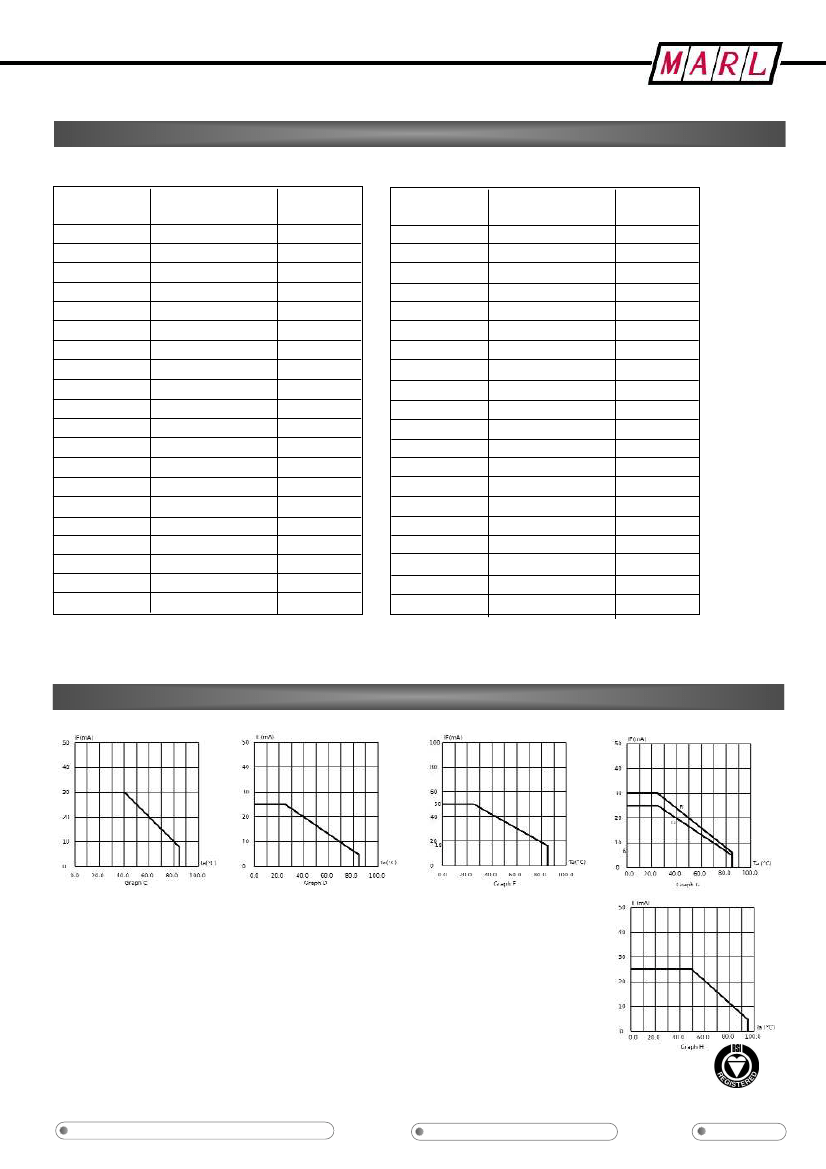

352 Series
Part numbers also available in the 352 Series:
PART NO.
COLOUR
VOLTAGE
(Vdc) Vopr
PART NO.
COLOUR
VOLTAGE
(Vdc) Vopr
352-503-04
352-503-04-15
352-503-04-50
352-505-04-52
352-505-12-50
352-509-04
352-509-04-15
352-509-04-50
352-511-04-53
352-512-04
352-512-04-15
352-512-04-50
352-512-04-51
352-512-04-52
352-530-04
352-535-04-15
352-535-04-53
352-535-04-54
352-535-04-56
UNITS
Red
Red
Red
Red
Red
Yellow
Yellow
Yellow
Yellow
Green
Green
Green
Green
Green
Red/Green
Red/Green/Amber
Red/Green/Amber
Red/Green/Amber
Red/Green/Amber
20mA
20mA
20mA
20mA
24Vdc
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
20mA
352-535-04-57
352-538-04-50
352-549-04
352-581-20-15
352-581-20-52
352-582-20-15
352-582-20-50
352-582-20-51
352-583-20-15
352-583-20-50
352-583-20-54
352-583-20-55
352-584-21
352-584-21-50
352-585-21
352-585-21-50
352-586-21
352-586-21-50
352-586-21-51
UNITS
Red/Green/Amber
Red/Green/Amber
Green/Yellow
Red
Red
Yellow
Yellow
Yellow
Green
Green
Green
Green
Red
Red
Yellow
Yellow
Green
Green
Green
20mA
20mA
20mA
5/6Vdc
5/6Vdc
5/6Vdc
5/6Vdc
5/6Vdc
5/6Vdc
5/6Vdc
5/6Vdc
5/6Vdc
12Vdc
12Vdc
12Vdc
12Vdc
12Vdc
12Vdc
12Vdc
The products listed above illustrate all of the options available to order. These products may have custom
modifications that alter their operation beyond the generic information contained within this datasheet. Please
contact sales for further information.
De-rating Information
505, 511, 532, 930 & 997
514
521
532
501
How to Order:
website: www.marl.co.uk • email: sales@marl.co.uk •
•
T
elephone +44 (0)1229 582430
•
Fax: +44 (0)1229 585155
relating to either products or service.
for products or service.
The information contained in this datasheet does not constitute part of any order or contract and should not be regarded as a representation
Marl International reserve the right to alter without notice the specification or any conditions of supply
Approved Manufacturer
BS EN ISO 9001:2000
© MARL INTERNATIONAL LTD 2007 : DS 076/07
Issue 1
SAMPLES AVAILABLE
Page 3 of 3
