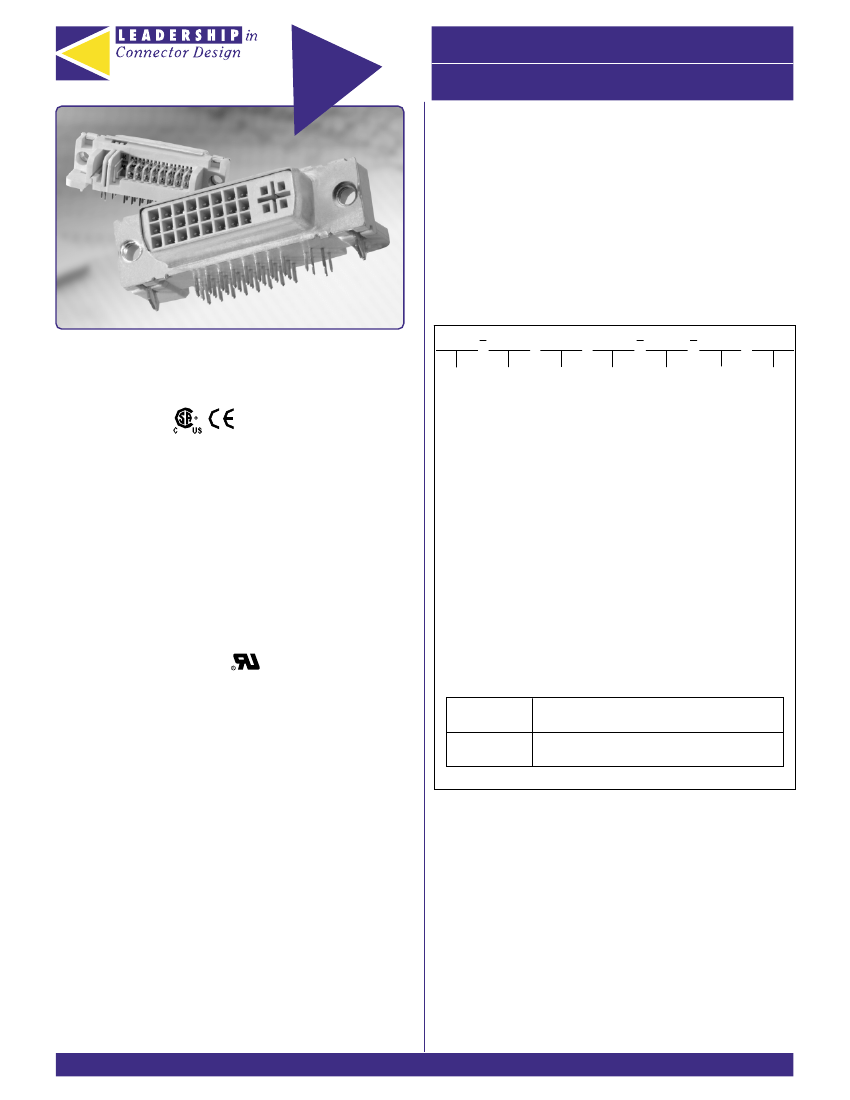

KYCON
NEW
DIGITAL VISUAL INTERFACE
KVI Series
Mechanical Specifications
Insertion Force
4.5kg (10 lbs) Max
Withdrawal Force
1.0kg (2.2 lbs) Min
Durability
100
Mating
Cycles
Vibration
No Discontinuity >1us
Ordering Information
KVI Series
Digitial Visual Interface
Features
LR78160
KVI
Series
DA
Type
29
S
N
W
Color
30
Plating
Options
Number Contact Mounting
Option
of Contacts Type
• Digital and Digital/Analog Pinouts
• Supports 1.65 Gbps Digital and 2.5Ghz Analog
• Conforms to Digital Display Working Group
DVI Standard
• CSA/NRTL Certified File No. LR78160
Performance Specifications
Material and Finish
Shell
Steel,
Nickel
Plated
Insulator
Black or White Thermoplastic, UL94V-0 Rated,
Contact Material
Copper Alloy
Series
KVI - Digital Visual Interface
Type
DA-Digital/Analog Interface (29 Contact)
DG-Digital Interface (24 Contact)
Number of Contacts
24, 29
Contact Type
S-Socket Contact (Receptacle)
Mounting Option
N-Board Locks* and 4-40 Riveted Threaded Inserts
FP-Board Locks*, 4-40 Riveted Threaded Inserts
and Plastic Pegs
Color
B - Black
W - White
Plating Options
Standard
30
Gold flash over nickel on contacts. Tin/lead over
nickel on soldertails
30µ" Gold over Nickel on mating end of contacts.
Tin/lead over Nickel on soldertails
Electrical Specifications
Current Rating
1.5 Amps Min.
Voltage Rating
40V DC
Dielectric Withstanding Voltage
500V AC for 1 Minute
Insulation Resistance
More than 1000 Megohms at 500V DC
Contact Resistance
20 Milliohms Max
Temperature Rating
-20°C to +85°C
*Please note difference in design and mounting
2002
46
KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com
