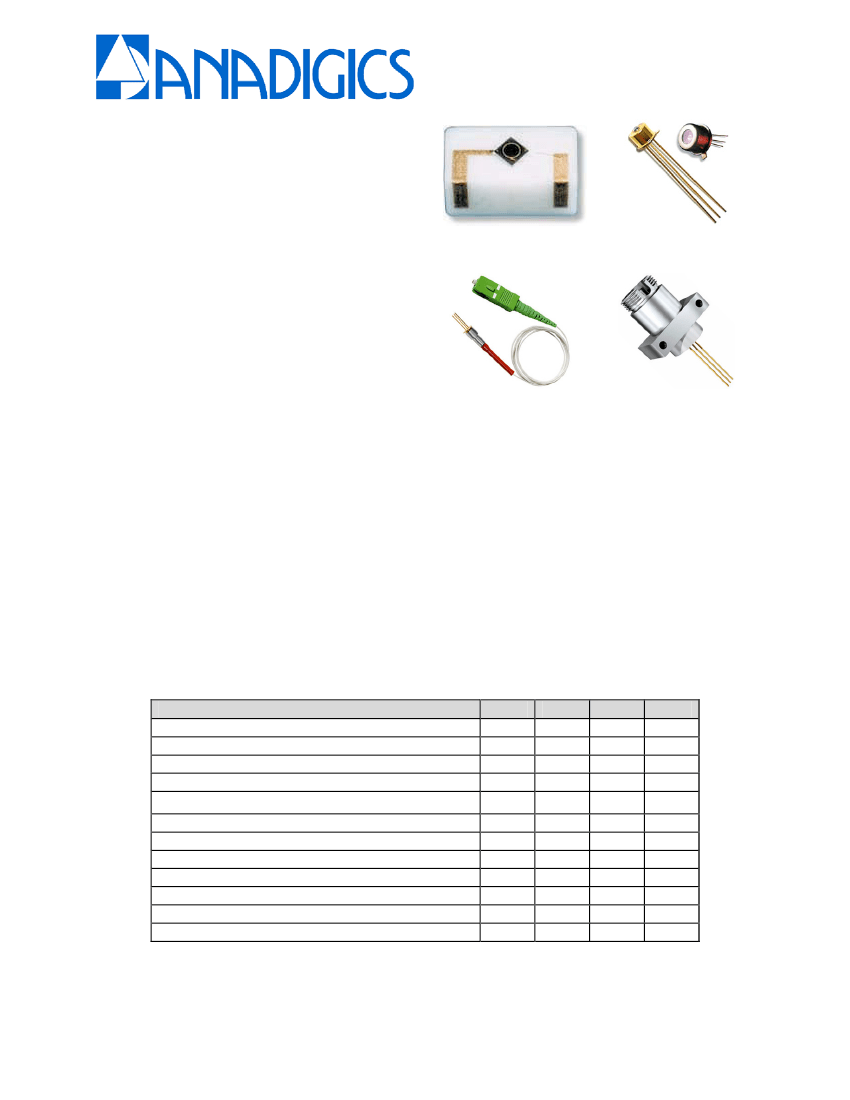

PD100
100μm InGaAs Photodiode
FEATURES
•
•
•
•
•
Planar Structure
High Responsivity
Low Dark Current
Dielectric Passivation
100% Purge Burn-in
PD100-003-0xx
Ceramic Sub-Mount
PD100-003-1xx
TO can Package
APPLICATIONS
•
•
•
Optical Communication Systems
Test and Measurement
Sensing
PD100-003-3xx
SC/APC Pigtail
PD100-003-5xx
FC Receptacle
PRODUCT DESCRIPTION
The PD100 is an InGaAs photodiode with a
photosensitive region 100μm in diameter. It is
intended for use in high speed, low noise
communication systems (up to 1.5Gb/s data
rates) as well as applications in test and
measurement and other optical power sensing
devices. The large active area allows the use of
multimode fiber.
Reliability is assured by hermetic sealing and
100% purge burn-in (200°C, 15 hours, Vr = 20V).
The device can be assembled on a ceramic sub-
mount or in a TO can. It can be pigtailed with SC,
FC or ST connectors (UPC or APC). It can also be
mounted in an SC, ST of FC receptacle. Custom
packages are an option.
ELECTRICAL CHARACTERISTICS
Table 1: Electrical Specifications
PARAMETER
Dark Current (I
D
)
Capacitance (Ceramic sub-mount)
(1)
Capacitance (Receptacle, Pigtail, TO can)
(1)
Responsivity at 1310nm (Ceramic sub-mount)
Responsivity at 1550nm (Ceramic sub-mount)
Responsivity at 1310nm (Receptacle, Pigtail, TO can)
Responsivity at 1550nm (Receptacle, Pigtail, TO can)
3dB bandwidth (50Ω) (Ceramic sub-mount)
(1)
3dB bandwidth (50Ω) (Receptacle, Pigtail, TO can)
(1)
Optical Return Loss (Pigtail using SMF-28)
Optical Return Loss (Receptacle, APC connector)
Operating voltage
(1) 5V bias voltage
MIN
-
-
-
0.80
0.85
0.80
0.85
2400
2000
50
40
-
TYP
0.2
1.0
1.2
0.90
0.95
0.85
0.90
2700
2200
55
45
5
MAX
2.0
1.1
1.3
-
-
-
-
-
-
-
-
20
UNIT
nA
pF
pF
A/W
A/W
A/W
A/W
MHz
MHz
dB
dB
V
PD100
Table 2: Absolute Maximum Ratings
PARAMETER
Forward Current
Reverse Current
Reverse Voltage
Optical input power
Operating Case Temperature
Storage Temperature
Soldering temperature (10 seconds)
MIN
-
-
-
-
-40
-40
-
MAX
5
500
30
5
+85
+85
+250
UNIT
mA
μA
V
mW
ºC
ºC
ºC
Stresses in excess of the absolute ratings may cause permanent damage. Functional operation is not implied
under these conditions. Exposure to absolute ratings for extended periods of time may adversely affect reliability.

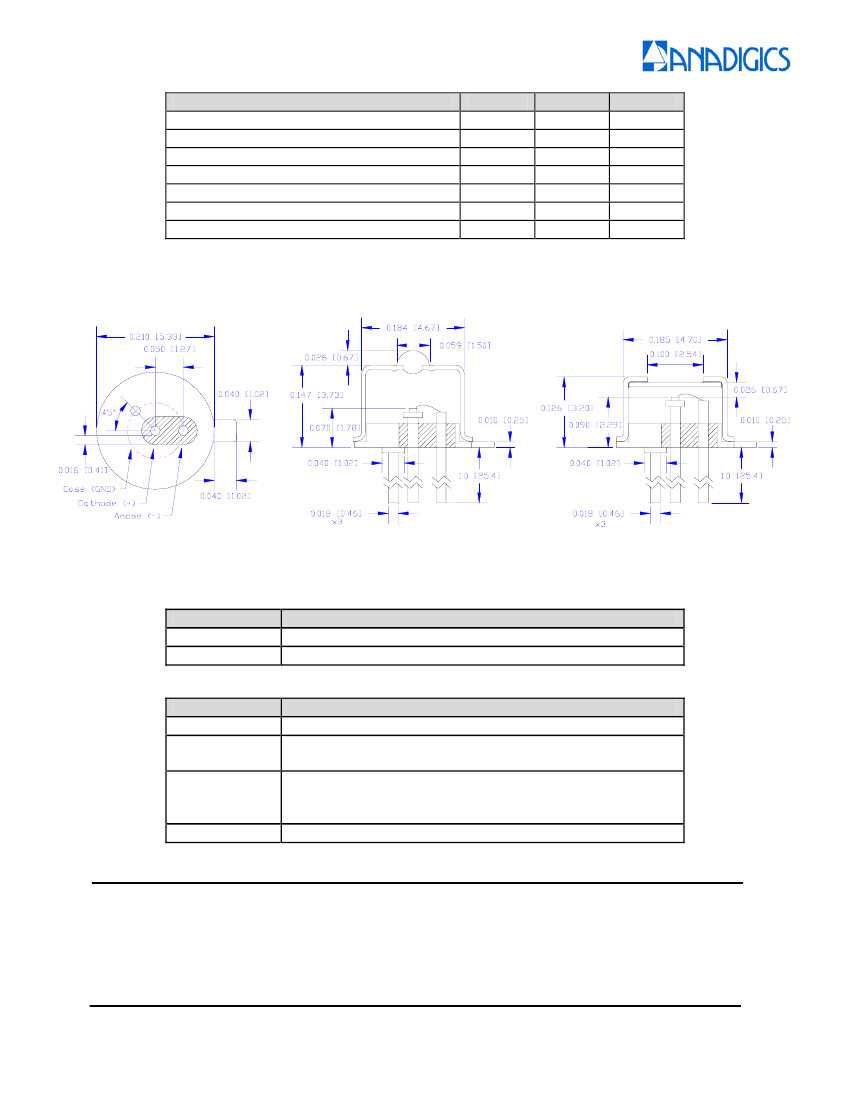

PACKAGE DIMENSIONS – PD100-003-100 and PD100-003-105
Dimensions:
INCHES [mm]
ORDERING INFORMATION
Table 3: Standard
Part Number
PD100-003-100
PD100-003-105
Options
TO46, 3pin, non AR coated, gold plated lens cap
TO46, 3pin, non AR coated, gold plated flat window cap
Table 4: Custom
Part Number
PD100-003-0xx
PD100-003-1xx
PD100-003-3xx
PD100-003-5xx
Options
Custom defined size and electrical layout.
Package: TO46, TO56, 2 or 3 pin.
Cap: Window or lens. AR or Non-AR coated. Gold or nickel plated.
Pigtailed: TO46, 2 or 3 pin. Fiber length, 0.5 meter, 1.0 meter
Fiber type: Multimode, single mode (SMF-28) or custom supplied
Connector Type: SC, ST or FC. APC or UPC
Receptacle, 2 or 3 pin. SC, ST or FC aligned
Please contact Anadigics for the specific part number and pinout that suits your needs
