TECHNICAL DATA

IN74123

Dual Monostable Multivibrator

with Clear

The IN74123 multivibrator feature d-c triggering from gated low-

level-active (A) and high-level-active (B) inputs, and also provide

overriding direct clear inputs. Complementary outputs are provided. The

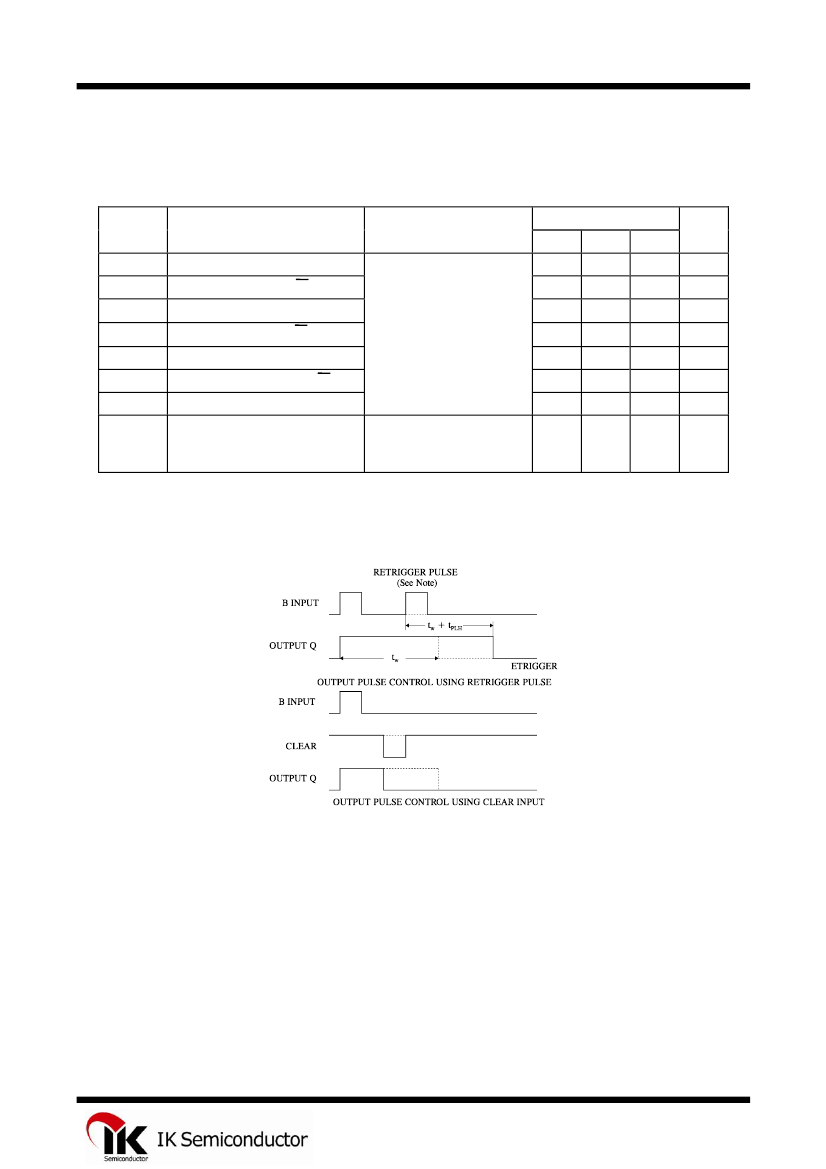

retrigger capability simplifies the output pulse is terminated, the output

pulse may be extended. The overriding clear capability permits any output

pulse to be terminated at a predetermined time independently of the

timing components R and C. Figure 1 illustrates triggering the one-shot

with the high-level-active (B) inputs.

ORDERING INFORMATION

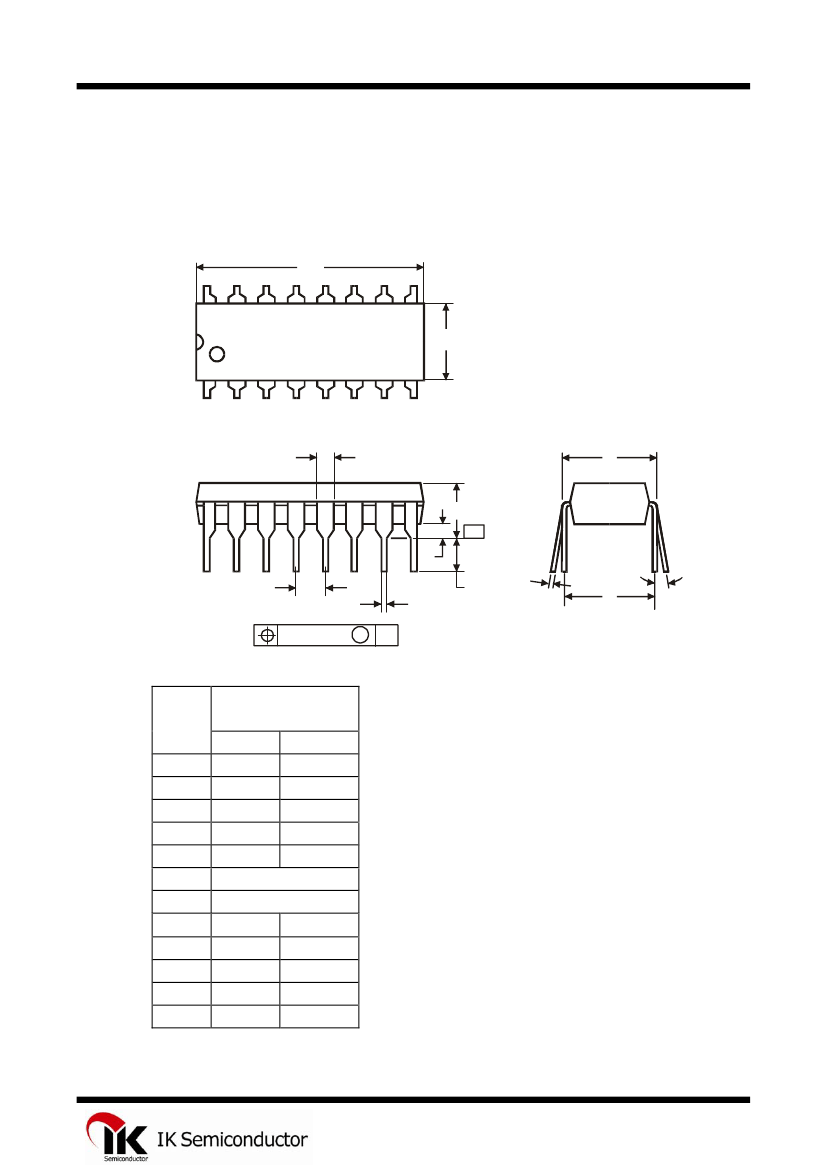

IN74123N Plastic

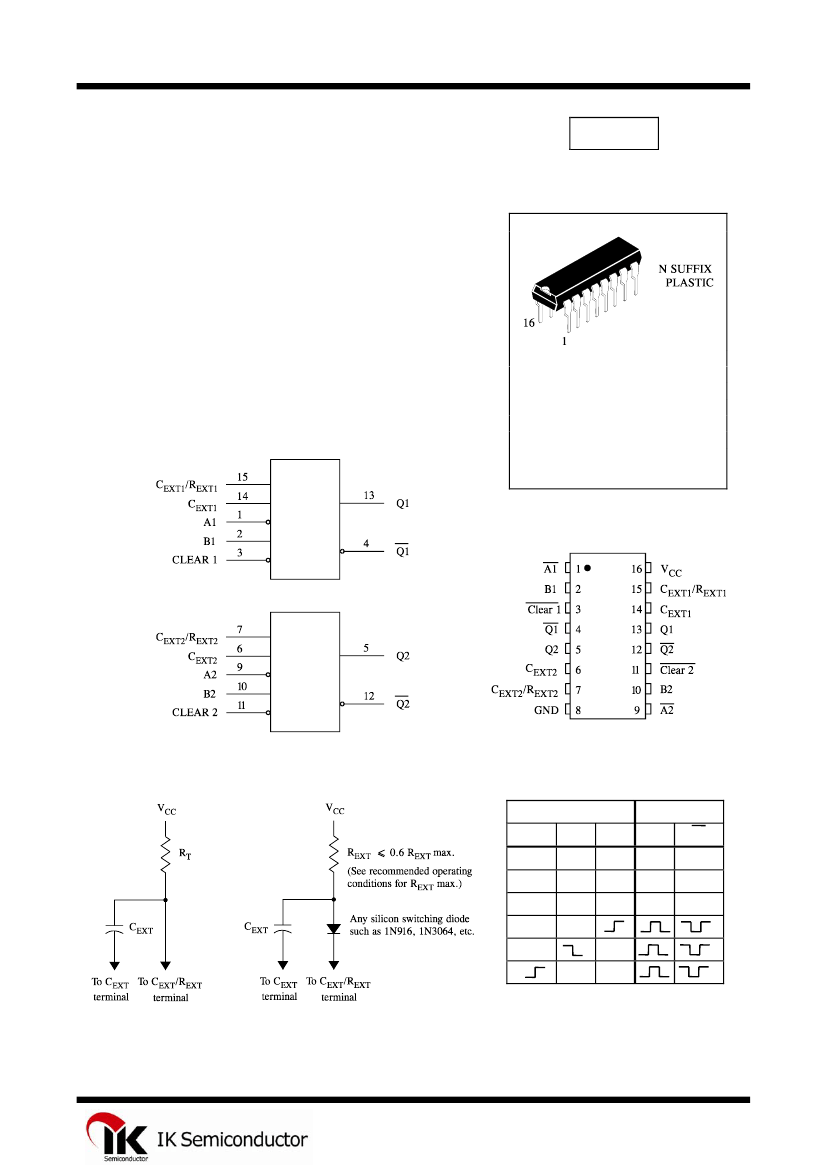

LOGIC DIAGRAM

= -10° to 70° C for package

PIN ASSIGNMENT

Pin 16 = V

Pin 8 = GND

FUNCTION TABLE

Inputs

Clear

X = don’t care

Outputs

Timing Component

Connections when

EXT

≤

1000 pF

Timing Component Connections when

EXT >

1000 pF and Clear is used
