3600BP15M600 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 3600BP15M600

3600BP15M600: Description3600 MHz, CERAMIC BPF, CERAMIC PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size115KB，2 Pages; ManufacturerJohanson Dielectrics

Download Datasheet Parametric View All

3600BP15M600 Overview

3600 MHz, CERAMIC BPF, CERAMIC PACKAGE-4

3600BP15M600 Parametric

Parameter Name	Attribute value
Maker	Johanson Dielectrics
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TAPE AND REEL
Maximum attenuation frequency (+/- delta f)	800000 kHz
Attenuation at maximum frequency	9 dB
average input power	0.5 W
Center frequency or cutoff frequency (fo/fc)	3600 MHz
filter type	CERAMIC BPF
high	0.95 mm
Input/output impedance	50 OHM
Maximum insertion loss	1.8 dB
length	2 mm
Installation type	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L2.0XB1.25XH0.95 (mm)/L0.079XB0.049XH0.037 (inch)
width	1.25 mm
Base Number Matches	1

Preview

Download Datasheet

View All

High Frequency Ceramic Solutions

3.6 GHz Wide Band Band Pass Filter

Detail Specification: 03/19/09

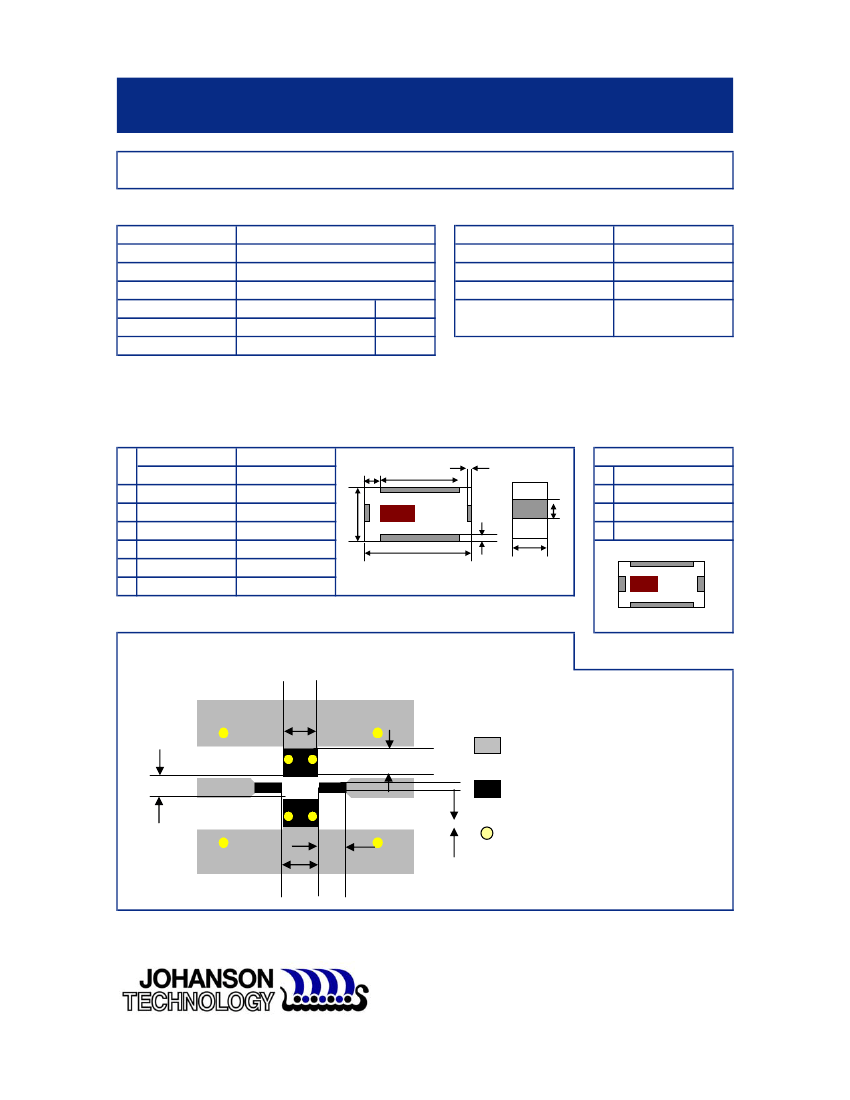

P/N 3600BP15M600

Page 1 of 2

General Specifications

Part Number

Frequency (MHz)

Insertion Loss

Return Loss

Attenuation (min.)

3600BP15M600

3300 - 3900

1.8 dB max.

9.5 dB min.

0.1 - 2.6 GHz

4.4 - 6.0 GHz

6.0 - 9.9 GHz

15 dB

9 dB

20 dB

Input Power

Impedance

Reel Quanity

Operating Temperature

Storage Temperature

500 mW max.

Ω

4,000

-40 to +85°C

+5 to +35°C, Humidity

45-75%RH, 12 mos. max*

* - 1 yr shelf life in bag; 1 week shelf life out of bag;

Vacuum reseal unused reel

Mechanical Dimensions

0.079 ± 0.006

0.049 ± 0.004

0.037 ± 0.004

0.049 ± 0.006

0.012 ± 0.006

0.010 ± 0.006

0.014 ± 0.006

Terminal Configuration

2.00 ± 0.15

1.25 ± 0.10

0.95 ± 0.10

1.25 ± 0.15

0.30 ± 0.15

0.25 ± 0.15

0.35 ± 0.15

No.

Function

GND

OUT

GND

Mounting Considerations

Mount these devices with brown mark facing up.

Line width should be designed to provide 50

Ω

impedance matching characteristics.

Units: mm

1.30

Solder Resist

1.00

0.80

Land

0.35

Through-hole (φ0.35)

1.00

1.40

Johanson Technology, Inc. reserves the right to make design changes without notice.

All sales are subject to Johanson Technology, Inc. terms and conditions.

www.johansontechnology.com

4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
