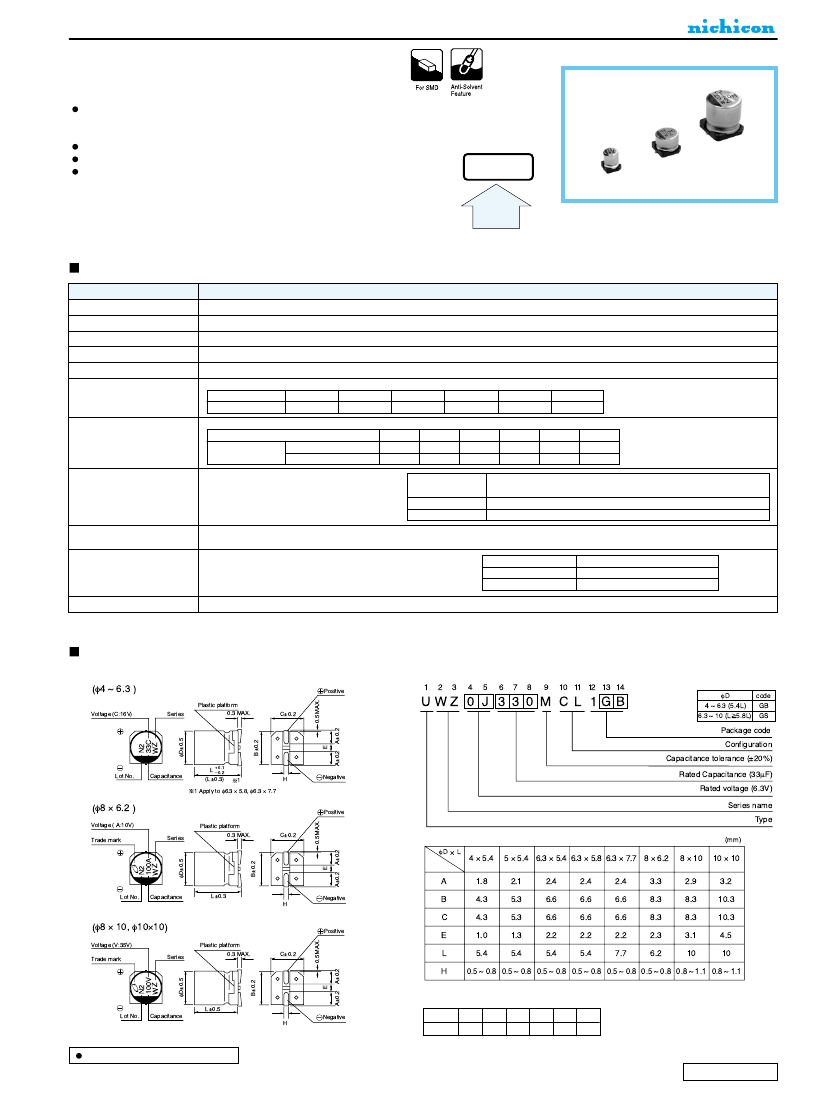

ALUMINUM ELECTROLYTIC CAPACITORS

Chip Type, Wide Temperature Range

High Temperature (260°C) Reflow

series

Corresponding with 260

°C peak reflow soldering

Recomended reflow condition : 260°C peak 5 sec 230°C over 60 sec 2 times

(

6.2,

10 : 1 time)

Chip type operating over wide temperature range of to – 55 ~ +105

°C

Applicable to automatic mounting machine using carrier tape.

Adapted to the RoHS directive (2002/95/EC).

High

Temperature

Reflow

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

tan

Performance Characteristics

– 55 ~ +105°C

6.3 ~ 50V

0.1 ~ 1500µF

±20% at 120Hz, 20°C

After 2 minutes' application of rated voltage, leakage current is not more than 0.01CV or 3 (µA) , whichever is greater.

Measurement frequency : 120Hz, Temperature : 20°C

Rated voltage (V)

tan

(MAX.)

6.3

0.30

0.24

6.3

0.20

0.16

0.14

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25°C / Z+20°C

Impedance ratio

Z– 40°C / Z+20°C

ZT / Z20 (MAX.)

Endurance

After 1000 hours' application of rated voltage

at 105°C, capacitors meet the characteristic

requirements listed at right.

Within ±25% of initial value for capacitors of 16V or less.

Within ±20% of initial value for capacitors of 25V or more.

tan

200% or less of initial specified value

Leakage current

Initial specified value or less

Capacitance

change

Shelf Life

Resistance to soldering

heat

Marking

After storing the capacitors under no load at 105°C for 1000 hours, and after performing voltage treatment based on JIS C 5101-4

clause 4.1 at 20°C, they will meet the specified value for endurance characteristics listed above.

The capacitors shall be kept on the hot plate maintained at 250°C

Capacitance change

Within ±10% of initial value

for 30 seconds. After removing from the hot plate and restored

tan

Initial specified value or less

at room temperature, they meet the characteristic requirements

Initial specified value or less

Leakage current

listed at right.

Black print on the case top.

Chip Type

Type numbering system (Example : 6.3V 33

Positive

Series

D±0.5

C±0.2

0.5 MAX.

Plastic platform

0.3 MAX.

B±0.2

(

4 ~ 6.3 )

Voltage (C:16V)

UWZ 0 J 3 3 0 M C L 1G B

1 2 3 4 5 6 7 8 9 10 11 12 13 14

Lot No.

Capacitance

(

6.2 )

Voltage ( A:10V)

Trade mark

Series

D±0.5

+0.1

Ð0.2

(L±0.3) 1

1 Apply to

6.3

5.8,

6.3

7.7

0.5 MAX.

Plastic platform

0.3 MAX.

B±0.2

Negative

Positive

Package code

Configuration

Capacitance tolerance (±20%)

Rated Capacitance (33

Rated voltage (6.3V)

Series name

Type

code

4 ~ 6.3 (5.4L) GB

6.3 ~ 10 (L 5.8L) GS

C±0.2

A±0.2 A±0.2

33C

A±0.2 A±0.2

100A

(mm)

5.4 5

5.4 6.3

5.8 6.3

7.7 8

6.2 8

10 10

1.8

4.3

1.0

5.4

0.5 ~ 0.8

6.3

Lot No.

Capacitance

L±0.3

Negative

Positive

(

10,

10)

Voltage (V:35V)

Trade mark

Series

D±0.5

C±0.2

0.5 MAX.

Plastic platform

0.3 MAX.

B±0.2

A±0.2 A±0.2

100V

Voltage

Code

2.1

5.3

1.3

5.4

0.5 ~ 0.8

2.4

6.6

2.2

5.4

0.5 ~ 0.8

2.4

6.6

2.2

5.4

0.5 ~ 0.8

2.4

6.6

2.2

7.7

0.5 ~ 0.8

3.3

8.3

2.3

6.2

0.5 ~ 0.8

2.9

8.3

3.1

0.8 ~ 1.1

3.2

10.3

4.5

0.8 ~ 1.1

Lot No.

Capacitance

L±0.5

Dimension table in next page.

Negative

CAT.8100V
