SM5803APT datasheet, PDF - EEWORLD Datasheet

SM5803APT: Descriptionmulti-function digital filter for digital audio; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，16 Pages; ManufacturerNPC; Websitehttp://www.npc.co.jp/en/

Download Datasheet Parametric Compare View All

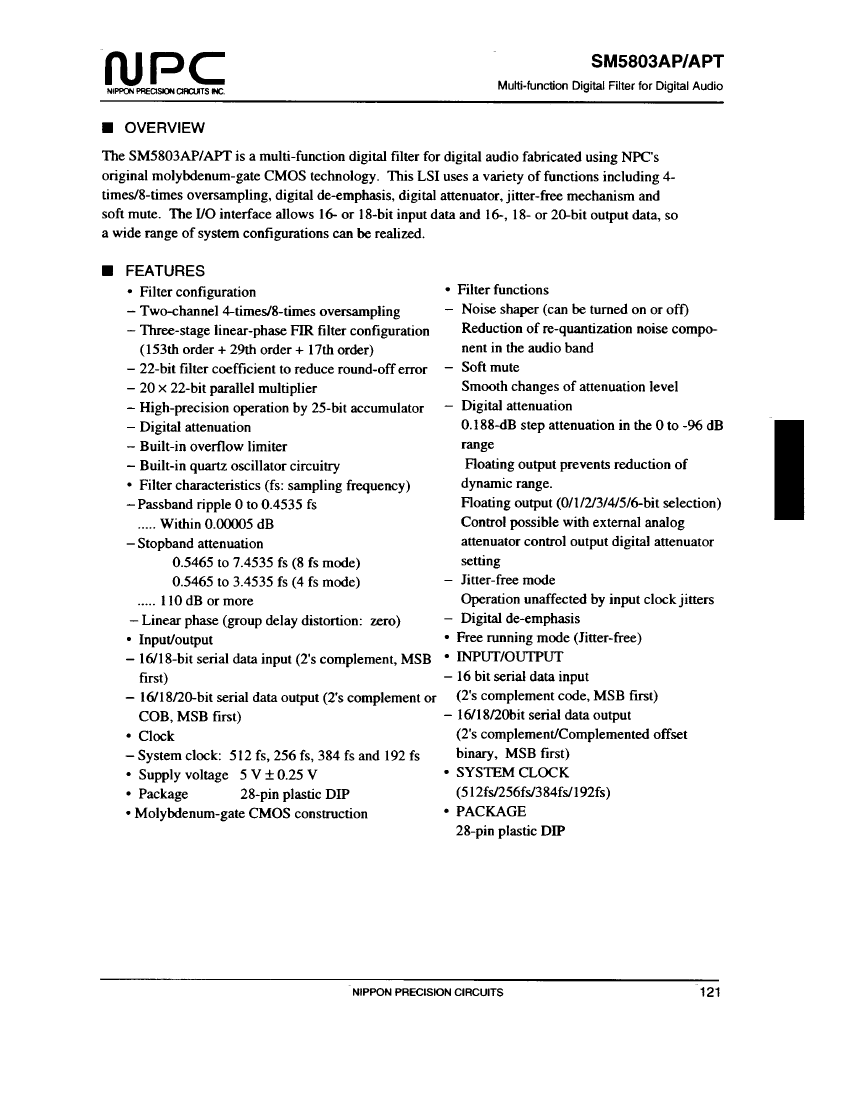

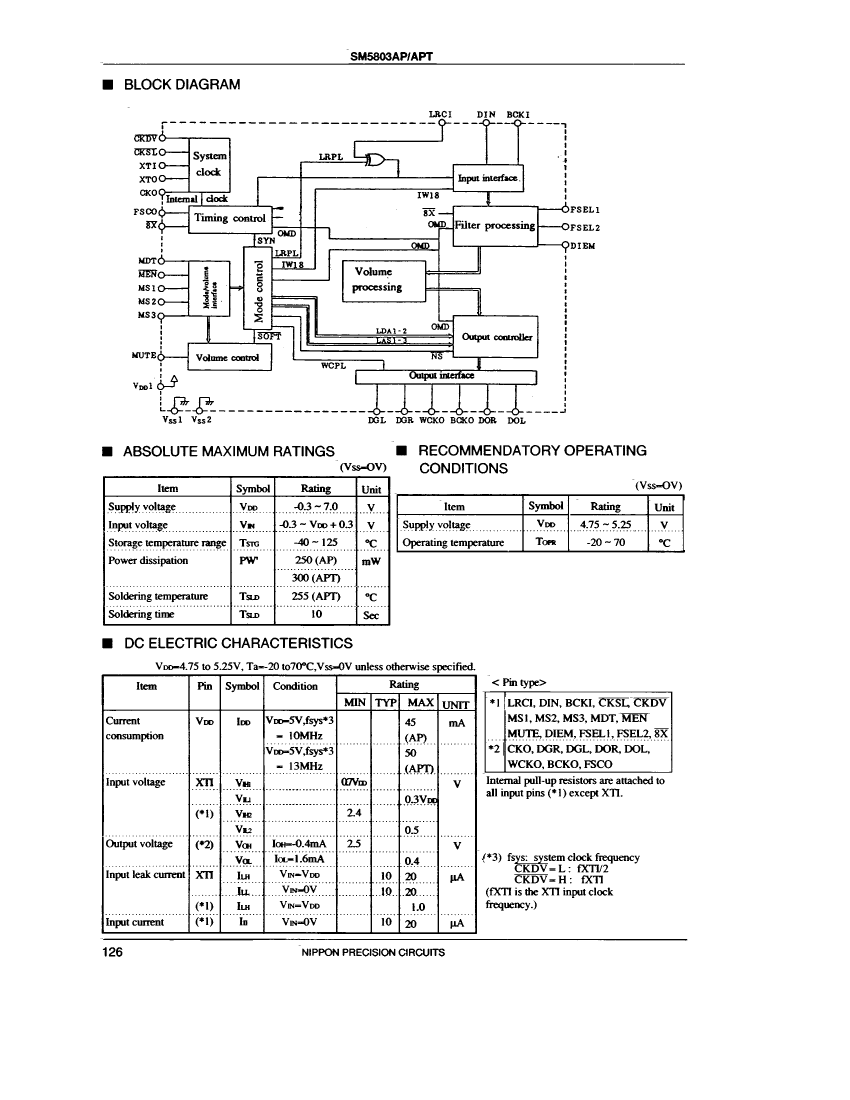

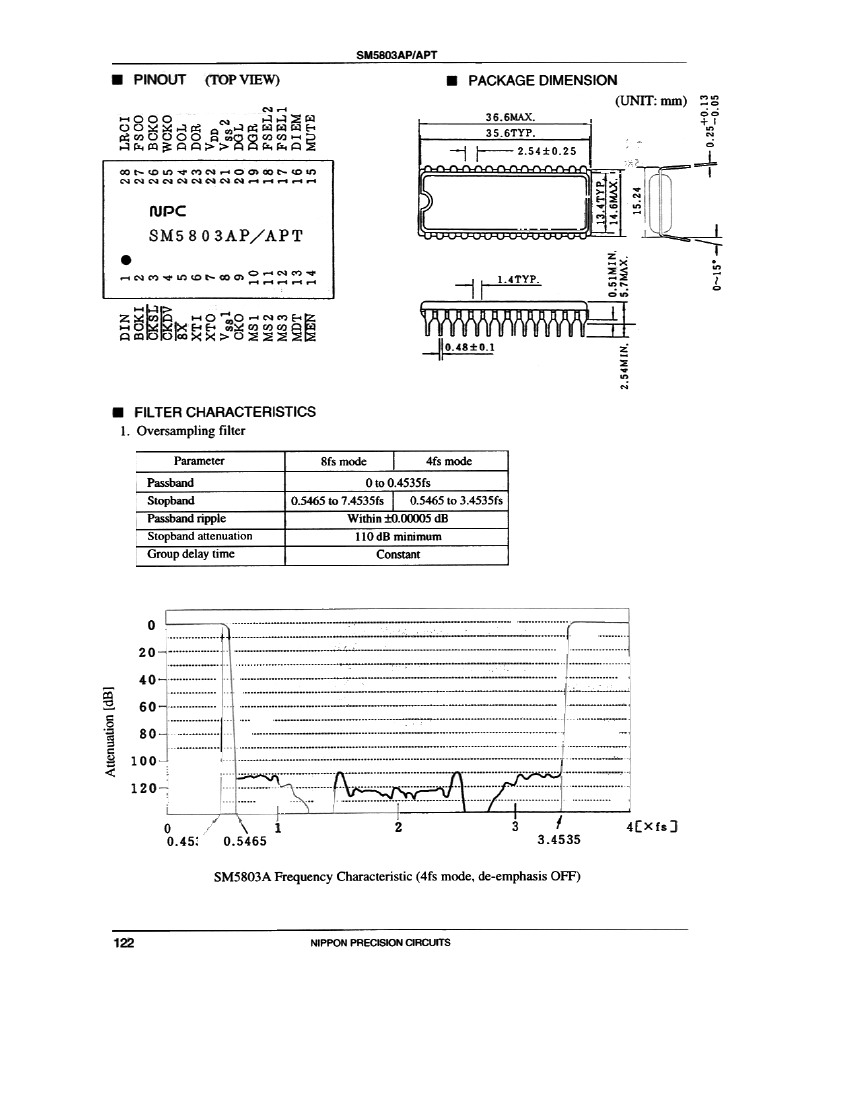

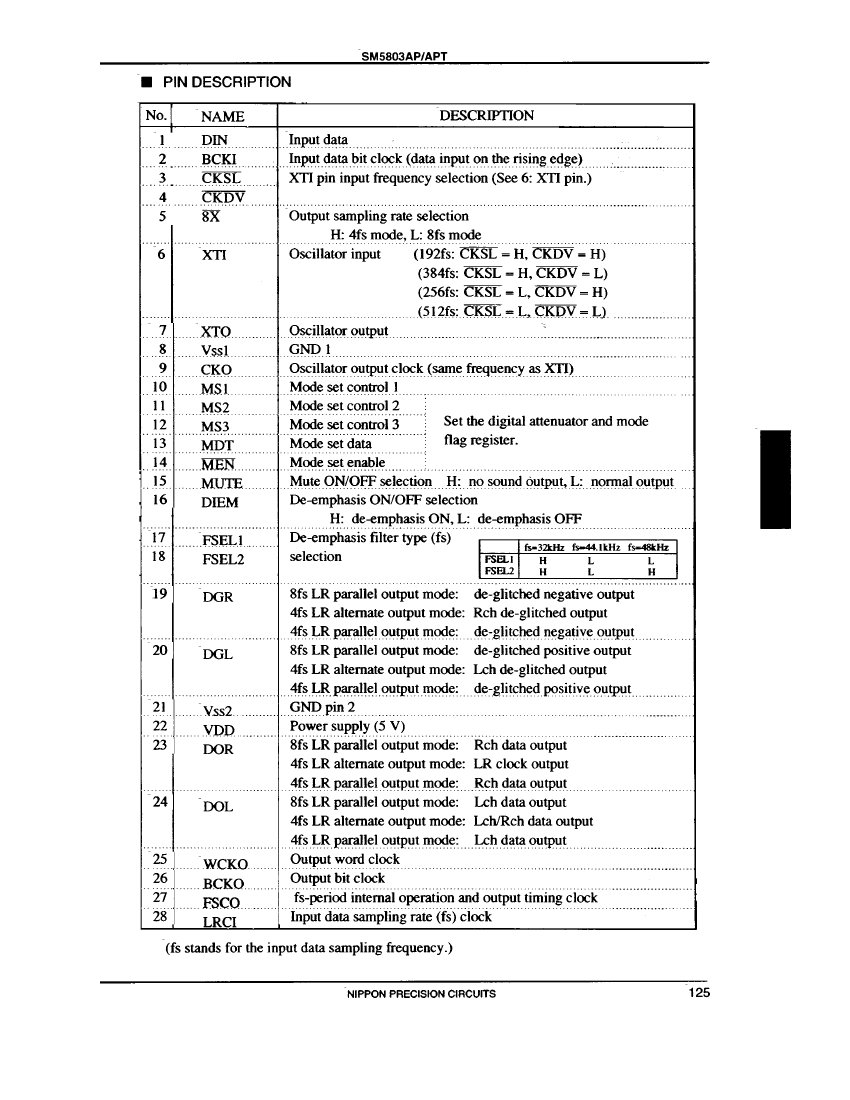

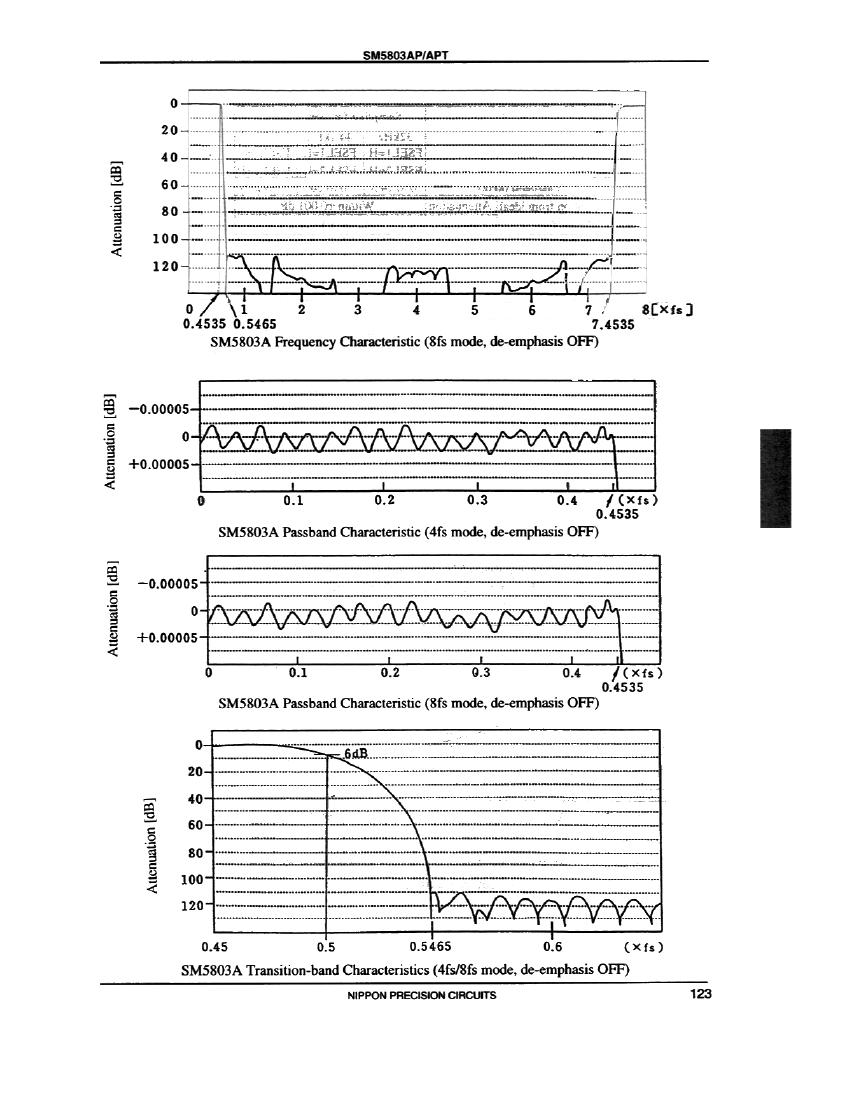

SM5803APT Overview

multi-function digital filter for digital audio

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NPC
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	50 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER

	SM5803APT	SM5803AP	SM5803
Description	multi-function digital filter for digital audio	multi-function digital filter for digital audio	multi-function digital filter for digital audio
Is it Rohs certified?	incompatible	incompatible	-
Maker	NPC	NPC	-
package instruction	DIP, DIP28,.6	DIP, DIP28,.6	-
Reach Compliance Code	unknown	unknown	-
JESD-30 code	R-PDIP-T28	R-PDIP-T28	-
JESD-609 code	e0	e0	-
Number of terminals	28	28	-
Maximum operating temperature	70 °C	70 °C	-
Minimum operating temperature	-20 °C	-20 °C	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	DIP	DIP	-
Encapsulate equivalent code	DIP28,.6	DIP28,.6	-
Package shape	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	IN-LINE	-
power supply	5 V	5 V	-
Certification status	Not Qualified	Not Qualified	-
Maximum slew rate	50 mA	45 mA	-
Nominal supply voltage	5 V	5 V	-
surface mount	NO	NO	-
technology	CMOS	CMOS	-
Temperature level	COMMERCIAL	COMMERCIAL	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	2.54 mm	2.54 mm	-
Terminal location	DUAL	DUAL	-
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, DIGITAL FILTER	DSP PERIPHERAL, DIGITAL FILTER	-
