BL-HGE33A-TRB
●
Features:
1. Emitted Color : Super Yellow Green
2. Lens Appearance : Water Clear
3. Mono-color type.
4. 3.2x1.6x1.4mm(1206) standard package
5. Suitable for all SMT assembly methods.
6. Compatible with infrared and vapor phase
reflow solder process.
●

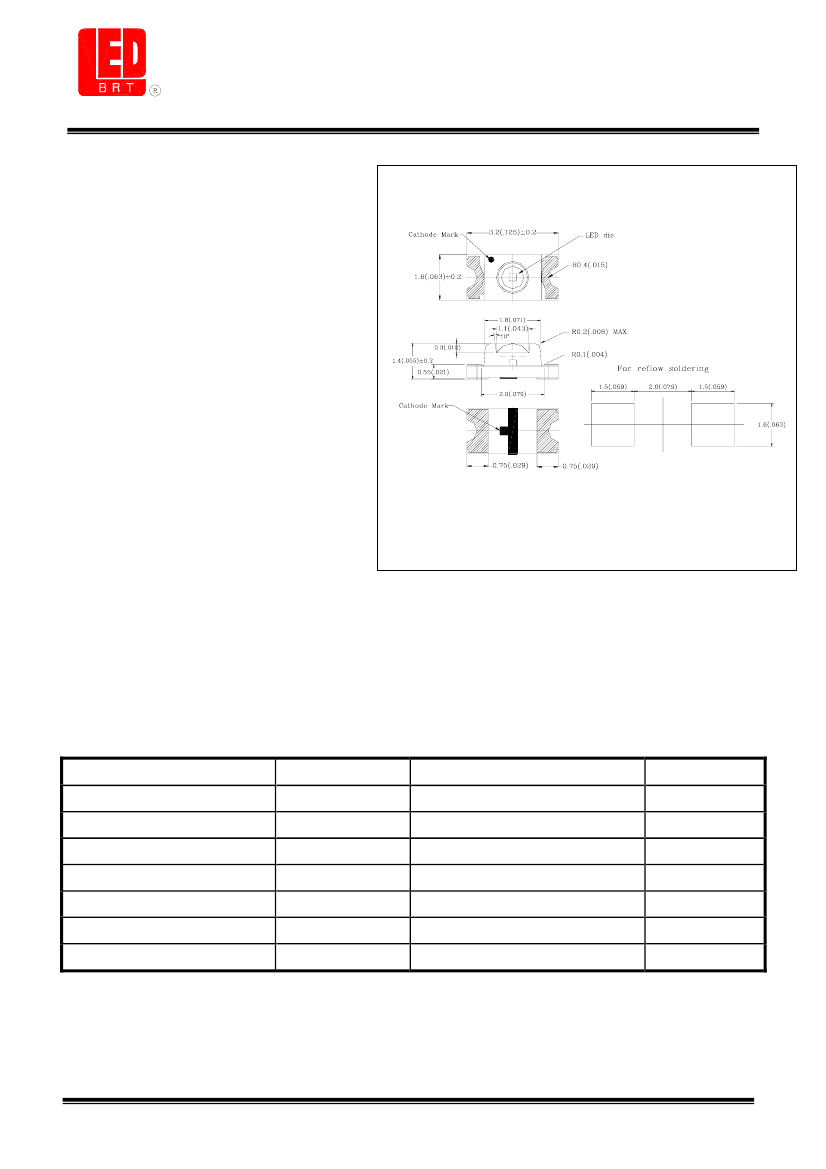

Package Dimensions:
7.
Compatible with automatic placement
equipment.
8. This product doesn’t contain restriction
Substance, comply ROHS standard.
●
Applications:
1.
Automotive : Dashboards, stop lamps,
turn signals.
2.
3.
Backlighting : LCDs, Key pads advertising.
Status indicators : Comsumer & industrial
electronics.
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ± 0.10mm (0.004”) unless otherwise specified.
3.Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current
*1
Reverse Volage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Rating
100
30
100
5
-25℃~80℃
-30℃~85℃
See Page6
Unit
mW
mA
mA
V
-
-
-
*1
Condition for IFp is pulse of 1/10 duty and 0.1msec width.
Ver.2.1 Page 1 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HGE33A-TRB
Max.
2.6
-
100
-
576
-
-
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Veiwing Angle
Symbol
Vf
Iv
I
R
λp
λd
Δλ
2θ
1/2
Condition
IF=20mA
I
F
=20mA
V
R
=20V
IF=20mA
IF=20mA
IF=20mA
IF=20mA
Min.
-
42
-
-
566
-
-
Typ.
2.0
75
-
570
-
30
60
Unit
V
mcd
µA
nm
nm
nm
deg
●

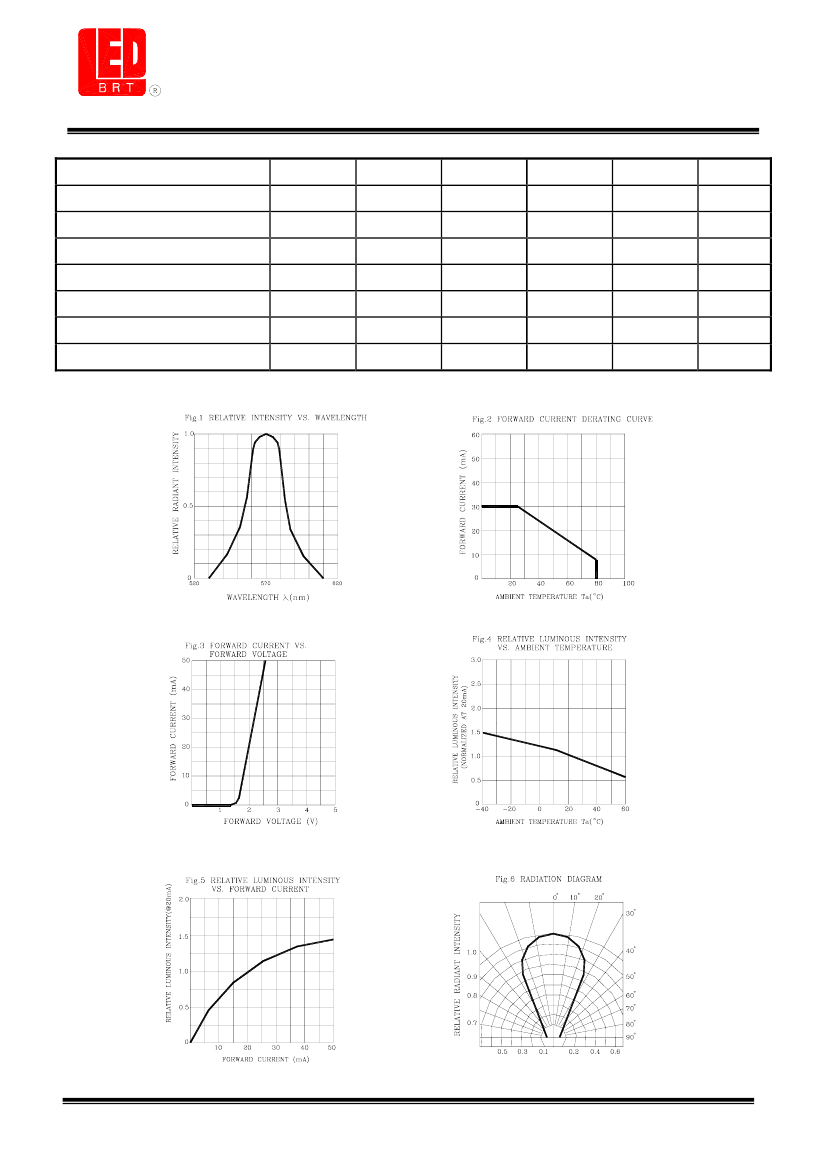

Typical Electro-Optical Characteristics Curves
Ver.2.0 Page 2 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HGE33A-TRB
●

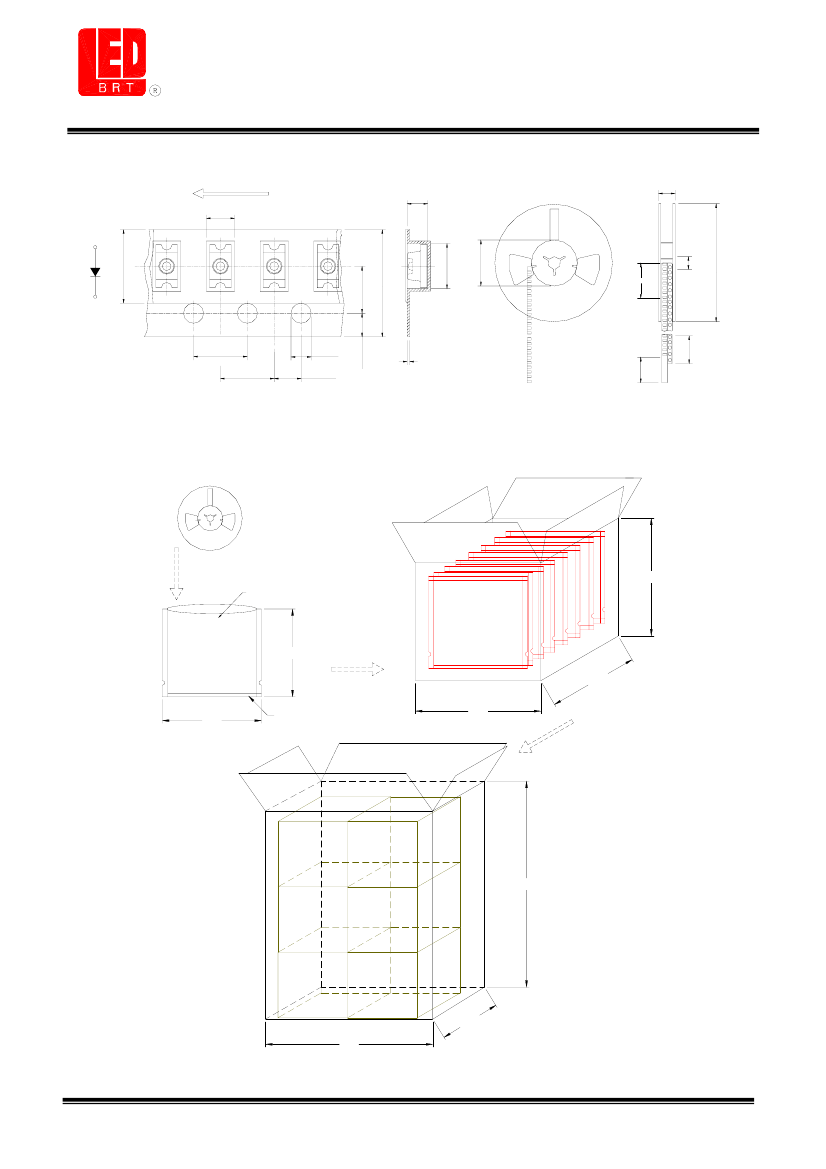

Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
1.46 ± 0.1
ANODE
START
13.0± 0.5
1.98 ± 0.1
END
71.0± 1
13.0± 0.5
5.3 ± 0.05
3.5 ± 0.05
8.0 ± 0.3
3.47± 0.1
TRAILER
CATHODE
1.75 ± 0.1
4.0 ± 0.1
4.0 ± 0.1
1.5± 0.1
2.0± 0.05
LEADER
0.3
FIXING TAPE
NOTE: 3000 pcs PER REEL
●
Package Method:(unit:mm)
12 bag/box
3000 pcs/reel
215
Bar Code Label
245
230
167
220
Aluminum Foil Bag
645
6 box/carton
230
334
Ver.2.0 Page 3 of 7
179± 1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HGE33A-TRB
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( A t 2 0 m A )
BIN CODE
Min. (mcd)
N
P
Q
R
37.0
55.0
82.0
120.0
Max. (mcd)
72.0
11 0 . 0
160.0
240.0
C o l o r B i n L i m i ts ( A t 2 0 m A )
BIN CODE
4
5
6
7
8
Min. (nm)
565
567
569
571
573
Max. (nm)
569
571
573
575
577
●
B IN:
x
x
Color BIN CODE
Intensity BIN CODE
Ver.2.0 Page 4 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HGE33A-TRB
●
Reliability Test
Classification
Test Item
Reference Standard
Test Conditions
Result
Operation Life MIL-STD-750:1026
MIL-STD-883:1005
JIS-C-7021
:B-1
High
Temperature MIL-STD-202:103B
High Humidity JIS-C-7021
:B-11
Endurance
Storage
Test
High
MIL-STD-883:1008
Temperature
JIS-C-7021
:B-10
Storage
Low
:B-12
Temperature JIS-C-7021
Storage
Temperature MIL-STD-202:107D
Cycling
MIL-STD-750:1051
MIL-STD-883:1010
JIS-C-7021
:A-4
Thermal Shock MIL-STD-202:107D
Environmental
MIL-STD-750:1051
Test
MIL-STD-883:1011
Solder
MIL-STD-202:201A
Resistance
MIL-STD-750:2031
JIS-C-7021
:A-1
Connect with a power If=20mA
Ta=Under room temperature
Test time=1,000hrs
Ta=+65℃±5℃
RH=90%-95%
Test time=240hrs
High Ta=+85℃±5℃
Test time=1,000hrs
Low Ta=-35℃±5℃
Test time=1,000hrs
-35℃ ~ +25℃ ~ +85℃ ~ +25℃
60min 20min
60min
20min
Test Time=5cycle
-35℃±5℃ ~+85℃±5℃
20min
20min
Test Time=10cycle
Preheating:
140℃-160℃,within 2 minutes.
Operation heating:
235℃(Max.), within 10seconds. (Max.)
0/20
0/20
0/20
0/20
0/20
0/20
0/20
●
Judgment criteria of failure for the reliability
Measuring items
Forward voltage
Reverse current
Luminous intensity
Symbol
V
F
( V)
I
R
(uA)
Iv ( mcd )
Measuring conditions
I
F
=20mA
V
R
=5V
I
F
=20mA
Judgement criteria for failure
Over Ux1.2
Over Ux2
Below SX0.5
Note:
1.U means the upper limit of specified characteristics.
S means initial value.
2.Measurment shall be taken between 2 hours and after the test pieces have been returned to
normal ambient conditions after completion of each test.
Ver.2.0 Page 5 of 7
