BL-PDA-CRS-C10 datasheet, PDF - EEWORLD Datasheet

BL-PDA-CRS-C10: Descriptionhigh brightness surface mount led.; CategoryLED optoelectronic/LED photoelectric; File Size281KB，8 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-PDA-CRS-C10 Overview

high brightness surface mount led.

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	2.80 X 3.20 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown
color	AMBER
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	198.75 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.8 mm
method of packing	TAPE AND REEL
shape	ROUND
size	2.4 mm
surface mount	YES
Terminal pitch	4.5 mm
perspective	120 deg

AMERICAN BRIGHT

OPTOELECTRONICS CORP.

•

AlInGap DOMILED BL-PDx-xRS Series

Feature:

1. High brightness surface mount LED.

2. 120° viewing angle.

3. Small package outline (LxWxH) of 2.8 x 3.2 x 1.8 mm.

4. Qualified according to JEDEC moisture sensitivity Level 2.

5. Compatible to both IR reflow soldering and TTW soldering.

•

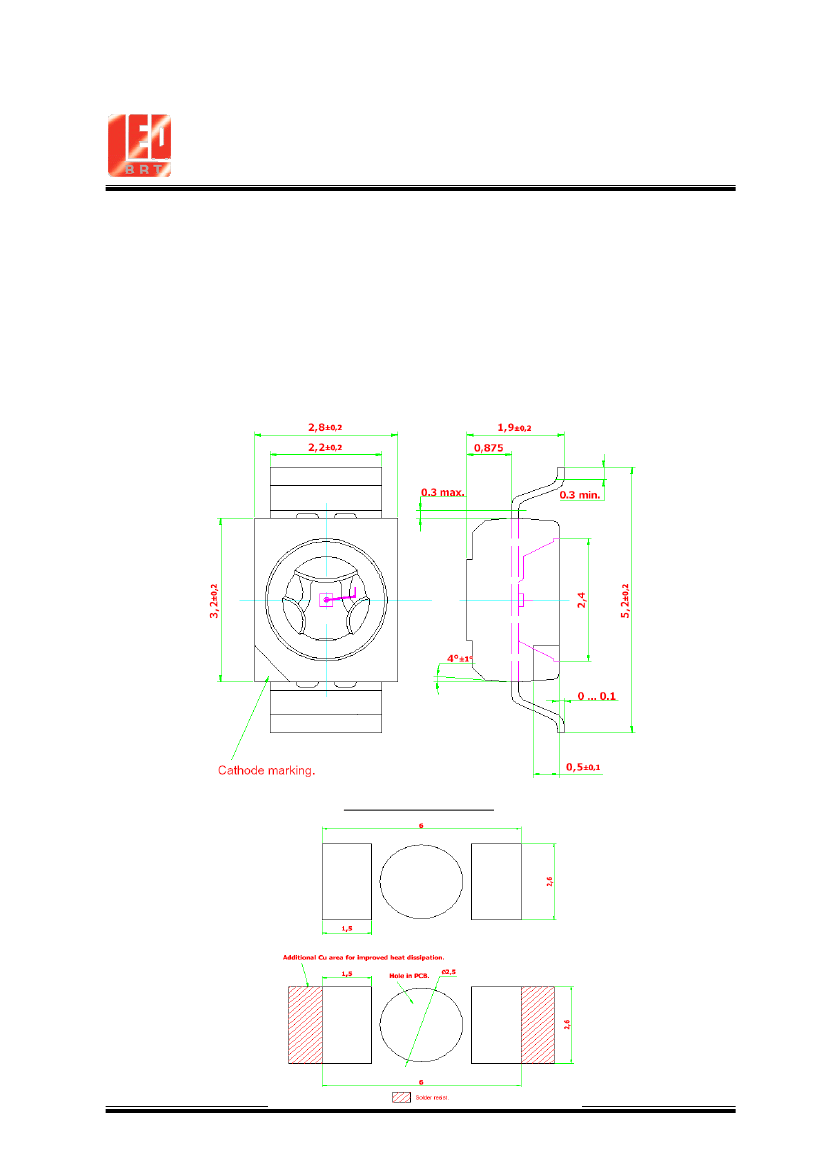

Package Dimension:

Recommended Solder Pad

V.2 Page: 1 of 8

	BL-PDA-CRS-C10	BL-PDA-SRS-C10
Description	high brightness surface mount led.	high brightness surface mount led.
Maker	BRIGHT	BRIGHT
package instruction	2.80 X 3.20 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-2	2.80 X 3.20 MM, 1.80 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown	unknown
color	AMBER	AMBER
Configuration	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	198.75 mcd	315.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.8 mm	1.8 mm
method of packing	TAPE AND REEL	TAPE AND REEL
shape	ROUND	ROUND
size	2.4 mm	2.4 mm
surface mount	YES	YES
Terminal pitch	4.5 mm	4.5 mm
perspective	120 deg	120 deg
