629-W09-240-015 datasheet, PDF

Datasheet> All Categories > The connector> 629-W09-240-015

629-W09-240-015: DescriptionAudio Transformers / Signal Transformers MID-SN6501 TI Driver Toroid .475mH 5VDC; CategoryThe connector; File Size278KB，1 Pages; ManufacturerEDAC

Download Datasheet Parametric Compare View All

629-W09-240-015 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	629-W09-240-015	-	-	View	Buy Now

629-W09-240-015 Overview

Audio Transformers / Signal Transformers MID-SN6501 TI Driver Toroid .475mH 5VDC

629-W09-240-015 Parametric

Parameter Name	Attribute value
Product Category	D-Sub Standard Connectors
Manufacturer	EDAC
RoHS	Details
Number of Positions	9 Position
Contact Gender	Pin (Male)
Termination Style	Solder
Mounting Angle	Right
Number of Rows	2 Row
Shell Size	1 (E)
Contact Plating	Gold
Mounting Style	Flange
Packaging	Bulk
Current Rating	5 A
Gender	Male
Insert Arrangement	E09
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Shell Material	Steel
Shell Plating	Nickel
Factory Pack Quantity	144
Type	Plug
Unit Weight	0.563396 oz

Preview

Download Datasheet

View All

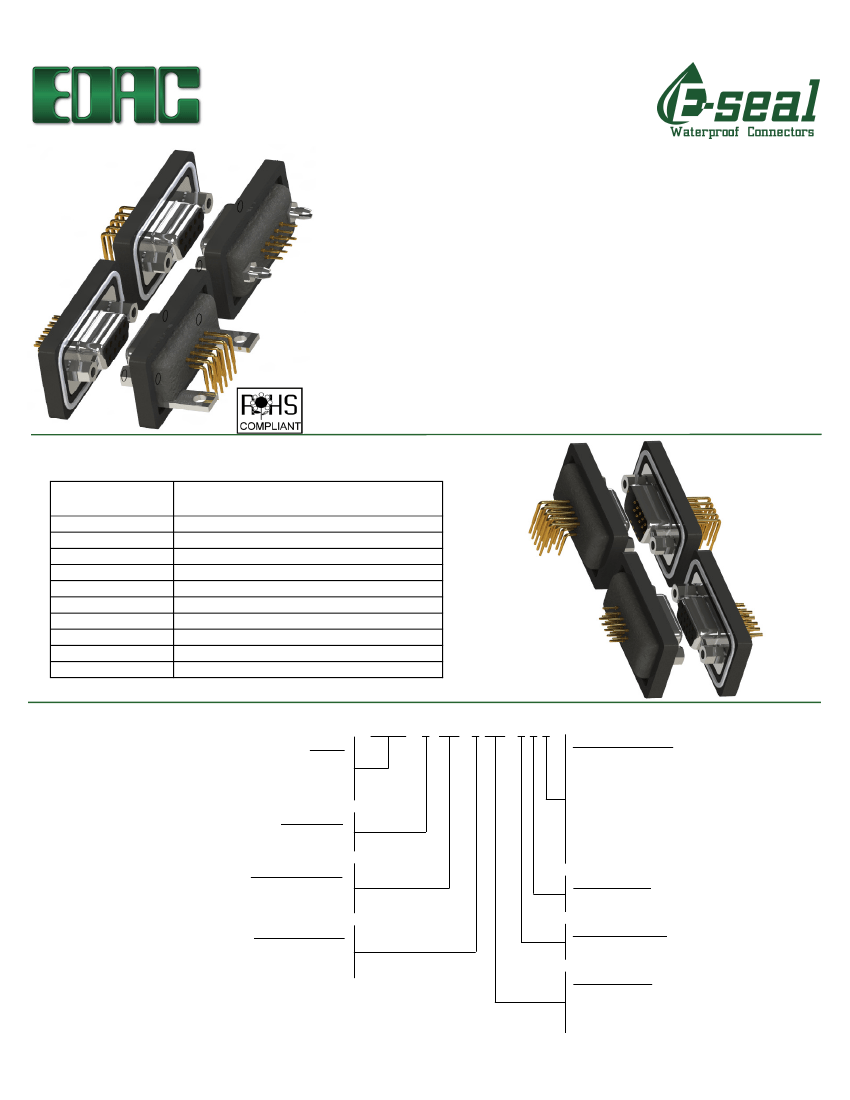

SERIES 627/628/629/630

WATERPROOF D-SUB

Plug and Receptacle , Straight or Right Angle PCB Mount

•

Specifications:

Insulator Material

Contact Material

Contact Plating

Shell Material

Epoxy Sealant

O-Ring

Current Rating

Contact Resistance

Insulation Resistance

Dielectric Voltage

Operating Temp.

PBT Thermoplastic with 30% Glass Filled,

UL 94V-0 Rated, Black color

Pins and Sockets: Copper Alloy

Gold Plating over Nickel underplating

Nickel Plated Steel

Epoxy

Silicone

5A Per Contact

10 Milliohms MAX

5000 Megohms MIN

1000V AC rms at Sea Level

-25°C To +85°C

.109"(2.77mm) Contact Spacing x .112"(2.82mm) Row Spacing

Plug and Receptacle in 9, 15, or 25 Contact Pin Sizes

Pin Contact Mating Design with P.C. Tail Termination in Right Angle,

Straight or Solder Cup Termination

Plug Shell Indents Provide Grounding and Additional Mating

Retention

Grounding Feature include Two Prong Boardlock for Exceptional

Retention to P.C. Board

Mounting Options for Panel Mount or Connector Mating include

Threaded Inserts or Threaded Standoffs

D-Shaped Connector Mating Outline provides Polarization

Degree of Protection: IP67 as per IEC60529

Ordering Code:

SERIES:

PLUG, Vertical PCB Mount, Standard Size . . . . 627

Receptacle, Vertical PCB Mount, Standard Size . . . . 628

PLUG, Right Angle, 10.3 [0.406], Standard Footprint . . . . 629

Receptacle, Right Angle, 10.3 [0.406] Standard Footprint . . . . 630

CROSS / REF:

EDAC CODE

WATERPROOF . . . . W

NO. OF CONTACTS:

9 CONTACT PINS . . . . 09

15 CONTACT PINS . . . . 15

25 CONTACT PINS . . . . 25

CONTACT PLATING

Gold Flash Plating over Nickel . . . . 2

15 µIN of Gold Plating over Nickel . . . . 3

30 µIN of Gold Plating over Nickel . . . . 6

627-W09-220-012

MOUNTING OPTION:

2 . . . . #4-40 UNC THREADED HOLE

3 . . . . RIVETED #4-40 UNC BOARDLOCKS AND

(Only for Vertical DIP version)

5 . . . . BRACKET #4-40 UNC WITHOUT BOARDLOCKS

(Only for Right Angle version)

NOTE:ALL CONNECTORS ARE SHIPPED WITH

#4-40 UNC HEXAGON SCREWS

(Packed Separately)

SHELL OPTIONS:

1 . . . . NICKEL PLATED

INSULATOR COLOR:

0 . . . . BLACK

CONTACT CODE:

20 . . . . PC TAIL FOR STANDARD D-SUB

22 . . . . SOLDER CUP TERMINATION

40 . . . . RIGHT ANGLE TAIL,

10.3 [0.405] FOOTPRINT (9.4 NODE)

www.edac.net

Rev.1

629-W09-240-015 Related Products

	629-W09-240-015	630-W09-240-012	638-W15-221-012	630-W15-240-012	627-W09-222-012	633-W15-262-012
Description	Audio Transformers / Signal Transformers MID-SN6501 TI Driver Toroid .475mH 5VDC	D-Sub Backshells BKSHL 9P w/o CONN	Circular DIN Connectors COVER FOR FEMALE CON		D-Sub Standard Connectors WTRPF solder 9PIN MLE CONN MNT HLE	CONN DSUB HD PLUG 15POS R/A SLDR
Product Category	D-Sub Standard Connectors	D-Sub Standard Connectors	D-Sub High Density Connectors	D-Sub Standard Connectors	-	-
Manufacturer	EDAC	EDAC	EDAC	EDAC	-	-
RoHS	Details	Details	Details	Details	-	-
Number of Positions	9 Position	9 Position	15 Position	15 Position	-	-
Number of Rows	2 Row	2 Row	3 Row	2 Row	-	-
Shell Size	1 (E)	1 (E)	15	2 (A)	-	-
Packaging	Bulk	Bulk	Bulk	Bulk	-	-
Factory Pack Quantity	144	144	144	126	-	-
