Accutek
Microcircuit
Corporation
28 Pin to 32 Pin
DIP Adapters
DIP ADAPTER
MODULES
ELIMINATE THE
NEED TO
REDESIGN
MOTHERBOARDS
OR MAY BE USED
FOR
BREADBOARD
PROTOTYPING
DESCRIPTION

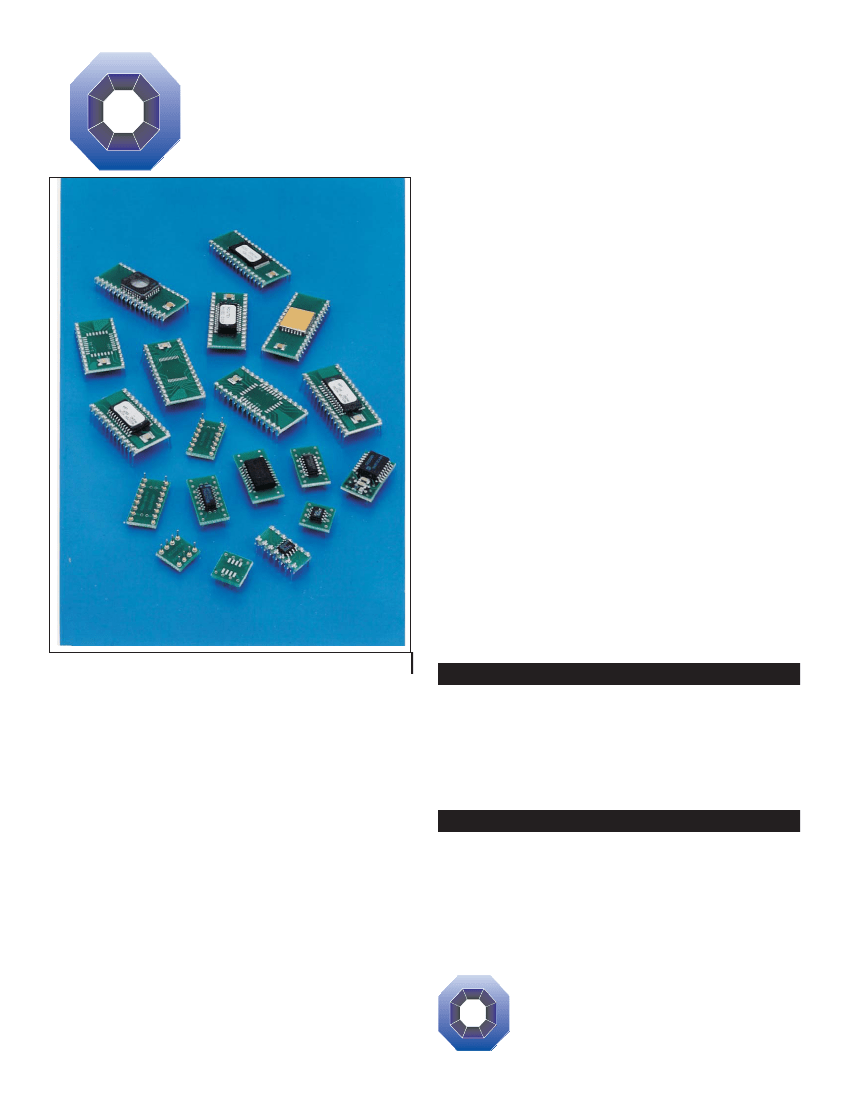

This new family of Accutek DIP Adapter Modules converts surface
mount IC’s to pin compatible DIP packages for creating drop-in re-
placements for end-of-life DIP IC’s. Package types supported are:
SOJ, PLCC, SOIC, SOP, TSOP, QSOP, HSOP, MSOP, LLP
(Leadless Leadframe Package), CSP (Chip Scale Package) and
CLCC.
These DIP Adapters were developed for users with motherboard
designs that require DIP’s, now obsoleted by manufacturers. These
adapter modules save costly motherboard redesigns.
Available with machined or flat contact pins. Accutek DIP Adapter
Modules feature 4 to 84 pins, are fully assembled and tested and
may include a decoupling capacitor. These DIP Adapters can be
manufactured turnkey or from customer supplied surface mount

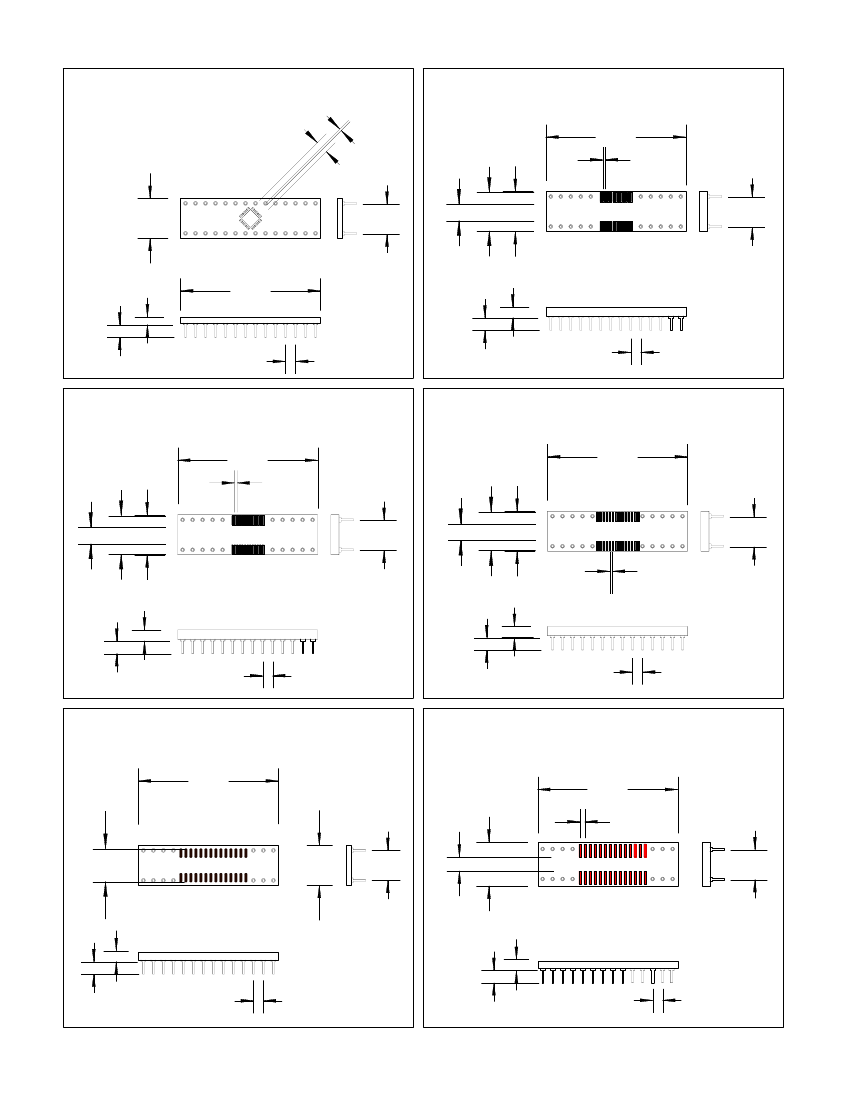

chips. Modules range in length from 0.200” to 4.200” depending on
number of pins and incorporate 0.300”, 0.400”, 0.600”, 0.900",
1.200" and 1.400" row-to-row spacing with 0.100” lead spacing.
Custom configurations up to 200 pins, multi-chip and double sided
modules are also available for special functions. A variety of pin
lengths with varying diameters as well as custom sizes and spacing
can be specified with different materials and finishes. All modules
are designed in-house using PCB CAD workstations. Automated
assembly and 100% testing are also performed in-house.
FEATURES
·
·
·
·
·
·
·
Saves costly redesign of current motherboards
Fully tested with lifetime limited warranty
May include an on board decoupling capacitor
IC assembly and testing available
EPROM and Flash programming available
Custom lead lengths available
Custom multi-chip and double-sided modules available
ORDERING OPTIONS
·
Adapter only
·
Customer supplies chips - Accutek assembles on Accutek
adapters, tests and delivers finished product in antistatic tubes.
·
Complete turnkey - Accutek purchases IC’s and passives. Then
assembles, tests and delivers finished product in antistatic tubes.
ACCUTEK MICROCIRCUIT CORPORATION
BUSINESS CENTER at NEWBURYPORT
2 NEW PASTURE ROAD, SUITE 1
NEWBURYPORT, MA 01950-4054
PHONE:
978-465-6200
FAX:
978-462-3396
E-Mail:
sales@accutekmicro.com
Internet:
www.accutekmicro.com
