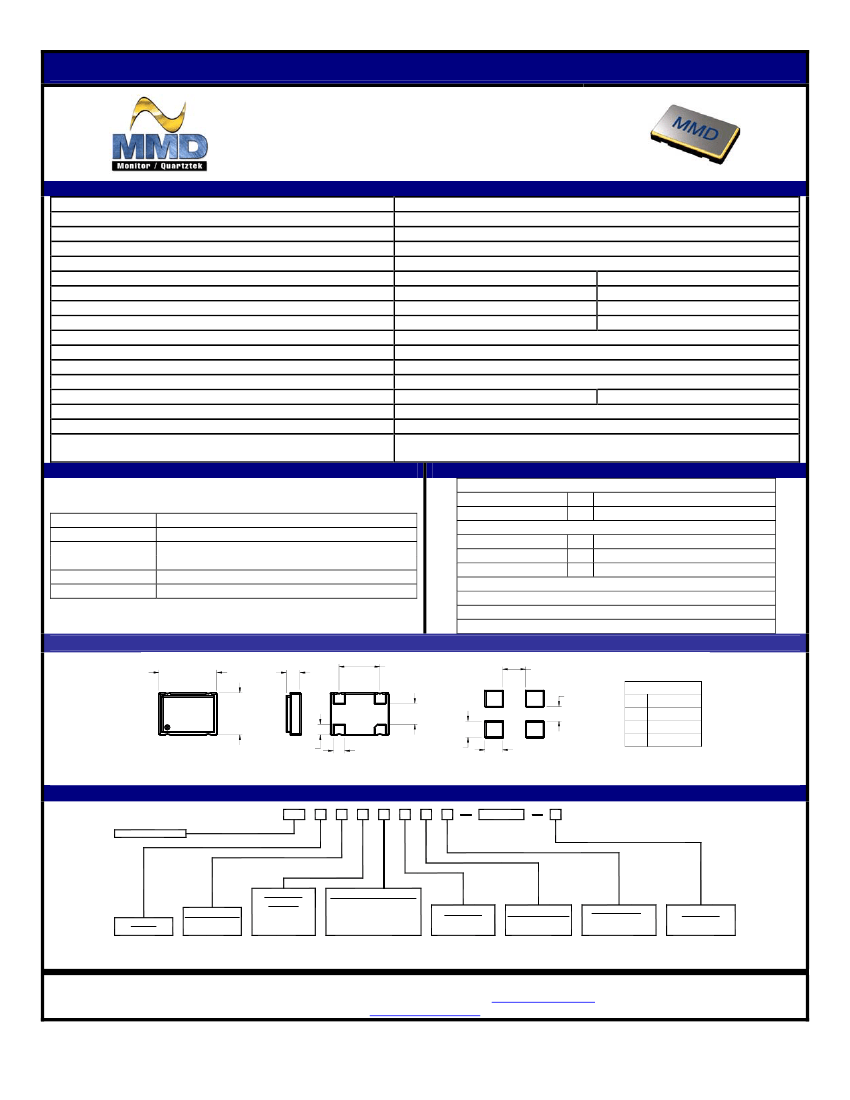

MIMH SERIES – 5 x 7 Ceramic Oscillator
5 x 7 Ceramic SMD 4 Pads Oscillator
Wide Frequency Range
-55°C to +125°C Operation
RoHS Compliant
ELECTRICAL SPECIFICATIONS:
Frequency Range
Freq Tolerance @ +25°C
Freq Stability (Inclusive of Temp., Load, Voltage, and Aging)
Operating Temp Range
Storage Temp. Range
Supply Voltage (Vdd)
Supply Current
1.500MHZ to 20.000MHZ
21.000MHZ to 50.000MHZ
51.000MHZ and above
Waveform
Logic “0”
Logic “1”
Symmetry (50% of wavefrom)
Load
Rise / Fall Time (20% to 80%)
Start Time
Tri-state Operation
1.500MHZ to 156.520MHZ
±25ppm
(See Part Number Guide for Options)
(See Part Number Guide for Options)
-55°C to +125°C
+3.3 VDC ±5%
+5.0 VDC ±5%
12 mA max
20 mA max
15 mA max
35 mA max
40 mA max
60 mA max
HCMOS
10% Vdd max
90% Vdd min
(See Part Number Guide for Options)
5 TTL Gates or 30pF Load max
10 TTL Gates or 50pF Load max
6 nSec max
10 mSec max
Vih = 70% of Vdd min to Enable Output
Vil = 30% max or grounded to Disable Output (High Impedance)
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS:
MARKING DETAILS:
Line 1 = MXXXXX
M = MMD COMPONENTS
XXXXX = Frequency in MHZ
Line 2 = SYYMML
S = Internal Code
YYMM = 4 Digit Date Code (Year / Month)
L = Denotes RoHS Compliant
Line 3 = XXXXX
Internal use only
May vary with lots
Black dot to denote Pin 1
Shock
Vibration
Reflow Solder
Hermeticity
Solderability
MIL-STD 883, Method 2002, Test Condition B
MIL-STD 883, Method 2007, Test Condition B
+160°C for 120 sec max
+260°C for 10 sec. max
MIL-STD 883, Method 1014, Test Condition C
MIL-STD 883, Method 2003 (No Aging)
MECHANICAL DIMENSIONS:
7.20 [.283]
MAX
1.70 [.067]
MAX
5.08 [.200]
2.88 [.113]
Pin Connections
Pin 1 Tri-state or N/C
Pin 2 Case Ground
Pin 3 Output
2.00 [.079]
Pin 4 Supply Voltage
2.20 [.087]
Recommended Land
Pattern
1.81 [.071]
MARKING
5.20 [.205]
MAX
3
2
4
1
2.60 [.102]
1.30 [.051]
Dimension in Brackets are in Inches
External Bypass Capacitor is Recommended
1.40 [.055]
PART NUMBERING GUIDE:
MIM
5 x 7 SMD 4 PADS
H
Frequency
Output
H = HCMOS
Supply Voltage
3 = +3.3 VDC
5 = +5.0 VDC
Frequency
Stability
025 = ±25 ppm*
050 = ±50 ppm
100 = ±100 ppm
Operating Temperature
Blank = 0°C to +70°C
48 = -40°C to +85°C
50 = -55°C to +105°C
55 = -55°C to +125°C
Symmetry
Blank = 40/60%
A = 45/55%
Pin 1 Connection
Blank = N/C
H = Tri-state
Special Specs
M = 100% Screening
over Temperature
Packaging
Blank = Bulk
T = Tape and Reel
Please Consult with MMD Sales Department for any other Parameters or Options
*±25 ppm between -40°C to +85°C only
MMD Components,
30400 Esperanza, Rancho Santa Margarita, CA, 92688
Phone: (949) 709-5075, Fax: (949) 709-3536,
www.mmdcomp.com
Sales@mmdcomp.com
Specifications subject to change without notice
Revision MIMH013108K
