FAST RECOVERY DIODE
FOR IGBT, IEGT, GCT APPLICATIONS
SNUBBERLESS OPERATION
LOW LOSSES SOFT RECOVERY
ARF681
Repetitive voltage up to
Mean forward current
Surge current
4500
V
1145
A
25
kA
TARGET SPECIFICATION
mar 03 - ISSUE : 2
Symbol
Characteristic
Conditions
Tj
[°C]
Value
Unit
BLOCKING
V
V
I
V
RRM
RSM
RRM
DC LINK
Repetitive peak reverse voltage
Non-repetitive peak reverse voltage
Repetitive peak reverse current
Permanent DC voltage
V=VRRM
125
125
125
125
4500
4600
150
2800
V
V
mA
V
CONDUCTING
I
I
I
F (AV)
F (AV)
FSM
Mean forward current
Mean forward current
Surge forward current
I² t
Forward voltage
Threshold voltage
Forward slope resistance
180° sin ,50 Hz, Th=55°C, double side cooled
180° square,50 Hz,Th=55°C,double side cooled
Sine wave, 10 ms
reapplied reverse voltage up to 50% VRSM
Forward current = =2000 A
125
1145
1185
25
3125 x1E3
125
125
125
3.55
1.95
0.800
A
A
kA
A²s
V
V
mohm
I² t
V
V
r
FM
F(TO)
F
SWITCHING
Q rr
I rr
t rr
Q rr
I rr
s
E
V
OFF
FR
Reverse recovery charge
Peak reverse recovery current
Reverse recovery time
Reverse recovery charge
Peak reverse recovery current
Softness (s-factor), min
Turn off energy dissipation
Peak forward recovery
IF=
VR =
IF=
di/dt=
VR =
1000 A
100 V
2100 A
1000 A/µs
1800 V
di/dt=
250 A/µs
125
125
1500
730
µC
A
µs
2200
125
1150
µC
A
J
di/dt=
400 A/µs
125
V
MOUNTING
R
th(j-h)
R
th(c-h)
T
F
j
Thermal impedance
Thermal impedance
Operating junction temperature
Mounting force
Mass
Junction to heatsink, double side cooled
Case to heatsink, double side cooled
14.0
6.0
-30 / 125
35.0 / 40.0
850
°C/kW
°C/kW
°C
kN
g
ORDERING INFORMATION : ARF681 S 45
standard specification
VRRM/100
ARF681 FAST RECOVERY DIODE
TARGET SPECIFICATION
mar 03 - ISSUE : 2
POSEICO
POSEICO SPA
POwer SEmiconductors Italian COrporation

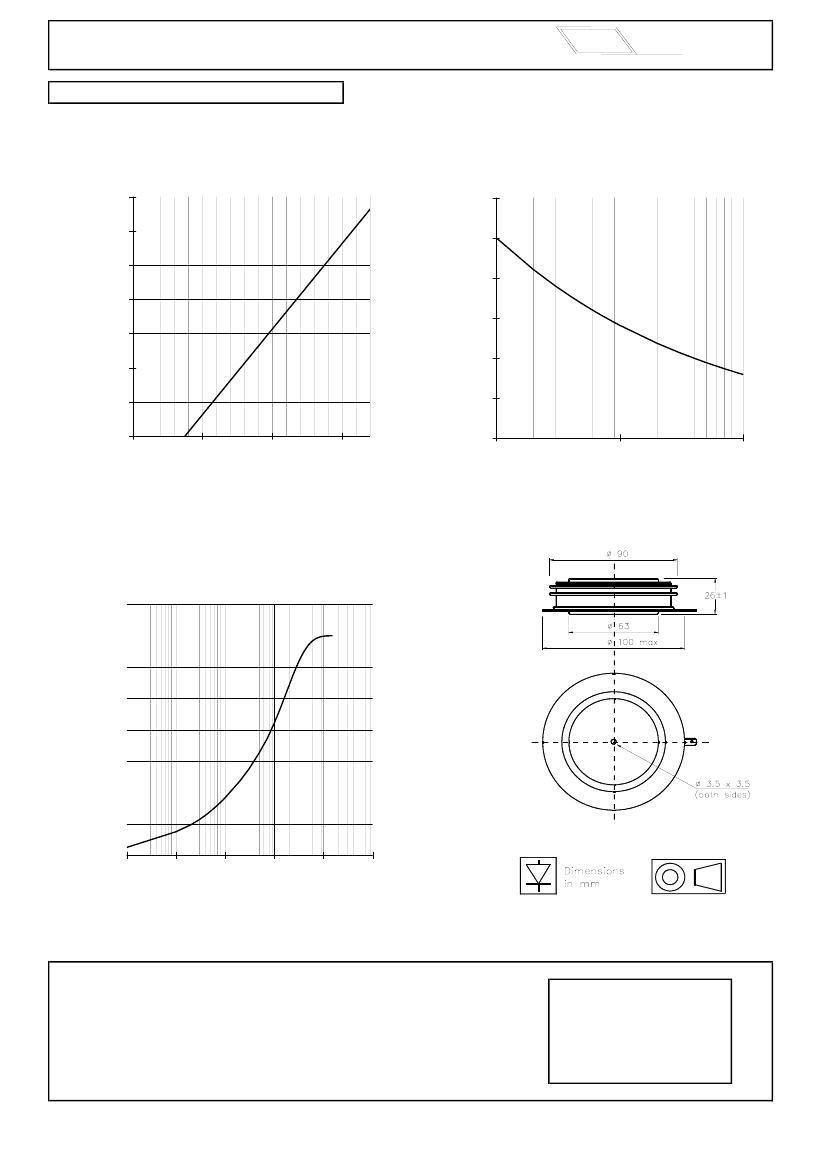

FORWARD CHARACTERISTIC
Tj = 125 °C
3500
3000
2500
20
ITSM [kA]
2000
1500
1000
500
0
1.2
2.2
3.2
4.2
Forward Voltage [V]
30
25
SURGE CHARACTERISTIC
Tj = 125 °C
Forward Current [A]
15
10
5
0
1
10
n° cycles
100
TRANSIENT THERMAL IMPEDANCE
DOUBLE SIDE COOLED
16.0
14.0
12.0
Zth j-h [°C/kW]
10.0
8.0
6.0
4.0
2.0
0.0
0.001
0.01
0.1
t[s]
1
10
100
