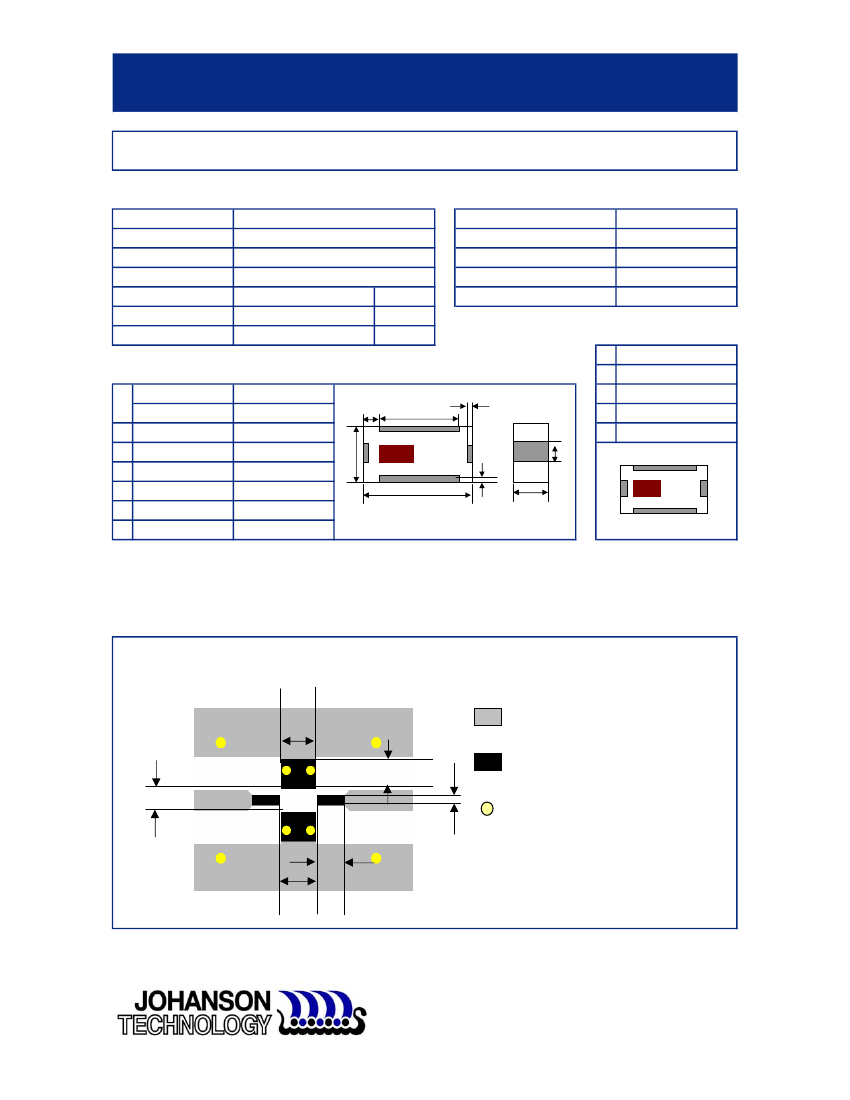

High Frequency Ceramic Solutions
3.6 GHz Band Pass Filter
Detail Specification: 07/14/05
P/N 3600BP15M600
Page 1 of 2
General Specifications
Part Number
Frequency (MHz)
Insertion Loss
Return Loss
Attenuation (min.)
Attenuation (min.)
Attenuation (min.)
3600BP15M600
3300 - 3900
1.8 dB max.
9.5 dB min.
0.1 - 2.6 Ghz
4.4 Ghz
6.0 - 9.9 Ghz
15 dB
9 dB
20 dB
Terminal Configuration
No.
Input Power
Impedance
Operating Temperature
Storage Temperature
Reel Quanity
500 mW max.
50
Ω
-40 to +85°C
-40 to +85°C
4,000
Function
GND
OUT
GND
IN
1
Mechanical Dimensions
In
L
0.079 ± 0.006
W
0.049 ± 0.004
T
0.037 ± 0.004
a
0.049 ± 0.006
b
0.012 ± 0.006
c
0.010 ± 0.006
g
0.014 ± 0.006
mm
2.00 ± 0.15
1.25 ± 0.10
0.95 ± 0.10
1.25 ± 0.15
0.30 ± 0.15
0.25 ± 0.15
0.35 ± 0.15
L
W
c
T
d
c
a
b
1
2
3
4
4
3
2
Mounting Considerations
Mount these devices with brown mark facing up.
* Line width should be designed to provide 50Ω impedance matching characteristics.
Units: mm
1.30
Solder Resist
Land
1.00
0.80
0.35
Through-hole (φ0.35)
1.00
1.40
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
High Frequency Ceramic Solutions
3.6 GHz Band Pass Filter
Detail Specification: 07/14/05
P/N 3600BP15M600
Page 2 of 2

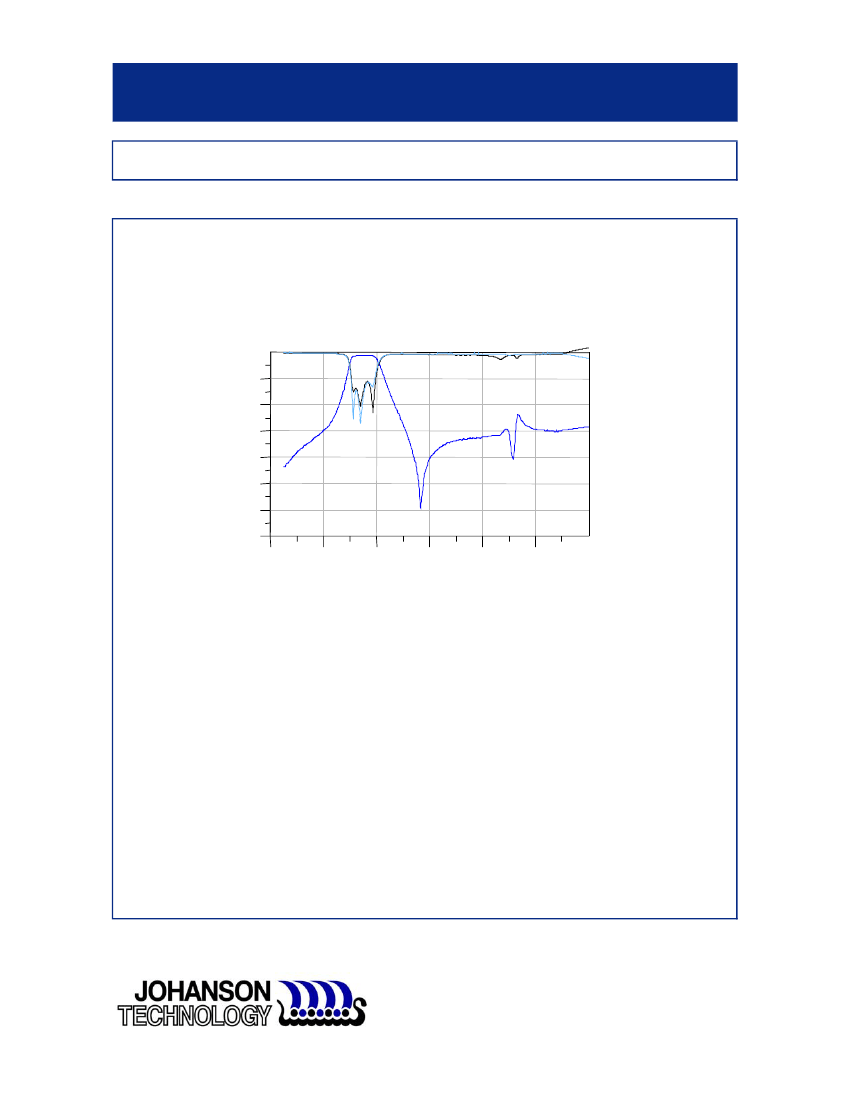

Typical Electrical Performance (T=25°C)
)
)
)
)
)
)
)
)
)
Attenuation
)
)
)
)
0
-10
-20
-30
-40
-50
-60
-70
0
2
4
6
8
10
12
dB(S(1,1))
)
)
)
)
)
dB(S(2,2))
)
)
)
dB(S(2,1))
)
)
)
)
Frequency (GHz)
)
)
)
)
Johanson Technology, Inc. reserves the right to make design changes without notice.
All sales are subject to Johanson Technology, Inc. terms and conditions.
www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2003 Johanson Technology, Inc. All Rights Reserved
