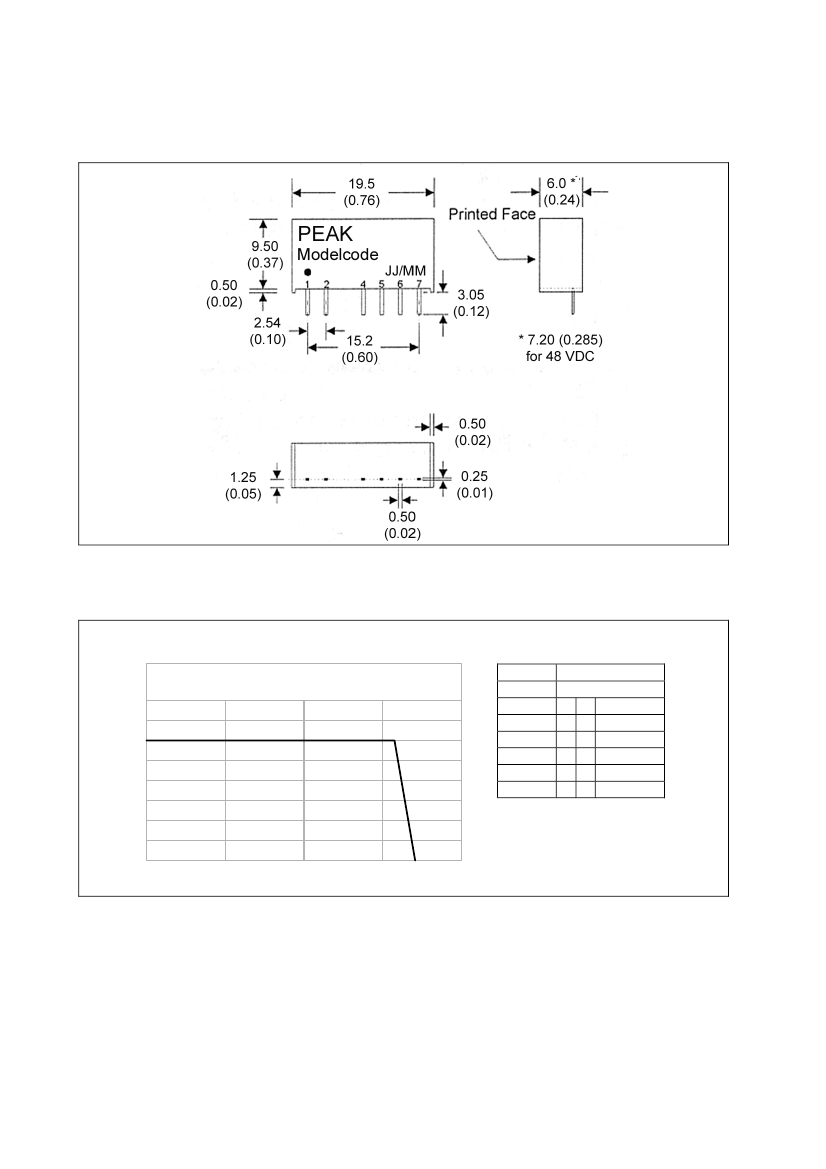

M1 SERIES

P6LU-XXXXEH40 4 KV ISOLATED 1W UNREGULATED SINGLE OUTPUT SIP7

Available Inputs:

5, 12, 24 and 48 VDC

Available Outputs:

3.3, 5, 7.2, 12, 15 and 18 VDC

Other specifications please enquire.

Electrical Specifications

(Typical at + 25° C, nominal input voltage, rated output current unless otherwise specified)

Input Specifications

Voltage range

Filter

Isolation Specifications

Rated voltage

Leakage current

Resistance

Capacitance

Output Specifications

Voltage accuracy

Ripple and noise (at 20 MHz BW)

Short circuit protection

Line voltage regulation

Load voltage regulation

Temperature coefficient

General Specifications

Efficiency

Switching frequency

Environmental Specifications

Operating temperature (ambient)

Storage temperature

Derating

Humidity

Cooling

Physical Characteristics

Dimensions SIP

Weight

Case material

+/- 10 %

Capacitors

4000 VDC

1 mA

Ohm

60 pF typ.

+/- 5 %, max.

75 mV p-p, max.

Momentary

+/- 1,2 % / 1,0 % of Vin

+/- 8 %, load = 20 ~ 100 %

+/- 0,02 % / °C

70 % to 85 %

125 KHz, typ.

- 40° C to + 85° C

- 55 °C to + 125 °C

See graph

Up to 90 %, non condensing

Free air convection

19,50 x 6,00 x 9,50 mm

0,76 x 0,24 x 0,37 inches

2 g, 3 g for the 48 VDC variants

Non conductive black plastic

Examples for Partnumbers

PART

NO.

INPUT

VOLTAGE

(VDC)

INPUT

CURRENT

NO LOAD

INPUT

CURRENT

FULL

LOAD

OUTPUT

VOLTAGE

(VDC)

OUTPUT

CURRENT

(max. mA)

EFFICIENCY FULL LOAD

(% TYP.)

P6LU-0505EH40

P6LU-0512EH40

P6LU-1205EH40

P6LU-1212EH40

P6LU-2405EH40

P6LU-2412EH40

P6LU-2415EH40

277

254

119

104

200
