CYStech Electronics Corp.
Low Saturation PNP Epitaxial Planar Transistor
Spec. No. : C314N3
Issued Date : 2005.04.20
Revised Date :
Page No. : 1/ 5
BTB1197N3
Description
The BTB1197N3 is designed with high current gain and low saturation voltage with collector current up
to 1A continuous.
Features
•
Low V
CE(SAT)
, V
CE(SAT)
≤
-0.3V (I
C
/ I
B
=-1A/-100mA)
•
Large collector current, I
C
=-1A
•
Complementary to BTD1781N3
.
•
Pb-free package

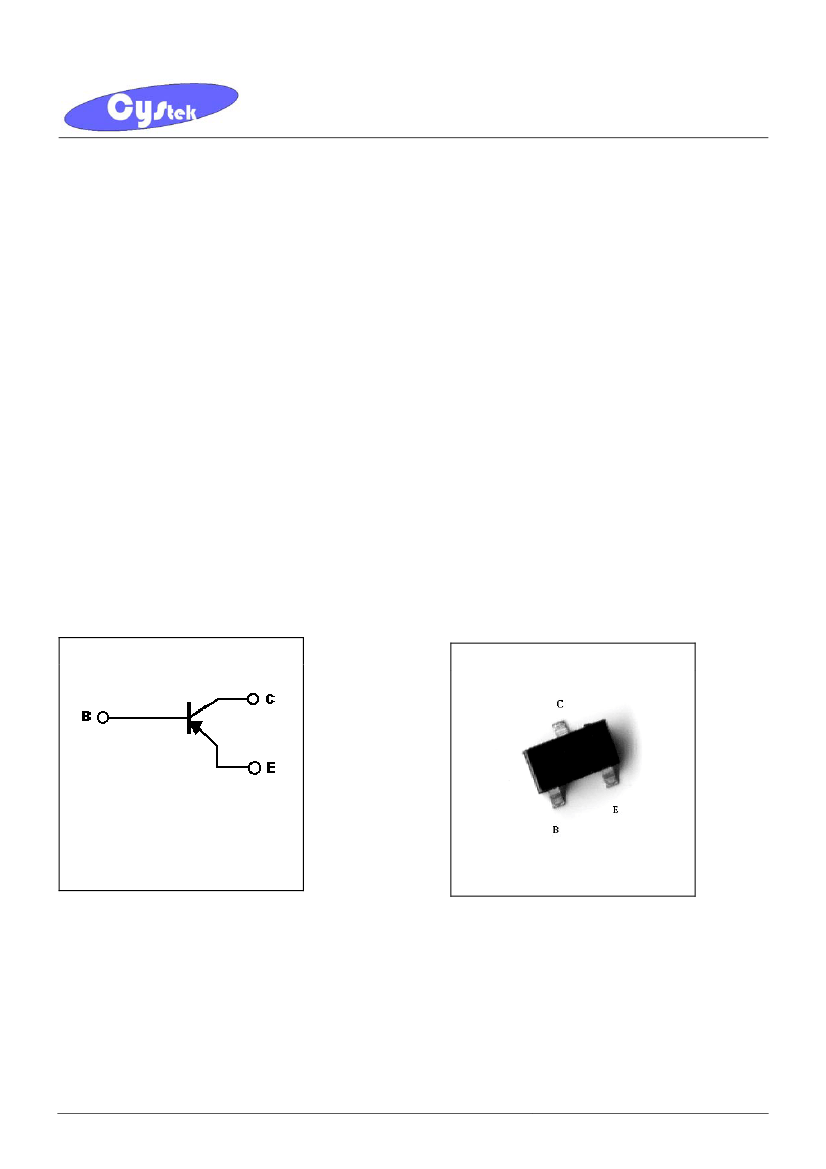

Symbol
BTB1197N3
Outline
SOT-23
B：Base
C：Collector
E：Emitter
BTB1197N3
CYStek Product Specification
CYStech Electronics Corp.
Absolute Maximum Ratings
(Ta=25°C)
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current (DC)
Collector Current (Pulse)
Power Dissipation
Thermal Resistance, Junction to Ambient
Junction Temperature
Storage Temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP
Pd
R
θJA
Tj
Tstg
Spec. No. : C314N3
Issued Date : 2005.04.20
Revised Date :
Page No. : 2/ 5
Limits
-50
-32
-5
-1
-2
310
(Note 1)
500
(Note 2)
403
(Note 1)
250
(Note 2)
-55~+150
-55~+150
Unit
V
V
V
A
mW
°C/W
°C
°C
Note: 1.Device mounted on FR-4 PCB with minimum pad
2.Device mounted on FR-4 PCB with area of 4.5”×5”, mounting pad 0.02 in² of 2 oz copper
Characteristics
(Ta=25°C)
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
*V
CE(sat)
1
*V
CE(sat)
2
*V
CE(sat)
3
*V
BE(sat)
*V
BE(on)
*h
FE
1
*h
FE
2
*h
FE
3
*h
FE
4
f
T
Cob
Min.
-40
-32
-5
-
-
-
-
-
-
-
180
100
80
30
100
-
Typ.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
200
12
Max.
-
-
-
-100
-100
-0.25
-0.30
-0.65
-1.2
-1.1
420
-
-
-
-
25
Unit
V
V
V
nA
nA
V
V
V
V
V
-
-
-
-
MHz
pF
Test Conditions
I
C
=-50µA
I
C
=-1mA
I
E
=-50µA
V
CB
=-30V
V
EB
=-4V
I
C
=-500mA, I
B
=-50mA
I
C
=-1A, I
B
=-100mA
I
C
=-2A, I
B
=-200mA
I
C
=-1A, I
B
=-100mA
V
CE
=-2V, I
C
=-1A
V
CE
=-3V, I
C
=-100mA
V
CE
=-2V, I
C
=-500mA
V
CE
=-2V, I
C
=-1A
V
CE
=-2V, I
C
=-2A
V
CE
=-5V, I
C
=-50mA, f=100MHz
V
CB
=-10V, f=1MHz
*Pulse Test: Pulse Width
≤380µs,
Duty Cycle≤2%
BTB1197N3
CYStek Product Specification
CYStech Electronics Corp.

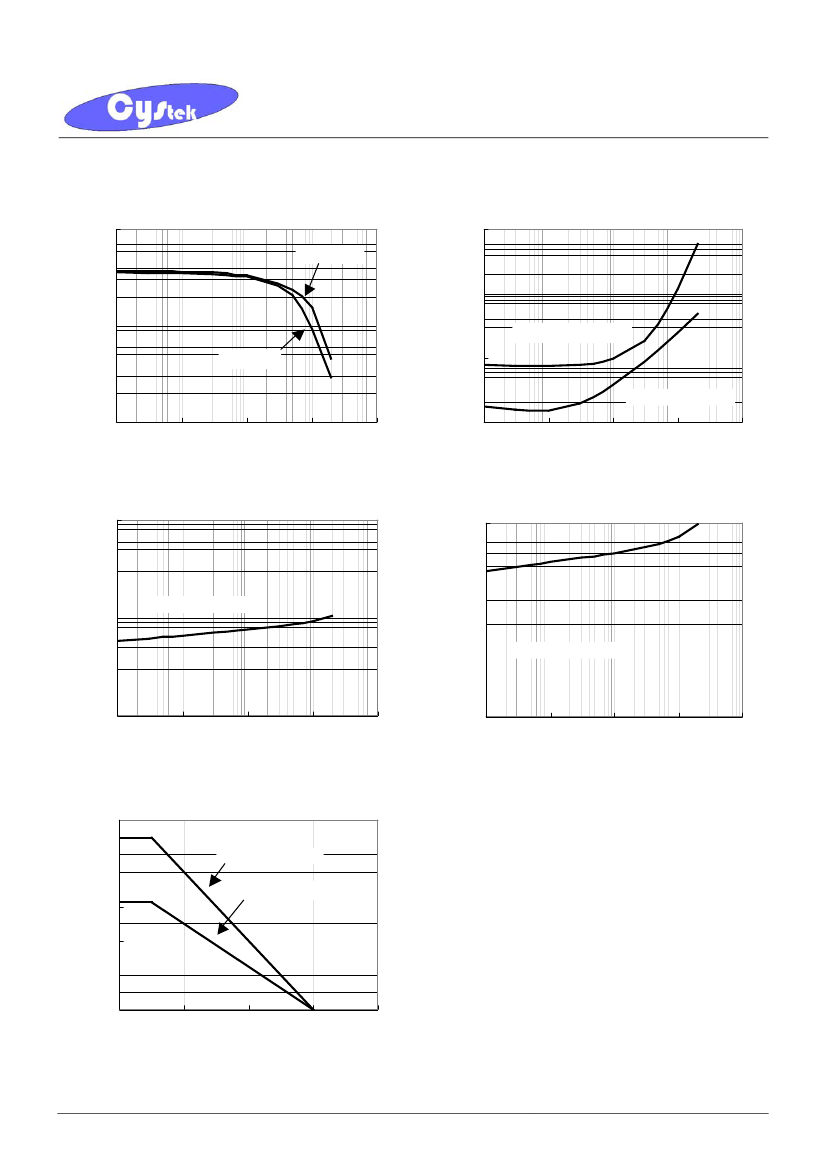

Characteristic Curves
Current Gain vs Collector Current
1000
VCE = 2V
Spec. No. : C314N3
Issued Date : 2005.04.20
Revised Date :
Page No. : 3/ 5
Saturation Voltage vs Collector Current
10000
Saturation Voltage---(mV)
Current Gain---HFE
1000
VCE(SAT) @ IC=100IB
100
VCE = 1V
100
VCE(SAT) @ IC=10IB
10
1
10
100
1000
Collector Current---IC(mA)
10000
10
1
10
100
1000
Collector Current---IC(mA)
10000
Saturation Voltage vs Collector Current
10000
Saturation Voltage---(mV)
On Voltage vs Collector Current
1000
VBE(SAT) @ IC=10IB
1000
On Voltage---(mV)
VBE(ON) @ VCE=1V
100
1
10
100
1000
Collector Current---IC(mA)
10000
100
1
10
100
1000
Collector Current---IC(mA)
10000
Power Derating Curves
500
Power Dissipation---PD(mW)
See Note 2 on page 1
400
See Note 1 on page 1
300
200
100
0
0
50
100
150
Ambient Temperature---TA(℃)
200
BTB1197N3
CYStek Product Specification
CYStech Electronics Corp.

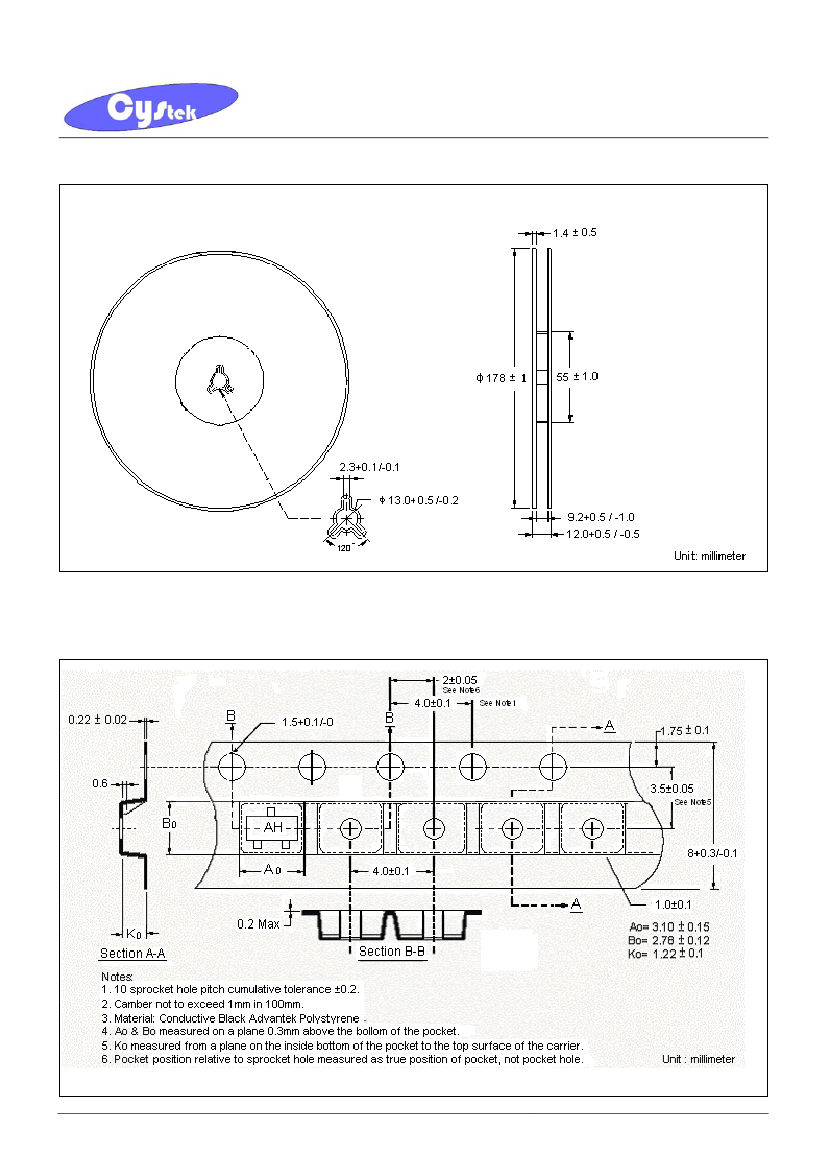

Reel Dimension
Spec. No. : C314N3
Issued Date : 2005.04.20
Revised Date :
Page No. : 4/ 5
Carrier Tape Dimension
BTB1197N3
CYStek Product Specification
CYStech Electronics Corp.
SOT-23 Dimension
A
L
3
B
1
2
S
Spec. No. : C314N3
Issued Date : 2005.04.20
Revised Date :
Page No. : 5/ 5
Marking:
TE
AH
V
G
3-Lead SOT-23 Plastic
Surface Mounted Package
CYStek Package Code: N3
Style: Pin 1.Base 2.Emitter 3.Collector
C
D
K
H
J
*: Typical
DIM
A
B
C
D
G
H
Inches
Min.
Max.
0.1102 0.1204
0.0472 0.0630
0.0335 0.0512
0.0118 0.0197
0.0669 0.0910
0.0005 0.0040
Millimeters
Min.
Max.
2.80
3.04
1.20
1.60
0.89
1.30
0.30
0.50
1.70
2.30
0.013
0.10
DIM
J
K
L
S
V
Inches
Min.
Max.
0.0034 0.0070
0.0128 0.0266
0.0335 0.0453
0.0830 0.1083
0.0098 0.0256
Millimeters
Min.
Max.
0.085
0.177
0.32
0.67
0.85
1.15
2.10
2.75
0.25
0.65
Notes:
1.Controlling dimension: millimeters.
2.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
3.If there is any question with packing specification or packing method, please contact your local CYStek sales office.
Material:
•
Lead: 42 Alloy ; solder plating
•
Mold Compound: Epoxy resin family, flammability solid burning class: UL94V-0
Important Notice:
•
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of CYStek.
•
CYStek reserves the right to make changes to its products without notice.
•
CYStek
semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
•
CYStek assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
BTB1197N3
CYStek Product Specification
