KBP005G THRU KBP10G
SINGLE PHASE GLASS
PASSIVATED BRIDGE RECTIFIER
Voltage: 50
to
1000V
Current:1.5A
Features
Glass passivated chip junction
High case dielectric strength
High surge current capability
Ideal for printed circuit board
KBP
Mechanical Data
Terminal: Plated leads solderable per MIL-STD 202E,
Method 208C
Case: UL-94 Class V-0 recognized Flame Retardant Epoxy
Polarity: Polarity symbol marked on body
Mounting position: any

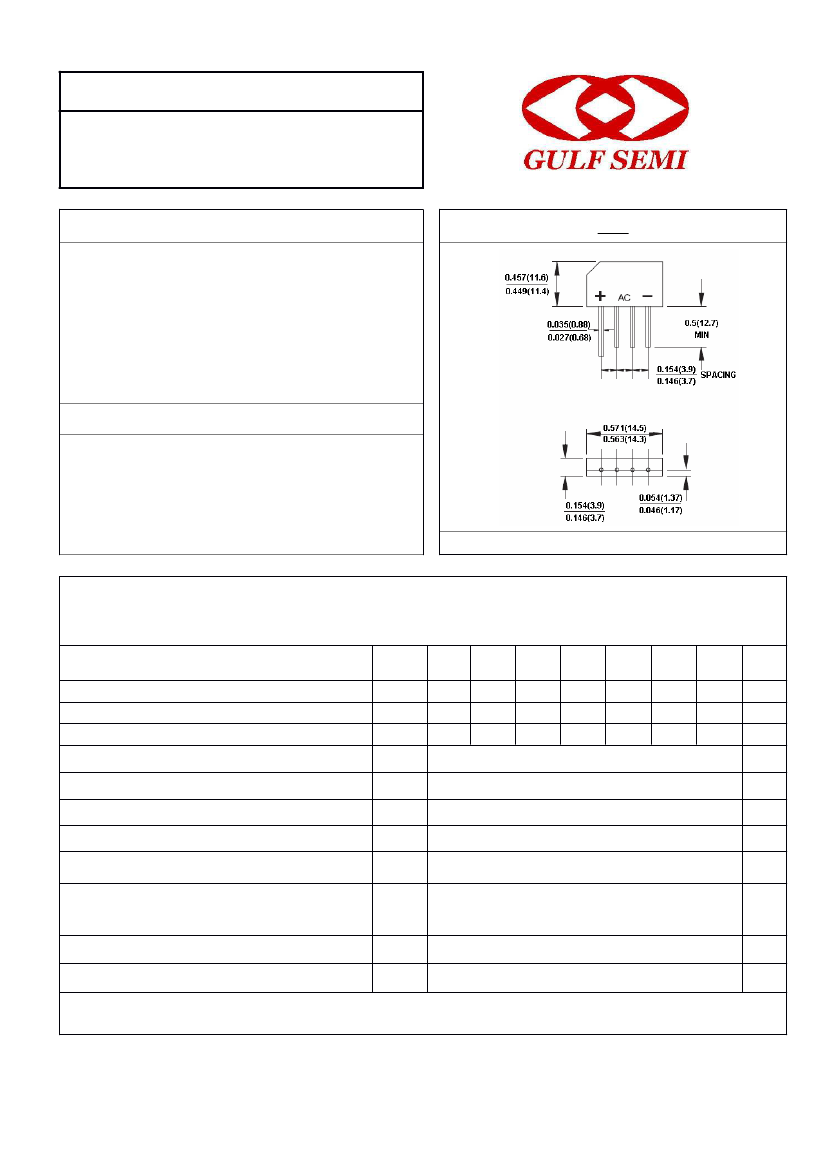

Dimensions in millimeters
MAXIMUM
RATINGS AND ELECTRICAL
CHARACTERISTICS
(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated,
for capacitive load, derate current by 20%)
Symbol
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified output current
Ta = 40℃
Peak forward surge current single sine-wave
superimposed on rated load (JEDEC Method)
Maximum instantaneous forward voltage drop per leg at
2.0A
Rating for fusing (t < 8.3ms)
Maximum DC reverse current at
rated DC blocking voltage per leg
Ta = 25°
C
Ta = 125°
C
Vrrm
Vrms
Vdc
If(av)
Ifsm
Vf
I
2
t
Ir
KBP
005G
50
35
50
KBP
01G
100
70
100
KBP
02G
200
140
200
KBP
04G
400
280
400
1.5
50
1.1
10
5.0
500
25
8.0
10.0
15
-55 to +150
KBP
06G
600
420
600
KBP
08G
800
560
800
KBP
10G
1000
700
1000
units
V
V
V
A
A
V
A
2
Sec
µA
Typical Thermal Resistance
(Note 1)
(Note 1)
(Note 2)
Rth(ja)
Rth(jl)
Rth(jc)
Cj
Tj, Tstg
℃/W
Typical junction capacitance per leg at 4.0V,1MHz
Operating junction and storage temperature range
Note:
1.
2.
pF
℃
Thermal Resistance from Junction to Ambient and from Junction to Lead Mounted on P.C.B. with 0.4″×0.4″(10×10mm)copper pads
Thermal Resistance from Junction to Case Mounted on heatsink

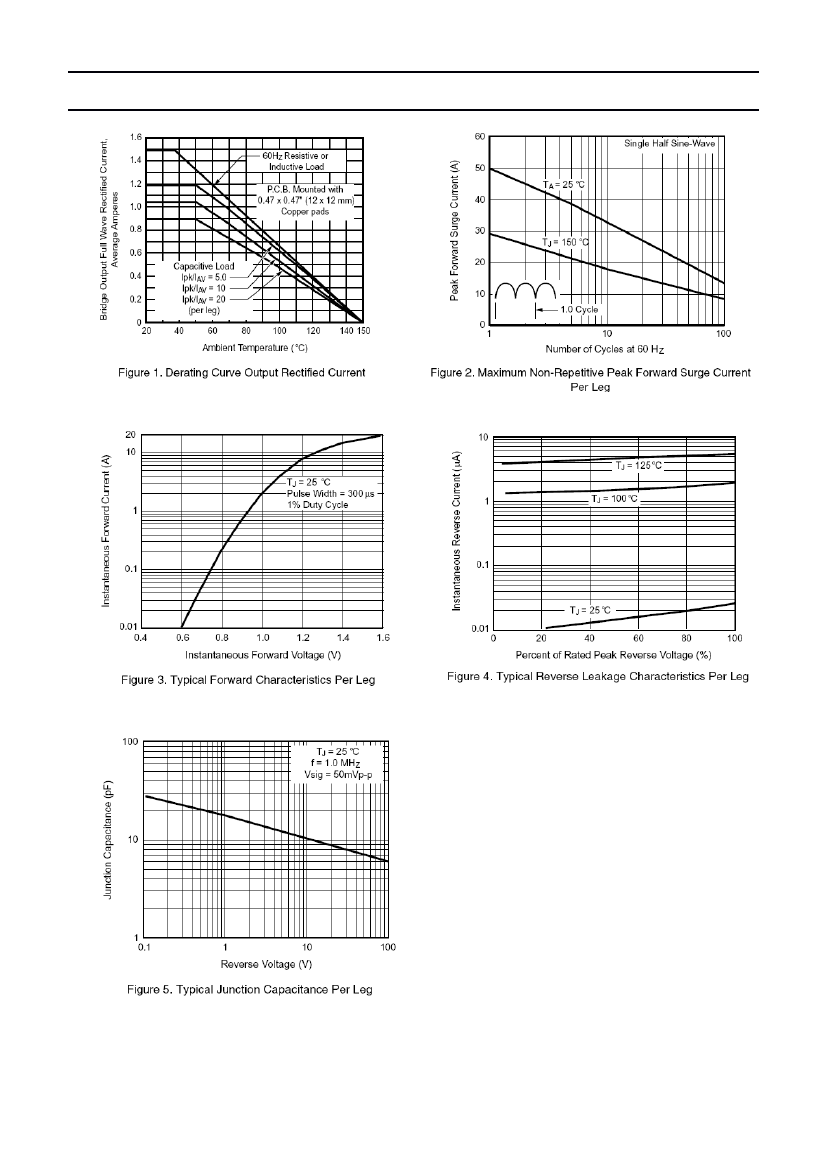

Rev.A2
