SMD SPECIFICATION
Part No./型号:PLCC2LBCT
1、Features/特
征:
l
Emitting Color/发光颜色:Blue/蓝色
l
Lens Type/封装特性:Water Clear/无色透明
l
Device Outline/外½特征:3.5×2.8×1.9mm
2、Applications/应
用:
l
Backlight for Mobile,Machine Vision, LCD Display/手机、电话、显示屏背光源
l
Backlight in Dashboard and switch of Automive/½½仪表盘、记程器背光源

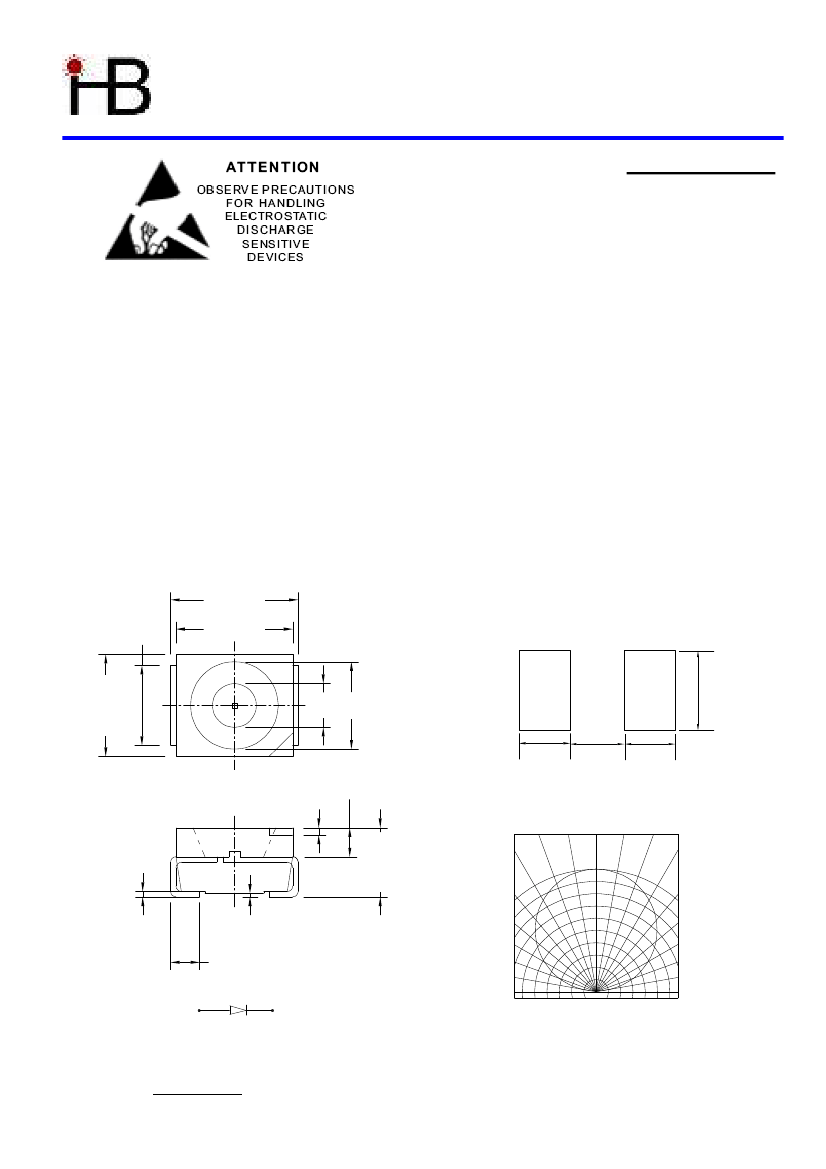

3、Outline Dimensions/产品外½尺寸:
2.2±0.2
3.5±0.2
3.2±0.2
被推荐的焊盘尺寸
2.8±0.2
1.2
2.4
1.5
1.6
1.5
0.2
0.8
0
10
20
30
1.9±0.2
1.0
40
50
60
0.15
0.1
0.8±0.3
0.7
70
80
90
0
0.5
SPATIAL DISTRIBUTION
www.ledz.com
1/3
2.2
Hebei I.T. (Shanghai) Co., Ltd.
SMD SPECIFICATION
Part No./型号:PLCC2LBCT
4、Absolute maximum ratings/极限参数(Ta = 25℃)
:
Parameter
参数
Power Dissipation
损耗功率
Reverse Voltage
反 向 电 压
Pulse Current
正向峰值电流
Forward Current
正向工½电流
Operating Temperature
工½温度范围
Storage Temperature
储存温度范围
Symbol
符号
Pd
VR
IFp
IFm
Topr
Tstr
Test Condition
测试条件
——
IR = 30μA
Duty=0.1,1kHz
——
——
——
Value
参数
Min.
——
5
——
——
-40
-40
Max.
90
——
100
25
+85
+85
Unit
单½
mW
V
mA
mA
℃
℃
5、Electrical and optical characteristics/光电参数(Ta = 25℃)
:
Parameter
参数
Forward Voltage
正向电压
Reverse Current
反向电流
Dominate Wavelength
主波长
Peak Wavelength
峰值波长
Spectral Line half-width
半波½度
Luminous Intensity
发光强度
Viewing Angle
发光指向角
Symbol
符号
V
F
I
R
λd
λp
Δλ
IV
Test
Condition
测试条件
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Value
参数
Min.
——
——
465
——
——
102
——
Typ.
3.0
——
——
——
30
200
120
Max.
3.6
30
470
——
——
——
——
Unit
单½
V
μA
nm
nm
nm
mcd
Deg.
2θ1/2
www.ledz.com
2/3
Hebei I.T. (Shanghai) Co., Ltd.
SMD SPECIFICATION
Part No./型号:PLCC2LBCT
6、Typical electrical/optical characteristic curves/光电特性曲线:
Fig.1
正向电流
Vs.
正向电压
50
40
30
20
10
0
2.6
Luminous Intensity
Relative Value at IF=20mA
3.2
3.4
2.8 3.0
Forward Voltage(V)
3.6
Forward Current(mA)
Fig.2
相对亮度
Vs.
正向电流
2.5
2.0
1.5
1.0
0.5
0
0
10
20
30
40
IF-Forward Current (mA)
50
Fig.3
正向电流
Vs.
环境温度
Relative Luminous Intensity
50
Forward Current(mA)
40
30
20
10
0
0
20
40
60
80
100
2.5
2.0
1.5
1.0
0.5
Fig.4
相对亮度
Vs.
环境温度
0
-40
Ambient Temperature T
A (
℃
)
-20
0
20
40
60
Ambient Temperature T
A (
℃
)
80 90
Fig.5
相对亮度
Vs.
波长
Relative Luminous Intensity
100
75
/相对亮度
50
25
0
400
450
500
600
700
550
650
Wavelength
λ(nm)/波长
www.ledz.com
3/3
