JTE0624S24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> JTE0624S24

JTE0624S24: DescriptionDC/DC converter 24v 6W; CategoryPower/power management The power supply circuit; File Size241KB，2 Pages; ManufacturerXP Power; Websitehttps://www.xppower.com/; Environmental Compliance

Download Datasheet Parametric View All

JTE0624S24 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	JTE0624S24	-	-	View	Buy Now

JTE0624S24 Overview

DC/DC converter 24v 6W

JTE0624S24 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	XP Power
package instruction	PLASTIC, DIP-24/8
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	36 V
Minimum input voltage	9 V
Nominal input voltage	24 V
JESD-30 code	R-PDMA-P8
length	31.75 mm
Maximum load regulation	1.2%
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	60 °C
Minimum operating temperature	-40 °C
Maximum output current	0.25 A
Maximum output voltage	24.48 V
Minimum output voltage	23.52 V
Nominal output voltage	24 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DIP7/24,.6
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum seat height	10.9 mm
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum total power output	6 W
Fine-tuning/adjustable output	NO
width	20.32 mm

Preview

Download Datasheet

View All

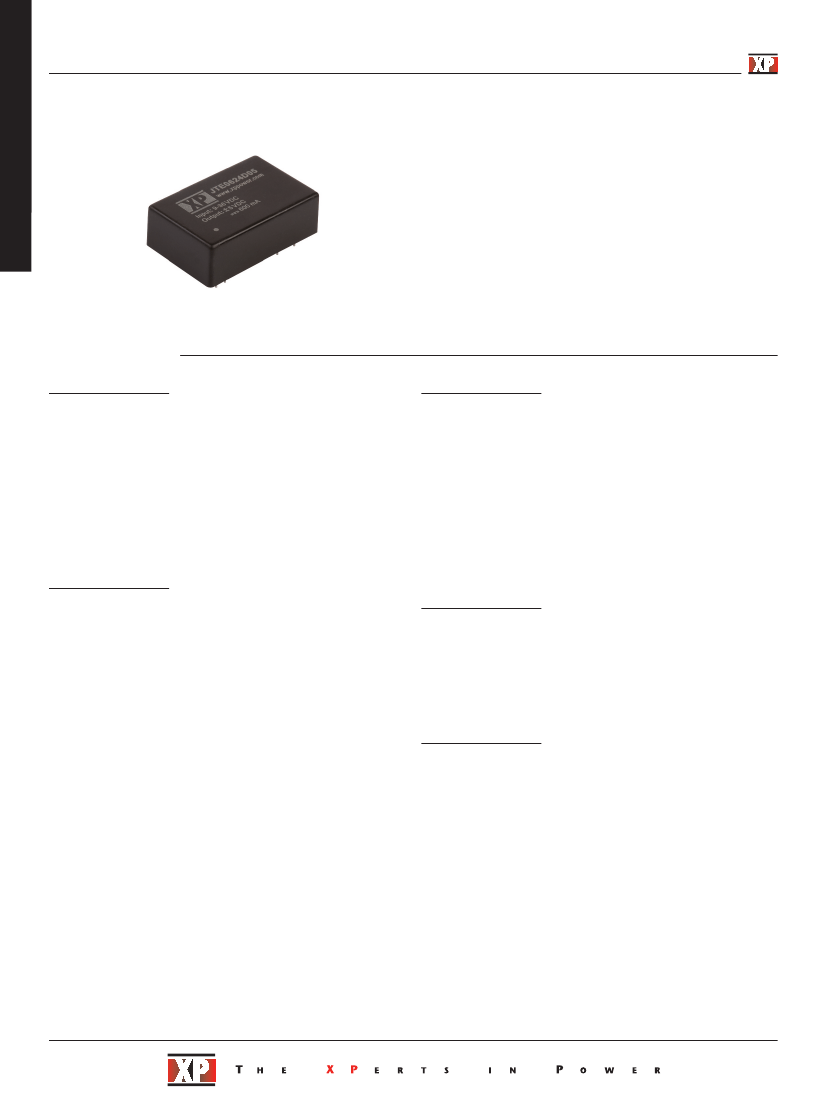

DC DC

6 Watts

JTE Series

•

4:1 Input Range

DIP 24 Plastic Case

xppower.com

Operating Temperature 40 °C to +100 °C

Single & Dual Outputs

Optional Metal Case

1500 VDC Isolation, 3000 VDC Option

3 Year Warranty

Specification

Input

• 24 V (9-36 VDC)

48 V (18-75 VDC)

Input Current

• See table

Input Filter

• Pi network

Input Reflected Ripple

• 20 mA pk-pk through 12 µH inductor

and 4.7 µF capacitor

Input Surge

• 24 V models 50 VDC for 100 ms

48 V models 100 VDC for 100 ms

Under Voltage Lockout

• 24 V models on >8.5 V, off <8.0 V

48 V models on >16.5 V, off <15.5 V

Input Voltage Range

General

Efficiency

Isolation Voltage

• See table

• 1500 VDC Input to Output, for optional

high isolation version 3000 VDC input to

output add suffix ‘-H’ to model number

1000 VDC Input to Case

1000 VDC Output to Case

• 1000 pF typical input to output

•

Ω

330 kHz typical

15 W/in

>800 kHrs to MIL-HDBK-217F

at 25 °C, GB

Isolation Capacitance

Isolation Resistance

Switching Frequency

Power Density

MTBF

Output

Output Voltage

Output Voltage Balance

Initial Set Accuracy

Minimum Load

Line Regulation

Load Regulation

Cross Regulation

Start Up Delay

Ripple & Noise

Transient Response

•

See table

±2% max, dual output models

±2% max

No minimum load required

±0.5% max

±1.2% max for single output and

±5% max for dual output from 10-100%

±5% max on dual output models

(see note 4)

20 ms typical

80 mV pk-pk (100 mV for D24 models),

20 MHz bandwidth (see note 5)

<3% max deviation, recovery to within 1%

in 300 µs for a 25% load change (4%

max. deviation for S3V3 models)

135% - 185% of Full Load

Trip & restart (Hiccup mode),

auto recovery

See table

Environmental

Operating Temperature

• -40 °C to +100 °C, derate from 100% load

at +60 °C to no load at +100 °C

Case Temperature

• +100 °C max

Storage Temperature

• -55 °C to +125 °C

Cooling

• Natural convection

Operating Humidity

• Up to 95%, non-condensing

EMC

Emissions

ESD Immunity

• EN55022 class A conducted

• EN61000-4-2, Level 3

8 kV air discharge Perf Criteria B,

6 kV contact discharge Perf Criteria B

• EN61000-4-3, 10 V/m, Perf Criteria A

• EN61000-4-4, level 3, Perf Criteria A*

• EN61000-4-5, level 2, Perf Criteria A*

• EN61000-4-6, 10 Vrms, Perf Criteria A

• EN61000-4-8, 1 A/m, Perf Criteria A

Overload Protection

•

Short Circuit Protection

•

Maximum Capacitive

Load

Temperature

Coefficient

•

Radiated immunity

EFT/Burst

Surge

Conducted Immunity

Magnetic Fields

• ±0.02/°C max

* External input capacitor required, 220µF/100V
