GBJ10A thru GBJ10M
Glass Passivated Single-Phase Bridge Rectifiers
Reverse Voltage 50 to 1000 Volts Forward Current 10.0 Amperes
Features
Glass passivated junction
Ideal for printed circuit board
Reliable low cost construction
Plastic material has Underwriters Laboratory Flammability
Classification 94V-0
Surge overload rating to 200 amperes peak
High case dielectric strength of 2500V
RMS
Mechanical Data
Case: GBJ(5S)
Epoxy meets UL-94V-0 Flammability rating
Terminals: Leads solderable per MILSTD-750 Method 2026
High temperature soldering guaranteed:
260
o
C/10 seconds, 0.375 (9.5mm) lead length,
5lbs.(2.3kg) tension
Weight: 0.24 ounce, 6.8 grams
Mounting torque: 8.17 in. lbs. max.
Typical Applications
General purpose use in ac-to-dc bridge full wave rectification for
Switching Power Supply, Home Appliances, Office Equipment,
Industrial Automation applications

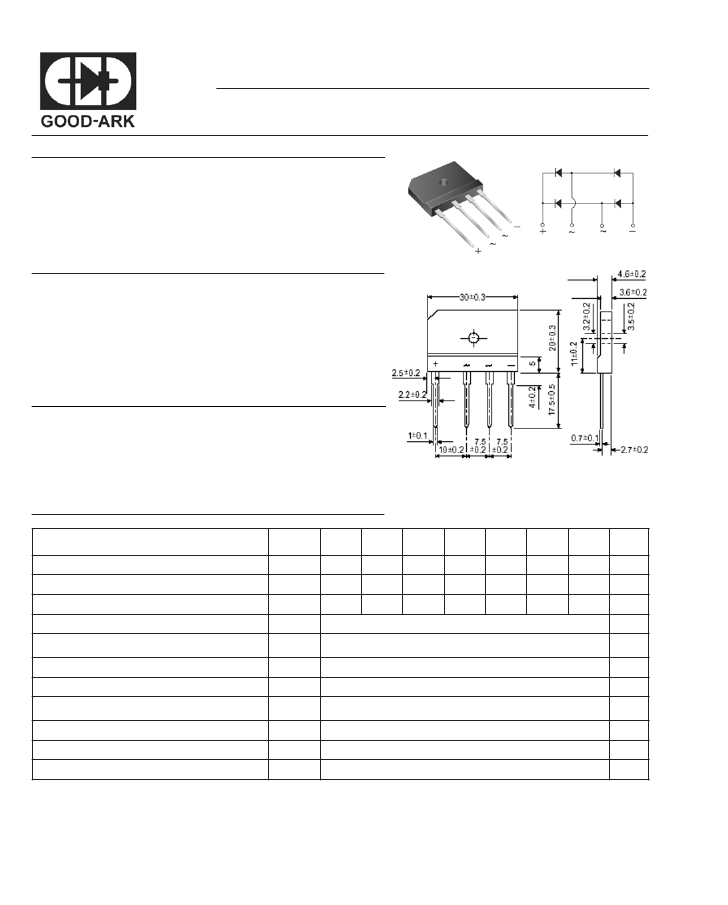

Package outline dimensions in millimeters
Maximum Ratings and Electrical Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified.
Parameter
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage

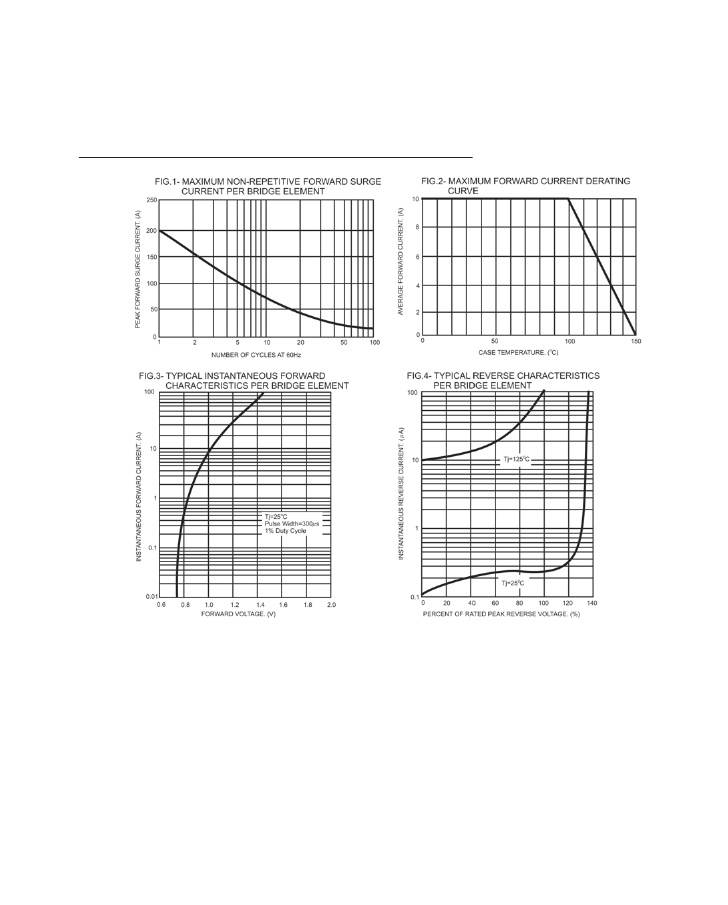

Maximum average forward rectified output current (See Fig.2)
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load (JEDEC Method)
Rating for fusing (t<8.3ms)
Maximum instantaneous forward voltage drop per leg at 5.0A
Maximum DC reverse current
at rated DC blocking voltage per leg
Typical thermal resistance per leg (Note 1)
Dielectric strength (Therminals to case, AC 1 minute)
Operating junction and storage temperature range
T
A
=25 C
T
A
=125
o
C
o
Symbols
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
I
R
R
θ
JC
V
ISO
T
J
, T
STG
GBJ10A
GBJ10B
GBJ10D
GBJ10G
GBJ10J
GBJ10K
GBJ10M
Units
Volts
Volts
Volts
Amps
Amps
A
2
se c
Volt
uA
o
50
35
50
100
70
100
200
140
200
400
280
400
10.0
200
166
1.0
5.0
250.0
1.5
2500
-55 to +150
600
420
600
800
560
800
1000
700
1000
C/W
Volts
o
C
Notes:
1. Unit case mounted on AL plate heatsink
2. Unit mounted on P.C.B.without Heatsink
3. Recommended mounting position is to bolt down on heatsink with silicone thermal compound for maximum heat transfer with #6 screw
