SGM9116
PRODUCT DESCRIPTION
The SGM9116 is a video buffer which integrates triple
6dB Gain rail-to-rail output driver and triple 3rd output
reconstruction filter, it has 35MHz -3dB bandwidth and
160V/µs slew rate. SGM9116 provides improved image
quality compared with passive LC filters and discrete
drivers solution. Operating from single supplies ranging
from +2.5V to +5.5V and sinking an ultra-low 27.5mA
quiescent current, the SGM9116 is ideally suited for
battery powered applications.
SGM9116 can be DC-coupled or AC-coupled with input
video signal, such as the output of DAC. Internal diode
clamps and bias circuitry may be used if AC-coupled
inputs are required. SGM9116 also integrates an internal
level shift circuit which avoids sync-pulse being clipped
and allows DC-coupled output. The driver in SGM9116
can drive DC or AC-coupled single (150
Ω
) or dual (75
Ω
)
loads.
The SGM9116 has lead (Pb) free SOIC-8 package and
ESD(HBM) reaches 8KV.
Triple, 35MHz,
3rd Order
HDTV Video Filter Driver
FEATURES
•
•
•
•
•
•
•
•
•
Triple 3rd order 35MHz (HD) filters
Transparent input clamping
6dB output driver Gain and drive dual video load
Rail-to-Rail
Output
Input Voltage Range Includes Ground
AC or DC Coupled Inputs
AC or DC Coupled Outputs
Operates from 2.5 V to 5.5 V Single power supply
Low Power (9.2mA/channel)
27.5 mA total Supply Current
•
Lead (Pb) Free SOIC-8 package
APPLICATIONS
Video amplifier
Cable and Satellite set- top box
Communications device
Video on demand
Portable and handheld product
Personal video recorder
DVD player
HDTV
Projector
BLOCK DIAGRAM
IN1
Transparent
Clamp
6 dB
35MHz, 3rd order
OUT1
IN2
Transparent
Clamp
6 dB
35MHz, 3rd order
OUT2
IN3
Transparent
Clamp
6 dB
35MHz, 3rd order
OUT3
Shengbang Microelectronics Co, Ltd
Tel: 86/451/84348461
www.sg-micro.com
REV. A
ELECTRICAL CHARACTERISTICS: V
S
= +5.0V
(At R
L
= 150Ω connected to GND, Vin=1Vpp，and C
IN
= 0.1µF,
all outputs AC coupled with 220µF，unless
otherwise
noted)
SGM9116
PARAMETER
CONDITION
TYP
+25℃
INPUT CHARACTERISTICS
Output Level Shift Voltage (V
OLS
)
Input Bias Current (I
B
)
Input Voltage Clamp (V
CLAMP
)
Clamp Charge Current
Input Resistance (R
IN
)
Voltage Gain ( A
V
)
I
IN
= -1mA
V
IN
= V
CLAMP
-100mV
0.5V
＜
V
IN
＜
1.0V
R
L
= 150Ω
2.0
1.92
2.04
1.90
2.06
4.28
1.88
2.08
4.25
1.85
2.1
4.2
-4.5
-5
-15
-6.0
-16
-6.1
-19
-6.6
-22
-7.2
V
IN
= 0V, no load
253
327
330
340
370
mV
pA
mV
mA
MΩ
V/V
V/V
V
mA
mA
2.7
5.5
58
32
2.7
5.5
57
33
2.7
5.5
56
34
V
V
dB
mA
MHz
MHz
dB
dB
V/µs
%
%
°
°
ns
dB
ns
ns
MAX
TYP
MIN
MIN
MIN
MIN
MAX
MIN
MAX
MIN
MIN
MAX
MIN
MAX
TYP
TYP
TYP
TYP
TYP
TYP
TYP
TYP
TYP
TYP
TYP
TYP
TYP
MIN/MAX OVER TEMPERATURE
+25℃
0℃
to70℃
-40℃
to 85℃
-40℃
to125℃
UNITS
MIN/
MAX
OUTPUT CHARACTERISTICS
Output Voltage High Swing
Output Short-Circuit Current (I
SC
)
V
IN
= 3V, R
L
= 150Ω to GND
V
IN
= 3V, to GND through 10Ω
V
IN
= 100mV, out short to V
DD
through 10Ω
4.5
-105
115
4.3
-102
103
2.5
5.5
Power Supply Rejection Ratio (PSRR)
Quiescent Current (I
Q
)
DYNAMIC PERFORMANCE
±0.1dB Bandwidth
-3dB Bandwidth
Filter Response
Normalized Gain: f
IN
= 44.25MHz
f
IN
= 74.25MHz
Slew Rate
Differential Gain (DG)
Differential Phase (DP)
Group Delay Variation (D/DT)
Crosstalk (channel - to - channel)
Fall Time
Rise Time
20% to 80%, V
IN
= 1V Step,
NTSC & PAL DC coupled
NTSC & PAL AC coupled
NTSC & PAL DC coupled
NTSC & PAL AC coupled
f = 400KHz, 26.5MHz
at 1MHz
2.0V
STEP
, 80% to 20%
2.0V
STEP
, 80% to 20%
-5.0
-13.5
160
0.02
0.3
0.02
0.36
1.2
-64
9.8
10.5
R
L
= 150Ω
R
L
= 150Ω
11.8
35
V
s
= +2.7 V to + 5.5 V
V
IN
= 500mV,
60
27.5
58
31.5
POWER SUPPLY
Operating Voltage Range
Specifications subject to change without notice.
２
SGM9116
PACKAGE/ORDERING INFORMATION
ORDER NUMBER
PACKAGE
DESCRIPTION
TEMPERATURE
RANGE
PACKAGE
OPTION
MARKING
INFORMATION
SGM9116ZS/TR
SGM9116XS/TR
SO-8
SO-8
0℃ to +70℃
-40℃ to +125℃
Tape and Reel, 2500
Tape and Reel, 2500
SGM9116ZS
SGM9116XS
PIN CONFIGURATIONS
(Top View)
SGM9116
IN1
IN2
IN3
+V
S
1
2
3
4
SO-8
8
7
6
5
OUT1
OUT2
OUT3
GND
PIN DESCRIPTION
PIN
1
2
3
4
5
6
7
8
NAME
IN1
IN2
IN3
+V
S
GND
OUT3
OUT2
OUT1
FUNCTION
Video input, channel 1
Video input, channel 2
Video input, channel 3
Power supply
Ground
Filtered output, channel 3
Filtered output, channel 2
Filtered output, channel 1
ABSOLUTE MAXIMUM RATINGS
Supply Voltage, V+ to V- . . . . . . . . . . . . . . . . . . . . . 7.5 V
Input Voltage
. . . . . . . . . . . . . . . . . . . . GND – 0.3 V to (+V
S
) +0.3V
Storage Temperature Range . . . . . . . . .–65℃ to +150℃
Junction Temperature . . . . . . . . . . . . . . . .. . . . . . . .160℃
Operating Temperature Range . . . . . . –40℃ to +125℃
Power Dissipation, P
D
@ T
A
= 25℃
SO-8 .............................................................................0.8W
Package Thermal Resistance
SO-8,
θ
JA
................................................................ 128
℃
/W
Lead Temperature Range (Soldering 10 sec)
............................................. 260℃
ESD Susceptibility
HBM...........................................................................8000V
MM...............................................................................400V
NOTES
1. Stresses above those listed under Absolute Maximum
Ratings may cause permanent damage to the device. This is
a stress rating only; functional operation of the device at
these or any other conditions above those indicated in the
operational section of this specification is not implied.
Exposure to absolute maximum rating conditions for
extended periods may affect device reliability.
CAUTION
This integrated circuit can be damaged by ESD if you
don’t pay attention to ESD protection. Shengbang
Micro-electronics recommends that all integrated
circuits be handled with appropriate precautions.
Failure to observe proper handling and installation
procedures can cause damage.
ESD damage can range from subtle performance
degradation to complete device failure. Precision
integrated circuits may be more susceptible to
damage because very small parametric changes could
cause the device not to meet its published
specifications.
３
SGM9116

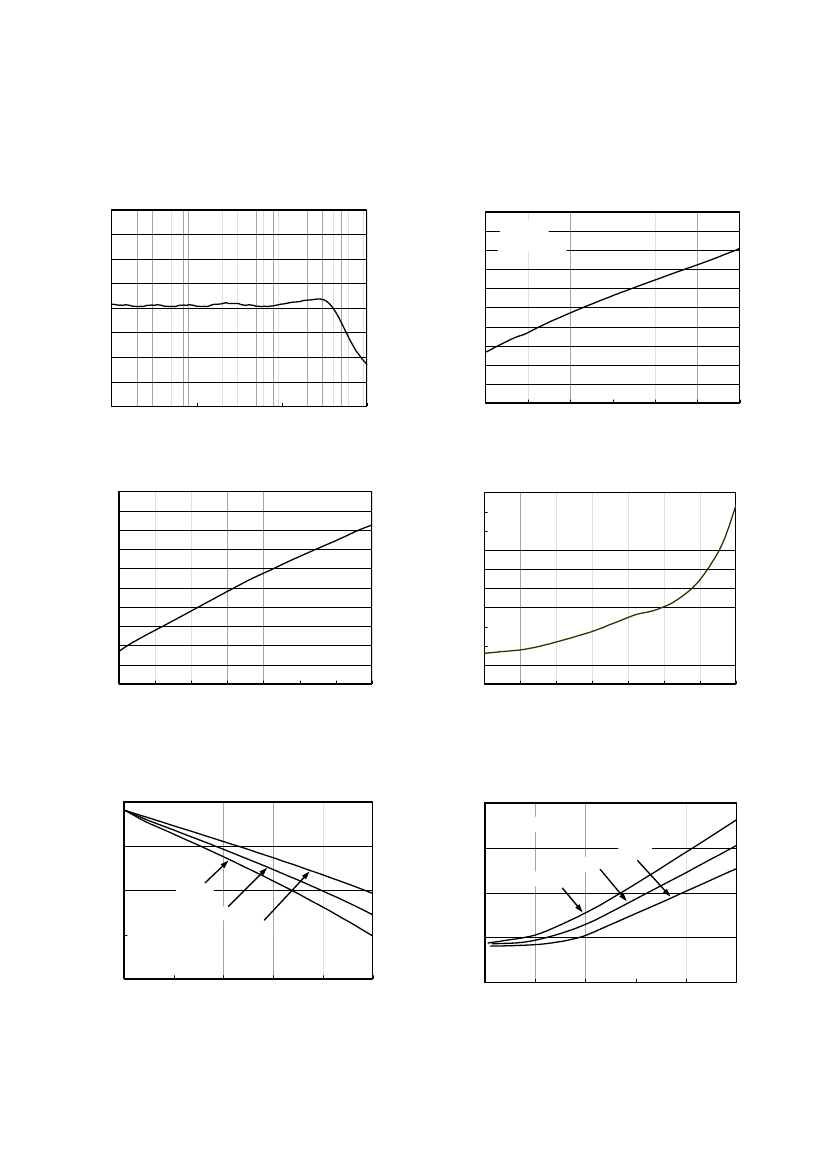

TYPICAL PERFORMANCE CHARACTERISTICS
At V
S
= +5.0V, T
A
= +25℃, R
L
= 150Ω, all outputs AC coupled with 220µF, unless otherwise noted.
3
0
Frequency Response
270
180
Phase vs. Frequency
Normalized Gain(dB)
-3
-6
-9
-12
-15
0.01
Phase(degree)
90
0
-90
-180
-270
0.1
1
10
100
0.1
1
10
100
1000
Frequency(MHz)
Frequency(MHz)
Large Signal Step Response
0.75
0.5
0.3
0.2
Small Signal Step Response
Output Voltage(V/)
0.25
0
-0.25
-0.5
-0.75
-0.2
Output Voltage(V/)
-0.1
0
0.1
0.2
0.3
0.4
0.1
0
-0.1
-0.2
-0.3
-0.2
Time (µs)
-0.1
0
0.1
0.2
0.3
0.4
Time (µs)
-50
-55
-60
-65
PSRR vs. Frequency(Bypass Caps)
0
-10
-20
PSRR vs. Frequency(No Bypass Caps)
PSRR(dB)
-75
-80
-85
-90
-95
-100
0.01
0.1
1
10
100
PSRR(dB)
-70
-30
-40
-50
-60
-70
-80
0.01
0.1
1
10
100
Frequency(MHz)
Frequency(MHz)
４
SGM9116
TYPICAL PERFORMANCE CHARACTERISTICS
At V
S
= +5.0V, T
A
= +25℃, R
L
= 150Ω, all outputs AC coupled with 220µF, unless otherwise noted.
Group Delay vs. Frequency
16
14
12
30
29
28
27
26
25
24
23
22
21
20
Quiescent Current vs. Supply Voltage
No Load
V
IN
= 500mV
10
8
6
4
2
0
0.1
Quiescent Current (mA)
Group Delay (ns)
Frequency(MHz)
1
10
100
2.5
3
3.5
4
4.5
5
5.5
Supply Voltage(V)
38
36
34
30
28
26
24
22
20
18
-50
Quiescent Current vs. Temperature
3
2.7
2.4
2.1
1.8
1.5
1.2
0.9
0.6
0.3
0
Gain Error vs. Temperature
Quiescent Current (mA)
-25
0
25
50
75
100
125
Gain Error(%)
32
-50
-25
0
25
50
75
100
125
Temperature(℃)
Temperature(℃)
Output Voltage Swing to The Positive Rail vs.
Output Current
5
Output Voltage Swing to The Negative Rail
vs. Output Current
0.8
V
IN
= 0V
Output Voltage(v)
Output Voltage(v)
4.5
0.6
+25℃
+85℃
0.4
-40℃
4
+85℃
+25℃
-40℃
3.5
0.2
3
0
20
40
60
80
100
0
Output Current(mA)
0
20
40
60
80
100
Output Current(mA)
５
SGM9116
ARM Technology
