TMP47C241N datasheet, PDF - EEWORLD Datasheet

TMP47C241N: DescriptionCMOS 4-BIT MICROCONTROLLER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size805KB，17 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP47C241N Overview

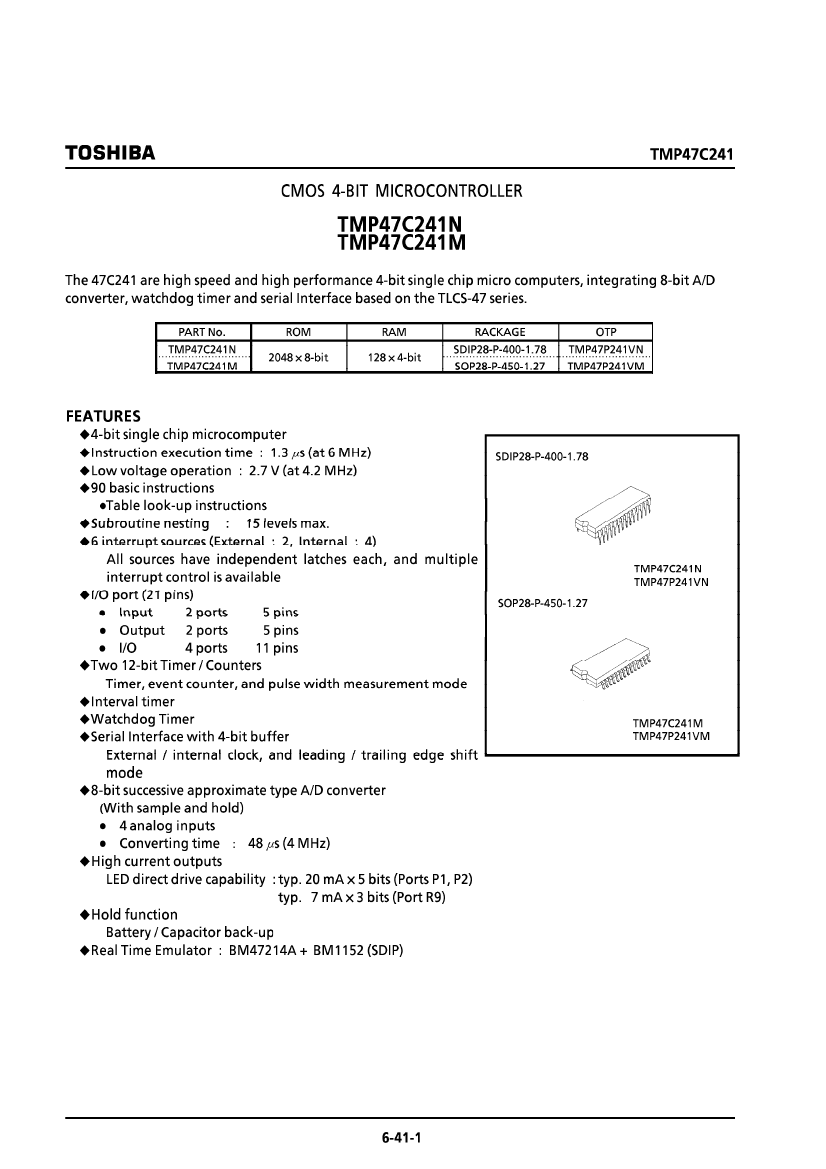

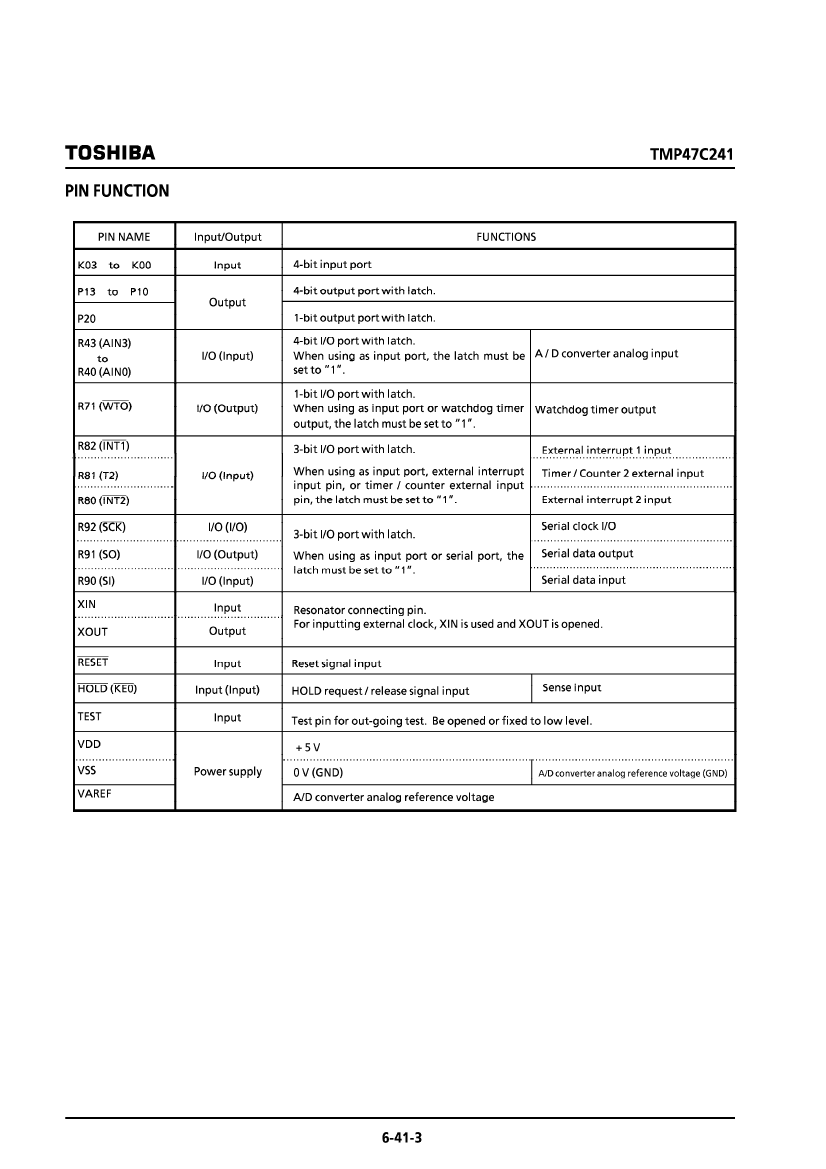

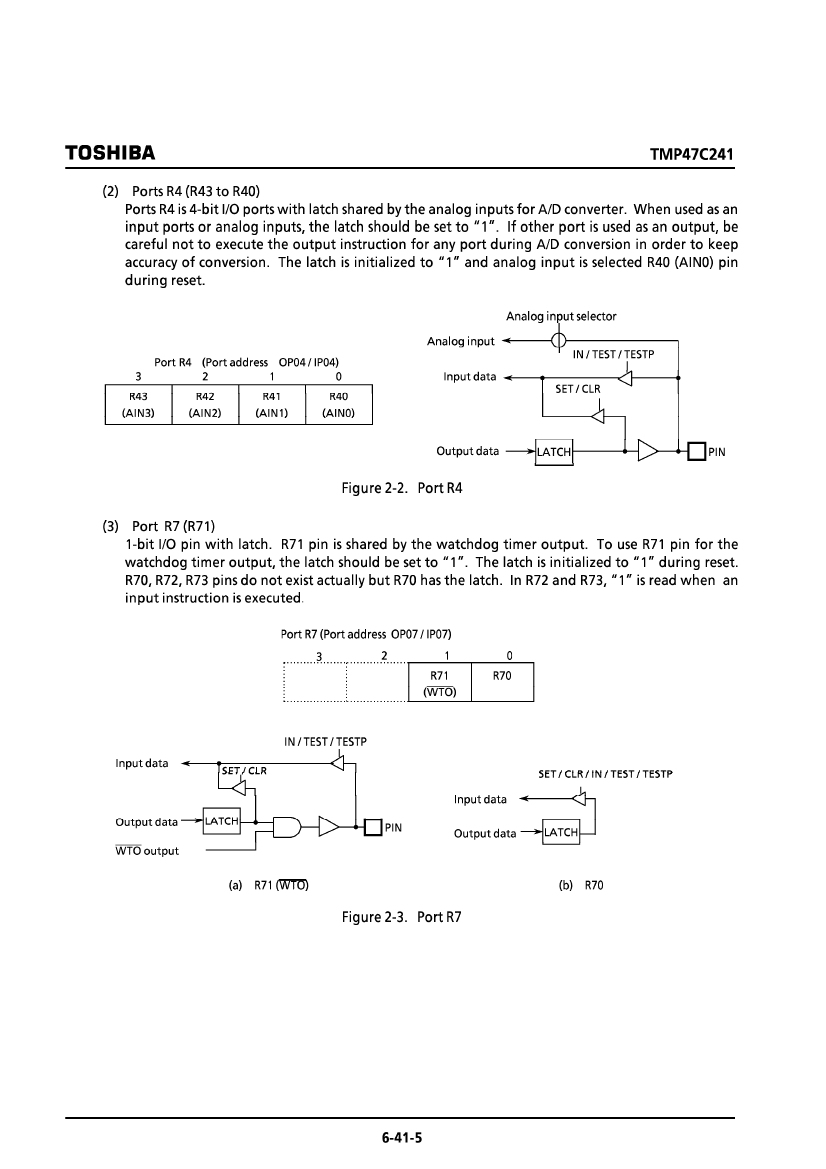

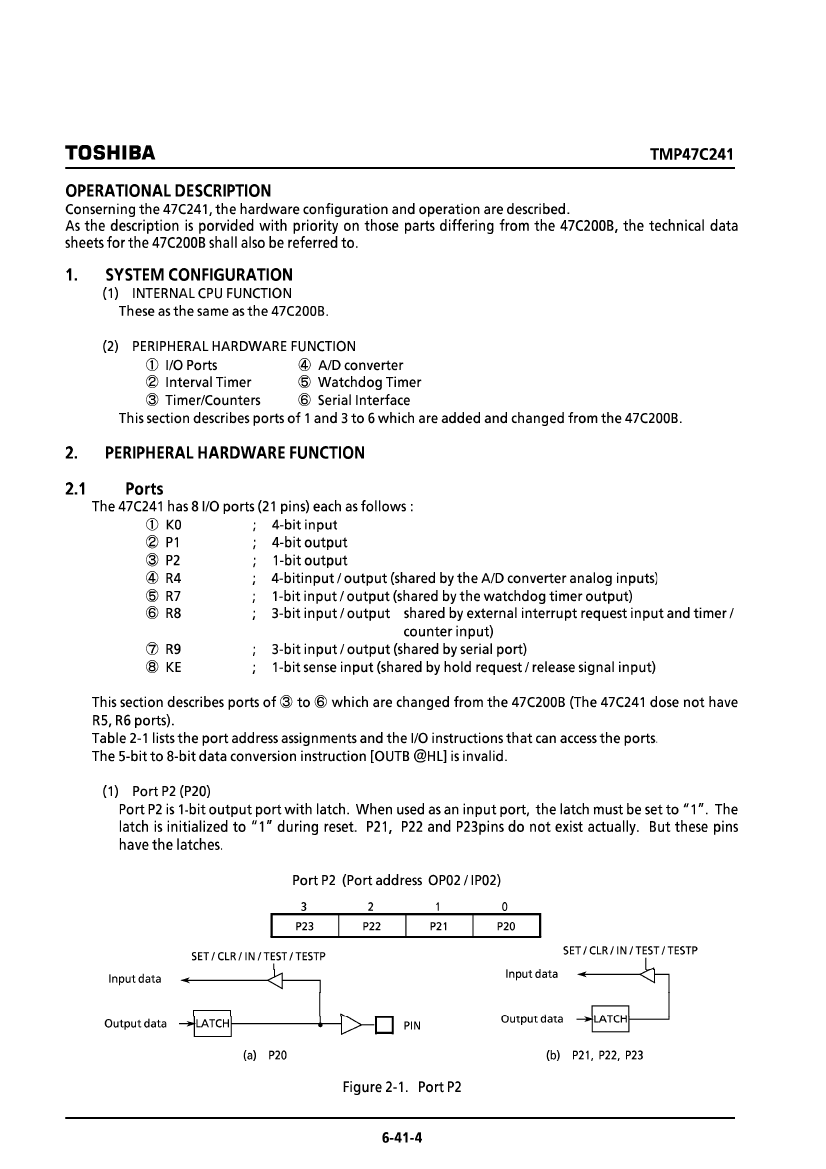

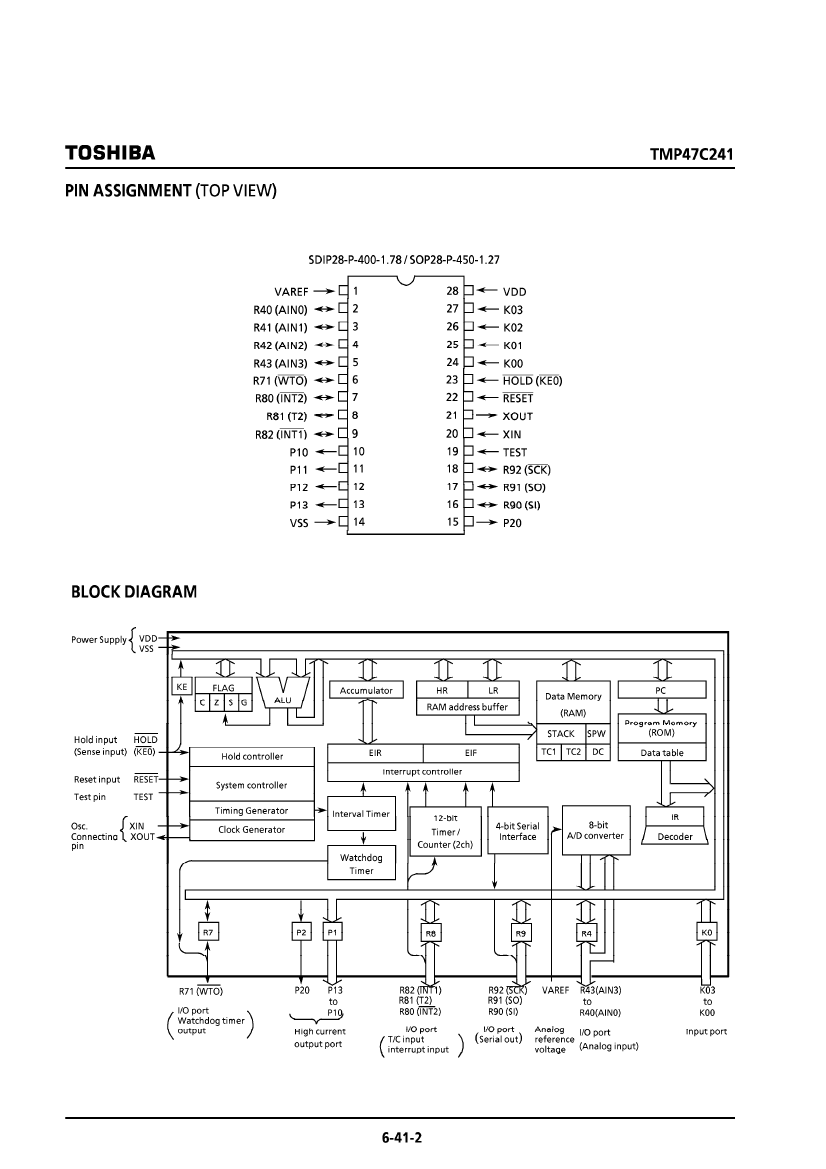

CMOS 4-BIT MICROCONTROLLER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	SDIP, SDIP28,.4
Contacts	28
Reach Compliance Code	unknow
Has ADC	YES
Other features	OPERATES AT 2.7V MIN SUPPLY @ 4.2 MHZ
Address bus width
bit size	4
CPU series	TLCS-47E
maximum clock frequency	6 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	25.6 mm
Number of I/O lines	20
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Encapsulate equivalent code	SDIP28,.4
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3/5 V
Certification status	Not Qualified
RAM (bytes)	64
rom(word)	2048
ROM programmability	MROM
Maximum seat height	4.1 mm
speed	6 MHz
Maximum slew rate	4 mA
Maximum supply voltage	6 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	TMP47C241N	TMP47C241VM	TMP47C241M	TMP47C241VN
Description	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER	CMOS 4-BIT MICROCONTROLLER
