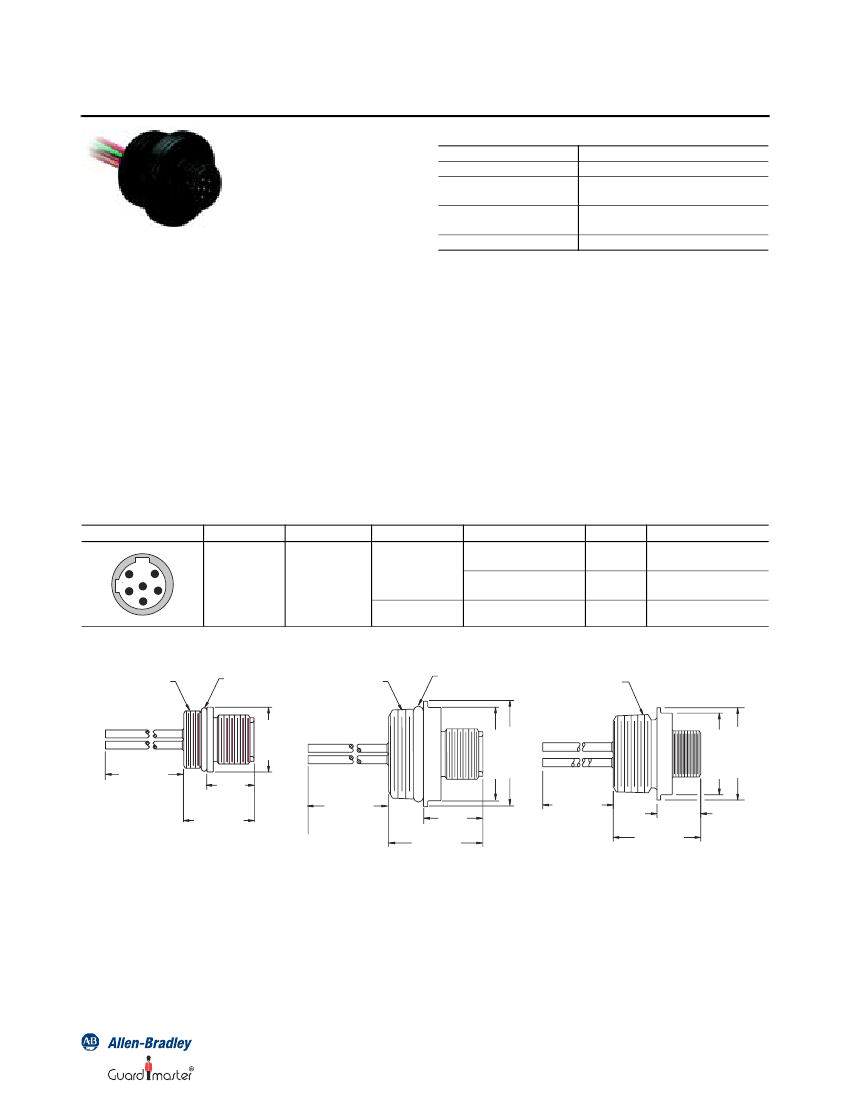

Connection Systems
Receptacles
AC Micro Male, 6-Pin
Specifications
Receptacle Shell
Connector Insert
Contacts
Wire insulation
Temperature
Nickel-plated brass
Nylon
Machined brass with gold over nickel
plating
Oil resistant PVC, 22AWG stranded
copper, 300V
-20°C to +105°C (-4°F to +221°F)
Features
• Male bulkhead receptacles
• 6-pin configuration
• M16, M20 or 1/2in -14NPT mounting threads
Product Selection
Face View of Male
Wire Colour
1 Red/White Tr
2 Red
3 Green
4 Red/Yellow Tr
5 Red/Black Tr
6 Red/Blue Tr
Wire Rating
22AWG
300V
3A
Length—m (ft)
Panel Mount Threads
M16 x 1
0.1 (0.3)
M20 x 1.5
0.3 (1)
1/2in-14NPT
B
C
888R-M6AC8-4N
888R-M6AC1-1F
Drawing
A
Catalogue Number
888R-M6AC9-4N
1
5
2 6 4
3
Approximate Dimensions—mm (inch)
M16 threads
O-Ring
M20 threads
O-Ring
1/2in NPT threads
18 (0.71)
22.2 (0.88)
23.8 (0.94)
101.6 (4)
Ref
11.1
(0.44)
19.8 (0.78)
101.6 (4)
Ref
12.7
(0.5)
19.5 (0.77)
304.8 (12)
Ref
11.1
(0.44)
23.8 (0.94)
Dimensions are approximate. Illustrations are not drawn to scale.
22.2 (0.88)
15-19
23.8 (0.94)
