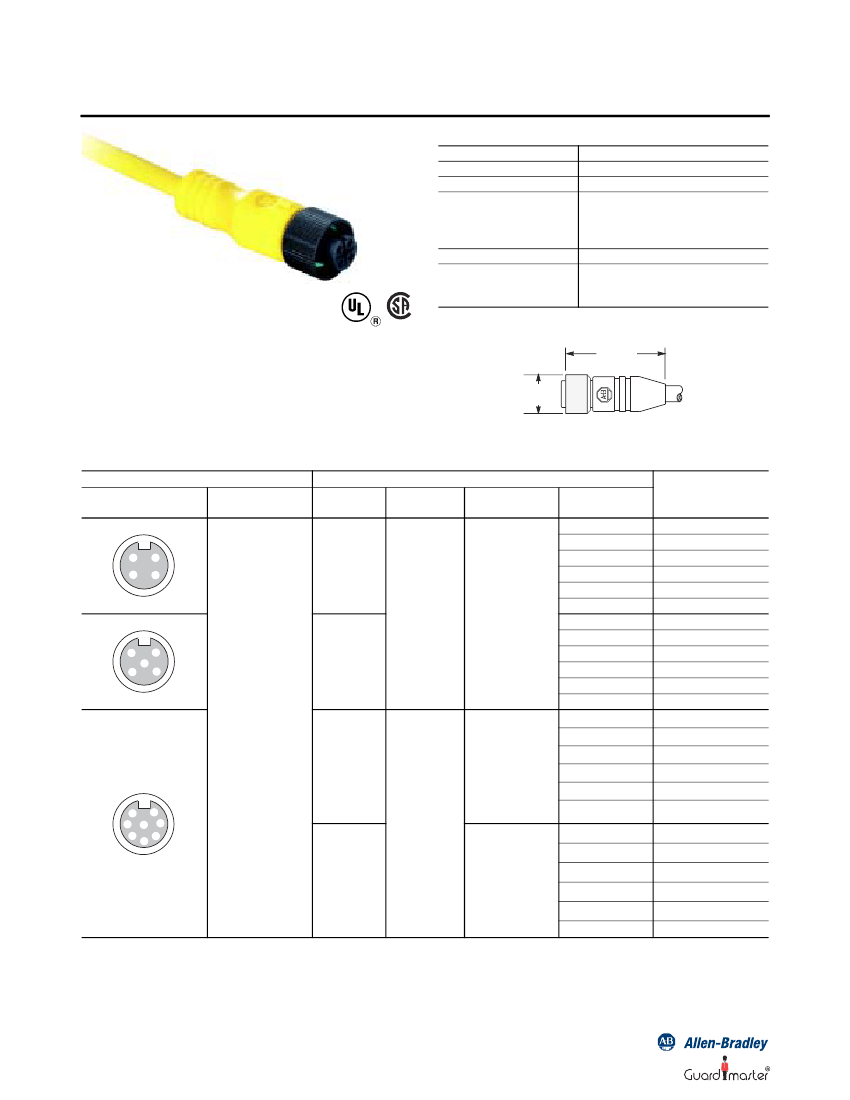

Connection Systems
Cordsets and Patchcords
DC Micro Quick-Disconnect Cordset
Specifications
Coupling Nut
Connector
Contacts
Cable O.D.
Epoxy-coated zinc
Molded oil resistant PVC or PUR
Gold over nickel-plated brass
4/c = 5mm (0.21in)
5/c = 6.5mm (0.25in)
7/c = 7.4mm (0.29in)
8/c = 7.4mm (0.29in)
IP67, NEMA 6P
-20°C to +105°C (-4°F to +221°F): PVC
-25°C to +125°C (-13°F to +256°F):TPR
-20°C to +85°C (-4°F to +185°F): PUR
Enclosure Rating
Temperature
Approximate Dimensions—mm (inches)
Features
• 4-, 5- or 8-pin configuration
• Overmolded connector construction for application durability
• Ratcheting coupling nut for vibration resistance
15
(0.57)
Straight Female
Dimensions are approximate. Illustrations are not drawn to scale.
42 (1.7)
Product Selection
Female Connector (Sensor End)
Face View of Female
Connector Style
Wire
Colour
1 Brown
2 White
3 Blue
4 Black
22AWG
300V
3A
Yellow PVC
Wire Rating
Cable
Jacket Material
Length—m (ft)
2 (6.5)
5 (16.4)
10 (32.8)
15 (49.2)
20 (65.6)
30 (98.4)
2 (6.5)
5 (16.4)
10 (32.8)
15 (49.2)
20 (65.6)
30 (98.4)
2 (6.5)
5 (16.4)
10 (32.8)
Black TPR
24AWG
36V DC/
30V AC
1.5A
Black PUR
15 (49.2)
20 (65.6)
30 (98.4)
2 (6.5)
5 (16.4)
10 (32.8)
15 (49.2)
20 (65.6)
30 (98.4)
Catalogue Number
889D-F4AC-2
889D-F4AC-5
889D-F4AC-10
889D-F4AC-15
889D-F4AC-20
889D-F4AC-30
889D-F5AC-2
889D-F5AC-5
889D-F5AC-10
889D-F5AC-15
889D-F5AC-20
889D-F5AC-30
889D-F8AC-2
889D-F8AC-5
889D-F8AC-10
889D-F8AC-15
889D-F8AC-20
889D-F8AC-30
889D-F8AB-2
889D-F8AB-5
889D-F8AB-10
889D-F8AB-15
889D-F8AB-20
889D-F8AB-30
1
4
2
3
1
5
4
2
3
1 Brown
2 White
3 Blue
4 Black
5 Grey
1 Red
2 Blue
3 Green
4 Yellow
5 Black
6 White
7 NA
8 Grey
1 White
2 Brown
3 Green
4 Yellow
5 Grey
6 Pink
7 Blue
8 Red
Straight
7
6
5
8
4
1
2
3
15-10
