Industry’s Highest Efficiency DC/DC Converter
48V or 24V Input, 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 3.3VDC, 60A Output or 1.2V,
1.5V, 1.8V, 2.0V, 2.5V, 3.3V, 5.0VDC, 40A Output or 5.0VDC, 30A Output
TAURUS HC Series
The High Current Taurus half brick is
another
CoolConverter
™
in the Galaxy
family of high-efficiency DC/DC converters.
Industry Standard Pinout and Footprint
Typical Efficiency:
93% at 3.3V, 30A; 92% at 3.3V, 60A
No Heat Sink Required
Very Low Common-mode Noise for a
Commercial DC/DC Converter
Two-stage Input Filter
Constant Switching Frequency
Remote Sense
Single Board Design
Optional Baseplate or Low Profile Heatsink
for Improved Thermal Performance
Header with M3 Metal Inserts for Mechanical
Connection to PCB
Two Year Warranty

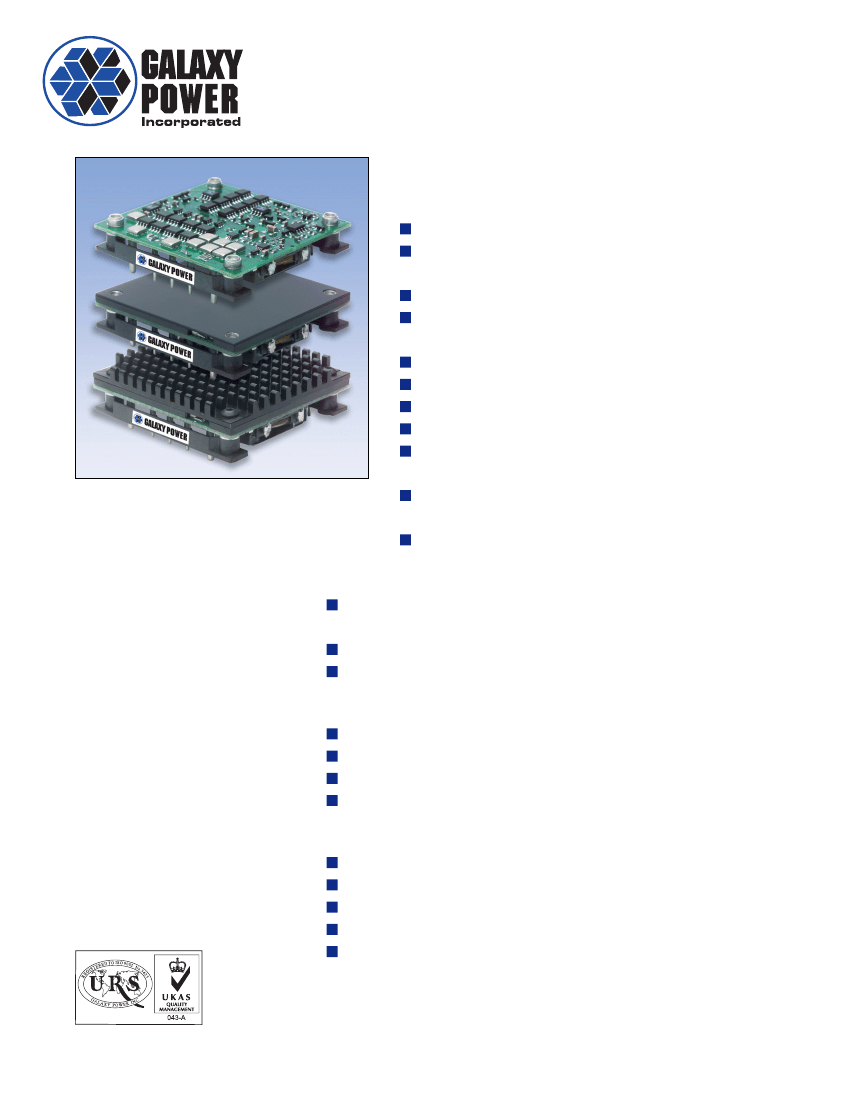

The open-frame Taurus HC
is also available with a heat-spreading
baseplate or complete with an optional
heatsink.
Control Functions
Uses Patented Power Supply Control
and Architecture
Microprocessor Controlled
Primary-side Enable, Choice of Logic
Protection Features
Over Temperature Protection
Over Voltage Protection
Over/Under Input Voltage Protection
Over Current Protection
Typical Characteristics
Output Setpoint Accuracy:
±1%
Load Regulation:
±0.25%
Line Regulation:
±0.25%
Regulation over Line, Load, and Temperature:
±2%
Output Trim
Taurus HC Series, Page 1
WWW.GALAXYPWR.COM
Part No. 01–001 Rev. 4.0_082803
General Specifications
V
IN
= 48V
DC
, T
A
@25
°
C, 300 LFM airflow, V
OUT
=3.3V, I
OUT
= Full Load unless otherwise noted.
Available output power depends on ambient temperature and good thermal management. (See application graphs for limits.)
Input Characteristics
Parameter
Min
Typ
Max
Units
Operating Input Voltage
Input Current (Model Dependent)
Input Capacitance
Input Hysteresis, Low Line
36
48
6.6
2
75
8.0
V
DC
A
µF
V
DC
%V
NOM
mV
RMS
mV
P–P
A
A
A
mV
µS
mS
%V
OUT
%V
OUT
%V
OUT
V
DC
MΩ
Output Characteristics
Regulation Over Line, Load & Temperature
Voltage Ripple
Voltage Ripple, 20MHz BW
Current Range
Current Limit Inception
Short Circuit Current, Peak (see Note below)
Output Transient Response, 50% to 75% load change, 1A/µsec
Settling Time to
±1%
Turn-on Time to 98% Vnom
Output Overshoot at Turn-on
Trim Range
Overvoltage Protection, Latching
98
102
25
125
60
72
75
125
300
30
1
110
130
2000
10
117
200
0
62
90
Isolation
Isolation Test Voltage, Input/Output (Basic)
Isolation Resistance
Features
Overtemperature Protection, Thermal Sensor, Latching*
Input, Output Ripple Frequency, Fixed**
°C
kHz
Notes: During short circuit, converter will shut down and attempt to restart once per second.
The average current during this condition will be very low and the device can be safely left in this condition
continuously. For specific output voltage specifications, see the corresponding detailed data sheet.
*PCB less than 130
°
C
**3V360 = 300kHz
General Specifications
Operating Temperature
Storage Temperature
Relative Humidity
Vibration
Material Flammability
Weight
MTBF
Telcordia (Bellcore)
-40°C to +100°C
–55°C to +125°C
10% to 95% RH,
Non-condensing
2 to 9Hz, 3mm disp.
9 to 200Hz 1g
UL V-0
55 grams
1,300,000 hours
Approvals and Standards
UL and c-UL Recognized Component,
TUV, UL60950, CSA 22.2 No. 950,
IEC/EN60950**
EMC Characteristics:
Designed to meet emission and immunity
requirements per EN55022, CISPR22,
Class B and CISPR24.
** An external fuse shall be used to comply with the requirements.
Taurus HC Series, Page 2
WWW.GALAXYPWR.COM
Part No. 01–001 Rev. 4.0_082803
Application Notes
CoolConverter
™
Family
Galaxy’s
C
OOL
C
ONVERTER
™
Family features:
• Patented single-stage power conversion architecture, control,
and magnetic design allow unprecedented power density and
efficiency in an isolated power supply.
• An advanced microcontroller reduces parts count while
adding features, performance, and flexibility in the design.
• Low common-mode noise as a result of lower capacitance in
the transformer compared to planar magnetics and metal
baseplate designs.
• Higher reliability than planar transformer designs that can
suffer from via fatigue from thermal cycling, and metal
baseplate designs with board to board interconnects that are
subject to mechanical stress on electrical connections.
Protection and Control

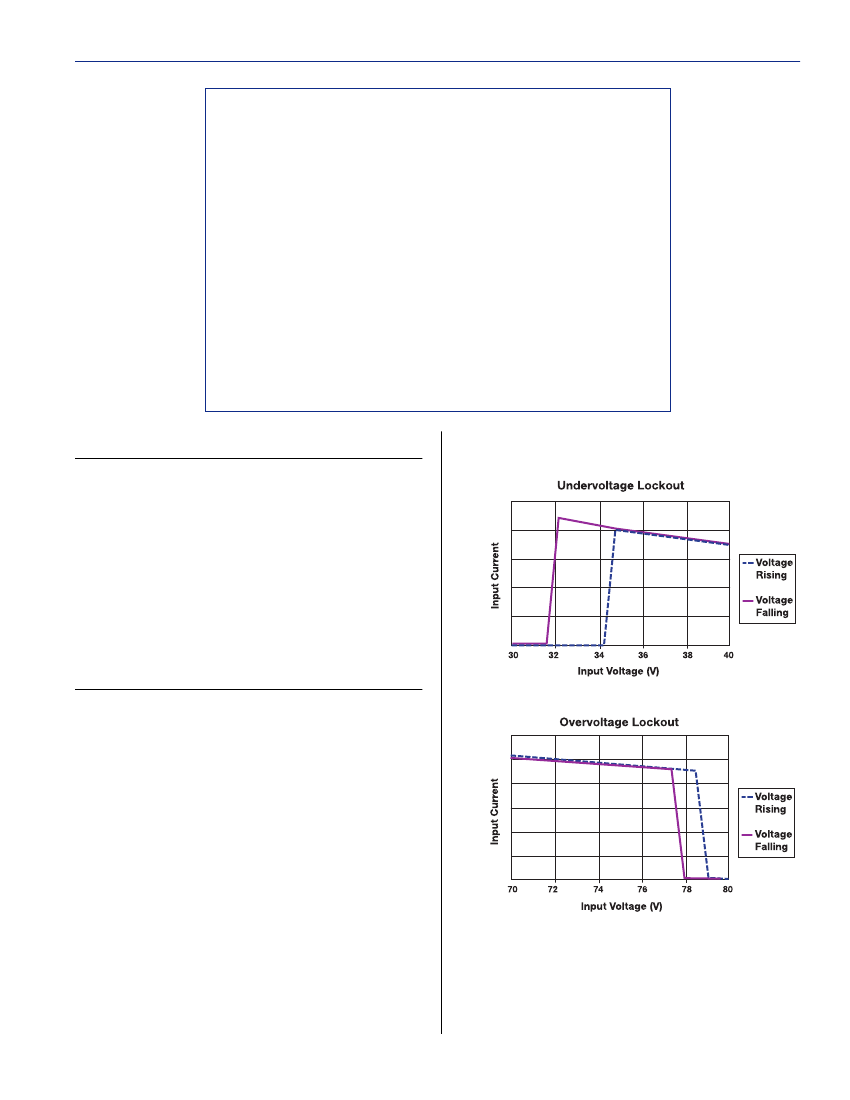

Valid Input Voltage Range:
The converter measures the input voltage and will
not allow operation outside of the input voltage
specification. As shown by the graphs, hysteresis is
added to both the high and low voltage to prevent
the converter from turning on and off repeatedly
when the voltage is held near either voltage
extreme. At low line this assures the maximum
input current is not exceeded; at high line this
assures the semiconductor devices in the converter
are not damaged by excessive voltage stress.
ON/OFF Logic Option:
The ON/OFF control logic can be either Negative
(standard) or Positive to enable the converter. For
Negative logic, the ON/OFF pin is brought below
1.0V with respect to the -INPUT pin to enable the
converter. The pull-down must be able to sink
100µA. For Positive logic, the ON/OFF pin is
brought to greater than 4.0V with respect to the
–INPUT pin and be limited to less than 10V. To
request the Positive logic version, add the suffix (P)
to the standard part number. The ON/OFF pin has a
built-in pull-up resistor of approximately 100kΩ to
+5V.
Taurus HC Series, Page 3
WWW.GALAXYPWR.COM
Part No. 01–001 Rev. 4.0_082803
APPLICATION NOTES
Output Over Voltage Protection:
The output voltage is constantly monitored by the
microprocessor and a redundant secondary side
crowbar circuit that is set to a higher trip point than
the microprocessor protection. If the output voltage
exceeds the over-voltage specification, the
microprocessor will latch the converter off. To turn
the converter on requires either cycling the ON/
OFF pin or power to the converter. This advanced
feature prevents the converter from damaging the
load if there is a converter failure or application
error. If non-latching is required, consult factory.
Thermal Shutdown:
The printed circuit board temperature is measured
using a semiconductor sensor. If the maximum
rated temperature is exceeded, the converter is
latched off. To re-enable the converter requires
cycling the ON/OFF pin or power to the converter.
If non-latching shutdown is required, consult
factory.
Control Options:
As the behavior of the circuit is determined by
firmware in the microcontroller, specific customer
requirements such as:
• non-latching thermal protection
• custom valid input voltage range
• controlled delay from initiating an ON/OFF
signal for power sequencing
can be accomplished with no change to hardware.
The standard behavior was chosen based on
system design experience but we understand that
customers often have their own requirements.
Please consult Galaxy Power for your special
needs.
Remote Sense:
The output voltage is regulated at the point where
the sense pins connect to the power output pins.
Total sense compensation should not exceed 0.4V
or 10% of Vout, whichever is greater.
Safety:
An external input fuse must always be used to
meet these safety requirements.
R
TRIM-DOWN
=
Trim:
To trim the output voltage higher, connect the
required trim resistor from the Trim pin to the
+Sense pin. To trim the output voltage lower,
connect the required trim resistor from the Trim pin
to the –Sense pin. See diagram below.
Trim-down
Trim-down (%)
{
100
∆%
–2
}
kΩ
Trim-up (for 3.3V)
R
TRIM-UP
=
{
Vo (100+∆%)
1.225∆%
–
(100+2∆%)
kΩ
∆%
}
External Output Trimming
+ Sense
Trim
– Sense
Taurus HC Series, Page 4
WWW.GALAXYPWR.COM
Part No. 01–001 Rev. 4.0_082803

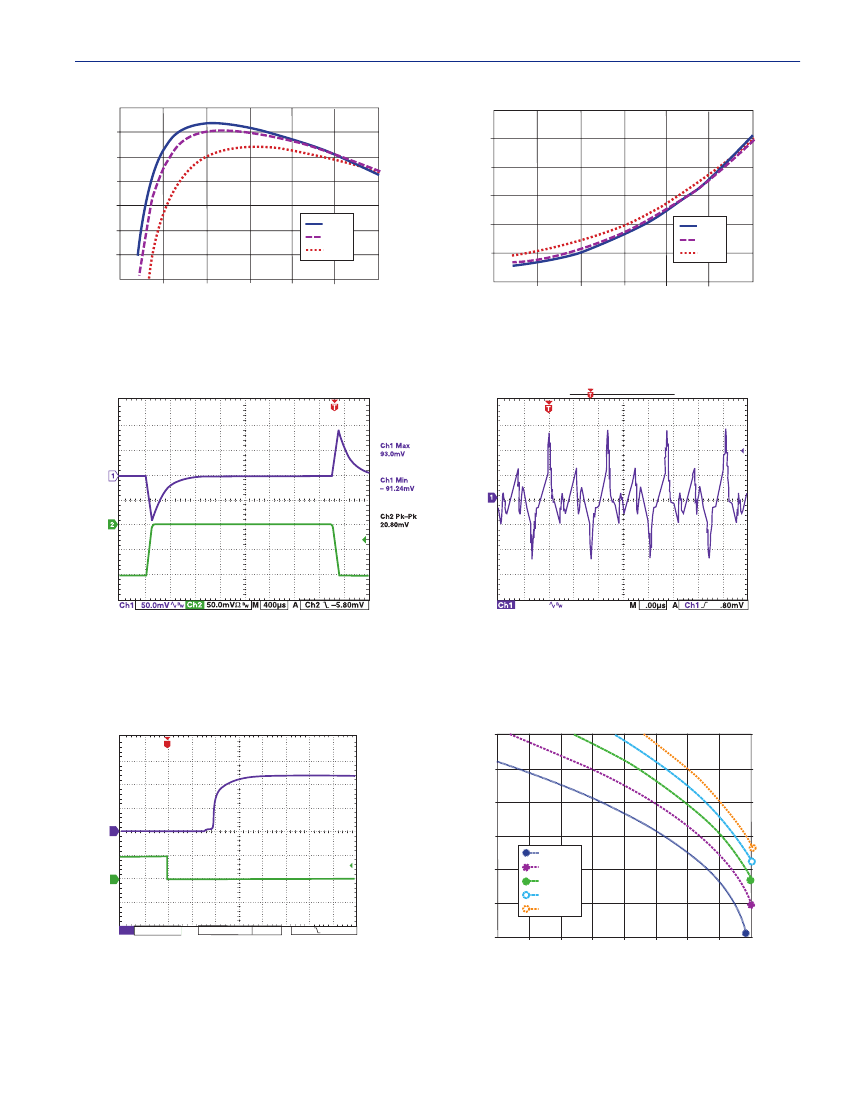

GHTW3V360 OPERATION
Efficiency
94
92
30
Power Dissipation
Power Dissipation (W)
25
20
15
10
5
0
Efficiency (%)
90
88
86
84
82
80
0
10
20
30
40
50
60
36V
48V
75V
36V
48V
75V
0
10
20
30
40
50
60
Load Current (A)
Load Current (A)
Transient Response
[
Voltage Ripple
]
Ch1 Pk–Pk
104.0mV
Vout
Vout
Ch1 RMS
16.38mV
20A
Iout
10A
20.0mV
4
38
Start-up Waveform
60
T
Thermal Derating Curves
GHTW3V360 Heatsink Ready
y
50
Ch1 +Over
1.042%
40
Vout
1
Iout (A)
Ch1 High
2.300V
Ch1 Max
2.324V
30
100 LFM
20
200 LFM
300 LFM
10
400 LFM
600 LFM
Enable
2
Ch1
1.00mV
B
W
Ch2
5.00 V
M 4.00ms A
Ch2
3.00V
0
10
20
30
40
50
60
70
80
90
Ambient Air Temperature (deg C)
Taurus HC Series, Page 5
WWW.GALAXYPWR.COM
Part No. 01–001 Rev. 4.0_082803
