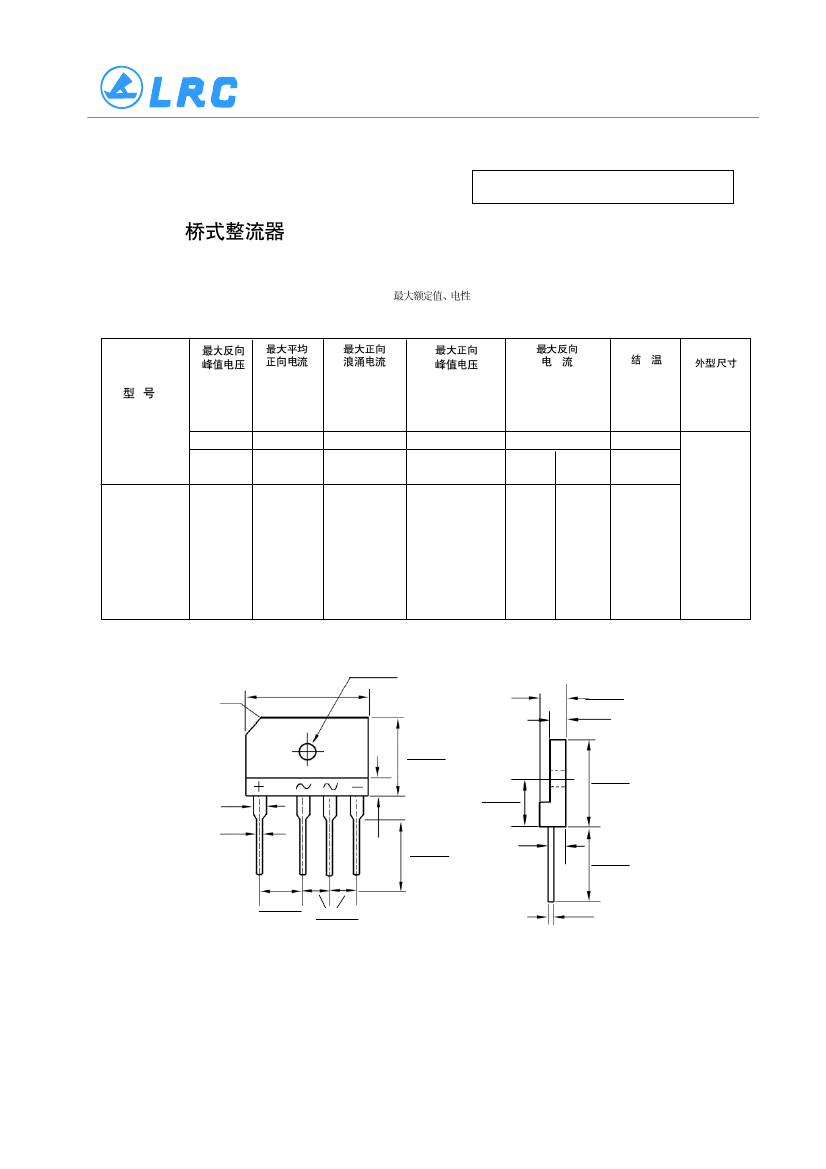

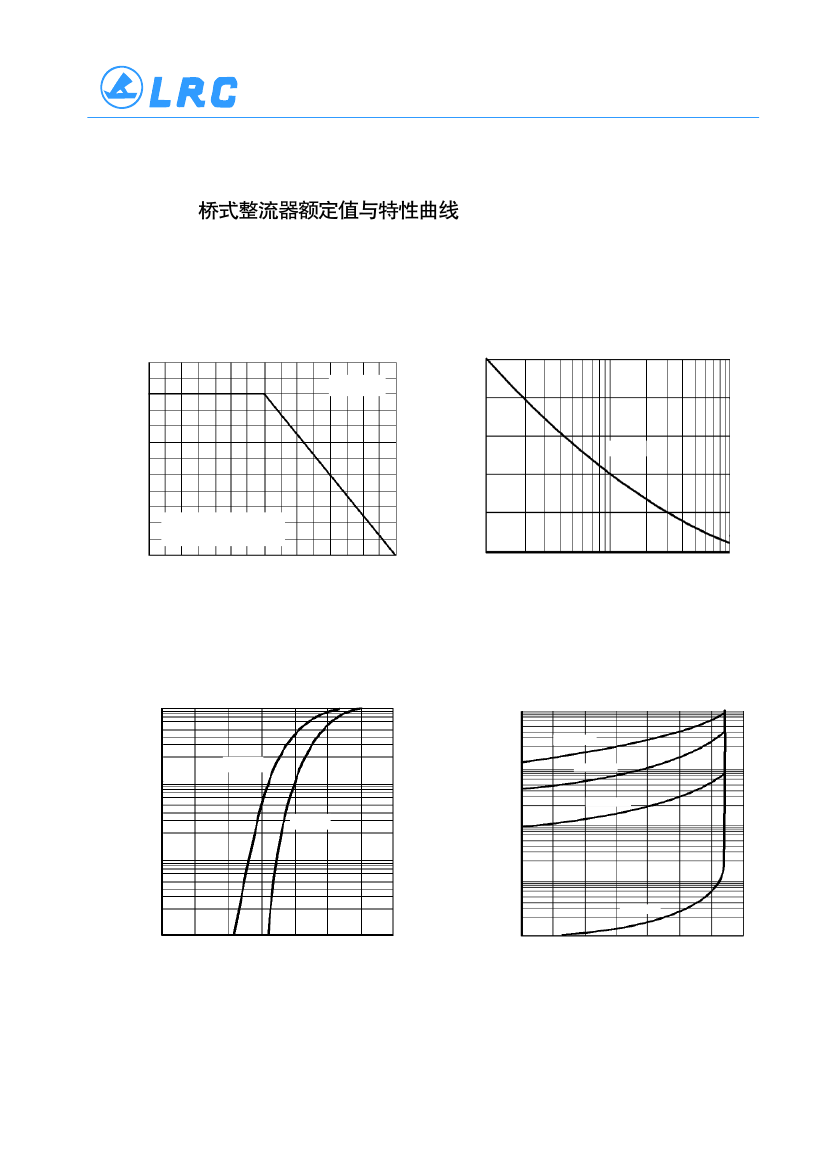

LESHAN RADIO COMPANY, LTD.

D15SB10 – D15SB100

15A(SIP)

15A(SIP) BRIDGE RECTIFIERS

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25°C ambient temperature unless otherwise specified. Single phase,half wave,

60Hz,resistive or inductive load. For capacitive load,derate current by 20%.

Maximum

Peak

TYPE

Reverse

Voltage

PRV

V

PK

Maximum

Average

Forward

Output

Current

@T

A

=70°C

I

O

Maximum

Forward Peak

Surge Current

@ 8.3ms

Superimposed

I

FM

(Surge)

A

PK

Maximum DC

Forward Voltage

drop per element

at I

F

=7.5ADC

V

F

V

PK

Maximum DC

Reverse Current

at rated DC

Blocking Voltage

per element

I

R

25°CTA

µADC

125°CTA

µADC

Operating

Junction

Temperature

Package

Dimensions

T

J

°C

A

AV

D15SB10

D15SB20

D15SB40

D15SB60

D15SB80

D15SB100

100

200

400

600

800

1000

15

250

1.1

5

500

150

D15SB

φ

.142(3.6)

φ

.126(3.2)

C3

1.193(30.3)

1.169(29.7)

.189(4.8)

.173(4.4)

.160(3.8)

.134(3.4)

.779(20.3)

.775(19.7)

.779(20.3)

.776(19.7)

.098(2.5)

.079(2.0)

.043(1.1)

.036(0.9)

.197(5.0)

.441(11.2)

.425(10.8)

.789(18.0)

.669(17.0)

.142(3.6)

.126(3.2)

.709(18.0)

.669(17.0)

.405(10.3)

.382(9.7)

.303(7.7)

.287(7.3)

.032(0.8)

.024(0.6)

D15SB

19C–1/2
