RUC
Plug-in power relays
• General purpose relays
• High inrush current
• Plug-in, solder, PCB, connector mounting
• Covers with mounting flange available
1
Contacts
Contact number
&
arrangement
Contact material
Voltage
Max. switching voltage AC/DC
Min. switching voltage
Current
Rated load
AC1
DC1
Min. switching current
Max. inrush current
Rated current
Max. breaking capacity
Min. breaking capacity
Resistance
Max. operating frequency
• at rated load
• no load
Contacts
2C/O, 3C/O, 2NO, 3NO
AgCdO
400 V / 400 V
10 V
16 A / 250 V AC or 10 A / 380 V AC
16 A / 24 V DC
10 mA
40 A
16 A
4 000 VA
0,5 W
£
100 m
W
at 1 A, 24 V
1 200 cycles/hour
12 000 cycles/hour
Coil
Voltage
Rated voltage
Must release voltage
Operating range of supply voltage
Rated power consumption
Coil
on
6...220 V DC
6...380 V AC 50 Hz, 50/60 Hz
³
0,1 U
n
DC;
³
0,15 U
n
AC

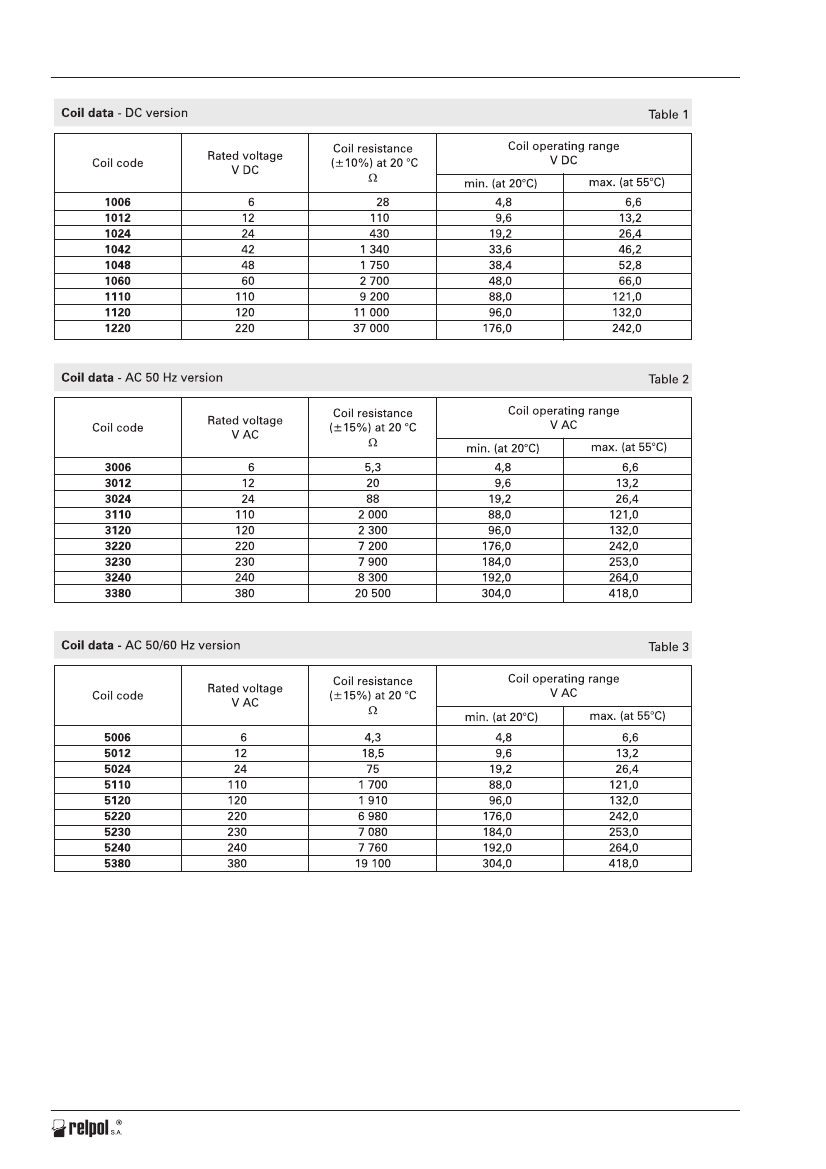

see Tables 1, 2, 3
1,5 W DC
2,8 VA AC 50 Hz; 2,5 VA AC 60 Hz
Insulation
Insulation category
Voltage
Insulation rated voltage
Dielectric strength:
• coil-contact
• contact-contact
• pole-pole
Contact-coil distance
• clearance
• creepage
Insulation
C400
400 V AC
2 500 V AC
1 500 V AC (2 500 V AC contact-contact
³
3 mm)
2 500 V AC
³
6 mm
³
8 mm
General data
Operating time (typical value)
Release time (typical value)
Electrical life
• resistive
• cos
j
Mechanical life (cycles)
Dimensions (L x W x H)
Weight
Ambient temperature
• storing
• operating
Cover protection category
Shock resistance
Vibration resistance
Solder bath temperature
Soldering time
Approvals
General data
12 ms AC, 12 ms DC
10 ms AC, 7 ms DC
at 16 A, 250 V AC
³
10
5
see Fig. 2
³
10
7
38,6 x 36,1 x 45,5 mm
85 g
-40...+85 °C
-40...+70 °C (for 10 A on contact)
-40...+55 °C (for 16 A on contact)
IP 40
10 g
5g
for 10...150 Hz
max. 270 °C
max. 5 s
B, UL, CSA, GOST
4
RUC

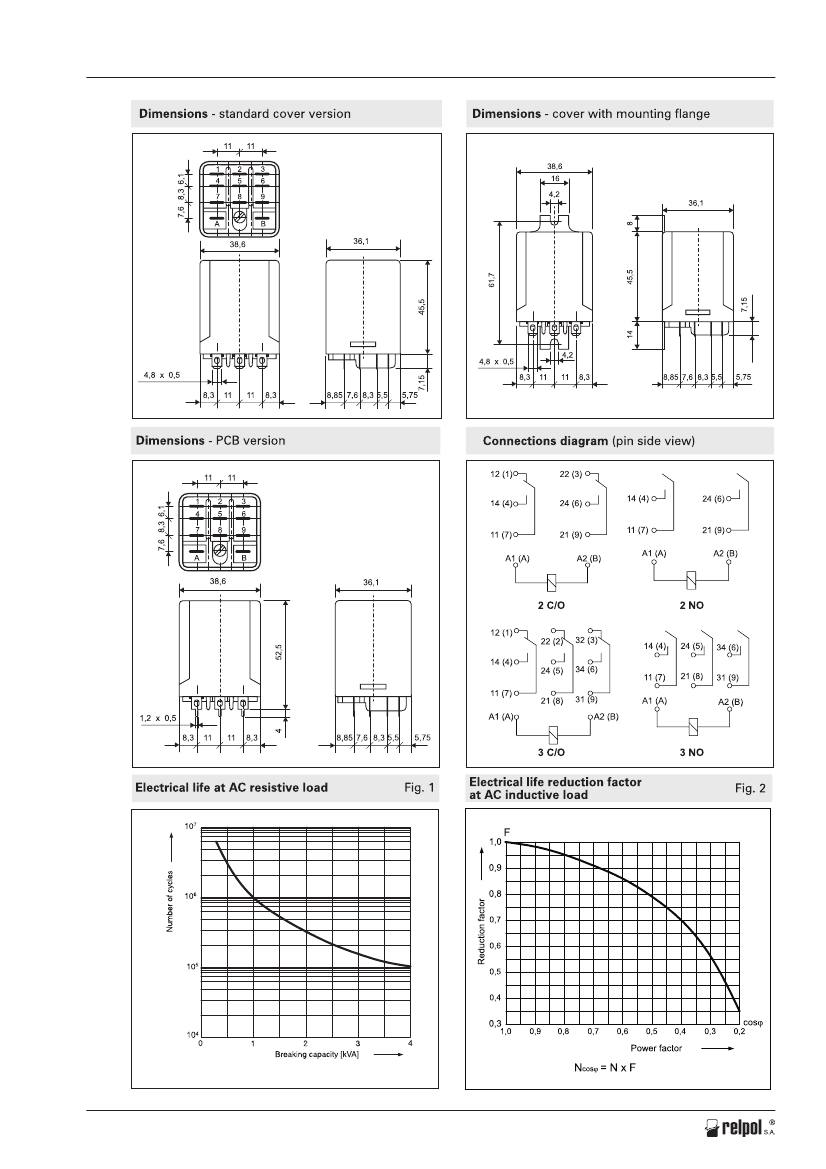

Fig. 3
Mounting
Plug-in power relays

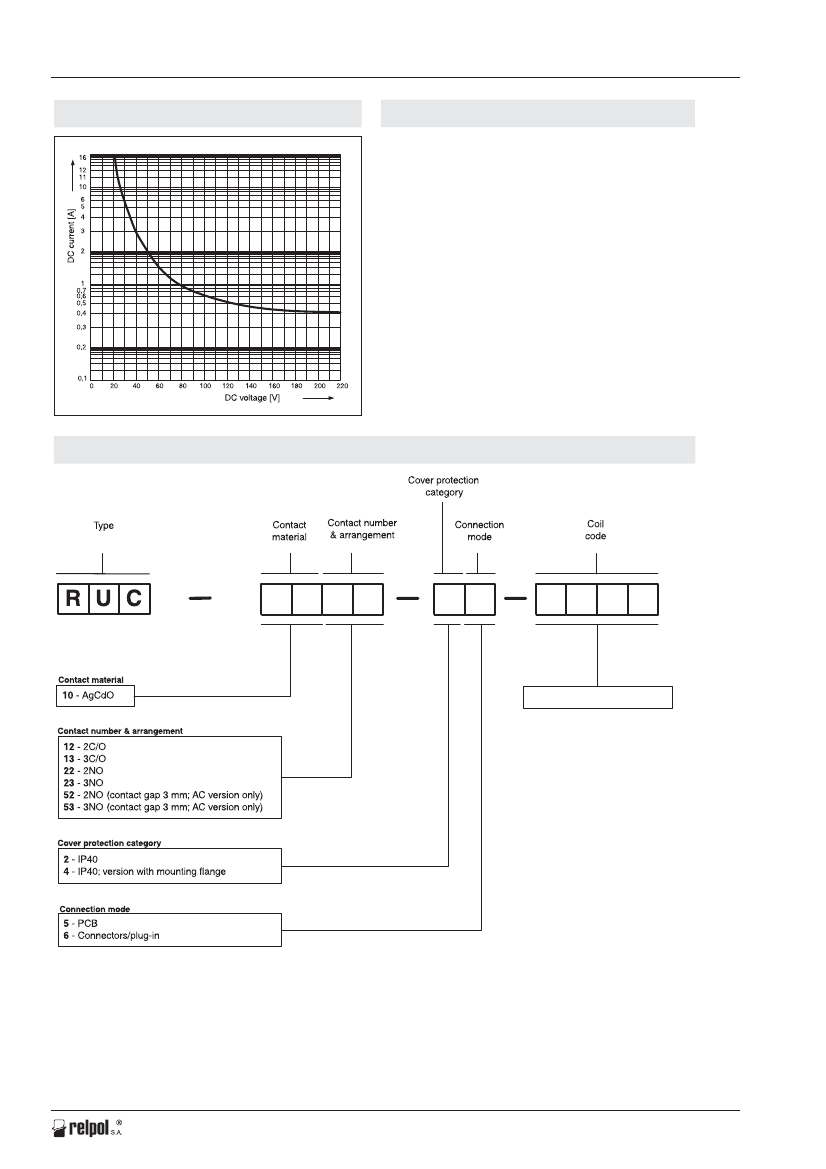

Max. DC resistive load breaking capacity
Relays
RUC
are designed for:
• screw terminals sockets
GUC11
(modules and clips available) - for DIN rail mounting,
• fast-on connector,
• direct PCB mounting.
Ordering codes
See Tables 1, 2, 3, page 2
2002-12-20
