64Kx16 Bit High-Speed CMOS Static RAM(3.3V Operating)
Operated at Commercial and Industrial Temperature Ranges.
for AT&T
CMOS SRAM
Revision History
Rev. No.
Rev. 0.0
Rev. 1.0
History
Initial release with Preliminary.
Release to Final Data Sheet.
1.1. Delete Preliminary.
1.2. Changed DC characteristics.
Item
I
CC
12ns
15ns
20ns
Added 48-fine pitch BGA.
Changed device part name for FP-BGA.
Item
Previous
Symbol
Z
ex) K6R1016V1C-Z -> K6R1016V1C-F
Changed device ball name for FP-BGA.
Previous
I/O1 ~ I/O8
I/O9 ~ I/O16
1. Added 10ns speed for FP-BGA only.
2. Changed Standby Current.
Item
Previous
Standby Current(Isb1)
0.3mA
3. Added Data Retention Characteristics.
Draft Data
Aug. 5. 1998
Sep. 7. 1998
Remark
Preliminary
Final
Previous
85mA
83mA
80mA
Changed
95mA
93mA
90mA
Sep. 17. 1998
Nov. 5. 1998
Changed
F
Final
Final
Rev. 2.0
Rev. 2.1
Rev. 2.2
Dec. 10. 1998
Changed
I/O9 ~ I/O16
I/O1 ~ I/O8
Mar. 2. 1999
Changed
0.5mA
Final
Rev. 3.0
Final
Rev. 3.1
Rev. 3.2
Added 10ns speed for all packages(44SOJ / 44TSOP2 / 48FPBGA)
Supply Voltage Change
1. Only 10ns Bin : 3.15V ~ 3.6V
2. The Rest Bin : 3.0V ~ 3.6V
V
IH
/V
IL
Change
Item
V
IH
V
IL
Previous
Min
2.0
-0.5
Max
V
CC
+0.5
0.8
Min
2.0
-0.3
Changed
Max
V
CC
+0.3
0.8
Apr. 24. 2000
Aug. 25. 2000
Final
Final
Rev. 3.3
Oct. 2. 2000
Final
The attached data sheets are prepared and approved by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserve the right to change the
specifications. SAMSUNG Electronics will evaluate and reply to your requests and questions on the parameters of this device. If you have any questions,
please contact the SAMSUNG branch office near your office, call or contact Headquarters.
-1-
Revision 3.3
October 2000
K6R1016V1C-C/C-L, K6R1016V1C-I/C-P
FEATURES
• Fast Access Time 10,12,15,20ns(Max.)
• Low Power Dissipation
Standby (TTL)
: 30mA(Max.)
(CMOS) : 5mA(Max.)
0.5mA(Max.) L-ver. only
Operating
*
K6R1016V1C-10: 105mA(Max.)
K6R1016V1C-12: 95mA(Max.)
K6R1016V1C-15: 93mA(Max.)
K6R1016V1C-20: 90mA(Max.)
• Single 3.3V Power Supply
• TTL Compatible Inputs and Outputs
• Fully Static Operation
- No Clock or Refresh required
• Three State Outputs
• 2V Minimum Data Retention: L-ver. only
• Center Power/Ground Pin Configuration
• Data Byte Control: LB: I/O
1
~ I/O
8
, UB: I/O
9
~ I/O
16
• Standard Pin Configuration:
K6R1016V1C-J: 44-SOJ-400
K6R1016V1C-T: 44-TSOP2-400BF
K6R1016V1C-F: 48-Fine pitch BGA with 0.75 Ball pitch
for AT&T
CMOS SRAM
64K x 16 Bit High-Speed CMOS Static RAM(3.3V Operating)
GENERAL DESCRIPTION
The K6R1016V1C is a 1,048,576-bit high-speed Static Random
Access Memory organized as 65,536 words by 16 bits. The
K6R1016V1C uses 16 common input and output lines and has
at output enable pin which operates faster than address access
time at read cycle. Also it allows that lower and upper byte
access by data byte control (UB, LB). The device is fabricated
using SAMSUNG′s advanced CMOS process and designed for
high-speed circuit technology. It is particularly well suited for
use in high-density high-speed system applications. The
K6R1016V1C is packaged in a 400mil 44-pin plastic SOJ or
TSOP2 forward or 48-Fine pitch BGA.
FUNCTIONAL BLOCK DIAGRAM
Clk Gen.
A
0
A
1
A
2
A
3
A
4
A
5
A
6
A
7
A
8
I/O
1
~I/O
8
I/O
9
~I/O
16
ORDERING INFORMATION
K6R1016V1C-C10/C12/C15/C20
Commercial Temp.
Industrial Temp.
K6R1016V1C-I10/I12/I15/I20
Pre-Charge Circuit
Row Select
Memory Array
512 Rows
128x16 Columns
PIN FUNCTION
Pin Name
Data
Cont.
Data
Cont.
Gen.
CLK
A
9
A
10
A
11
A
12
A
13
A
14
A
15
Pin Function
Address Inputs
Write Enable
Chip Select
Output Enable
Lower-byte Control(I/O
1
~I/O
8
)
Upper-byte Control(I/O
9
~I/O
16
)
Data Inputs/Outputs
Power(+3.3V)
Ground
No Connection
I/O Circuit &
Column Select
A
0
- A
15
WE
CS
OE
LB
UB
I/O
1
~ I/O
16
WE
OE
UB
LB
CS
V
CC
V
SS
N.C
-2-
Revision 3.3
October 2000
K6R1016V1C-C/C-L, K6R1016V1C-I/C-P

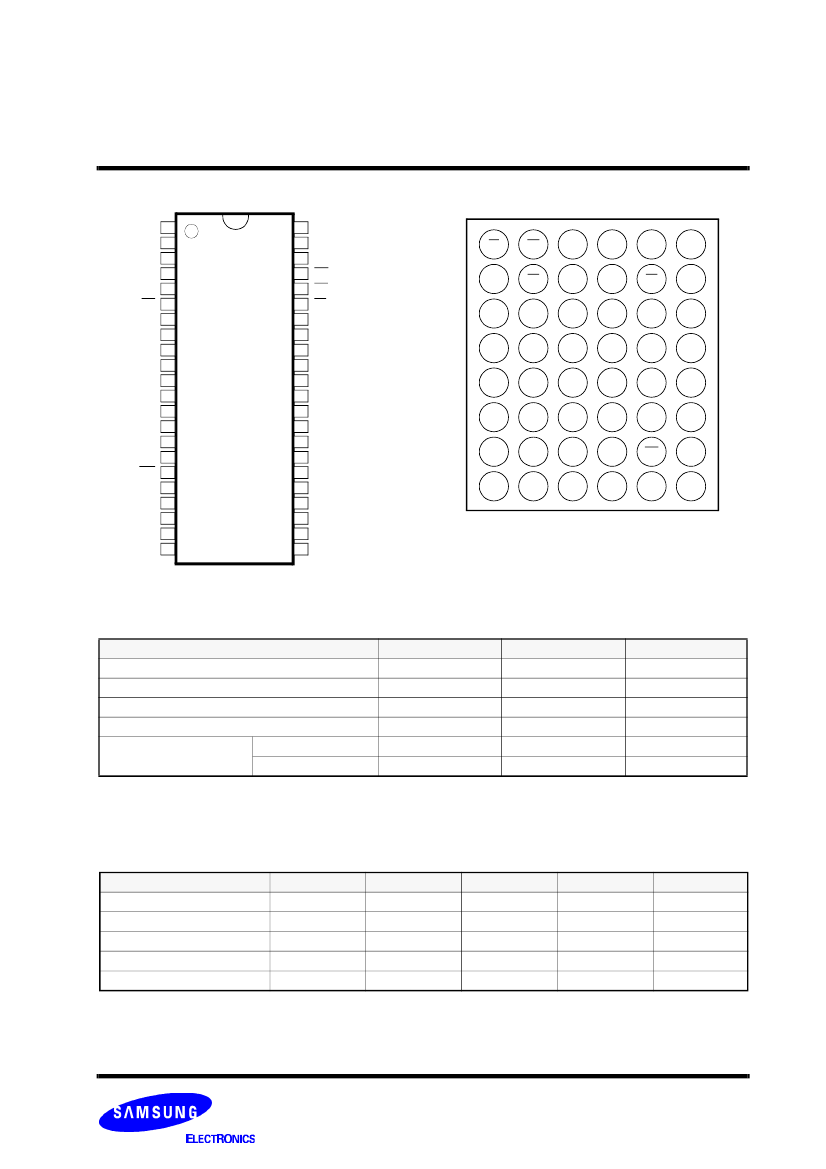

PIN CONFIGURATION(TOP
VIEW)
1
2
3
for AT&T
CMOS SRAM
4
5
6
A
0
A
1
A
2
A
3
A
4
CS
I/O
1
I/O
2
I/O
3
1
2
3
4
5
6
7
8
9
44 A
15
43 A
14
42 A
13
41 OE
40 UB
39 LB
38 I/O
16
37 I/O
15
36 I/O
14
D
Vss
I/O4
N.C
A7
I/O12
Vcc
C
I/O2
I/O3
A5
A6
I/O11
I/O10
B
I/O1
UB
A3
A4
CS
I/O9
A
LB
OE
A0
A1
A2
N.C
I/O
4
10
Vcc 11
Vss 12
I/O
5
13
I/O
6
14
I/O
7
15
I/O
8
16
WE 17
A
5
18
A
6
19
A
7
20
A
8
21
N.C 22
SOJ/
TSOP2
35 I/O
13
34 Vss
33 Vcc
32 I/O
12
31 I/O
11
30 I/O
10
29 I/O
9
28 N.C
27 A
12
26 A
11
25 A
10
24 A
9
23 N.C
H
N.C
A8
A9
A10
A11
N.C
G
I/O8
N.C
A12
A13
WE
I/O16
F
I/O7
I/O6
A14
A15
I/O14
I/O15
E
Vcc
I/O5
N.C
N.C
I/O13
Vss
48-CSP
ABSOLUTE MAXIMUM RATINGS*
Parameter
Voltage on Any Pin Relative to V
SS
Voltage on V
CC
Supply Relative to V
SS
Power Dissipation
Storage Temperature
Operating Temperature
Commercial
Industrial
Symbol
V
IN
, V
OUT
V
CC
P
d
T
STG
T
A
T
A
Rating
-0.5 to 4.6
-0.5 to 4.6
1
-65 to 150
0 to 70
-40 to 85
Unit
V
V
W
°C
°C
°C
*
Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and
functional operation of the device at these or any other conditions above those indicated in the operating sections of this specification is not implied.
Exposure to absolute maximum rating conditions for extended periods may affect reliability.
RECOMMENDED DC OPERATING CONDITIONS
(T
A
= 0 to 70°C)
Parameter
Supply Voltage
Supply Voltage
Ground
Input High Voltage
Input Low Voltage
Symbol
V
CC
(1)
V
CC
(2)
V
SS
V
IH
V
IL
Min
3.15
3.0
0
2.0
-0.3
(4)
Typ
3.3
3.3
0
-
-
Max
3.6
3.6
0
V
CC
+0.3
(3)
0.8
Unit
V
V
V
V
V
(1) For K6R1016V1C-10 only.
(2) For all speed grades except K6R1016V1C-10.
(3) V
IH
(Max) = V
CC +
2.0V a.c(Pulse Width
≤
8ns) for I
≤
20mA
(4) V
IL
(Min) = -2.0V a.c(Pulse Width
≤
8ns) for I
≤
20mA.
-3-
Revision 3.3
October 2000
K6R1016V1C-C/C-L, K6R1016V1C-I/C-P
*
DC
for AT&T
CMOS SRAM
AND OPERATING CHARACTERISTICS*
(
T
A
=0 to 70°C, Vcc=3.3V+0.3V/-0.15V, unless otherwise specfied)
Parameter
Symbol
I
LI
I
LO
I
CC
Test Conditions
V
IN
=V
SS
to V
CC
CS=V
IH
or OE=V
IH
or WE=V
IL
V
OUT
=V
SS
to V
CC
Min. Cycle, 100% Duty
CS=V
IL,
V
IN
= V
IH
or V
IL,
I
OUT
=0mA
10ns
12ns
15ns
20ns
Min
-2
-2
-
-
-
-
-
Normal
L-Ver.
-
-
-
2.4
Max
2
2
105
95
93
90
30
5
0.5
0.4
-
V
V
mA
mA
Unit
µA
µA
mA
Input Leakage Current
Output Leakage Current
Operating Current
Standby Current
I
SB
I
SB1
Min. Cycle, CS=V
IH
f=0MHz, CS
≥V
CC
-0.2V,
V
IN
≥V
CC
-0.2V or V
IN
≤0.2V
I
OL
=8mA
I
OH
=-4mA
Output Low Voltage Level
Output High Voltage Level
V
OL
V
OH
* The above parameters are also guaranteed at industrial temperature range.
CAPACITANCE*
(T
A
=25°C, f=1.0MHz)
Item
Input/Output Capacitance
Input Capacitance
* Capacitance is sampled and not 100% tested.
Symbol
C
I/O
C
IN
Test Conditions
V
I/O
=0V
V
IN
=0V
MIN
-
-
Max
8
6
Unit
pF
pF
AC CHARACTERISTICS
(T
A
=0 to 70°C, Vcc=3.3V+0.3V/-0.15V, unless otherwise noted.)
TEST CONDITIONS*
Parameter
Input Pulse Levels
Input Rise and Fall Times
Input and Output timing Reference Levels
Output Loads
* The above test conditions are also applied at industrial temperature range.
Value
0V to 3V
3ns
1.5V
See below
Output Loads(A)
Output Loads(B)
for t
HZ
, t
LZ
, t
WHZ
, t
OW
, t
OLZ
& t
OHZ
R
L
= 50Ω
+3.3V
D
OUT
V
L
= 1.5V
Z
O
= 50Ω
30pF*
D
OUT
319Ω
353
Ω
5pF*
* Capacitive Load consists of all components of the
test environment.
* Including Scope and Jig Capacitance
-4-
Revision 3.3
October 2000
K6R1016V1C-C/C-L, K6R1016V1C-I/C-P
READ CYCLE*
Parameter
Read Cycle Time
Address Access Time
Chip Select to Output
Output Enable to Valid Output
UB, LB Access Time
Chip Enable to Low-Z Output
UB, LB Enable to Low-Z Output
Output Enable to Low-Z Output
Chip Disable to High-Z Output
Output Disable to High-Z Output
UB, LB Disable to High-Z Output
Output Hold from Address Change
Chip Selection to Power Up Time
Chip Selection to Power DownTime
Symbol
t
RC
t
AA
t
CO
t
OE
t
BA
t
LZ
t
BLZ
t
OLZ
t
HZ
t
OHZ
t
BHZ
t
OH
t
PU
t
PD
K6R1016V1C-10
Min
10
-
-
-
-
3
0
0
0
0
0
3
0
-
Max
-
10
10
5
5
-
-
-
5
5
5
-
-
10
K6R1016V1C-12
Min
12
-
-
-
-
3
0
0
0
0
0
3
0
-
Max
-
12
12
6
6
-
-
-
6
6
6
-
-
12
for AT&T
CMOS SRAM
K6R1016V1C-15
Min
15
-
-
-
-
3
0
0
-
-
-
3
0
-
Max
-
15
15
7
7
-
-
-
7
7
7
-
-
15
K6R1016V1C-20
Min
20
-
-
-
-
3
0
0
-
-
-
3
0
-
Max
-
20
20
9
9
-
-
-
9
9
9
-
-
20
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
* The above parameters are also guaranteed at industrial temperature range.
WRITE CYCLE*
Parameter
Write Cycle Time
Chip Select to End of Write
Address Set-up Time
Address Valid to End of Write
Write Pulse Width(OE High)
Write Pulse Width(OE Low)
UB, LB Valid to End of Write
Write Recovery Time
Write to Output High-Z
Data to Write Time Overlap
Data Hold from Write Time
End Write to Output Low-Z
Symbol
t
WC
t
CW
t
AS
t
AW
t
WP
t
WP1
t
BW
t
WR
t
WHZ
t
DW
t
DH
t
OW
K6R1016V1C-10
Min
10
7
0
7
7
10
7
0
0
5
0
3
Max
-
-
-
-
-
-
-
-
5
-
-
-
K6R1016V1C-12
Min
12
8
0
8
8
12
8
0
0
6
0
3
Max
-
-
-
-
-
-
-
-
6
-
-
-
K6R1016V1C-15
Min
15
9
0
9
9
15
9
0
0
7
0
3
Max
-
-
-
-
-
-
-
-
7
-
-
-
K6R1016V1C-20
Min
20
10
0
10
10
20
10
0
0
8
0
3
Max
-
-
-
-
-
-
-
-
9
-
-
-
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
* The above parameters are also guaranteed at industrial temperature range.
Some netizens asked about the method to solve the problem of output loss of control during power-on transient in MCU application system. Here is the answer: Q: How to solve the problem of random relay...
[i=s] This post was last edited by paulhyde on 2014-9-15 09:02 [/i] I have never participated in this event before. I am a newbie and I need help. I don't know where to start. Experienced people, plea...
OMAPL138 firmware is put into NOR flash. It is known that (boot[7:0] is multiplexed with upp and GPIO7 pins). For example, I set it to 00000010 NOR flash boot. The switch potential of boot mode is nor...
Since the project is developed with adoce components, after downloading the adoce component package from the Internet, I have been using EVC to copy it in for debugging during the development phase. N...
introduction
Since the beginning of the 21st century, the world of information has changed rapidly. Maybe a high-tech product will be released today and a better similar product will be releas...[Details]
This article discusses how to wake up a touch-sensitive device such as a tablet without touching the device, using basic gesture recognition and novel proximity sensors. The article discusses the p...[Details]
In recent years, the market for mobile/portable devices such as smartphones and laptops has continued to grow rapidly. While these products continue to integrate more new features to enhance the ...[Details]
1. Introduction
Light control circuit plays a vital role in urban street lamps or corridor lighting. With light control circuit, the lights can be automatically turned on and off according to ...[Details]
Introduction
Power subsystems are becoming more and more integrated into the overall system. Power systems have moved from being separate "essential dangerous devices" to being monitorable...[Details]
In recent years, lighting has become an important area that countries around the world are targeting to promote energy conservation and environmental protection. According to statistics, about 20% ...[Details]
This paper establishes a fuel cell engine test platform based on the NI integrated hardware and software environment. This platform can realize the test and control of fuel cell engines and their a...[Details]
1 Introduction
Intelligent control instruments are one of the most commonly used controllers in industrial control. They are mainly aimed at a specific parameter (such as pressure, tempera...[Details]
1. Disadvantages of choosing too high a voltage level
Choosing too high a voltage level will result in too high an investment and a long payback period. As the voltage level increases, the...[Details]
Abstract: The output of high-range acceleration sensor is less than 10 mV under the excitation of small signal. The noise of traditional test system may cover such small voltage signal, so that hig...[Details]
With the widespread application of new services and technologies in the communications industry, the scale and capacity of operators' network construction are getting larger and larger, and the ris...[Details]
1. Overview
At present, an information revolution is in the ascendant around the world, led by microelectronics, computers and communication technologies, and centered on information technolog...[Details]
1 Introduction
With the improvement of people's quality of life, lamps are no longer just basic indoor lighting tools, but also a kind of practical art for architectural decoration. When ther...[Details]
Overview
By transmitting ultrasonic energy into the human body and receiving and processing the returning reflected signals, phased array ultrasound systems can generate images of organs and s...[Details]
introduction
LEDs continue to gain popularity in automotive applications, thanks to their long lifespan and the flexibility they offer for body styling and interior design. Some may be surpris...[Details]
MCU
京公网安备 11010802033920号
EEWORLD
