HUM-40 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> HUM-40

HUM-40: Descriptionhold UP module 28 volt input; CategoryAnalog mixed-signal IC The signal circuit; File Size207KB，13 Pages; ManufacturerInterpoint （ Crane Aerospace & Electronics ）; Websitehttp://www.interpoint.com

Download Datasheet Parametric View All

HUM-40 Overview

hold UP module 28 volt input

HUM-40 Parametric

Parameter Name	Attribute value
Maker	Interpoint （ Crane Aerospace & Electronics ）
Parts packaging code	MODULE
package instruction	DIP, DIP10,1.0,400
Contacts	10
Reach Compliance Code	unknown
Maximum input voltage	50 V
Minimum input voltage	12 V
JESD-30 code	R-XDIP-T10
Number of terminals	10
Nominal output voltage	40 V
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP10,1.0,400
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Terminal form	THROUGH-HOLE
Terminal pitch	10.16 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

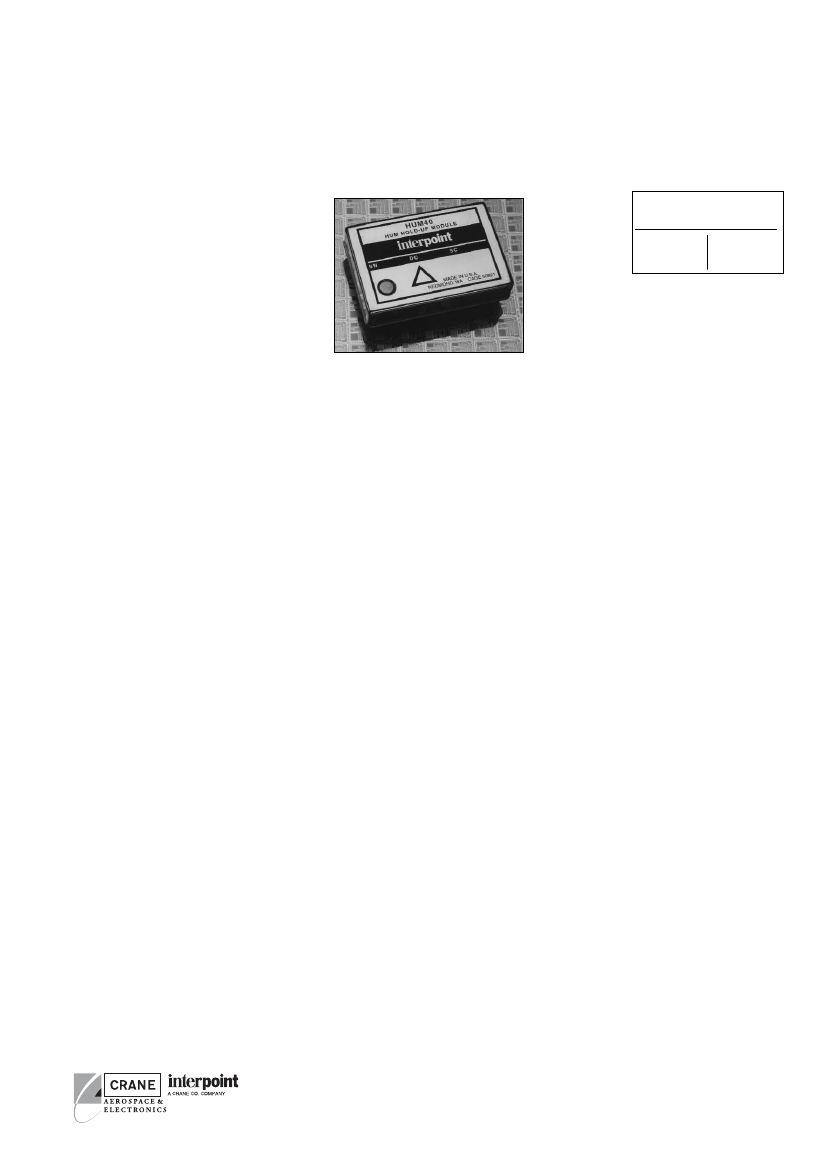

EATURES

•

–55°C to +125°C

12 to 40 VDC input

Sync on HUM-70

Reduce hold-up

capacitance by 80%

Powers DC/DC converters

with 28 Vin nominal

Hold-up time

HUM-40 15 µs/µF

HUM-70 8.6 µs/µF

Low power flag

Inhibit function

OLD

ODULE

28 V

OLT

NPUT

HUMMER MODULE

40 OR 70 WATTS

MODELS

OWER

UTPUT

HUM-40

40 watts

HUM-70

70watts

•

Size (max.): HUM-40, non flanged, Case F2

1.950 x 1.350 x 0.415 inches (49.53 x 34.29 x 10.54 mm)

HUM-40, flanged, Case J2

2.720 x 1.350 x 0.415 inches (69.09 x 34.29 x 10.54 mm)

HUM-70 Case U1

1.505 x 3.005 x 0.400 inches (38.23 x 76.33 x 10.16 mm)

See Section B8, cases F2, J2, and U1, for dimensions.

Weight:

HUM-40 50 grams max. (flanged 60 grams typical)

HUM-70 70 grams max.

Screening: Standard or ES. See Section C2 for screening option and Section A5

for ordering information.

DESCRIPTION

Interpoint’s HUMMER™ Hold-Up Module Series provides a single

product solution to the problem of maintaining electronic system

operation during input power drop-out, typically reducing bulk

capacitance requirements by more than 80%. The HUMMER

module is compatible with the Interpoint DC/DC converters in

Section B1 that have a 28 VDC nominal input and a high input line

of 40 VDC.

The traditional procedure for providing hold-up during power loss is

to buffer the device with enough bulk capacitance to allow a

controlled shutdown to occur or an alternative power source to be

brought on line. The problem with this approach is that very large

capacitor banks are required because the capacitors are charged at

the relatively low voltage at which power fails.

The HUMMER Hold-Up Module provides an alternative with two

important advantages: 1) it effectively reduces the low line voltage

for normal DC/DC converter operation to 12 VDC thereby reducing

power drop-out events, and 2) it charges hold-up capacitors to 40

volts, reducing the capacitance needed to produce a given hold-up

time.

ENERAL

PERATION

The HUMMER module and two external components (a hold-up

capacitor and a diode) are connected between the line source and

the DC/DC converter as shown in Figure 3 (HUMMER Module

System Block Diagram.) If an EMI filter is employed, the HUMMER

module is connected between the filter and the converter). The

module first charges the external capacitor to 40 volts, and then

allows the converter to operate off the line voltage. When the line

voltage drops to between 12 to 18 VDC, a boost converter in the

module supplies an output at the capacitor charging voltage (40

VDC). If power fails (the input voltage drops below 12 VDC), the

converter is powered from the external hold-up capacitor.
