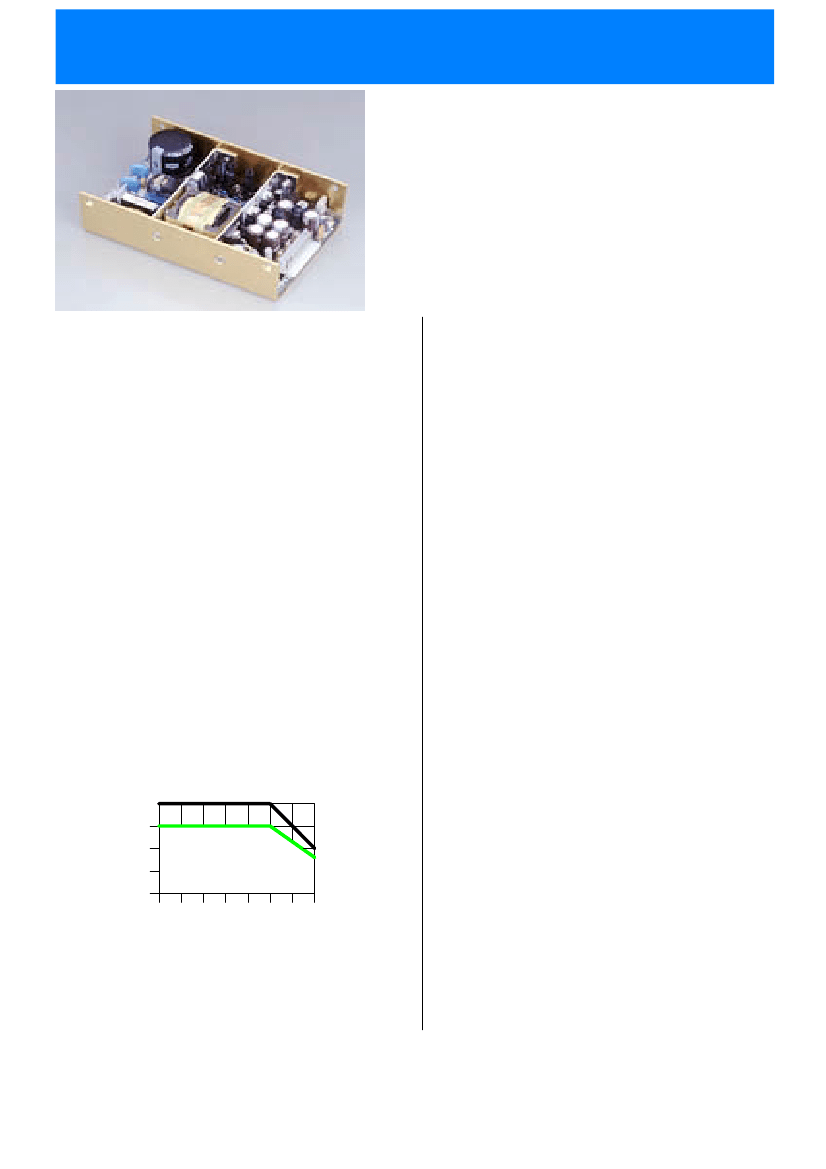

TOTAL POWER INT.
PPS80
SWITCHING
U BRACKET POWER SUPPLY
TPS80 SWITCHING MODE 80W
MODE 80W U CHANNEL POWER SUPPLIES
KEY FEATURES
*Universal
input
*Built-in EMI filter
*Optional±12VDC/±24VDC/±48VDC input
*Optional cover
APPLICATIONS
*Telecommunications/Business
machines
*Computer peripherals/Medical instruments
*Test & industrial equipments
ELECTRICAL SPECIFICATIONS
*Input range-----------90~264 VAC, universal
*Frequency------------47~63Hz
*Inrush current--------35A typical, Cold start
@25℃,115VAC
*Efficiency------------65% ~80% typical at full load
*EMI filter------------ FCC Class B conducted, CISPR 22
Class B conducted, EN55022 class B
Conducted
*Line regulation----- +/- 0.5% typical
EMI & EMC
*FCC part 15, Class B
*CISPR 22 / EN55022, Class B
*VCCI ,Class 2
*CE, EN61000-3-2 (Class A) and –3 ; EN61000-4-2,
-3 , -4 , -5 , -6 and -11
INPUT
SAFETY APPROVAL
*UL1950 / c UL
*Optional CSA 22.2, LEVEL 3 (COMPLY WITH)
*TUV EN60950
*Optional UL 2601 (EMI Class A) (COMPLY WITH)
OUTPUT
*Maximum power----80W with 30 CFM forced air
(Refer next page)
*Hold-up time --------10ms typical at full load and 115 VAC
nominal line
*Overload protection-Short circuit
protection
*Overvoltage
protection ------------Main out put 20% to 40% above
nominal output
*Ripple/Noise -------- +/- 1% Max. @full load
(Optional +/-0.5 % per inquiry)
ENVIRONMENTAL
*Operating temperature :
0 to
50℃
ambient; derate each output at 2.5% per
degree from 50℃to 70℃
*Humidity:
Operating; non-condensing, 5% to 95%
*Vibration :
10~55 Hz at 1G 3 minutes period, 30 minutes along
X, Y and Z axis
*Storage temperature:
-40 to 85℃
*Temperature coefficient:
+/- 0.05% per degree C
*MTBF demonstrated:
>100,000 hours at full load and 25℃ambient
conditions
Power Derating Curve
80W
30 CFM Forced Air Cooling
Output
Power
40W
(Watts)
20W
0W
0
10
60W
Natural
Convection
Cooling
20
30
40
50
60
70
40W
30W
Ambient Temperature(
°
C)
TOTAL POWER, INT. TEL: 877-646-0900 FAX: 978-453-7395
E-mail: sales@total-power.com http://www.total-power.com
-1-
TOTAL POWER
TPS80
MODEL
OUTPUT
VOLTAGE
ADJUSTMENT
RANGE
CURRENT
SWITCHING MODE 80W U CHANNEL POWER SUPPLIES
PEAK OUTPUT
CURRENT(NOTE1)
MINIMUM OUTPUT
CURRENT
TOTAL
REGULATION(NOTE3)
RIPPLE & NOISE
%P-P(NOTE2)
PEAK OUTPUT
POWER(NOTE1)
MAXIMUM OUTPUT
SINGLE OUTPUT MODEL SELECTION CHART
TPS80-10
TPS80-11
TPS80-12
TPS80-13
TPS80-14
TPS80-15
TPS80-17
+5V
+12V
+15V
+24V
+48V
+36V
+3.3V
±10%
Typical
±10%
Typical
±10%
Typical
±10%
Typical
±10%
Typical
±10%
Typical
±10%
Typical
16A
6.6A
5.3A
3.3A
1.7A
2.2A
24A
20A
8.3A
6.6A
4.1A
2.1A
2.8A
26.3A
0A
0A
0A
0A
0A
0A
2.4A
±3%
±3%
±3%
±3%
±3%
±3%
±5%
±1%
±1%
±1%
±1%
±1%
±1%
±1.5%
100W Typical
100W Typical
100W Typical
100W Typical
100W Typical
100W Typical
100W Typical
DUAL OUTPUT MODEL SELECTION CHART
TPS80-20
+5 V
+12V
+5 V
+24V
+5 V
-5V
+12V
-12 V
+15 V
-15 V
+3.3V
+12 V
+12V
+24V
+5V
+15V
+12.5V
+16V
+3.3V
+5V
±10%
Typical
Fixed
±10%
Typical
Fixed
±10%
Typical
Fixed
±10%
Typical
Fixed
±10%
Typical
Fixed
±10%
Typical
Fixed
±10%
Typical
Fixed
±10%
Typical
Fixed
±10%
Typical
Fixed
±10%
Typical
Fixed
8A
4A
8A
1.7A
8A
8A
3.3A
3.3A
2.7A
2.7A
10A
4A
4A
1.3A
8A
3.2A
4.5A
1.5A
16A
6A
10A
5A
10A
2.1A
10A
10A
4.1A
4.1A
3.4A
3.4A
12.5A
5A
5A
1.6A
10.4A
4A
5.6A
1.8A
20A
7.5A
0.8A
0.4A
0.8A
0.17A
0.8A
0.8A
0.33A
0.33A
0.27A
0.27A
1A
0.4A
0.4A
0.13A
0.8A
0.32A
0.45A
0.15A
1.6A
0.6A
±5%
±5%
±5%
±5%
±5%
±10%
±5%
±10%
±5%
±10%
±5%
±5%
±5%
±10%
±5%
±10%
±5%
±10%
±5%
±5%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1.5%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1.5%
±1%
100W Typical
100W Typical
100W Typical
100W Typical
100W Typical
100W Typical
100W Typical
100W Typical
100W Typical
100W Typical
TPS80-21
TPS80-22
TPS80-23
TPS80-24
TPS80-25
TPS80-26
TPS80-27Y
TPS80-28
TPS80-29
TRIPLE OUTPUT MODEL SELECTION CHART
+ 5V
TPS80-30
±10%
Typical
Fixed
Fixed
±10%
Typical
Fixed
Fixed
±10%
Typical
Fixed
Fixed
±10%
Typical
Fixed
Fixed
±10%
Typical
Fixed
Fixed
±10%
Typical
Fixed
Fixed
±10%
Typical
Fixed
Fixed
±10%
Typical
Fixed
Fixed
8A
5A
1A
8A
2.9A
0.5A
8A
2.2A
0.5A
10A
1.6A
1A
10A
1.6A
0.5A
7A
1.6A
0.5A
7A
3.2A
0.5A
7A
2.8A
0.5A
10A
6.3A
1.3A
10A
3.6A
0.6A
10A
2.8A
0.6A
12.5A
2A
1.3A
12.5A
2A
0.6A
8.8A
2A
0.6A
8.8A
4A
0.6A
8.8A
3.5A
0.6A
0.8A
0.5A
0.1A
0.8A
0.29A
0.05A
0.8A
0.22A
0.05A
1A
0.16A
0.1A
1A
0.16A
0.05A
0.7A
0.16A
0.05A
0.7A
0.32A
0.05A
0.7A
0.28A
0.05A
±5%
±5%
±10%
±5%
±5%
±10%
±5%
±5%
±10%
±5%
±5%
±10%
±5%
±5%
±10%
±5%
±5%
±10%
±5%
±5%
±10%
±5%
±5%
±10%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
100W Typical
100W Typical
100W Typical
100W Typical
100W Typical
100W Typical
100W Typical
100W Typical
+12V
- 5V
+ 5V
TPS80-31
+12V
-12V
+ 5V
TPS80-32
+15V
-15V
+ 5V
TPS80-33
+15V
-5 V
+ 5V
TPS80-34
+15V
-12V
+5V
TPS80-35
+24V
-12V
+ 5V
TPS80-36
+12V
-12V
+ 5V
TPS80-37
+12V
+24V
TOTAL POWER, INT. TEL: 877-646-0900 FAX: 978-453-7395
E-mail: sales@total-power.com http://www.total-power.com
-2-
TOTAL POWER
TPS80
MODEL
OUTPUT
VOLTAGE
ADJUSTMENT
RANGE
CURRENT
SWITCHING MODE 80W U CHANNEL POWER SUPPLIES
PEAK OUTPUT
CURRENT(NOTE1)
MINIMUM OUTPUT
CURRENT
TOTAL
REGULATION(NOTE3)
RIPPLE & NOISE
%P-P(NOTE2)
PEAK OUTPUT
POWER(NOTE1)
MAXIMUM OUTPUT
NOTES:
1) Peak loads for lasting <30 seconds with a maximum 10% duty cycle are acceptable. Please contact us if need special peak load.
2) Maximum peak to peak noise expressed as a percentage of output voltage, 20MHz bandwidth, input not less nominal line, 0.1μF and 47μF Cap. on outputs.
3) Loading test conditions are set for all outputs at minimum, middle and maximum of loads. Special cross loading requirement is welcomed.
4) Detailed engineering specification of each model is available for inquiry.
5) Special output voltage/current inquiry is welcomed.
6) Specifications subject to change without notice.
7) 25% derated if 24 VDC input version; 50% derated if 12 VDC input version; 25% derated if additional cover.

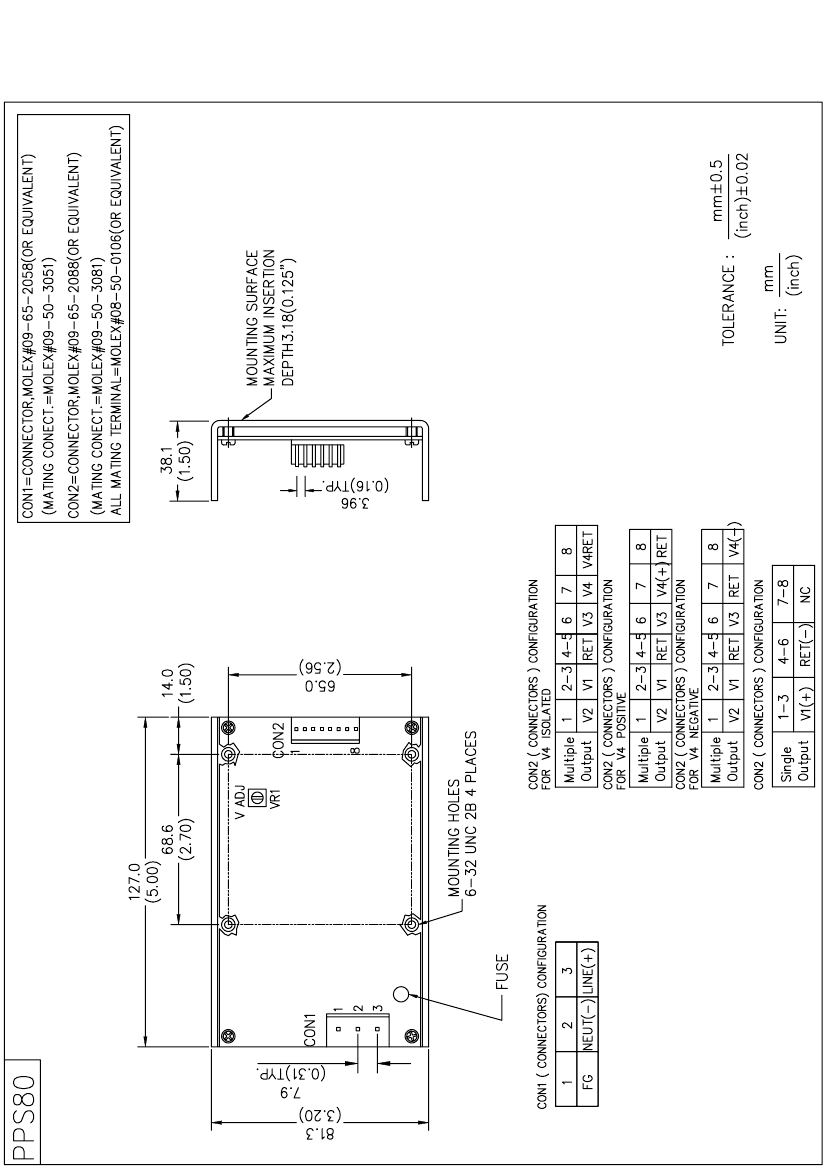

TOTAL POWER, INT. TEL: 877-646-0900 FAX: 978-453-7395
E-mail: sales@total-power.com http://www.total-power.com
-4-
