BR-HE133-05V-TRB
●
Features:
1. Emitted Color: Hi-Eff Red.
2. Lens Appearance : Water Clear
3. Mono-color type.
4. 3.2x1.6x1.1mm(1206)standard package
5. Suitable for all SMT assembly methods.
6. Compatible with infrared and vapor phase
reflow solder process.
7. Compatible with automatic placement
equipment.
8. For DC and pulse operationWith current
9.
limiting resistor for 05V TTL & CMOS
compatible.
10. This product doesn’t contain restriction
Substance, comply ROHS standard.
●
Package Dimensions:
●
Applications:
1.
2.
3.
Automotive : Dashboards, stop lamps,
turn signals.
Backlighting : LCDs, Key pads advertising.
Status indicators : Comsumer & industrial
electronics.
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ± 0.10mm (0.004”) unless otherwise specified.
3.Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Operating Voltage MXA
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
V
F
Topr
Tstg
Tsol
Rating
5
-25℃~80℃
-30℃~85℃
See Page 5
Unit
V
-
-
-
＊1
Condition for IFp is pulse of 1/10 duty and 0.1msec width.
Ver.2.0 Page 1 of 6
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BR-HE133-05V-TRB
Max.
12
-
-
636
-
-
●
Electrical and optical characteristics(Ta=25℃
Parameter
Forward Voltage
Luminous Intensity
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Veiwing Angle
Symbol
Vf
Iv
λp
λd
Δλ
2θ
1/2
Condition
I
F
=20mA
V
F
=5V
V
F
=5V
V
F
=5V
V
F
=5V
I
F
=20mA
Min.
-
5.5
-
626
-
-
Typ.
7
15
640
-
40
120
Unit
V
mcd
nm
nm
nm
deg

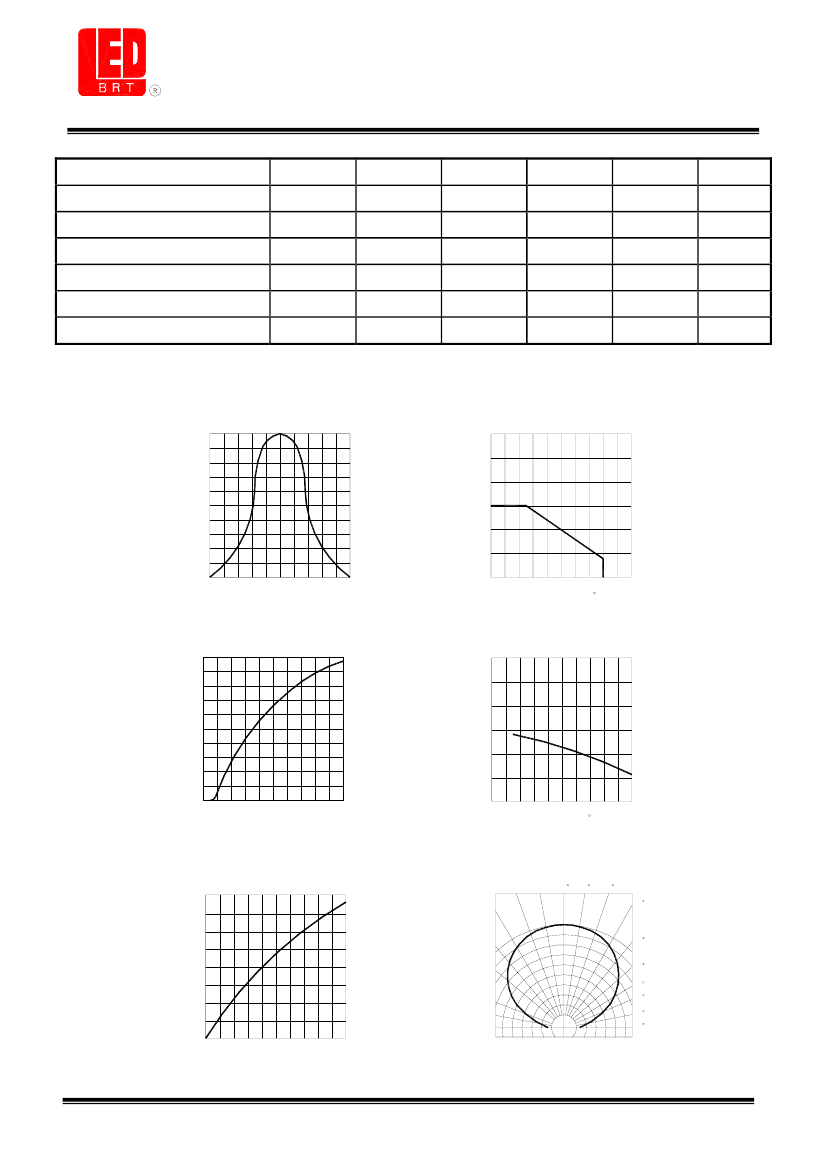

Typical Electro-Optical Characteristics Curves
Fig.1 Relative intensity vs. wavelength
1.0
60
Fig.2 Forward current derating curve
vs. ambient temperature
50
Relative radiant intensity
0.5
Forward current (mA)
40
30
20
10
0
540
640
640
0
20
40
60
80
100
Wavelength (nm)
Ambient temperature Ta( C)
Fig.3 FORWARD CURRENT VS.
FORWARD VOLTAGE
30
3.0
Fig.4 Relative luminous intensity vs.
ambient temperature
FORWARD CURRENT (mA)
24
Relative Luminous intensity
(Normalized @20mA)
4
8
12
16
20
2.5
2.0
18
1.5
12
1.0
6
0.5
0
0
-40
-20
0
20
40
60
FORWARD VOLTAGE (V)
Ambient temperature Ta( C)
A
Fig.5 Relative luminous intensity vs. forward current
2.0
Fig.6 Radiation diagram
0
10
20
30
Relative luminous intensity (@20mA)
1.5
Relative radiant intensity
1.0
40
1.0
0.9
0.8
50
60
70
0.5
0.7
80
90
0
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Ver.2.0 Page 2 of 6
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BR-HE133-05V-TRB
●

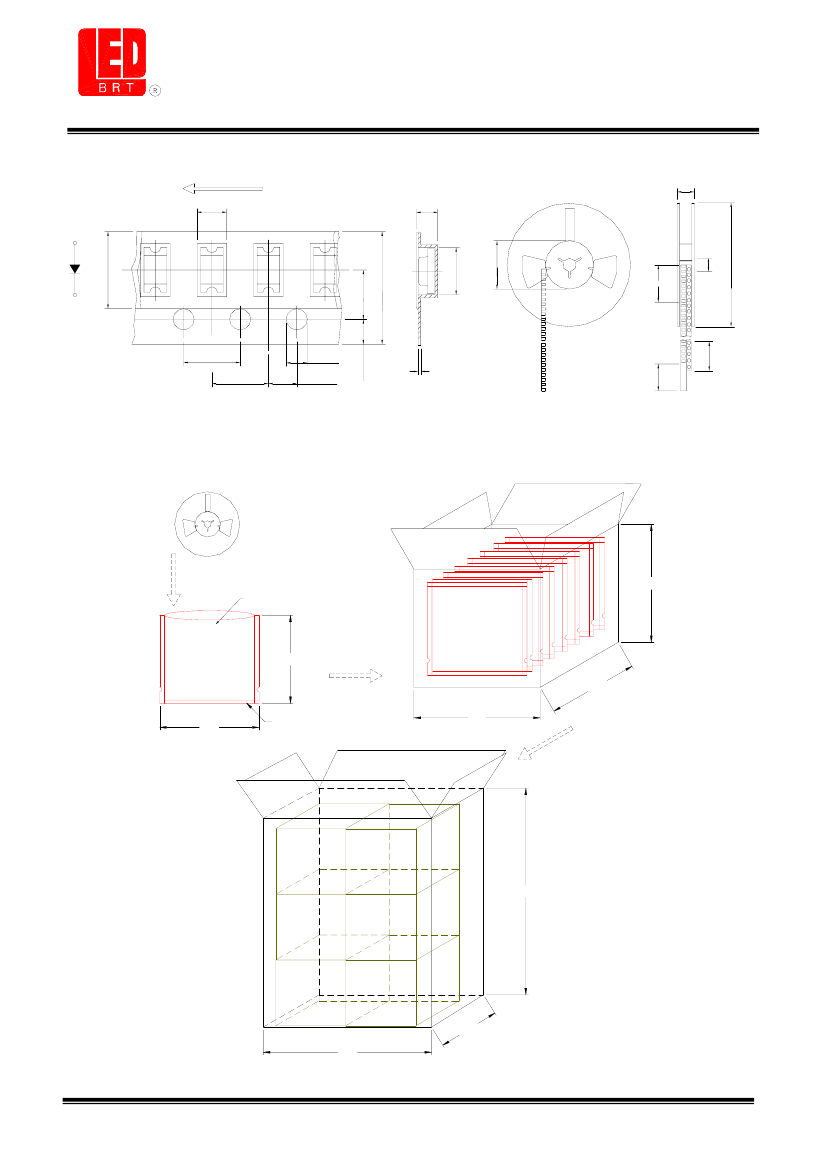

Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
1.88±0.1
ANODE
START
END
1.27±0.1
13.0±0.5
5.3 ± 0.05
13.0± 0.5
71.0±1
8.0 ± 0.3
3.5±0.1
CATHODE
4.0 ± 0.1
4.0 ± 0.1
1.5±0.1
2.0±0.05
1.75 ± 0.1
3.5 ± 0.05
TRAILER
LEADER
0.3
FIXING TAPE
NOTE: 3000 pcs PER REEL
●
Package Method:(unit:mm)Vacuum
12 bag/box
3000 pcs/reel
220
Bar Code Label
245
200
185
220
Aluminum Foil Bag
645
6 box/carton
210
470
Ver.2.0 Page 3 of 6
179±1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BR-HE133-05V-TRB
●
Reliability Test
Classification
Test Item
Reference Standard
Test Conditions
Result
Operation Life MIL-STD-750:1026
MIL-STD-883:1005
JIS-C-7021
:B-1
High
Temperature MIL-STD-202:103B
High Humidity JIS-C-7021
:B-11
Endurance
Storage
Test
High
MIL-STD-883:1008
Temperature
JIS-C-7021
:B-10
Storage
Low
:B-12
Temperature JIS-C-7021
Storage
Temperature MIL-STD-202:107D
Cycling
MIL-STD-750:1051
MIL-STD-883:1010
JIS-C-7021
:A-4
Thermal Shock MIL-STD-202:107D
Environmental
MIL-STD-750:1051
Test
MIL-STD-883:1011
Solder
MIL-STD-202:201A
Resistance
MIL-STD-750:2031
JIS-C-7021
:A-1
Connect with a power If=20mA
Ta=Under room temperature
Test time=1,000hrs
Ta=+65℃±5℃
RH=90%-95%
Test time=240hrs
High Ta=+85℃±5℃
Test time=1,000hrs
Low Ta=-35℃±5℃
Test time=1,000hrs
-35℃ ~ +25℃ ~ +85℃ ~ +25℃
60min 20min
60min
20min
Test Time=5cycle
-35℃±5℃ ~+85℃±5℃
20min
20min
Test Time=10cycle
Preheating：
140℃-160℃,within 2 minutes.
Operation heating：
260℃(Max.), within 10seconds. (Max.)
0/20
0/20
0/20
0/20
0/20
0/20
0/20
●
Judgment criteria of failure for the reliability
Measuring items
Forward voltage
Reverse current
Luminous intensity
Symbol
V
F
( V)
I
R
(uA)
Iv ( mcd )
Measuring conditions
I
F
=20mA
V
R
=5V
I
F
=20mA
Judgement criteria for failure
Over Ux1.2
Over Ux2
Below SX0.5
Note:
1.U means the upper limit of specified characteristics.
S means initial value.
2.Measurment shall be taken between 2 hours and after the test pieces have been returned to
normal ambient conditions after completion of each test.
Ver.2.0 Page 4 of 6
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BR-HE133-05V-TRB
●
Soldering :
1. Manual Of Soldering
The temperature of the iron tip should not be higher than 300℃(572℉) and Soldering within 3
seconds per solder-land is to be observed.
2. Reflow Soldering
Preheating : 140℃~160℃±5℃,within 2 minutes.
Operation heating : 260℃(Max.) within 10 seconds.(Max)
Gradual Cooling (Avoid quenching).
10 SEC. MAX.
3.
DIP soldering (Wave Soldering) :
Preheating : 120℃~150℃,within 120~180 sec.
Operation heating : 245℃±5℃ within 5 sec.260℃ (Max)
Gradual Cooling (Avoid quenching).
●
Handling :
Care must be taken not to cause to the epoxy resin portion of BRIGHT LEDs while it is exposed to
high temperature.
Care must be taken not rub the epoxy resin portion of BRIGHT LEDs with hard or sharp article such
as the sand blast and the metal hook.
Temperature
140~160℃
260℃ MAX.
4℃ /SEC. MAX.
4℃ /SEC. MAX.
OVER 2 MIN.
Time
Soldering heat Max. 260
℃
120~150℃
245
±5℃
within 5 sec.
Temperature
Preheat
120~180 sec.
Time
Ver.2.0 Page 5 of 6
