BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HD034A-TRB
●
Features:
1. Emitted Color : Super Red
2. Lens Appearance : Water Clear.
3. Mono-color type.
4. 3.2x1.0x2.0mm(1206) standard package
5. Suitable for all SMT assembly methods.
6. Compatible with infrared and vapor phase
reflow solder process.
equipment.
8. This product doesn’t contain restriction
M a r k
0.4±0.05
●
Package Dimensions:
M a r k
For reflow soldering
For upright mounting
1.5(.059)
2.0(.079)
1.5(.059)
7. Compatible with automatic placement
1.0(.039)
For right anoge mounting
1.5(.059)
2.0(.079)
1.5(.059)
0.8(.02)
Substance, comply ROHS standard.
1.2(.047)
●
Applications:
1.
Automotive : Dashboards, stop lamps,
turn signals.
2.
3.
Backlighting : LCDs, Key pads advertising.
Status indicators : Comsumer & industrial
electronics.
NOTES:
1.All dimensions are in millimeters (inches).
2.Tolerance is ± 0.10mm (0.004”) unless otherwise specified.
3.Specifications are subject to change without notice.
4.
General use.
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation
Forward Current
Peak Forward Current
＊1
Reverse Volage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Rating
60
30
100
5
-25℃~80℃
-30℃~85℃
See Page6
Unit
mW
mA
mA
V
-
-
-
＊1
Condition for
I
FP
is pulse of 1/10 duty and 0.1msec width.
Ver.1.0 Page 1 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HD034A-TRB
●
Electrical and optical characteristics(Ta=25℃)
Parameter
Forward Voltage
Luminous Intensity
Reverse Current
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Veiwing Angle
Symbol
Vf
Iv
I
R
λp
λd
Δλ
2θ
1/2
Condition
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
Min.
-
12.3
-
-
638
-
-
Typ.
1.8
25
-
660
-
20
120
Max.
2.6
-
100
-
648
-
-
Unit
V
mcd
µA
nm
nm
nm
deg
●

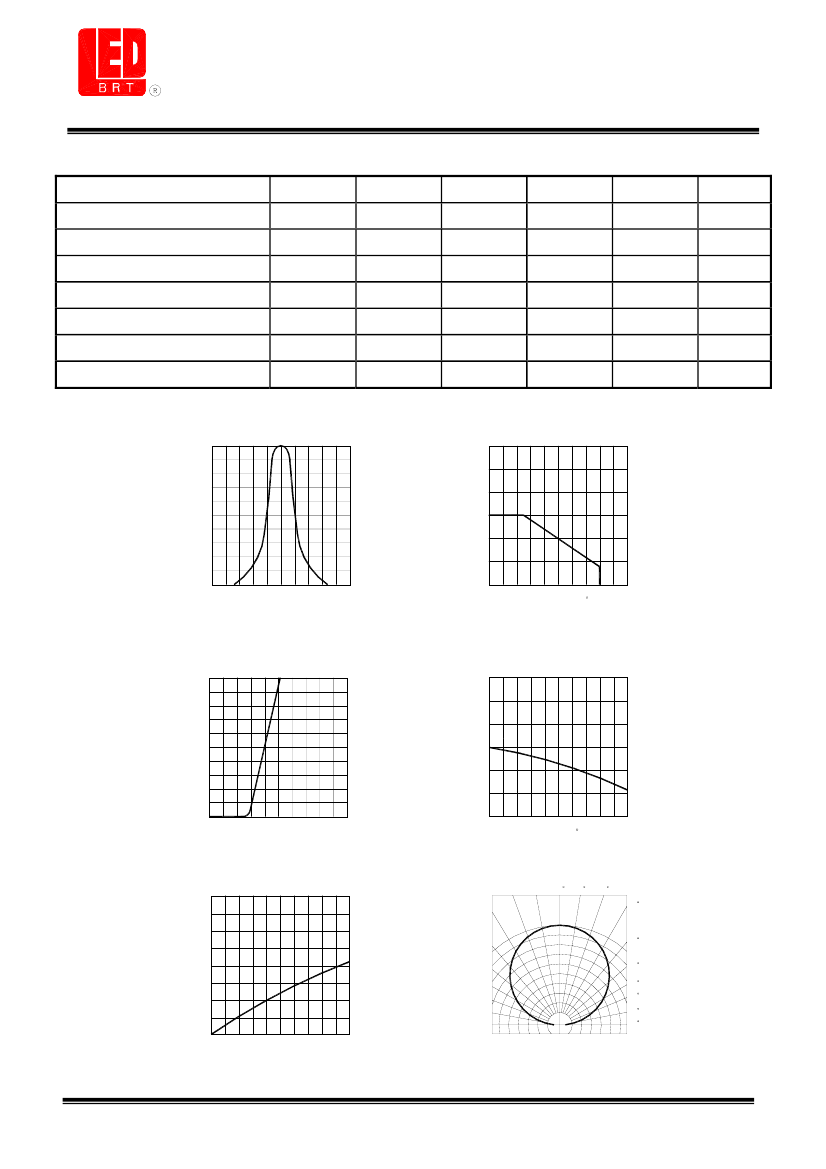

Typical Electro-Optical Characteristics Curves
Fig.2 Forward current derating curve
Fig.1 Relative intensity vs. wavelength
1.0
60
vs. ambient temperature
50
Relative radiant intensity
Forward current (mA)
40
0.5
30
20
10
0
610
660
710
0
20
40
60
80
100
Wavelength (nm)
Ambient temperature Ta( C)
Fig.3 Forward current vs. forward voltage
50
3.0
Fig.4 Relative luminous intensity vs.
ambient temperature
40
Relative Luminous intensity
(Normalized @20mA)
2.5
Forward current (mA)
2.0
30
1.5
20
1.0
10
0.5
0
1
2
3
4
5
0
-40
-20
0
20
40
60
Forward voltage(V)
Ambient temperature Ta( C)
A
Fig.5 Relative luminous intensity vs. forward current
4.0
Fig.6 Radiation diagram
0
10
20
30
Relative luminous intensity (@20mA)
3.0
40
1.0
2.0
0.9
0.8
1.0
50
60
70
0.7
80
90
0
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Ver.1.0 Page 2 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HD034A-TRB
●

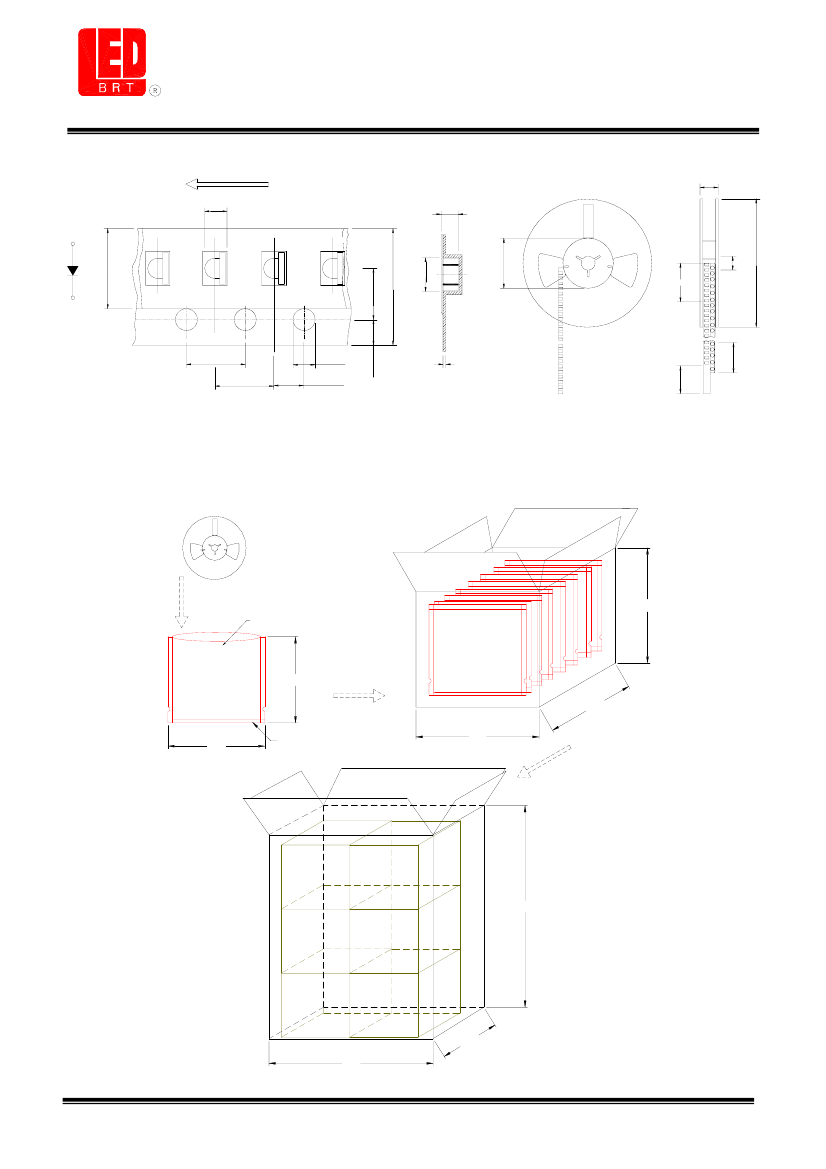

Tapping and packaging specifications(Units: mm)
USER DIRECTION OF FEED
2.3± 0.1
ANODE
START
END
17.2± 1.2
1.3± 0.1
71.0± 0.1
13.0± 0.5
5.3 ± 0.05
3.5 ± 0.05
8.0 ± 0.3
3.3± 0.1
TRAILER
CATHODE
4.0 ± 0.1
4.0 ± 0.1
1.75 ± 0.1
1.5± 0.1
2.0± 0.05
LEADER
0.3
FIXING TAPE
NOTE: 3000 pcs PER REEL
●
Package Method:(unit:mm)
12 bag/box
3000 pcs/reel
200
Bar Code Label
245
220
185
220
Aluminum Foil Bag
645
6 box/carton
210
470
Ver.1.0 Page 3 of 7
179± 1
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HD034A-TRB
●
Bin Limits
I n t e n s i t y B i n L i m i ts ( A t 2 0 m A )
BIN CODE
Min. (mcd)
K
L
M
N
11 . 0
16.0
28.0
37.0
Max. (mcd)
21.0
32.0
48.0
72.0
●
B IN：
x
Intensity BIN CODE
Ver.1.0 Page 4 of 7
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BL-HD034A-TRB
●
Reliability Test
Classification
Test Item
Reference Standard
Test Conditions
Result
Operation Life MIL-STD-750:1026
MIL-STD-883:1005
JIS-C-7021
:B-1
High
Temperature MIL-STD-202:103B
High Humidity JIS-C-7021
:B-11
Endurance
Storage
Test
High
MIL-STD-883:1008
Temperature
JIS-C-7021
:B-10
Storage
Low
:B-12
Temperature JIS-C-7021
Storage
Temperature MIL-STD-202:107D
Cycling
MIL-STD-750:1051
MIL-STD-883:1010
JIS-C-7021
:A-4
Thermal Shock MIL-STD-202:107D
Environmental
MIL-STD-750:1051
Test
MIL-STD-883:1011
Solder
MIL-STD-202:201A
Resistance
MIL-STD-750:2031
JIS-C-7021
:A-1
Connect with a power If=20mA
Ta=Under room temperature
Test time=1,000hrs
Ta=+65℃±5℃
RH=90%-95%
Test time=240hrs
High Ta=+85℃±5℃
Test time=1,000hrs
Low Ta=-35℃±5℃
Test time=1,000hrs
-35℃ ~ +25℃ ~ +85℃ ~ +25℃
60min 20min
60min
20min
Test Time=5cycle
-35℃±5℃ ~+85℃±5℃
20min
20min
Test Time=10cycle
Preheating：
140℃-160℃,within 2 minutes.
Operation heating：
260℃(Max.), within 10seconds. (Max.)
0/20
0/20
0/20
0/20
0/20
0/20
0/20
●
Judgment criteria of failure for the reliability
Measuring items
Forward voltage
Reverse current
Luminous intensity
Symbol
V
F
( V)
I
R
(uA)
Iv ( mcd )
Measuring conditions
I
F
=20mA
V
R
=5V
I
F
=20mA
Judgement criteria for failure
Over Ux1.2
Over Ux2
Below SX0.5
Note:
1.U means the upper limit of specified characteristics.
S means initial value.
2.Measurment shall be taken between 2 hours and after the test pieces have been returned to
normal ambient conditions after completion of each test.
Ver.1.0 Page 5 of 7
