MUR1100S: Descriptionultrafast efficient plastic silicon rectifier voltage: 50 to 1000v current: 1.0A; CategoryDiscrete semiconductor diode; File Size91KB，3 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/

Download Datasheet Parametric Compare View All

MUR1100S Overview

ultrafast efficient plastic silicon rectifier voltage: 50 to 1000v current: 1.0A

MUR1100S Parametric

Parameter Name	Attribute value
Maker	Gulf Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW POWER LOSS
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-204AL
JESD-30 code	O-PALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	1000 V
Maximum reverse recovery time	0.075 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

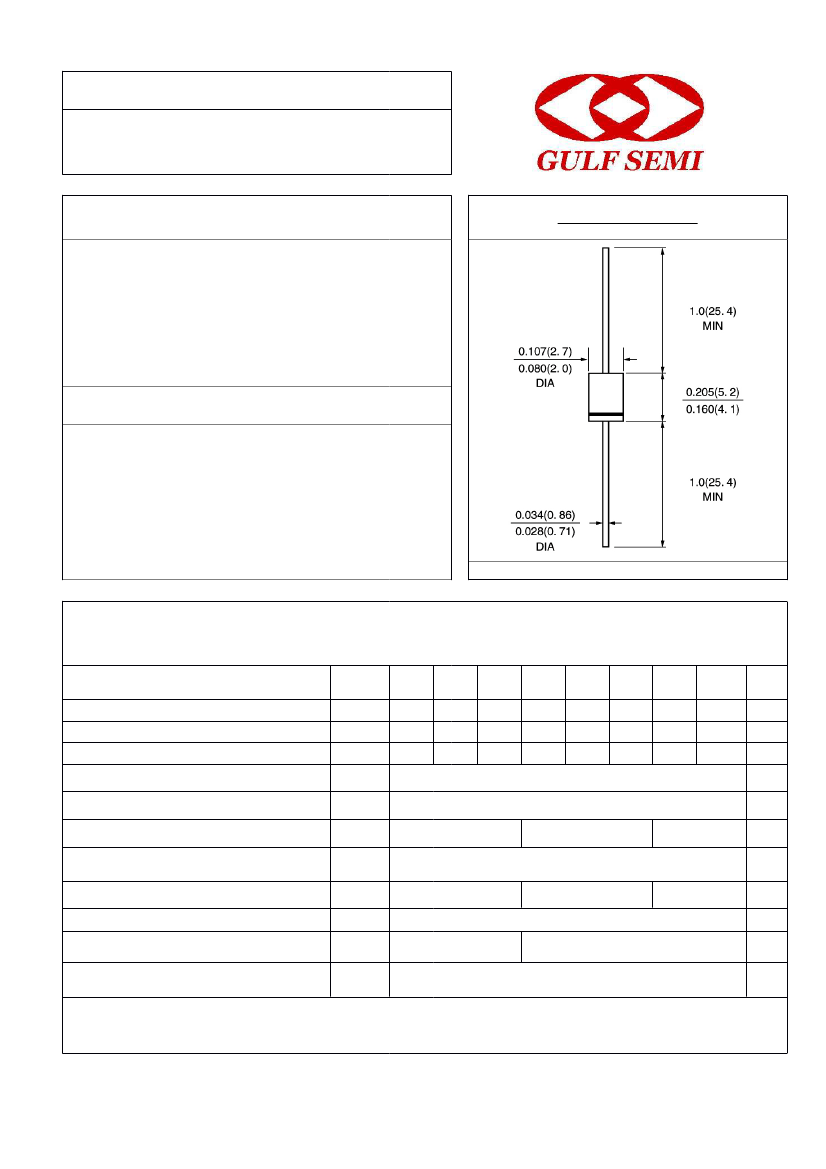

MUR105S

THRU

MUR1100S

ULTRAFAST EFFICIENT

PLASTIC SILICON RECTIFIER

Voltage: 50 to 1000V

Current: 1.0A

FEATURE

Low power loss

High surge capability

Glass passivated chip junction

Ultra-fast recovery time for high efficiency

High temperature soldering guaranteed

250℃/10sec/0.375″lead length at 5 lbs tension

DO – 41\DO – 204AL

MECHANICAL DATA

Terminal：Plated axial leads solderable per

MIL-STD 202E, method 208C

Case：Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity：color band denotes cathode

Mounting position：any

Dimensions in inches and (millimeters)

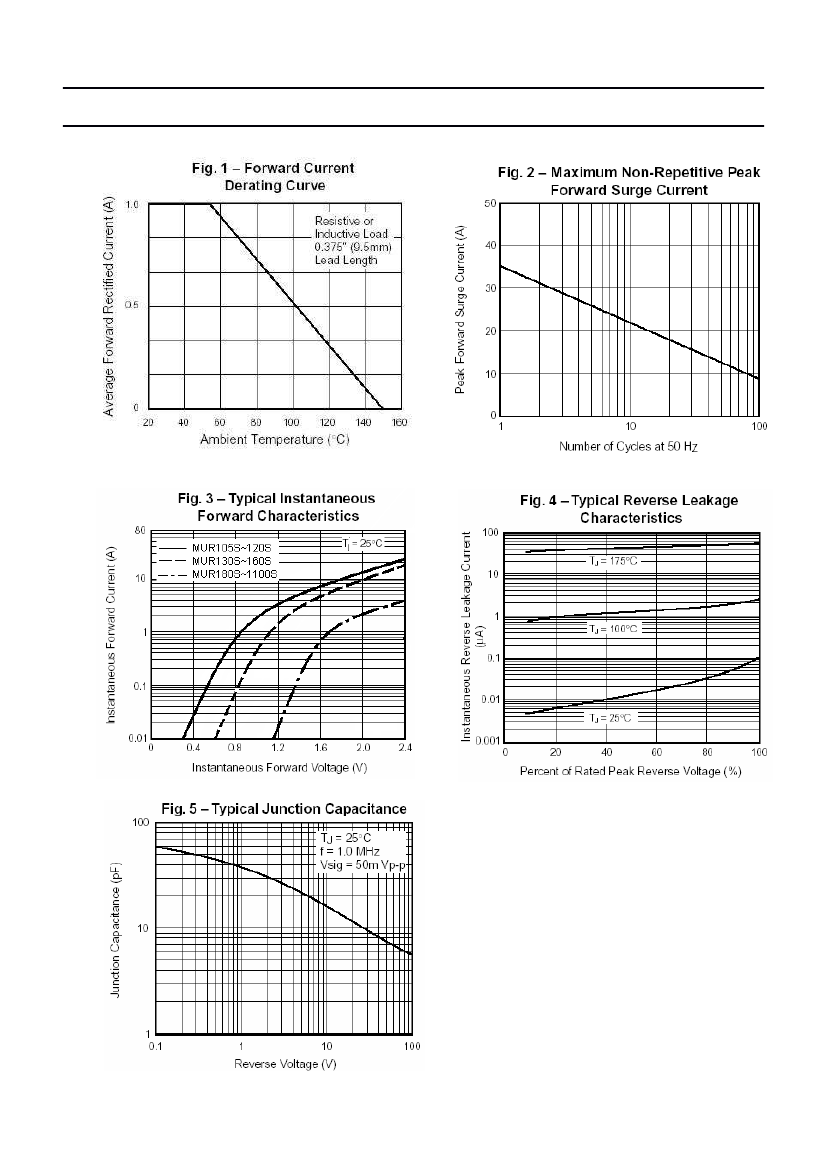

MAXIMUM

RATINGS AND ELECTRICAL

CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25° unless otherwise stated,

C,

for capacitive load, derate current by 20%)

Symbol

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/8" lead length at Ta =55°C

Peak Forward Surge Current 8.3ms single

Half sine-wave superimposed on rated load

Maximum Instantaneous Forward Voltage at

Rated forward current

Maximum DC Reverse Current Ta =25°

C

At rated DC blocking voltage

Ta =125°

C

Maximum Reverse Recovery Time (Note 1)

Typical Junction Capacitance

Typical Thermal Resistance

Storage

and

Temperature

Note:

1. Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

2. Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

3. Thermal Resistance from Junction to Ambient at 3/8″lead length, P.C. Board Mounted

MUR

105S

50

35

50

MUR

110S

100

70

100

MUR

120S

200

140

200

MUR

130S

300

210

300

MUR

140S

400

280

400

1.0

MUR

160S

600

420

600

MUR

180S

800

560

800

MUR

1100S

1000

700

1000

units

V

A

Vrrm

Vrms

Vdc

If(av)

Ifsm

Vf

Ir

Trr

Cj

Rth(ja)

Tstg, Tj

35.0

0.875

1.25

10.0

100.0

25

27

-55 to +150

50

75

1.75

V

µA

nS

pF

℃

/W

°C

(Note 2)

(Note 3)

Junction

Operating
