26mm LED CLUSTER
BL0104-21-72
Features
!
HIGH
!
NO.
Description
The Blue source color devices are made with GaN on SiC
Light Emitting Diode.
Static electricity and surge damage the LEDS.It is
recommended to use a wrist band or anti-electrostatic
PACKAGE WITH HOOD SUITABLE
glove when handing the LEDs.
All devices, equipment and machinery must be electrically
grounded.
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.
The Super Bright Green color devices are made with
Gallium Phosphide Green Light Emitting Diode.
VISIBILITY.
OF BUILT-IN 3mm LED LAMPS: SUPER BRIGHT
RED 4 PCS, SUPER BRIGHT GREEN 8 PCS AND
BLUE 9 PCS.
!
WATERPROOF
FOR OUTDOOR AND INDOOR INFORMATION
BOARDS.
!
CAN
PRODUCE ANY COLOR IN VISIBLE
SPECTRUM, INCLUDING WHITE LIGHT.

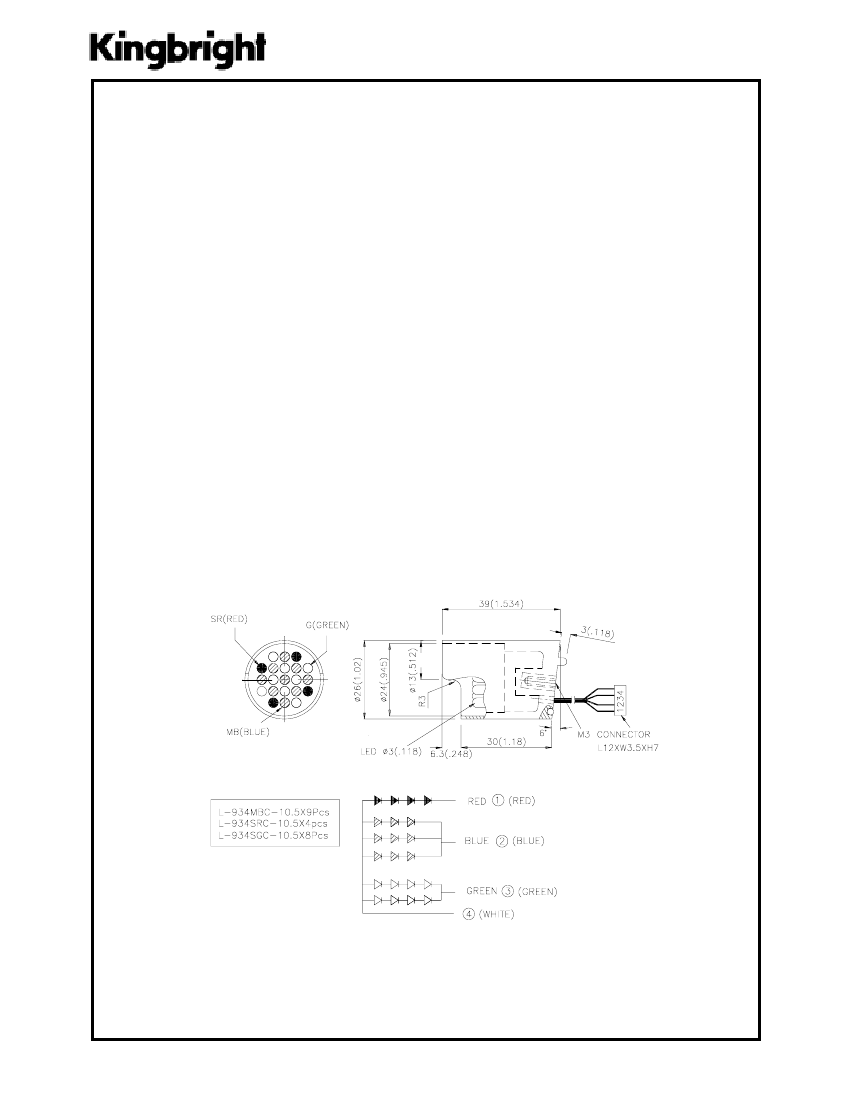

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subject to change without notice.
SPEC NO: DSAA3419
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: AUG/27/2001
DRAWN: J.X.FU
PAGE: 1 OF 2
Selection Guide
Em i t t i n g C o l o r
+Mat er ial
GaAlAs
BL0104-21-72
GaN
GaP
Iv (m c d )
@20m A
Min .
640
45 5
568
WATER CLEAR
WATER CLEAR
WATER CLEAR
800
18 0
560
Ty p .
18 0 0
30 0
12 0 0
V i ew i n g
An g l e
2
θ
1/2
40 °
40 °
40°
20
60
40
IF
IF
(m A)
Par t No .
λ
D(n m )
L en s Ty p e
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
)
=25°C
°
Sy m b o l
Iv
θ
Par am et er
Luminous Intensity
BL0104-21-72
Viewing Angle
D ev i c e
Co lo r
Blue
Super Bright Red
Super BrightGreen
Blue
Super Bright Red
Super BrightGreen
Blue
Super Bright Red
Super BrightGreen
Blue
Super Bright Red
Super BrightGreen
Blue
Super Bright Red
Super BrightGreen
Blue
Super Bright Red
Super BrightGreen
Blue
Super Bright Red
Super BrightGreen
Min .
180
800
560
-
Ty p .
300
1800
1200
40
11.4
7.4
8.8
430
660
565
455
640
568
60
20
30
30
10
20
Max .
-
Un it s
mcd
Tes t
Co n d it io n s
IF=60mA
IF=20mA
IF=40mA
-
IF=60mA
IF=20mA
IF=40mA
IF=60mA
IF=20mA
IF=40mA
IF=60mA
IF=20mA
IF=40mA
IF=60mA
IF=20mA
IF=40mA
V R = 5V
-
13.5
10
10
-
D eg
V
F
λ
peak
λD
Forword Voltage
-
V
Peak Wavelength
-
nm
Dominate Wavelength
-
-
nm
∆λ
1/2
Spectral Line Halfwidth
-
-
nm
I
R
Reverse Current
-
-
uA
Absolute Maximum Ratings at T
)
=25°C
°
Par am et er
Power dissipation
DC Forward Current
Reverse Voltage
Operating Temperature
Storage Temperature
B lu e
1000
90
5
S u p er B r i g h t R ed
22 0
30
5
-40° C To +70°C
-40° C To +85°C
S u p er B r i g h t
Gr een
440
50
5
Un it s
mW
mA
V
SPEC NO: KDA0621
APPROVED: J.LU
REV NO: V.1
CHECKED:
DATE: SEP/30/2001
DRAWN: J.X.FU
PAGE: 2 OF 2
