SPECIFICATION
Part No.
Product Name
:
:
PC30.09.0100A
FR4 Penta-band GSM Antenna
100mm 1.13 coax MMCX(M)RA
Feature
:
High antenna RF efficiency
RoHS compliant
SPE-12-8-058/A/ZL
Page 1 of 7
I. Introduction
PC30 is a custom-designed FR4 quad-band GSM antenna for a tracking device.
This RoHS compliant antenna has high RF efficiency with the tracking device to
meet PTCRB requirement.
II.
Specification (Free Space)
Specifications
Penta-band Cellular
AMPS
Frequency (MHz)
Average Efficiency
Gain
Impedance
Radiation Pattern
Polarization
PCB
Connector
Cable
Cable Length
824 ~ 896
17%
GSM
880~960
38%
DCS
1710~1880
60%
2dBi
50 Ohm
Omni-directional
Linear
FR4 74.70 x 8.20 x 0.8 mm
MMCX(M)RA
1.13
100 mm
-40°C ~ +85°C
-40°C ~ +85°C
PCS
1850~1990
70%
UMTS
1710~2170
68%
Communication System
Operation Temperature
Storage Temperature
Please note that Cables and Connectors are Customizable, customized solution will have an MOQ
SPE-12-8-058/A/ZL
Page 2 of 7
III. Electrical Property
III.1 Test Setup

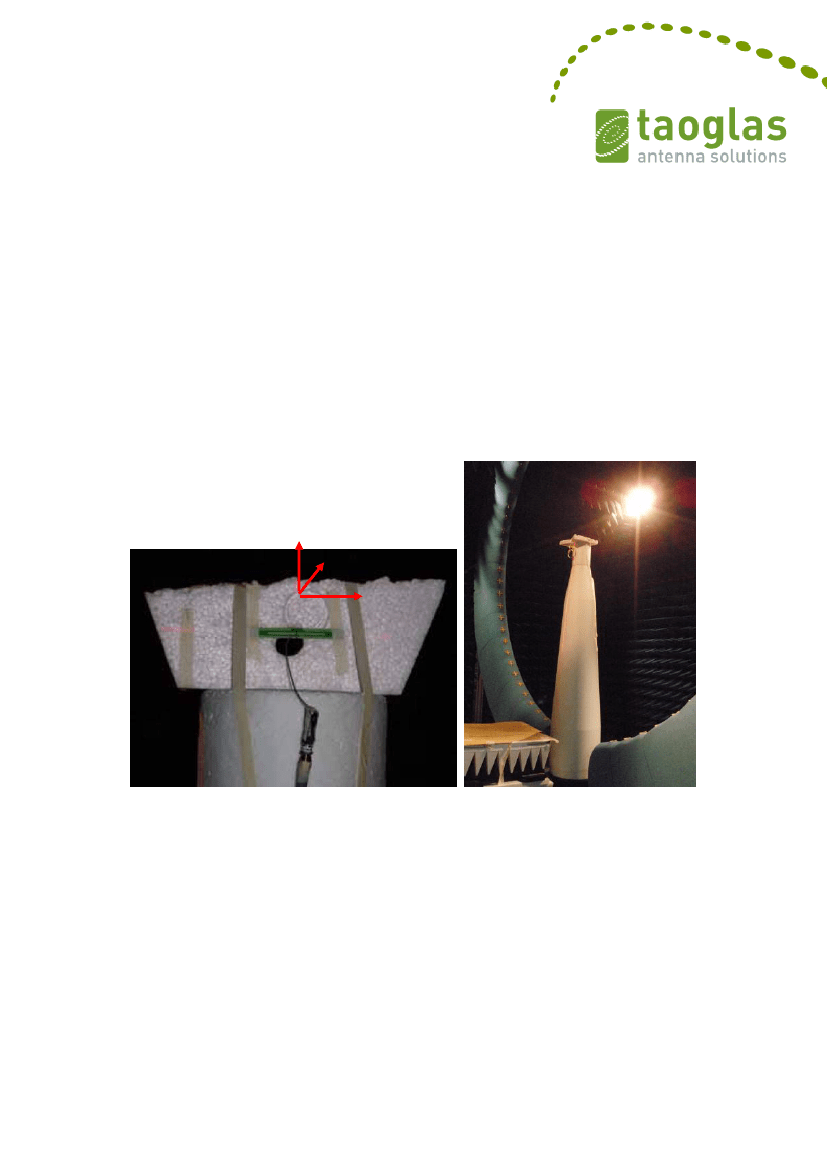

Satimo SG64 3D-chamber is used for radiation and efficiency test. For the free
space test, a Styrofoam is used to fix the antenna in the testing set.
z
y
x
Antenna setup and Satimo SG64 3D-chamber.
SPE-12-8-058/A/ZL
Page 3 of 7
III.2 Radiation Pattern

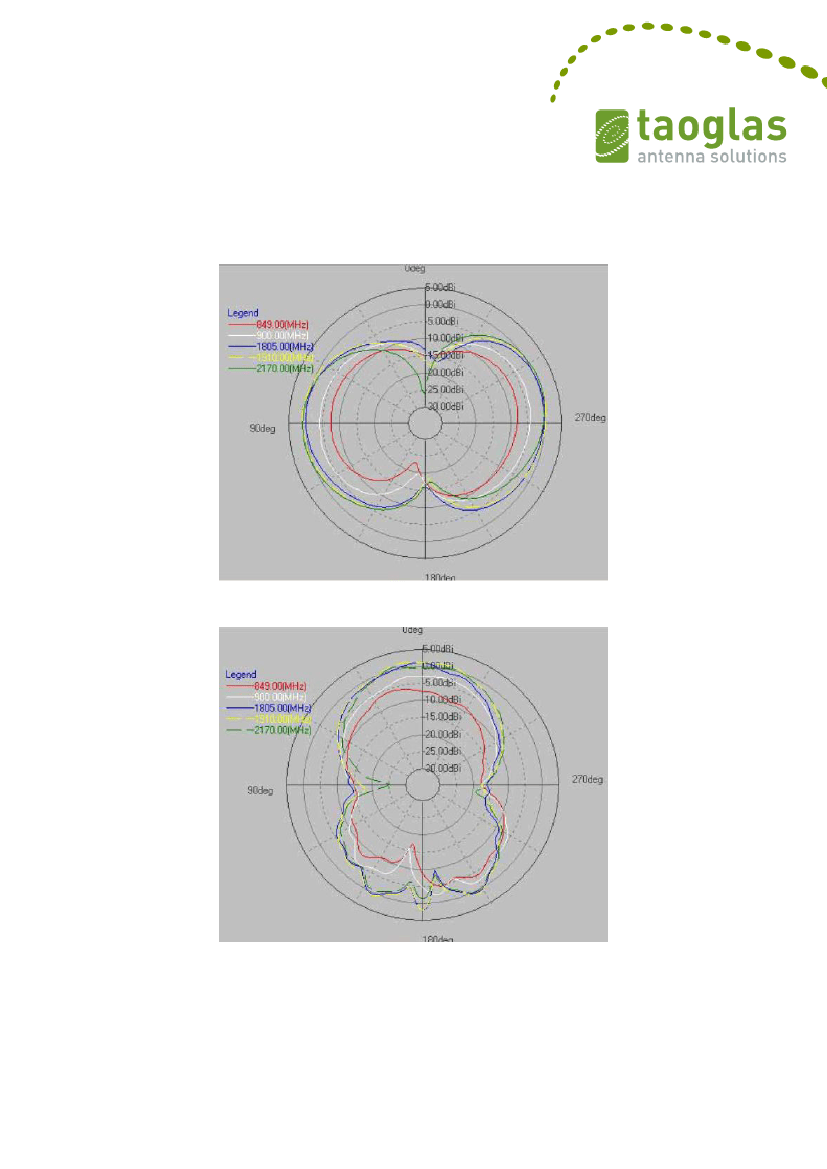

The radiation pattern of PC.30 in free space as the above test setup is --
Radiation pattern of x-y plane
Radiation pattern of x-z plane
SPE-12-8-058/A/ZL
Page 4 of 7
III.3 Efficiency
80.00%
70.00%
60.00%
50.00%
40.00%
30.00%
20.00%
10.00%
0.00%
600
1000
1400
1800
2200
Frequency (MHz)
