PT2262-IR-S Overview

remote control encoder

Preview

Download Datasheet

View All

Princeton Technology Corp.

Remote Control Encoder

Tel : 886-2-29162151

Fax : 886-2-29174598

URL:

http://www.princeton.com.tw

PT2262

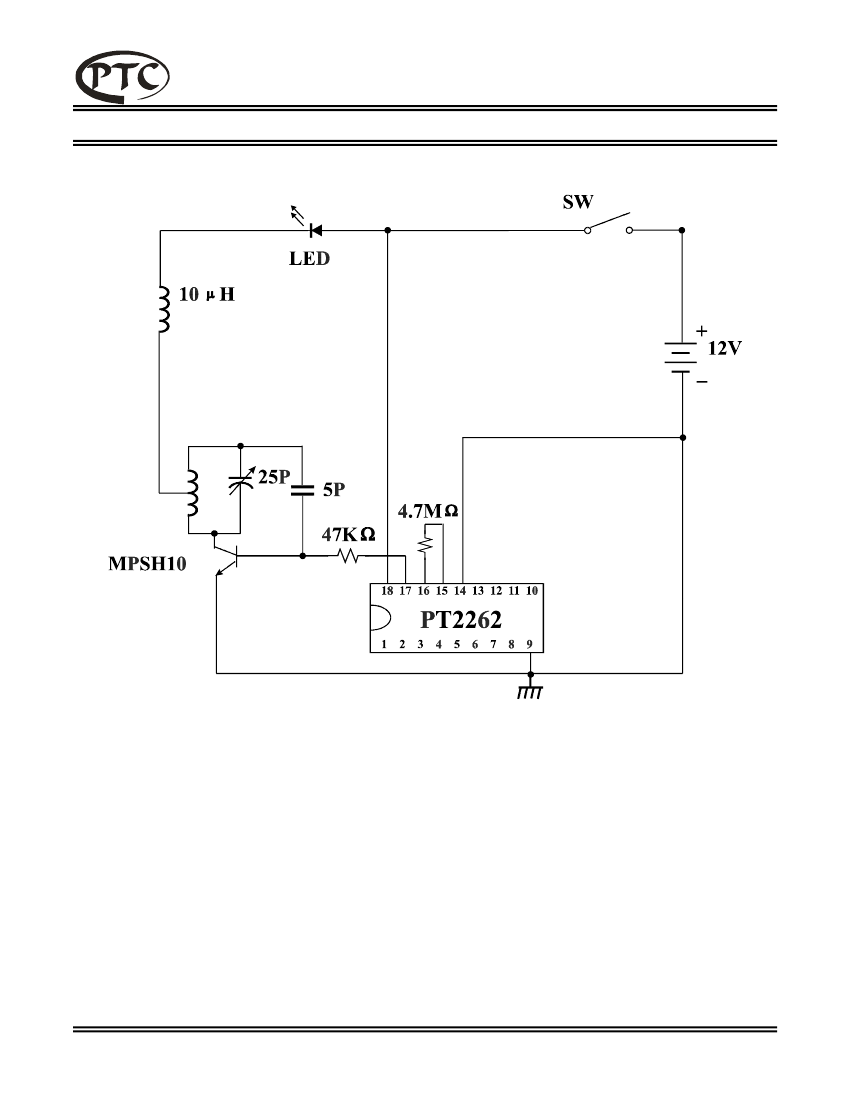

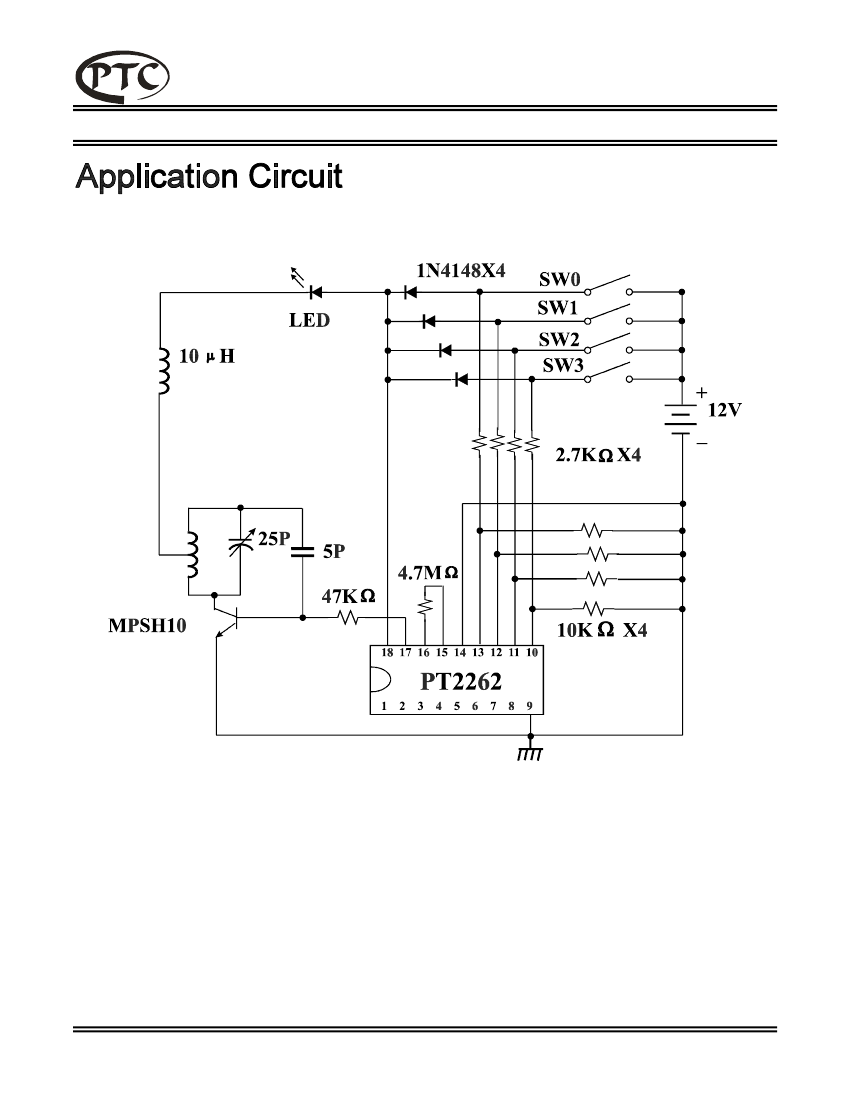

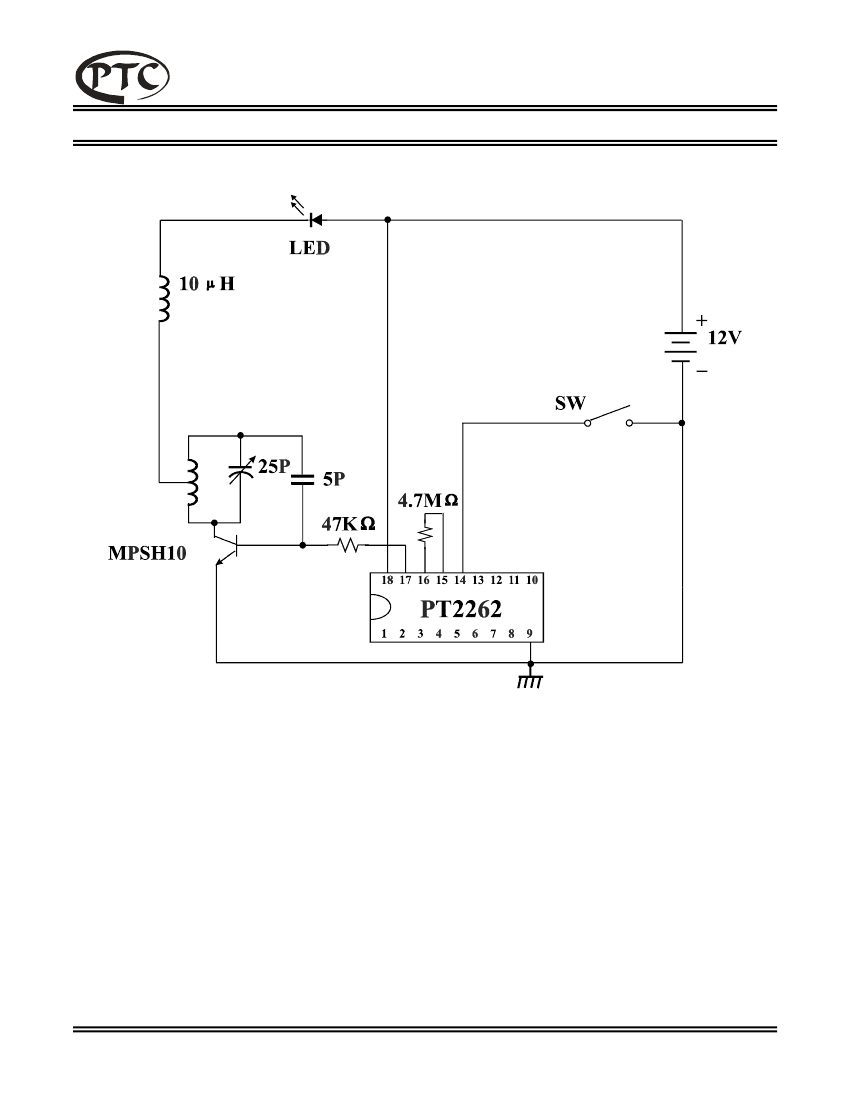

PT2262 is a remote control encoder paired with PT2272 utilizing CMOS Technology. It

encodes data and address pins into a serial coded waveform suitable for RF or IR

modulation. PT2262 has a maximum of 12 bits of tri-state address pins providing up to

531,441 (or 3

12

) address codes; thereby, drastically reducing any code collision and

unauthorized code scanning possibilities.

!

CMOS Technology

Low Power Consumption

Very High Noise Immunity

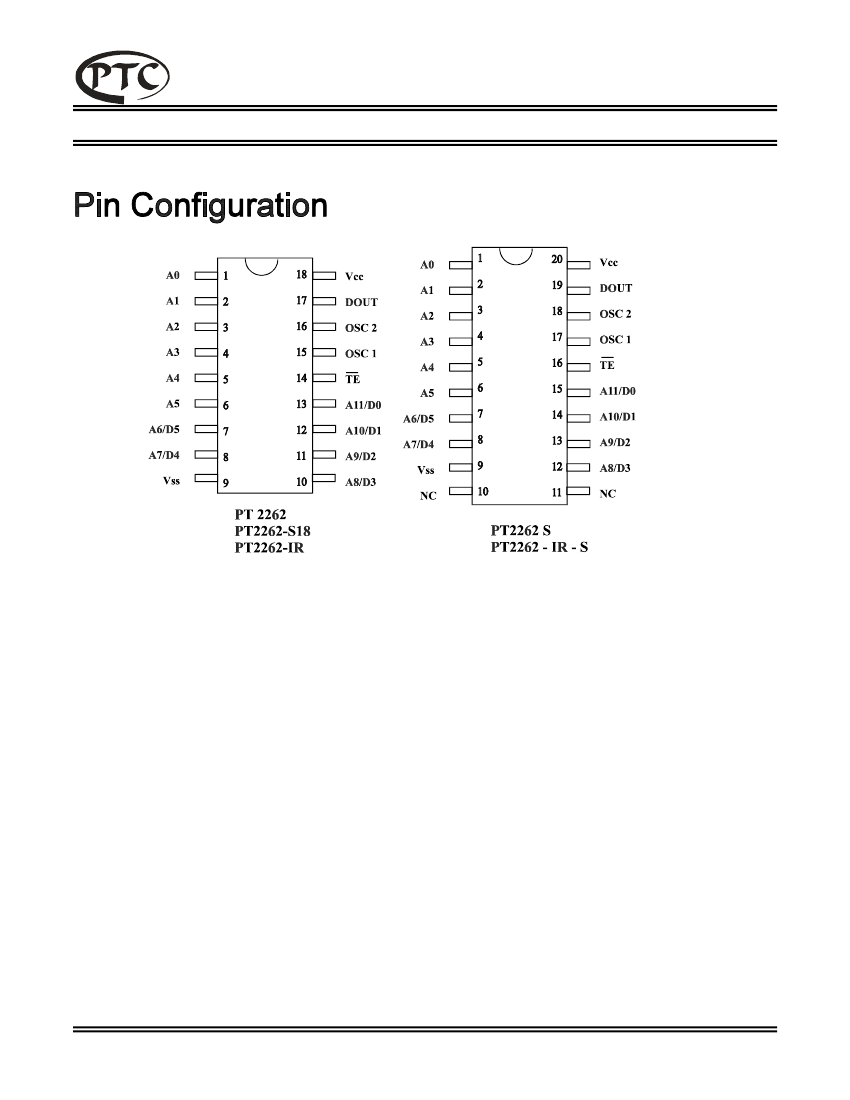

Up to 12 Tri-State Code Address Pins

Up to 6 Data Pins

Wide Range of Operating Voltage: Vcc = 4 ~ 15 Volts

Single Resistor Oscillator

Latch or Momentary Output Type

Available in DIP and SO Package

!

Car Security System

Garage Door Controller

Remote Control Fan

Home Security/Automation System

Remote Control Toys

Remote Control for Industrial Use

PT2262-IR-S Related Products

	PT2262-IR-S	PT2262-IR-P	PT2262-RF-S18	PT2262-RF-P	PT2262-RF-S	PT2262-IR-S18
Description	remote control encoder	remote control encoder	remote control encoder	remote control encoder	remote control encoder	remote control encoder
