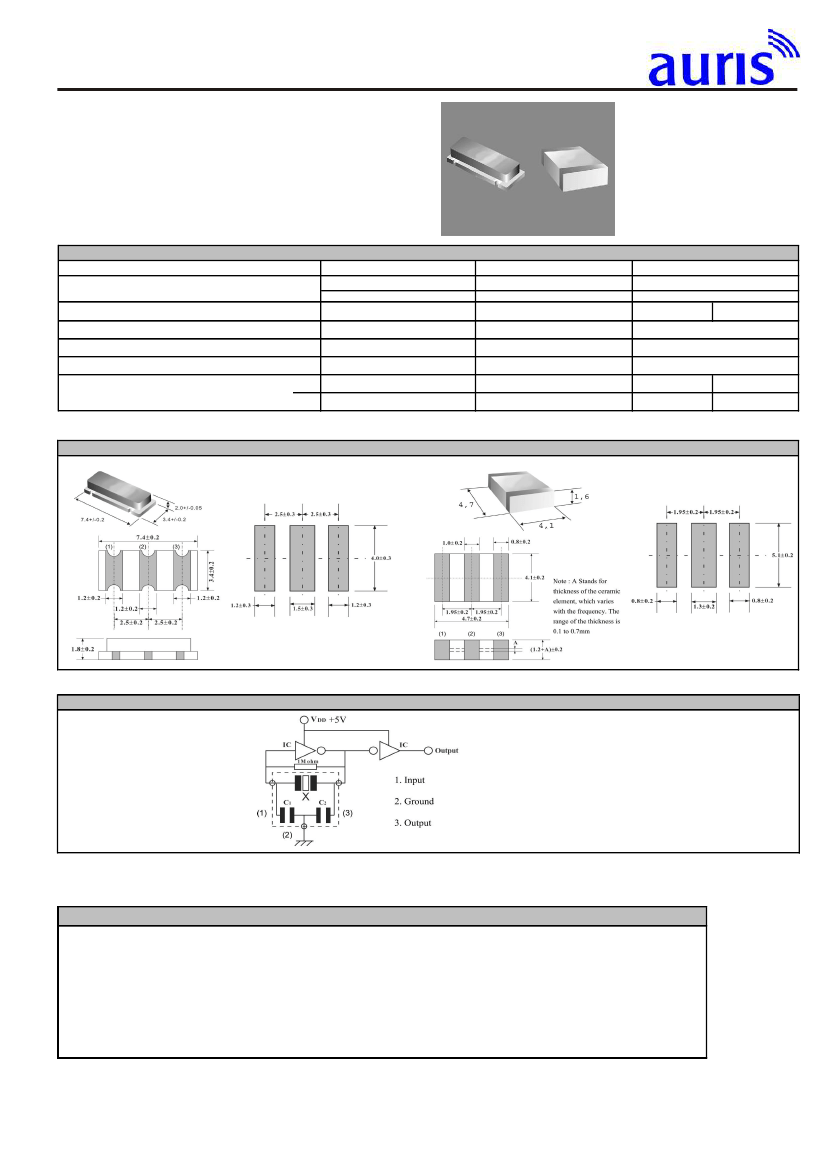

ZTTCC Overview

resonator smd, 3 pin

Resonator SMD, 3 Pin
Features:
- Built-in capacitor
- Low cost
- Consumer electronics
- Microprocessor systems
- Excellent for automatotive applications
Specifications
Part
Frequency range (MHz)
Frequency accuracy (25°C)
Temp. stability (-20°C ~ +80°C)
Aging (over 10 years)
Build-in load capacitance C1 C2 (pF)
C1
C2
ZTTCC/MG
ZTTCS/MT
ZTTCS/MX
ZTTCC/MG
1.84 ~ 8.0
+/-0.5%
+/-0.3%
+/-0.3%
22
22
ZTTCS/MT
6.0 ~ 13.0
+/-0.5%
+/-0.4%
+/-0.3%
30
30
15
15
ZTTCS/MX
13.01 ~ 40.0
40.01 ~ 50.0
+/-0.5%
+/-0.3%
+/-0.3%
5
5
Drawing
ZTTCC
ZTTCS
Dimensions in mm
Test circuit
C1 C2 : as listed
IC :
X :
1/6 4069UBP x 2 (MG ; MT)
1/6 74HCU04 x 2 (MX)
Ceramic resonator
Order key
R
Part
- 8.000000M
Frequency
- ZTTCC/MG
Type/Package
- 0.5
Frequency
tolerance
- 0.3
Temperature
tolerance
+/-%
(Temp. range)
-H
Temperature
range
H=-20°C ~ +80°C
- 22/22
Internal
load
capacitance
pF
C1/C2
R=Resonator
K=KHz
M=MHz
ZTTCC/MG
ZTTCS/MT
ZTTCS/MX
+/-KHz or %
(25°C)
Remarks: All specifications subject to change without notice!
