ALD120-210VFC Overview

120w, single output, 2 channel, class 2 led drivers

Preview

Download Datasheet

View All

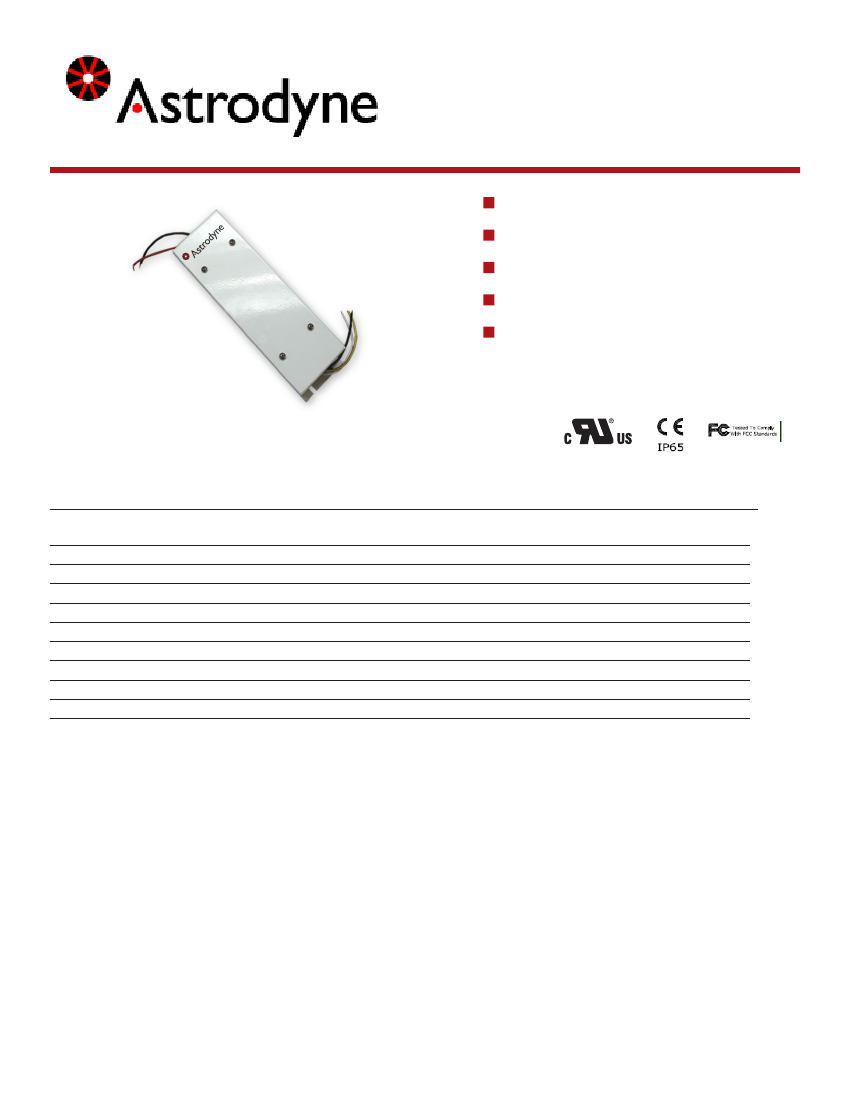

1 2 0 W, S in gl e O utpu t, 2 Ch a nnel, Class 2 LE D Dri v er s

Single Outputs

Universal Input

ALD120

series

8VDC to 48VDC Outputs

Short Circuit Protection

Full Safety Approvals for Class 2, Outdoor

Wet Locations and LED Lighting

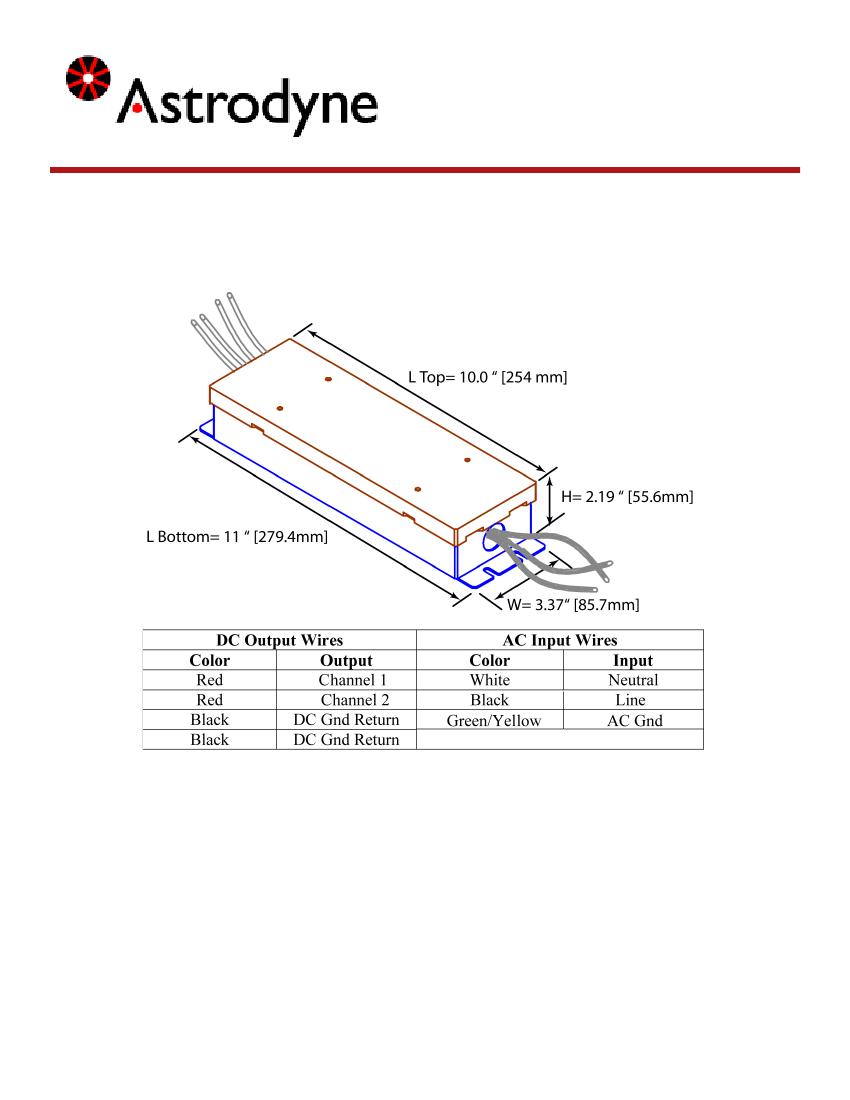

Model Number

ALD120-208VFC

ALD120-210VFC

ALD120-212VFC

ALD120-215VFC

ALD120-218VFC

ALD120-221VFC

ALD120-224VFC

ALD120-227VFC

ALD120-236VFC

ALD120-248VFC

I/P Voltage

90-264 VAC

O/P Voltage

8 VDC

10 VDC

12 VDC

15 VDC

18 VDC

21 VDC

24 VDC

27 VDC

36 VDC

48 VDC

O/P Amps

Chan1/Chan2

5/5

4.57 / 4.57

4.0 / 4.0

3.55 / 3.55

2.66 / 2.66

2.0 / 2.0

Combined

Current max.

10A

6.67A

5.7A

5.0A

4.44A

3.33A

2.5A

O/P Watts max.

80W

100W

120W

Ripple/Noise max.

80mV

100mV

120mV

150mV

180mV

210mV

240mV

270mV

360mV

480mV

*Note: All noise measurements made at the output terminals, connected to a 20MHz low pass filter

WWW.ASTRODYNE.COM

ASTRODYNE USA: 1-800-823-8082

ASTRODYNE PACIFIC: 886-2-26983458

ASTRODYNE EUROPE: 353 51 561060
