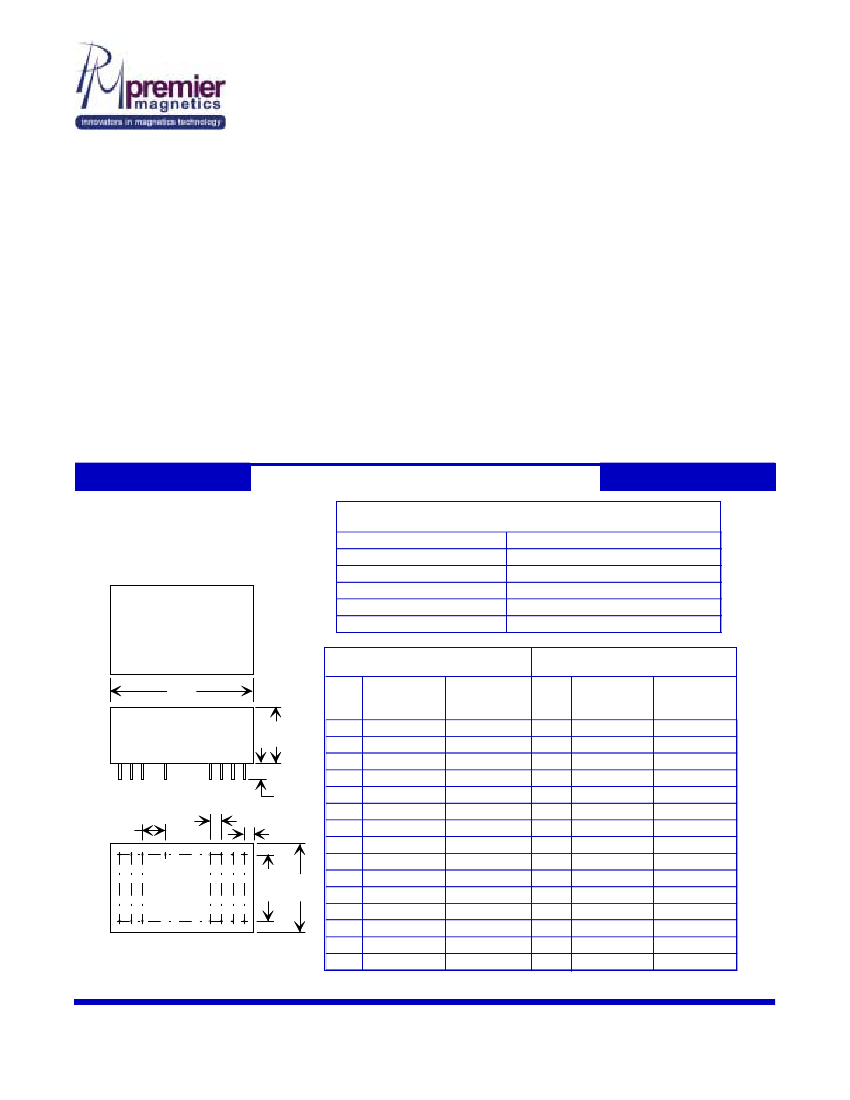

3.0 WATT 2:1WIDE INPUT RANGE

DC/DC POWER MODULES

With Remote On/Off Option (Rectangle Package)

FEATURES

❺

3.0 Watt Isolated Output

2:1 Wide Input Range

High Conversion Efficiency

Continuous Short Circuit Protection

Remote ON/OFF Option

INPUT SPECIFICATIONS

Voltage ....................................12, 24, 48 Vdc

Voltage Range .........9-18, 18-36 & 36-72Vdc

Input Filter ........................................... Pi Type

GENERAL SPECIFICATIONS

Efficiency ...................................... Per Table

Switching Frequency ............... 100KHz Min.

Isolation Voltage: ..................... 500 Vdc Min.

Operating Temperature ........ -25 to +75

Derate Linearly to no load @ 100

C max.

Case Material:

500Vdc.......Non-Conductive Black Plastic

1.5kVdc & 3kVdc.....Black coated copper

with non-conductive base

EMI/RFI........................Conductive EMI Meet

EN55022 Class B

PACKAGE

OUTPUT SPECIFICATIONS

Voltage ........................................... Per Table

Initial Voltage Accuracy ................ ±2% Max

Voltage Stability ......................... ±0.05% max

Ripple & Noise .................... 100/150mV p-p

Load Regulation (10 to 100% Load)

Single Output Units:

±0.5%

Dual Output Units:

±1.0%

Line Regulation ........................... ±0.5% typ.

Temp Coefficient ...................... ±0.05% /

Short Circuit Protection ........... Continuous

PIN ASSIGNMENTS

REMOTE ON/OFF CONTROL

PHYSICAL DIMENSIONS

DIMENSIONS IN inches (mm)

PDCx03xxxx

YYWW

1.25

(31.8)

.50

(12.7)

Logic

Ec-On

Ec-Off

Shutdown Idle Current

Input Resistance

Control Common

500VDC

SINGLE

OUTPUT

+ INPUT

- OUTPUT

+ OUTPUT

- INPUT

+ OUTPUT

- OUTPUT

+ INPUT

DUAL

OUTPUTS

+INPUT

- OUTPUT

COMMON

+ OUTPUT

- INPUT

+ OUTPUT

COMON

COMMON

- OUTPUT

+ INPUT

CMOS or Open Collector TTL

>+5.5VDC or Open Circuit

<1.8VDC

10mA

100 Ohm

Referenced to Input Minus

1500VDC & 3000VDC

SINGLE

OUTPUT

- INPUT

+ OUTPUT

- OUTPUT

+ INPUT

DUAL

OUTPUTS

- INPUT

R.ON/OFF

COMMON

- OUTPUT

+ OUTPUT

COMMON

+ INPUT

PDCx0302x 12/00

.15

(3.8)

.20

(5.1)

1 2 3

.10

(2.5)

9 10 11 12

.08

(2.0)

.60

.80

(15.24) (20.3)

24 23 22

16 15 14 13

Specifications subject to change without notice.

20381 BARENTS SEA CIRCLE, LAKE FOREST, CA 92630

•

TEL: (949) 452-0511

•

FAX: (949) 452-0512

•

http://www.premiermag.com
