Cermax® Xenon Arc Lamps
PE1000DF and PE1000DUV
CERMAX
®
XENON ARC LAMPS
Description

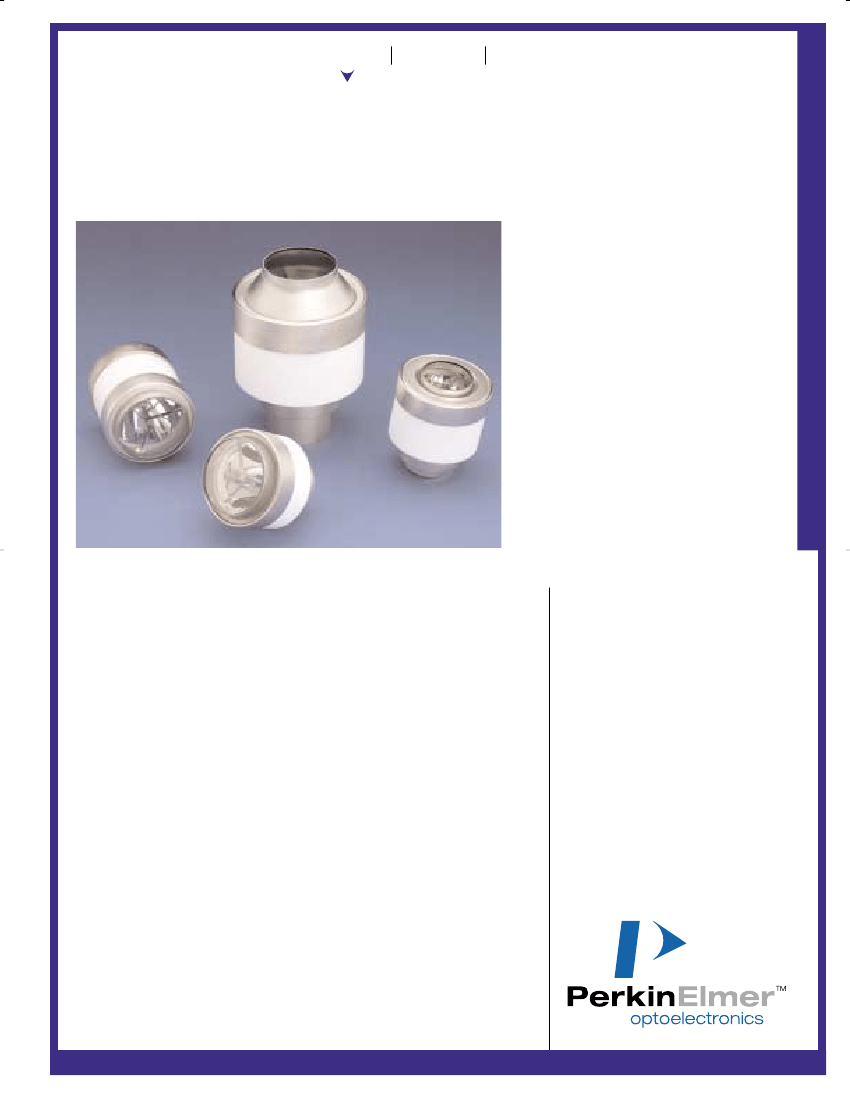

The Cermax® xenon arc lamp is an innova-
tive lamp design in the specialty lighting
industry. These lamps were introduced in
the early 1980’s and are now used in endo-
scopes in most major hospitals worldwide,
in high brightness projection display sys-
tems, and for a wide variety of other high
performance applications.
The PE
1000
DF and PE
1000
DUV Cermax®
lamps have an integrated parabolic reflector,
enabling high intensity, focused output of
ultraviolet, visible, and infrared radiation.
With their internal reflector and rugged
ceramic body construction, Cermax® lamps
are the safest and most compact alternative
to conventional quartz xenon lamps. This
makes them ideal for applications that
require a high degree of illumination control.
Current-regulated or power-regulated power
supplies with output ripples of less than 5%
are recommended. Single shot ignition
pulses are advised because radio frequency
starters may damage the lamps internal
reflector.
In addition to lamps, PerkinElmer
Optoelectronics manufactures Cermax® arc
lamp power supplies, lamp holders, OEM
lighting systems, and fiber optic light
sources.
Applications
•
Medical and industrial fiber optic illu-
•
•
•
•
•
•
minators
Machine vision
Infrared and visible spotlights/beacons
Spectroscopy
Microscopy
UV Curing
Video projection
.
www.perkinelmer.com/opto

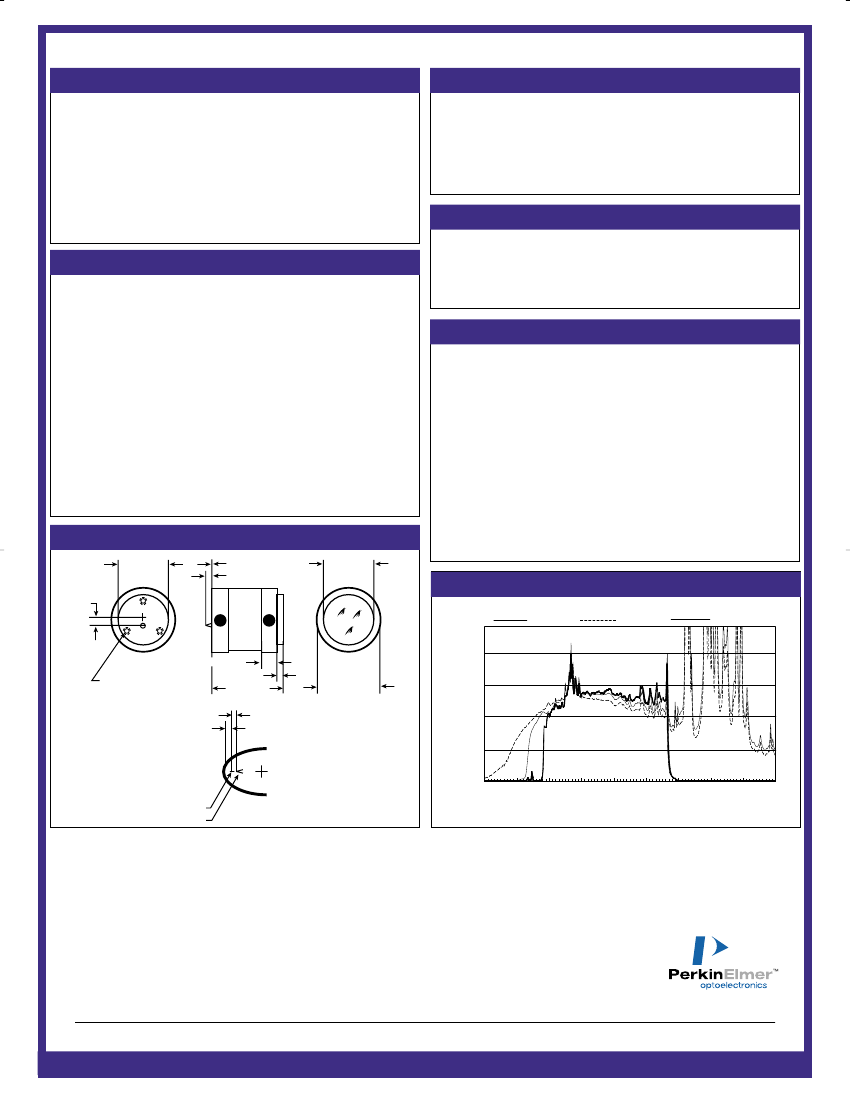

PE1000BF and PE1000BUV
Operational Specifications
Description
Power
Current
Operating Voltage
Ignition Voltage
Temperature
Lifetime*
Nominal
1000 watts
51 amps (DC)
19.5 volts (DC)
150º C (maximum)
1000 hours (500 hour warranty)
Range
820-1050 watts
46-54 amps (DC)
18.5-22 volts (DC)
Physical Specifications
Description
Arc Gap
Reflector Geometry
Weight
Window Diameter
Specification
.09 inch (2.28mm)
Parabolic Y2 = 0.8 X (inch)
680 grams
2 inch (50.8 mm)
35 kilovolts (recommended minimum)
Focused Output at F/1.0 Lens
Description
6mm aperture
8mm aperture
Visible Output
10400 Lumens
4600 Lumens
Total Output*
96 watts
44 watts
* End of lamp life is defined as 50% of initial output.
Output at Nominal Power
F= UV Filtered Output/ UV = UV Enhanced Output
Description
Peak Intensity
Radiant Output*
UV Output*
IR Output*
Visible Output*
Color Temperature
Peak Instabilities
Beam Geometry**
PE1000DF
38x105 candelas
250 watts
13 watts
137 watts
24000 Lumens
5600 Kelvin
4%
4º/5º/6º
PE1000DUV
27x105 candelas
250 watts
25 watts
133 watts
22000 Lumens
5050 Kelvin
4%
4º/5º/6º
* Nominal values at 1000 watts after 2 hour burn-in.
Notes
1.
2.
3.
4.
Lamp must not be operated with window facing upwards within
45º of vertical.
Seal temperature must not exceed 150º C.
Current/power regulated power supplies and PerkinElmer lamp
housing units are recommended.
Lamp must be operated within recommended current and power
range. Over powering may lead to arc instability, hard starting
and premature aging.
CERMAX lamps are much safer lamps to use than their quartz
xenon arc lamp equivalents. However, caution must be practiced
when operating lamps because they are under high pressure,
require high voltage, reach temperatures up to 200º C, and their
IR and UV radiation can cause skin burns and eye damage.
Read hazard sheet included with each lamp shipment.
*These values indicate total output in all directions.
Wavelengths = UV<390nm, IR>770nm, Visible 390nm to 770nm.
** Beam Geometry defined as half angle at 10% PTS after 01/100/1000 hours.
5.
Dimensions
2.00 (50.8)
.04 (1.02)
.250 (6.35)
2.00 (50.8)
Spectral Output
100
F
UV
F + HOT MIRROR
.22
(5.59)
2 x .60 (15.2)
8-32 UNC 2B x .25 DP
3 Holes EQ SP on A
1.60 (40.64) BC
.273 (6.93)
2.858
(72.59)
.066 (1.52)
.20 (5.08)
2.592 (65.84)
RELATIVE OUTPUT
80
60
40
20
Y
X
0
200
300
400
500
600
700
800
900
1000
1100
Focal Point
Cathode
WAVELENGTH (NM)
PerkinElmer welcomes inquiries about special lamps. We would be pleased to discuss the requirements of your application and the
feasibility of designing a lamp specifically suited to your needs.
For more information e-mail us at opto@perkinelmer.com or visit our web site at www.perkinelmer.com/opto.
All values are nominal; specifications subject to change without notice.
