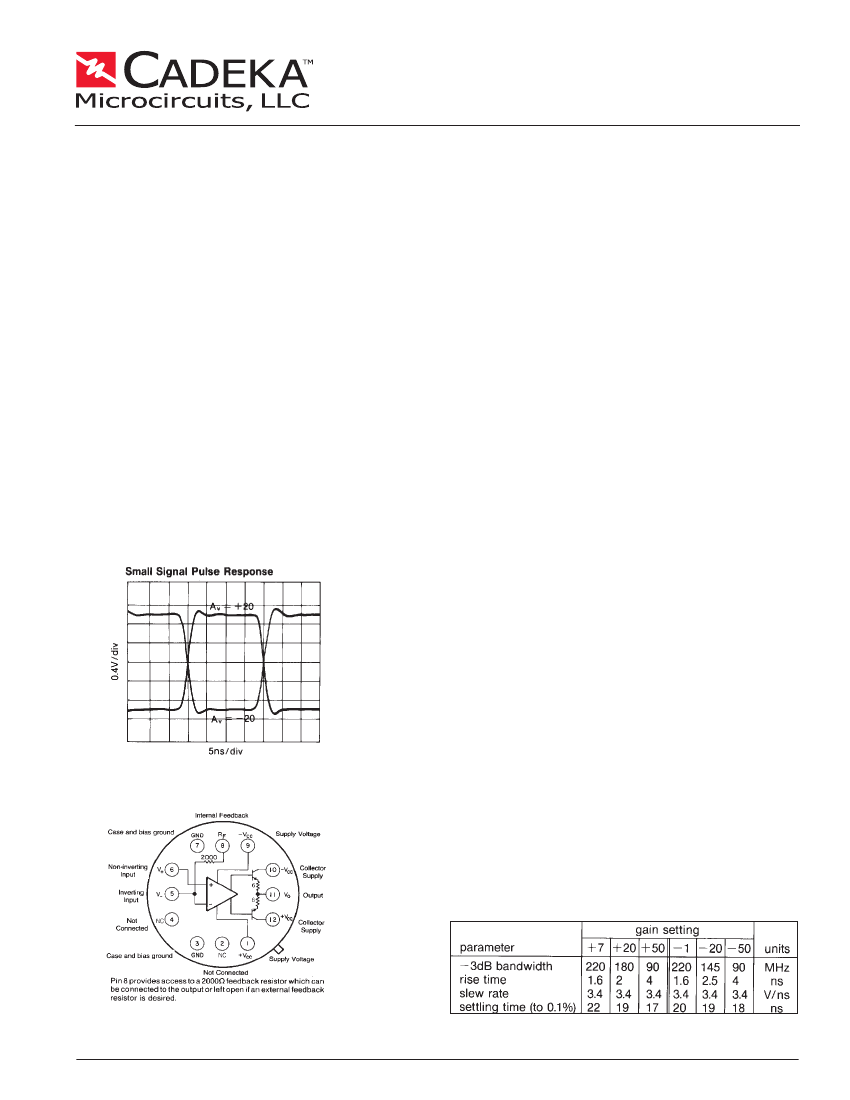

KH206
Overdrive-Protected Wideband Op Amp
Features
I
I
I
I
I
I
I
I
General Description
The KH206 is a wideband, overdrive-protected
operational amplifier designed for applications
needing both speed and high drive capability
(100mA). Utilizing a well-established current feed-
back architecture, the KH206 exhibits performance far
beyond that of conventional voltage feedback
op amps. For example, the KH206 has a bandwidth
of 180MHz at a gain of +20 and settles to 0.1% in
19ns. Plus, the KH206 has a combination of important
features not found in other high-speed op amps.
The 100mA output current and the large signal
bandwidth of 70MHz (20V
pp
) make the KH206 ideal
for applications which involve both high signal
amplitudes and heavy loads as in coaxial line driving
applications.
Complete overdrive protection has been designed
into the KH206. This is critical for applications, such as
ATE and instrumentation, which require protection
from signal levels high enough to cause saturation of
the amplifier. This feature allows the output of the
op amp to be protected against short circuits using
techniques developed for low-speed op amps. With
this capability, even the fastest signal sources can
feature effective short circuit protection.
The KH206 is constructed using thin film resistor/bipolar
transistor technology, and is available in the following
versions:
KH206AI
KH206AK
-25°C to +85°C
-55°C to +125°C
-55°C to +125°C
12-pin TO-8 can
12-pin TO-8 can, features
burn-in & hermetic testing
12-pin TO-8 can,
environmentally
screened and electrically
tested to MIL-STD-883
SMD#: 5962-8985801HXC
SMD#: 5962-8985801HXA
-3dB bandwidth of 180MHz
70MHz large signal bandwidth (20V
pp
)
0.1% settling in 19ns
Overdrive protected
Output may be current limited
Stable without compensation
3MΩ input impedance
Direct replacement for CLC206
Applications
I
I
I
I
I
I
Fast, precision A/D conversion
Automatic test equipment
Input/output amplifiers
Photodiode, CCD preamps
High-speed modems, radios
Line drivers
Bottom View
KH206AM
KH206HXC
KH206HXA
-55°C to +125°C
-55°C to +125°C

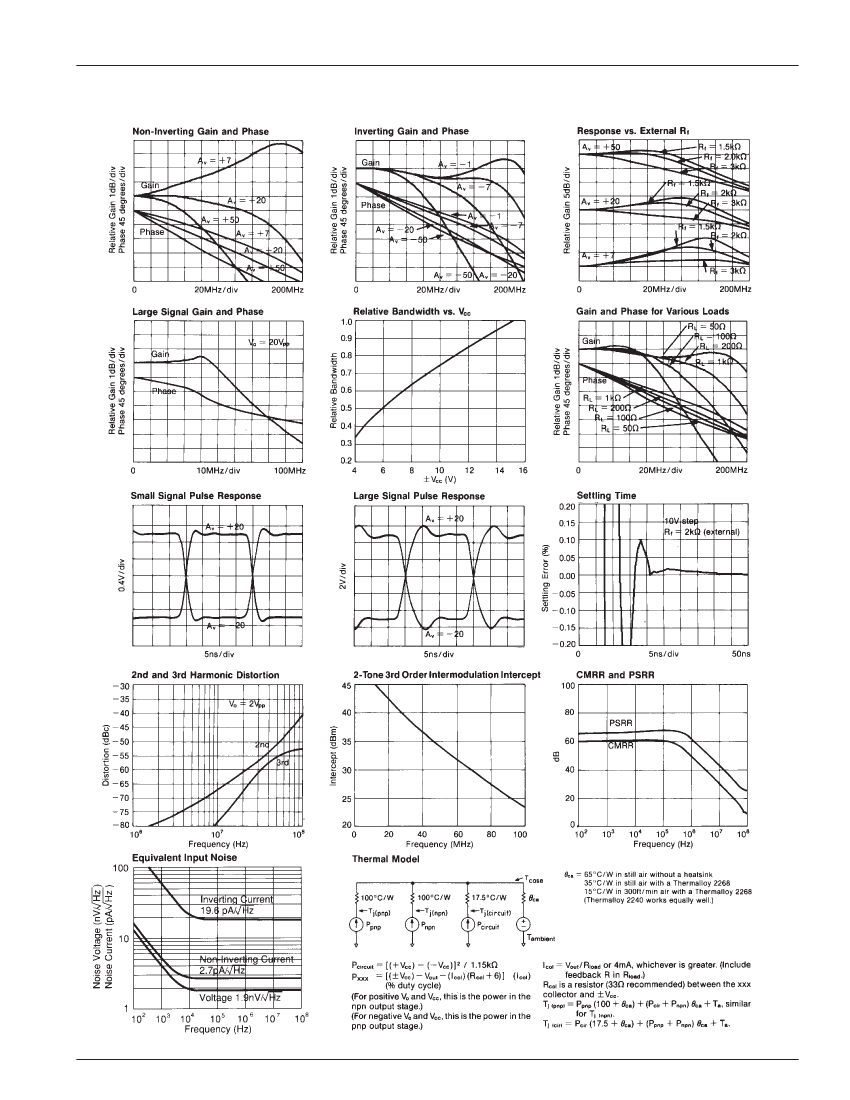

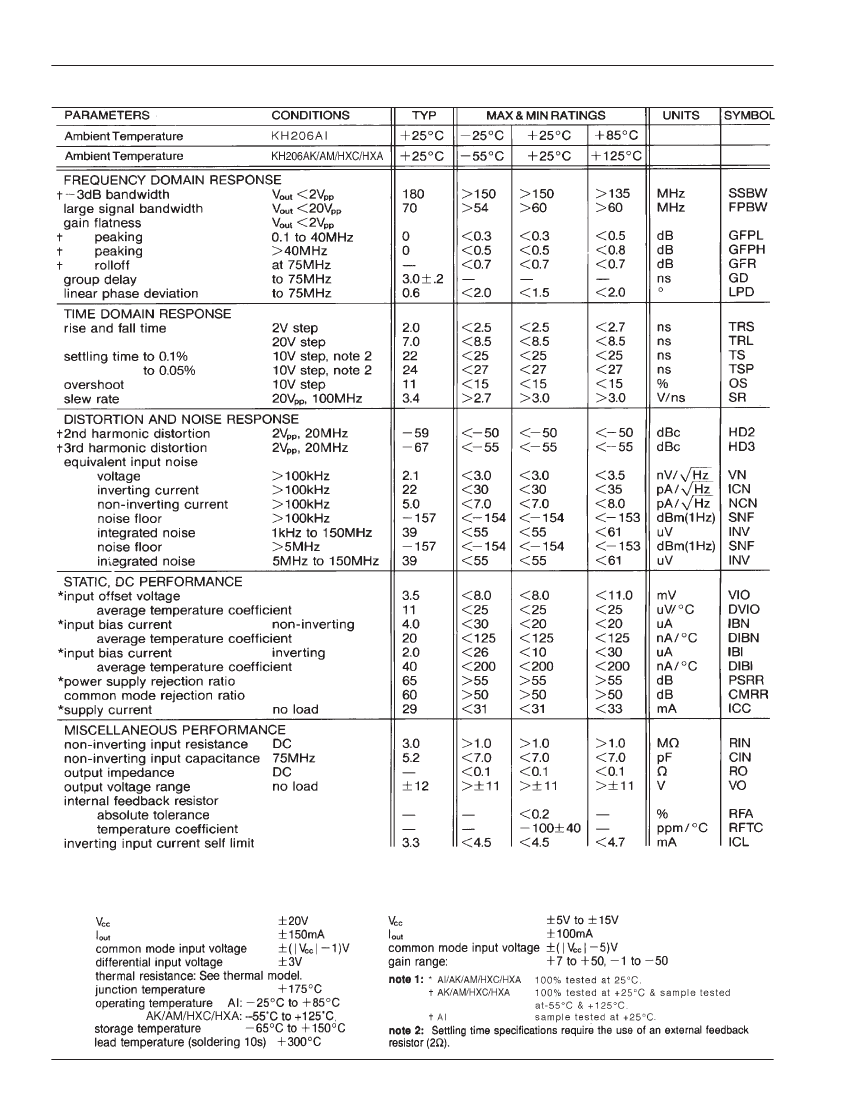

Typical Performance
REV. 1A January 2004
DATA SHEET
KH206
KH206 Package Dimensions
A
L
e
1
e
2
7
6
8
9
10
11
12
φD
D
1
e
5
4
φb
F
k
3
2
1
α
k
1
TO-8
SYMBOL
A
φb
φD
φD
1
e
e
1
e
2
F
k
k
1
L
INCHES
Minimun
0.142
0.016
0.595
0.543
Maximum
0.181
0.019
0.605
0.555
MILIMETERS
Minimum
3.61
0.41
15.11
13.79
Maximum
4.60
0.48
15.37
14.10
NOTES:
Seal: cap weld
Lead finish: gold per MIL-M-38510
Package composition:
Package: metal
Lid: Type A per MIL-M-38510
0.400 BSC
0.200 BSC
0.100 BSC
0.016
0.026
0.026
0.310
0.030
0.036
0.036
0.340
10.16 BSC
5.08 BSC
2.54 BSC
0.41
0.66
0.66
7.87
0.76
0.91
0.91
8.64
α
45° BSC
45° BSC
Life Support Policy
Cadeka’s products are not authorized for use as critical components in life support devices or systems without the express written approval of the president of Cadeka Microcircuits, Inc.
As used herein:
1. Life support devices or systems are devices or systems which, a) are intended for surgical implant into the body, or b) support or sustain life, and whose failure to perform, when properly used
in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant injury to the user.
2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect
its safety or effectiveness.
Cadeka does not assume any responsibility for use of any circuitry described, and Cadeka reserves the right at any time without notice to change said circuitry and specifications.
www.cadeka.com
© 2004 Cadeka Microcircuits, LLC
