Digital Storage Oscilloscopes
TDS1002
•
TDS1012
•
TDS2002
•
TDS2012
•
TDS2014
•
TDS2022
•
TDS2024
Features & Benefits
60 MHz, 100 MHz, and
200 MHz Bandwidths
Sample Rates up to 2 GS/s
2 or 4 Channels
Color or Monochrome
LCD Display
CompactFlash
®
Mass
Storage Option with
TDS2MEM Module
Autoset Menu with
Waveform Selection
Probe Check Wizard to
Ensure Correct Probe Usage
Context-sensitive Help
Dual Time Base
Advanced Triggers,
Including Pulse Width
Trigger and Line-Selectable
Video Trigger
11 Automatic Measurements
Multi-language User Interface

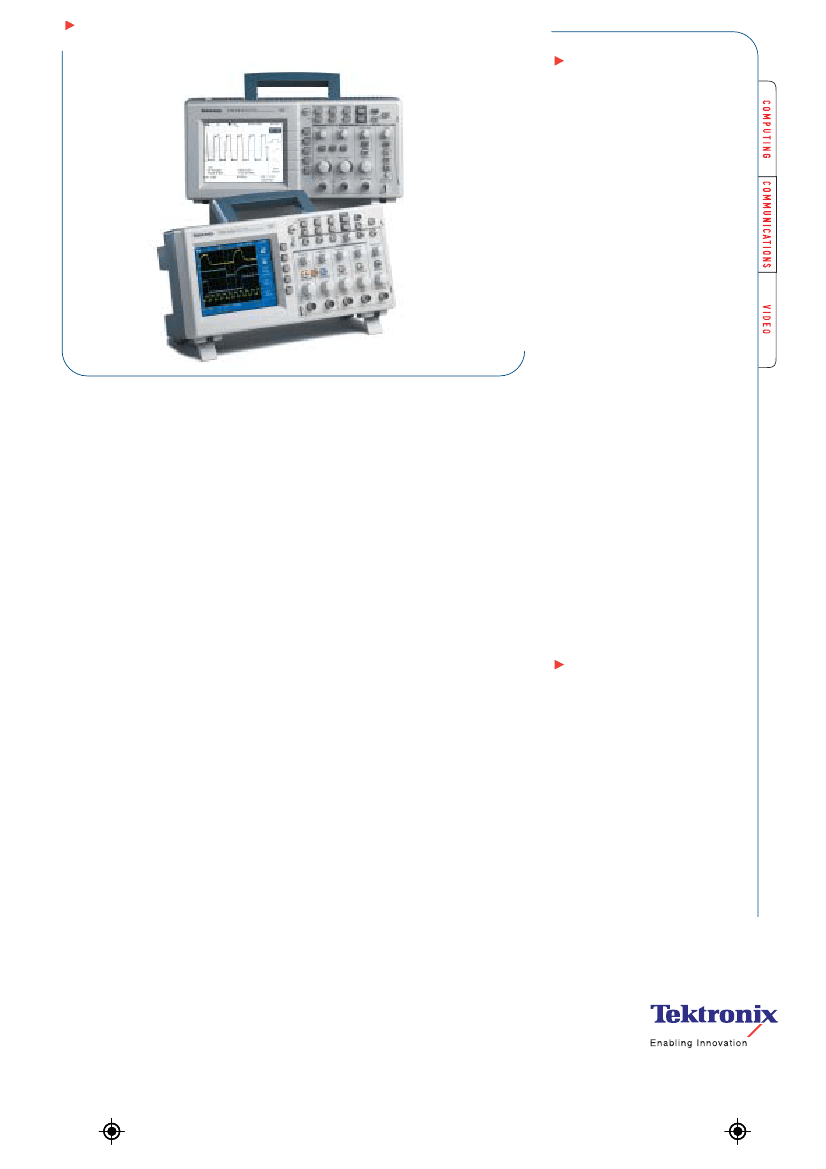

TDS1000 and TDS2000 Series Oscilloscopes.
Colorful Performance at a Black and White Price.
The TDS1000 Series and TDS2000 Series
digital storage oscilloscopes deliver an
unbeatable combination of superior
performance, unmatched ease-of-use,
and affordability in an ultra lightweight,
portable package.
Affordable Digital Precision
Waveform and
Setup Memories
FFT Standard on All Models
OpenChoice
™
Solutions
Speed Documentation and
Analysis of Measurement
Results
– TDS2CMAX Communication
Module
– TDS2MEM Storage Memory
and Communication Module
– TDSPCS1 OpenChoice
Software
– WaveStar
™
Software
– Integration with
Third-party Software
With up to 200 MHz bandwidth and 2 GS/s
maximum sample rate, no other color digital
storage oscilloscope offers as much band-
width and sample rate for the price. The
TDS1000 and TDS2000 Series oscilloscopes
provide accurate real-time acquisition up to
their full bandwidth, advanced triggers to
isolate signals of interest, and 11 standard
automatic measurements on all models.
Their Fast Fourier Transform (FFT) math
function allows the user to analyze, charac-
terize and troubleshoot circuits by viewing
frequency and signal strength (standard
on all models).
Applications
Design and Debug
Education and Training
Manufacturing Test
and Quality Control
Service and Repair
1
Digital Storage Oscilloscopes
•
TDS1000 and TDS2000 Series
•
www.tektronix.com/tds2000
Digital Storage Oscilloscopes
TDS1002
•
TDS1012
•
TDS2002
•
TDS2012
•
TDS2014
•
TDS2022
•
TDS2024
Unparalleled measurement accuracy with
up to 200 MHz bandwidth and 2 GS/s
maximum sample rate.

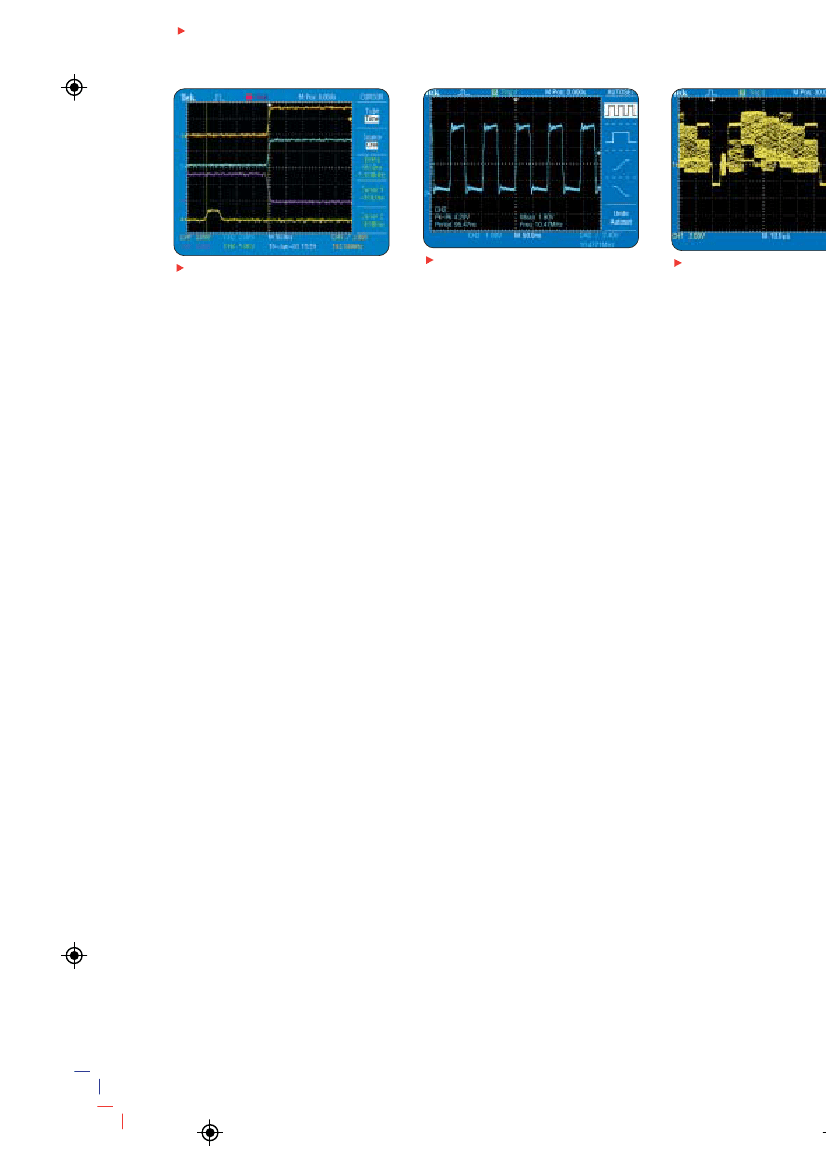

Automatically detects sine waves, square
waves and video signals, with readouts of
relevant measurements and additional
user-selectable views of the signal.
Simple, Speedy
Documentation
and Analysis
Pulse-width and field- and line-
video triggers make the oscillos
for a wide range of applications
Ultra-fast Setup and Use
The simple user interface with classic,
analog-style controls makes these instruments
easy to use, reducing learning time and
increasing efficiency. Innovative features,
such as the autoset menu, probe check
wizard, context-sensitive help menu and
color LCD display (TDS2000 Series) optimize
instrument setup and operation.
OpenChoice
™
solutions deliver simple,
seamless integration between the oscillo-
scope and the personal computer, providing
you with multiple choices to easily document
and analyze your measurement results.
Choose from optional communicati
CompactFlash
®
mass storage c
OpenChoice software and integr
with third-party software.
2
Digital Storage Oscilloscopes
•
TDS1000 and TDS2000 Series
•
www.tektronix.com/tds2000
Digital Storage Oscilloscopes
TDS1002
•
TDS1012
•
TDS2002
•
TDS2012
•
TDS2014
•
TDS2022
•
TDS2024
Precisely analyze, characterize and
troubleshoot circuits – at the push of
a button with the autoset menu.

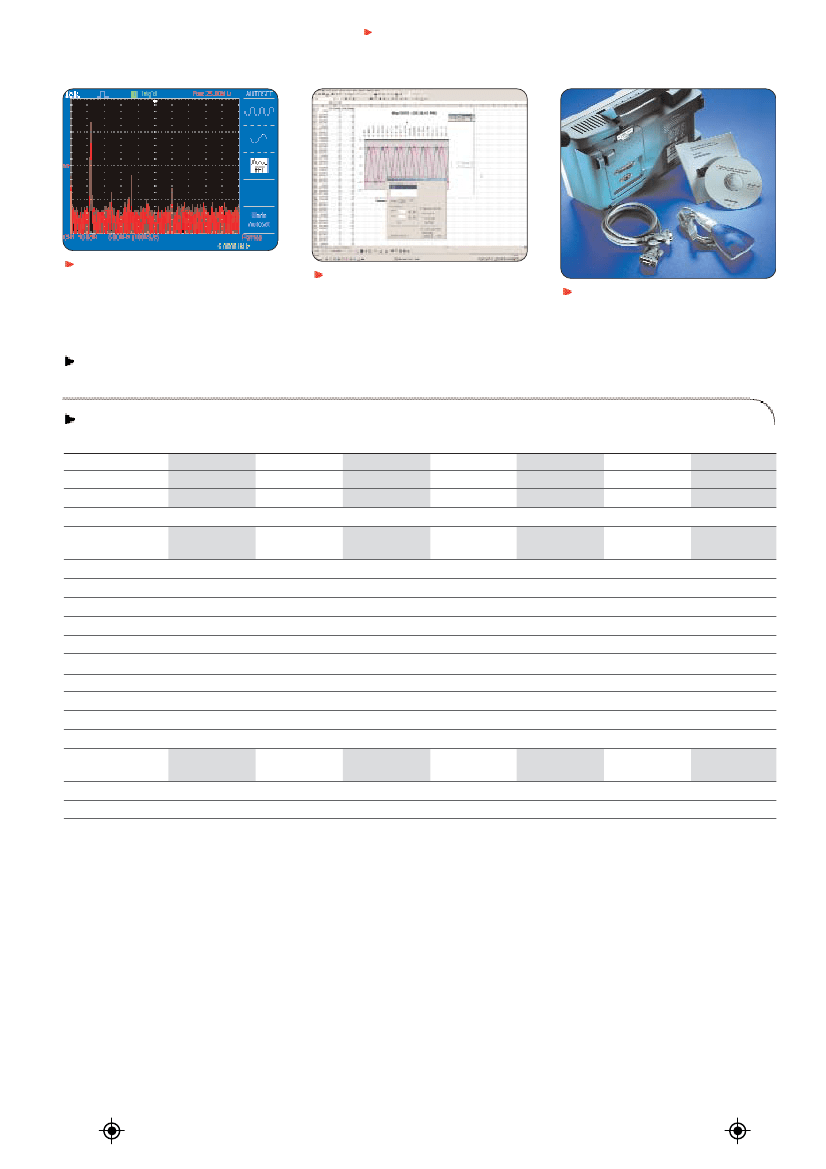

Easily document and analyze measurement
results using OpenChoice
™
software.
Quickly transfer waveforms and measure-
ment data to an external PC or between
oscilloscopes.
Characteristics
TDS1000 and TDS2000 Series Electrical Characteristics
TDS1002
TDS1012
TDS2002
TDS2012
TDS2014
TDS2022
TDS2024
Display (1/4 VGA LCD)
Bandwidth*
1
Channels
External Trigger Input
Sample Rate
on each channel
Record Length
Vertical Resolution
Vertical Sensitivity
DC Vertical Accuracy
Vertical Zoom
Max Input Voltage
Position Range
BW Limit
Input Coupling
Input Impedance
Time Base Range
Time Base Accuracy
Horizontal Zoom
Mono
60 MHz
2
1.0 GS/s
Mono
100 MHz
2
1.0 GS/s
Color
60 MHz
2
1.0 GS/s
Color
100 MHz
2
Yes on all models
1.0 GS/s
2.5 K points on all models
8-bits
Color
100 MHz
4
1.0 GS/s
Color
200 MHz
2
2.0 GS/s
Color
200 MHz
4
2.0 GS/s
2 mV to 5 V/div on all models with calibrated fine adjustment
±3% on all models
Vertically expand or compress a live or stopped waveform
300 V
RMS
CAT II; derated at 20 dB/decade above 100 kHz to 13 V
p-p
AC at 3 MHz and above
2 mV to 200 mV/div ±2 V; >200 mV to 5 V/div ±50 V
20 MHz for all models
AC, DC, GND on all models
1 MΩ in parallel with 20 pF
5 ns to
50 sec/div
5 ns to
50 sec/div
5 ns to
50 sec/div
5 ns to
50 sec/div
50 ppm
Horizontally expand or compress a live or stopped waveform
5 ns to
50 sec/div
2.5 ns to
50 sec/div
2.5 ns to
50 sec/div
*
1
Bandwidth is 20 MHz at 2 mV/div, all models.
Digital Storage Oscilloscopes
•
TDS1000 and TDS2000 Series
•
www.tektronix.com/tds2000
3
Digital Storage Oscilloscopes
TDS1002
•
TDS1012
•
TDS2002
•
TDS2012
•
TDS2014
•
TDS2022
•
TDS2024
Acquisition Modes
Trigger Source
Peak Detect –
High frequency and random glitch
capture. Captures glitches as narrow as 12 ns
typical using acquisition hardware at all time/div
settings from 5 µs/div to 50 s/div.
Sample –
Sample data only.
Average –
Waveform averaged, selectable: 4, 16,
64, 128.
Single Sequence –
Use the Single Sequence
button to capture a single triggered acquisition
sequence at a time.
Trigger System (Main Only)
2-channel models –
CH1, CH2, Ext, Ext/5, AC Line.
4-channel models –
CH1, CH2, CH3, CH4, Ext,
Ext/5, AC Line.
Trigger View
Autoset Menu fo
Multiple Signal T
Signal
Type
Autoset M
Choice
Displays trigger signal while trigger view button
is depressed.
Trigger Signal
Frequency Readout
Square Wave
Sine Wave
Video (NTSC,
PAL, SECAM)
Single-cycle, M
Rising or Falli
Single-cycle, M
FFT Spec
Provides a frequency readout of the trigger source.
Cursors
Trigger Modes –
Auto, Normal, Single Sequence.
Trigger Types
Types –
Voltage, Time.
Measurements –
[∆]T, 1/[∆]T (frequency), [∆]V.
Field: All, Odd
Line: All or Se
Line Num
Edge (rising or falling) –
Conventional level-driven
trigger. Positive or negative slope on any channel.
Coupling selections: AC, DC, Noise Reject, HF Reject,
LF Reject.
Video –
Trigger on all lines or individual line,
odd/even or all fields from composite video, or
broadcast standards (NTSC, PAL, SECAM).
Pulse Width (or Glitch) –
Trigger on a pulse width
less than, greater than, equal to, or not equal to a
selectable time limit ranging from 33 ns to 10 sec.
Measurement System
Display Characteristics
Automatic Waveform Measurements –
Period,
Frequency, +Width, –Width, Rise Time, Fall Time,
Max, Min, Peak-to-Peak, Mean, Cycle RMS.
Waveform Processing
Display –
Monochrome models: 1/4 VGA, backlit
with adjustable multi-level contrast and
selectable from front panel.
Operators –
Add, Subtract, FFT.
FFT –
Windows: Hanning, Flat Top, Rectangular;
2048 sample points.
Sources –
2-channel models: CH1 - CH2,
CH2 - CH1, CH1 + CH2.
4-channel models: CH1 - CH2, CH2 - CH1,
CH3 - CH4, CH4 - CH3, CH1 + CH2, CH3 + CH4.
Autoset Menu –
Single-button, automatic setup
of all channels for vertical, horizontal and trigger
systems, with undo autoset.
Color models: 1/4 VGA, passive color
color on black background with adjus
multi-level contrast.
Interpolation –
Sin(x)/x.
Display Types –
Dots, vectors.
Format –
YT and XY.
Persistence –
Off, 1 sec, 2 sec, 5 se
4
Digital Storage Oscilloscopes
•
TDS1000 and TDS2000 Series
•
www.tektronix.com/tds2000
Digital Storage Oscilloscopes
TDS1002
•
TDS1012
•
TDS2002
•
TDS2012
•
TDS2014
•
TDS2022
•
TDS2024
I/O Interface
I/O interface
TDS2CMAX Communication Module
TDS2MEM Storage Memory
and Communication Module
Compatibility
Printer Port
Printer Capability
(Requires Module)
TDS200, TDS1000, TDS2000 Series Oscilloscopes
Centronics-type Parallel
TDS1000, TDS2000 Series Oscilloscopes
Graphics File Formats –
TIFF, PCX (PC Paint Brush), BMP (Microsoft Windows), EPS (Encapsulated Postscript) and RLE
Printer Formats –
Bubble Jet, DPU-411, DPU-412, DPU-3445, Thinkjet, Deskjet, Laser Jet,
Epson Dot (9- or 24-pin)*
2
, Epson C60*
2
, Epson C80
Layout –
Landscape and Portrait
Full talk/listen modes. Control of all modes, settings and measurements.
Baud rate up to 19,200. 9-pin DTE RS-232 Cable (012-1651-00) included
Full talk/listen modes. Control of all modes,
settings and measurements.
Not Available
•
RS-232 Programmability
GPIB (IEEE std. 488-1987)
Programmability
Mass Storage
CompactFlash
®
Memory
Not Available
Type 1 CompactFlash memory card supplied with Module*
3
•
Accepts any Type 1 CompactFlash card, up to and including 1 GB
•
Built-in Clock/Calendar
•
Includes CompactFlash to USB Memory Card Reader
for use with Personal Computer
OpenChoice
™
PC
Communications
Software
TDSPCS1 OpenChoice PC Communications Software included with each Module
•
Seamless connection from oscilloscope to PC through GPIB and RS-232
•
Transfer and save settings, waveforms, measurements, and screen images
•
Includes a Windows desktop data transfer application in addition to convenient Microsoft Word and Excel Toolbar Add-ins
•
*
2
Requires instrument firmware version 2.12/4.12 or higher to support Epson C60/C80 printer formats.
*
3
Supplied Type 1 CompactFlash memory card storage capacity 8 MB or greater.
Digital Storage Oscilloscopes
•
TDS1000 and TDS2000 Series
•
www.tektronix.com/tds2000
5
