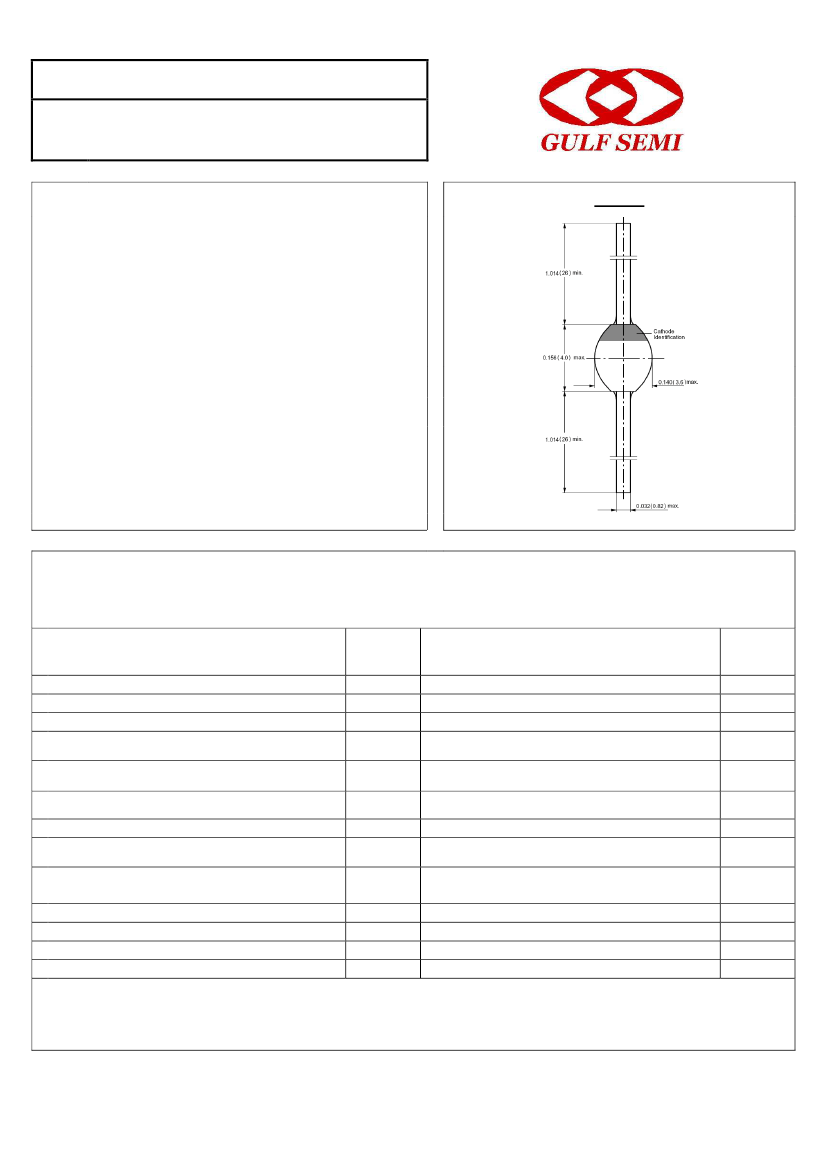

BYV26F

SINTERED GLASS JUNCTION

FAST AVALANCHE RECTIFIER

VOLTAGE：1200V

：

CURRENT: 1.05A

FEATURE

Glass passivated

High maximum operating temperature

Low leakage current

Excellent stability

Guaranteed avalanche energy absorption capability

SOD-57

MECHANICAL DATA

Case: SOD-57 sintered glass case

Terminal: Plated axial leads solderable per

MIL-STD 202E, method 208C

Polarity: color band denotes cathode end

Mounting position: any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half-wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Reverse avalanche breakdown voltage

IR = 0.1 mA

Maximum Average Forward Rectified

Current 3/8”lead length at Ttp =85°C

Non-repetitive Peak Forward Current at t=10ms half

sine wave

BYV26F

1200

910

1200

1300min

1.05

2.15

5.0

150.0

150

100

-65 to +175

units

µA

K/W

°C

RRM

RMS

(BR)R

FAV

FSM

RSM

Trr

th(ja)

Tstg, Tj

Maximum Forward Voltage at 1.0A

Non-repetitive peak reverse avalanche energy

(Note 1)

Maximum DC Reverse Current

Ta =25°C

at rated DC blocking voltage

Ta =165°C

Maximum Reverse Recovery Time

(Note 2)

Diode Capacitance

(Note 3)

Typical Thermal Resistance

(Note 4)

Storage and Operating Junction Temperature

Note:

1. I

=400mA; Tj=Tjmax prior to surge; inductive load switched off

2. Reverse Recovery Condition If

=0.5A,

Ir =1.0A, Irr =0.25A

3. Measured at 1.0 MHz and applied reverse voltage of 0Vdc

4. Device mounted on an epoxy-glass printed-circuit board, 1.5mm thick

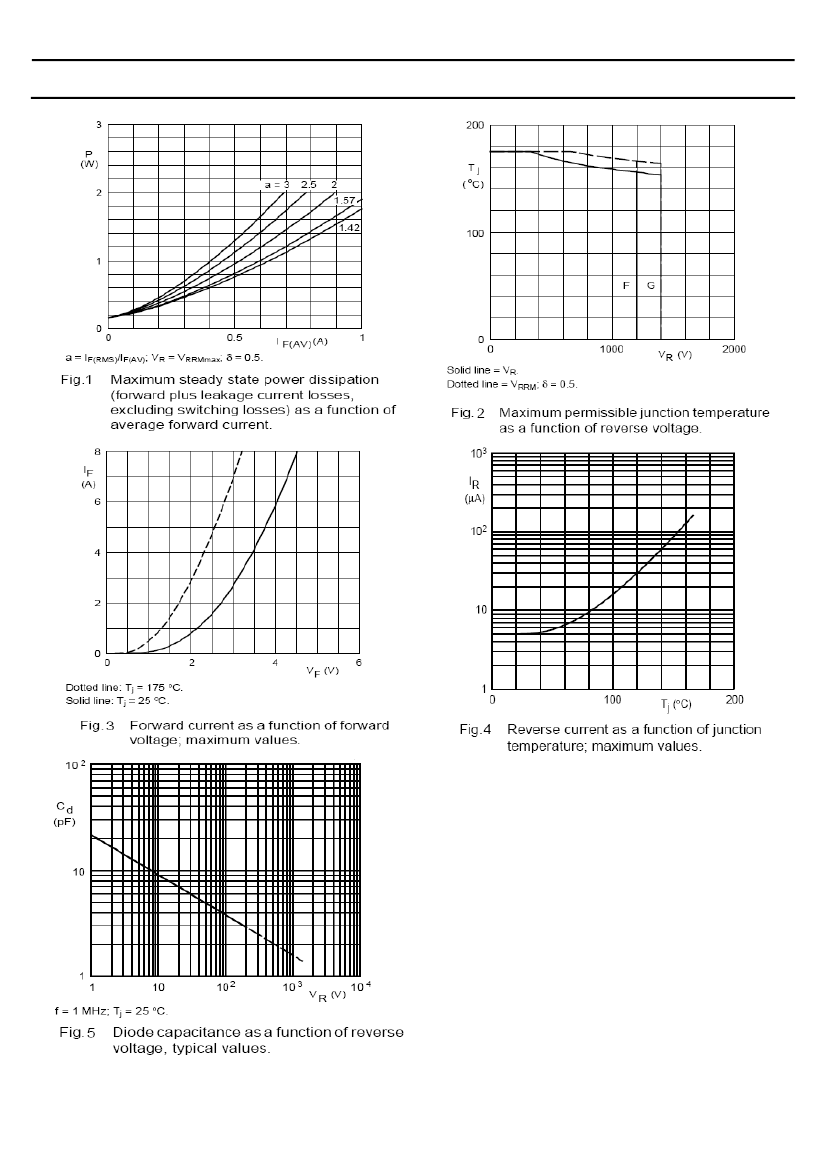

Rev.A1

www.gulfsemi.com
